Genie Z62/40

Genie Articulated Boom Lifts

POA

2025 | REF WP26862

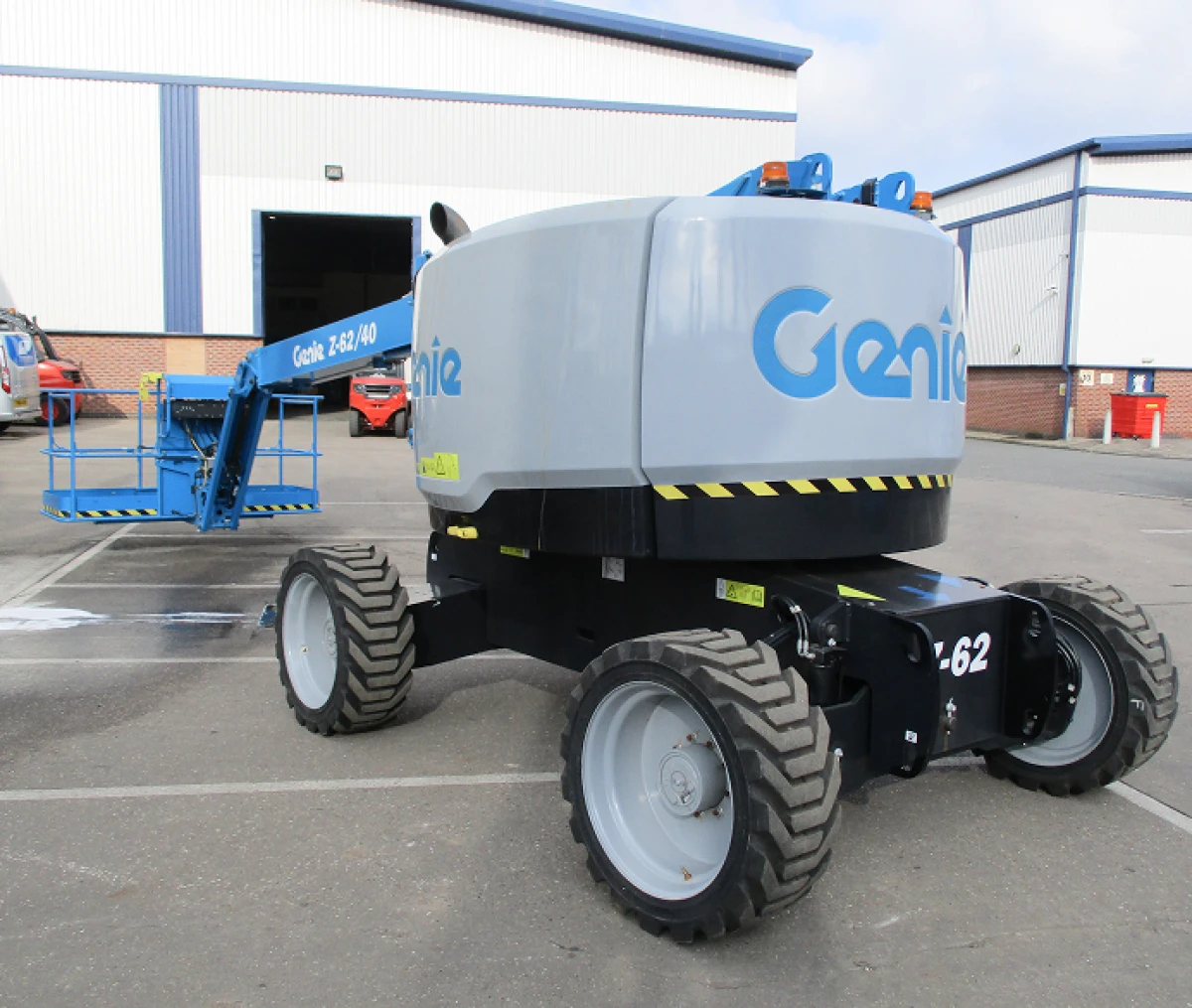

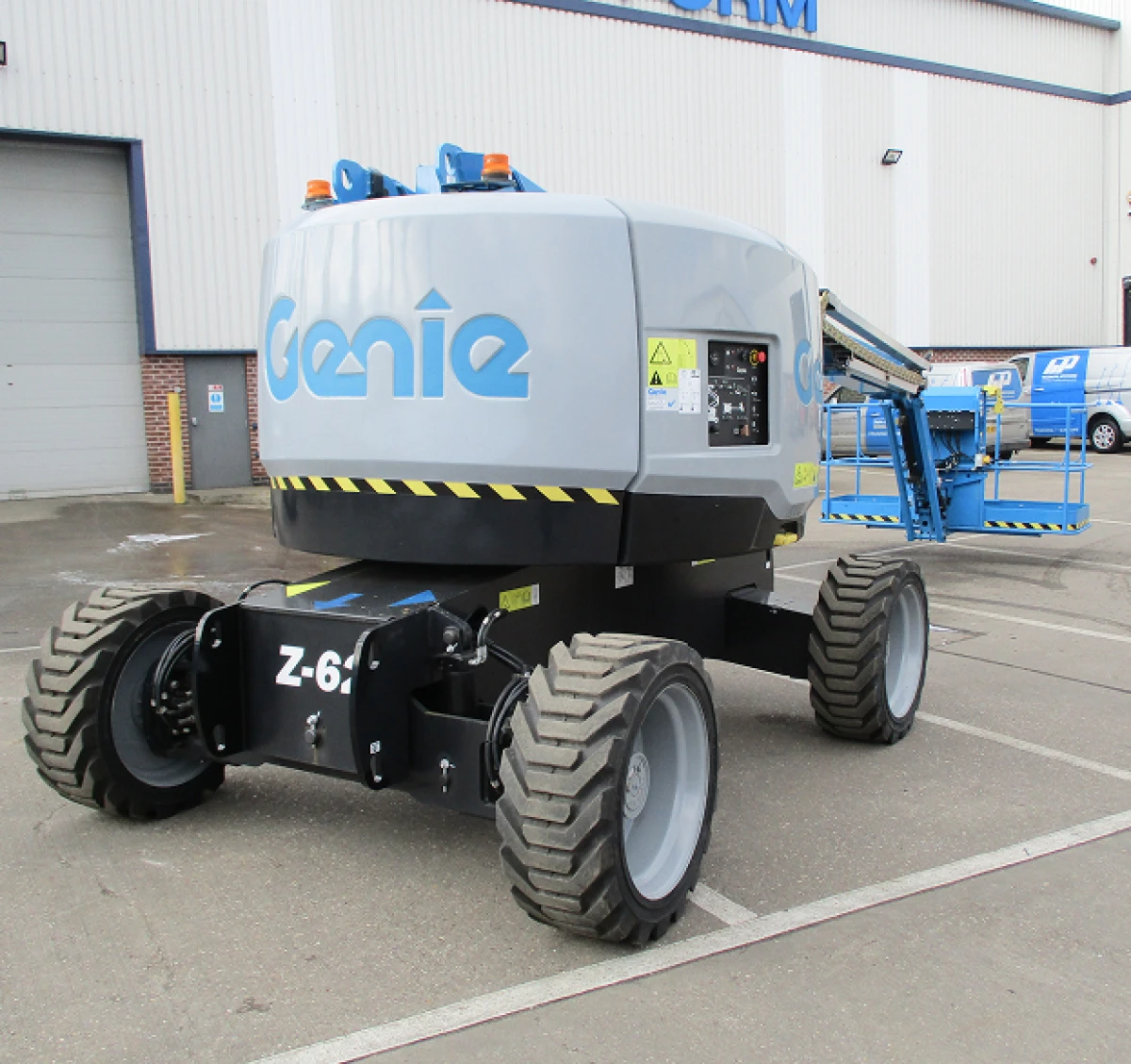

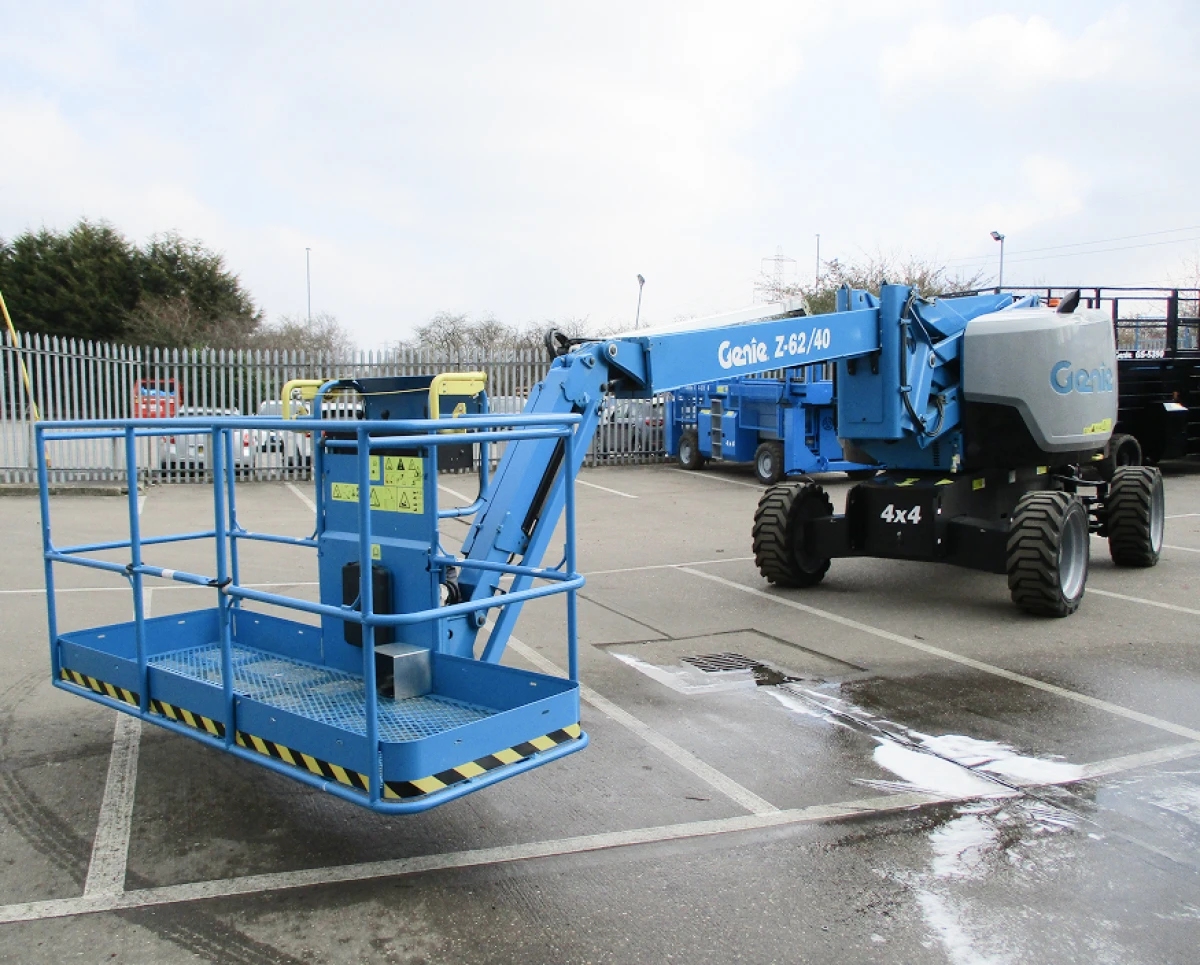

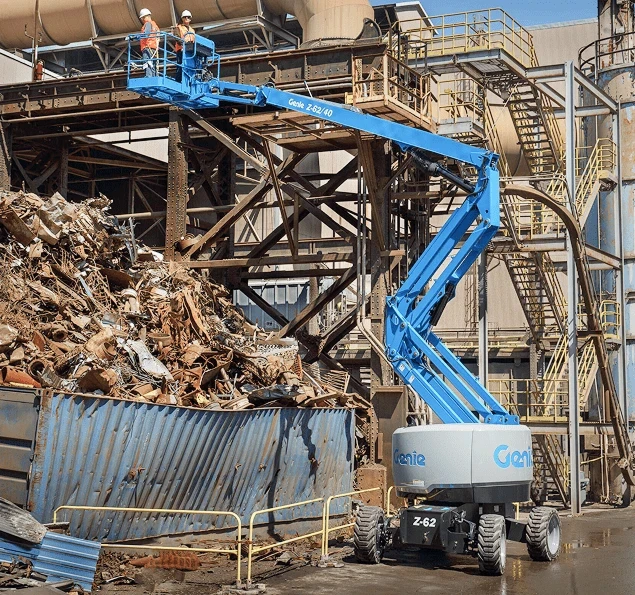

With a working height of 20.87m, 12.42m horizontal reach, the Genie Z-62/40 provides lifting versatility with a combination of up and over positioning and horizontal reach capabilities. The Z62/40 offers excellent manoeuvrability and, with the Genie Fast Mast boom system, allows rapid movement to full height or to below ground level.

Applications

Construction projects
Inspection tasks
Installation projects
Distribution
Maintenance tasks

Features

Automatically adjusts to ground conditions, ensuring tyre contact for improved traction and stability on uneven or rugged terrain.

The Z-62/40 can handle challenging worksites with ease, offering strong climbing power and reliable manoeuvrability across sloped or rough terrain.

Provides smooth operation, allowing for accurate positioning when working in confined areas.

Provides excellent up-and-over capabilities, enabling operators to position themselves exactly where needed for more efficient work at height.

It facilitates rapid movement between ground level and working height, allowing for quick retrieval of tools or materials without sacrificing time.

Allows for easy, safe positioning in tight areas without the risk of collisions.

Specification

The Genie Z-62/40 Boom provides lifting versatility with a combination of up and over positioning and horizontal reach capabilities.

Working height 20.87m
Platform height 18.87m
Horizontal reach 12.42m
Up and over clearance 7.8m
Lifting capacity 227kg
Machine width 2.49m
Below ground reach 2.46m
Machine weight 10,063kg

Servicing & Repairs

Our in-house, Genie factory-trained team of mobile engineers cover the entire country, ensuring expert support is never far away.

Genie OEM Parts

Keep your Genie in operation with genuine Genie OEM parts. With thousands of parts stocked and ready for delivery nationwide.

Free, no obligation site survey.

Making sure that you achieve the most from your budget.

We are here to support you

Our only priority is to supply you with the best and safest products and support you to the highest level.
