In Stock

Star 10

Haulotte Vertical Mast Booms

Features Specifications Gallery FAQs Support

Versatile and compact

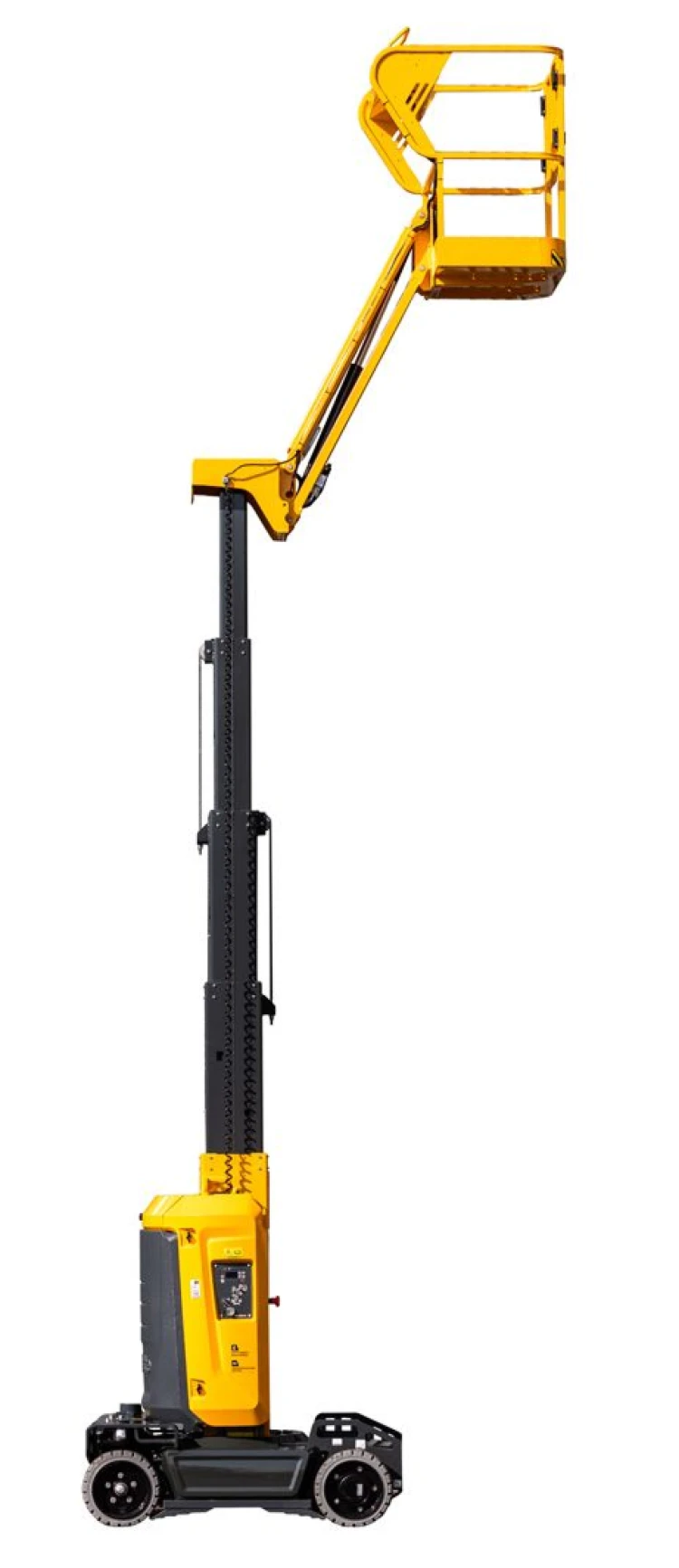

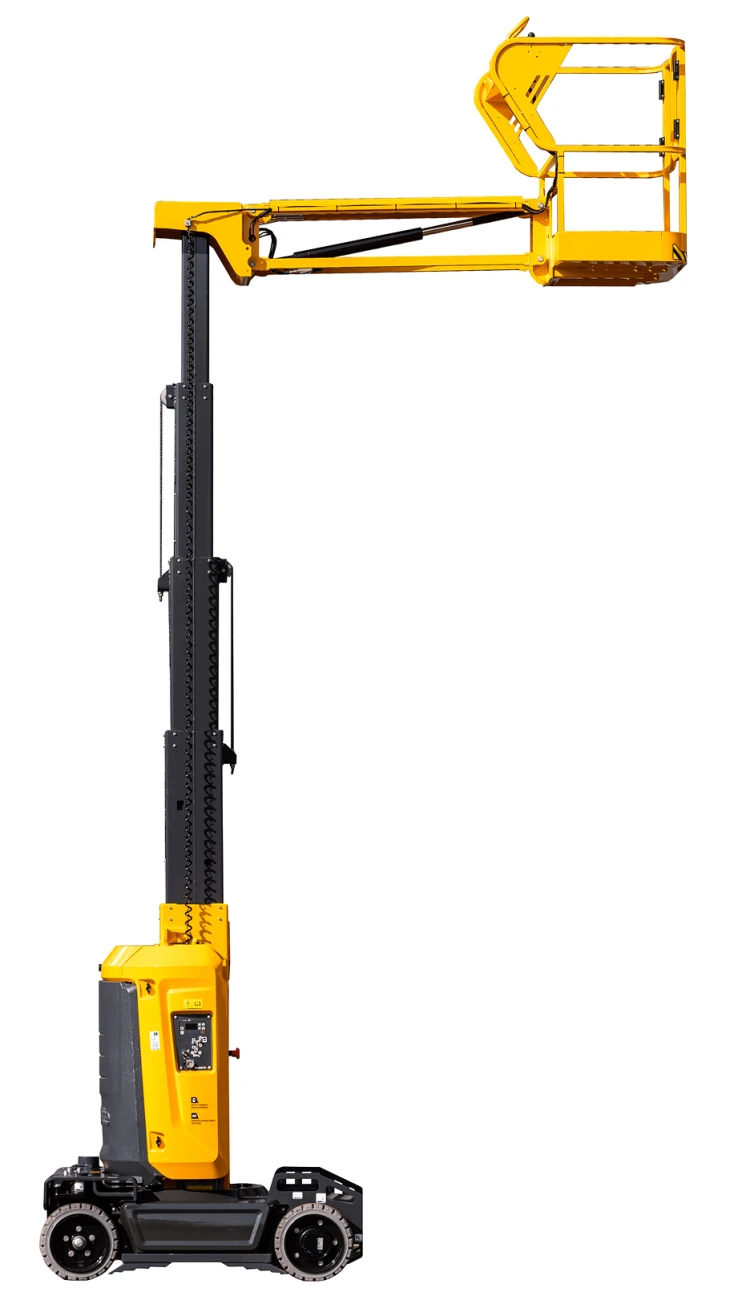

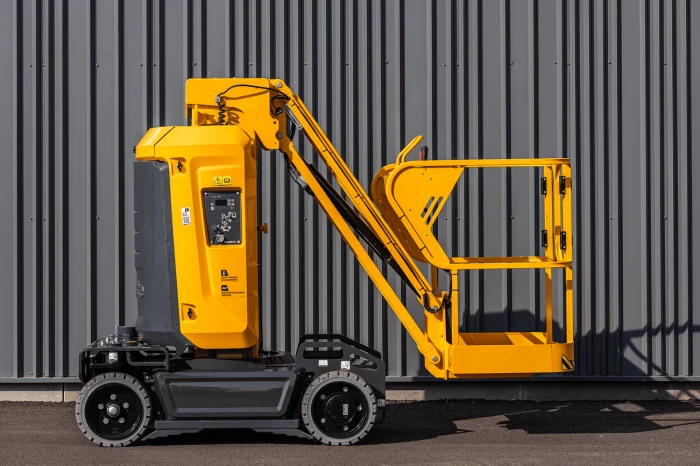

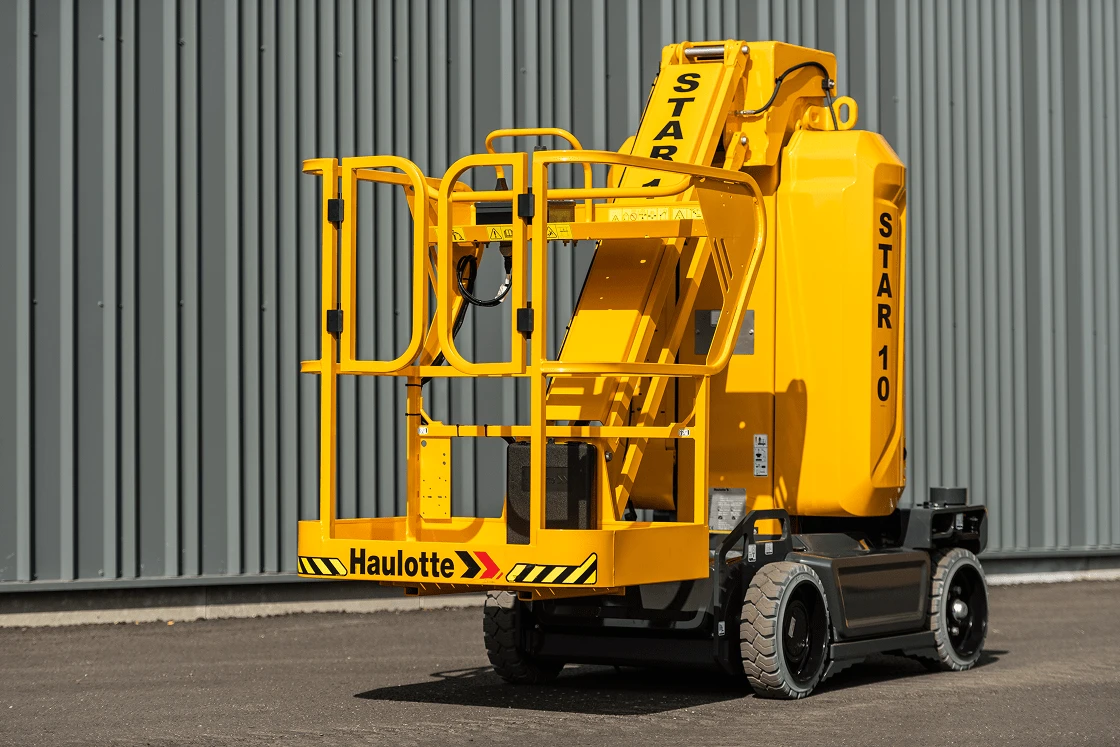

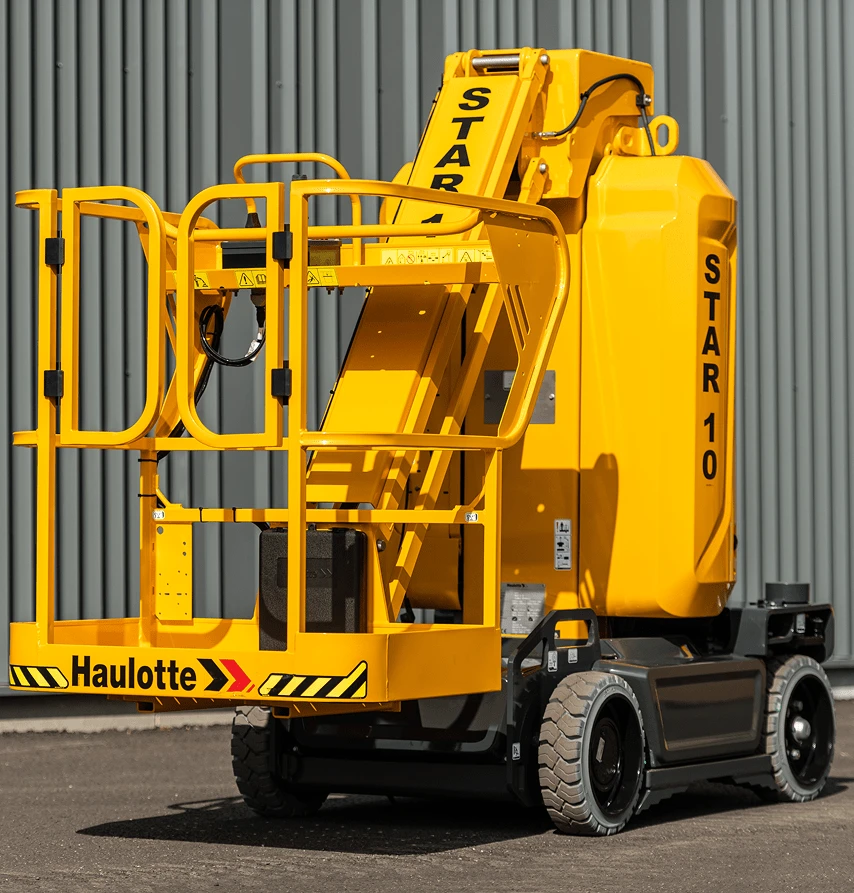

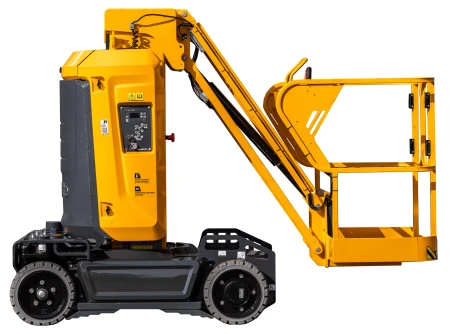

The Haulotte Star 10 vertical mast boom offers a 10.00m working height and an impressive 3.00m horizontal reach. With a compact width of just 1m and zero tail swing, it is highly maneuverable and perfect for navigating tight spaces. Powered by maintenance-free electric AC motors and featuring a 25% gradeability, the Star 10 is ideal for use in warehouses, stores, and other confined environments.

Applications

Confined spaces
Inspection tasks
Installation projects

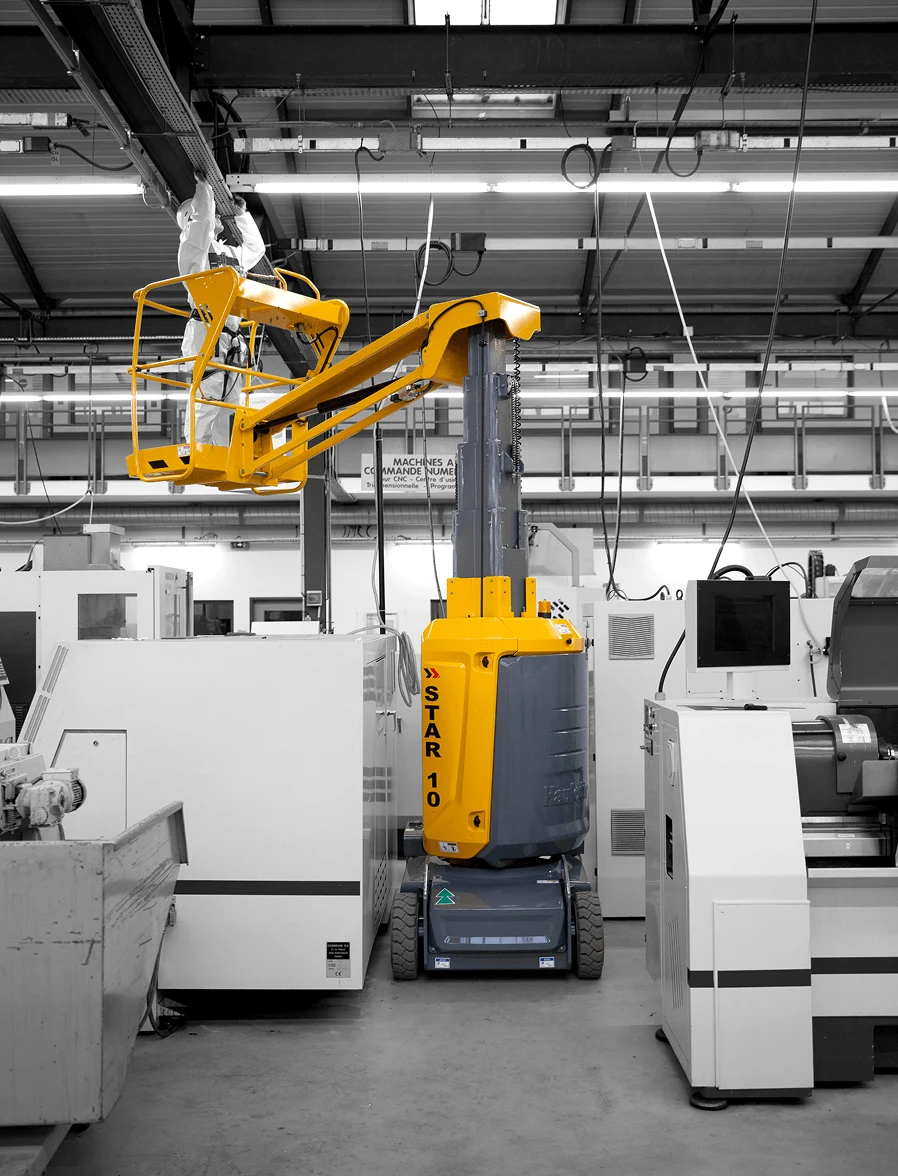

Maintenance tasks
Warehouse work

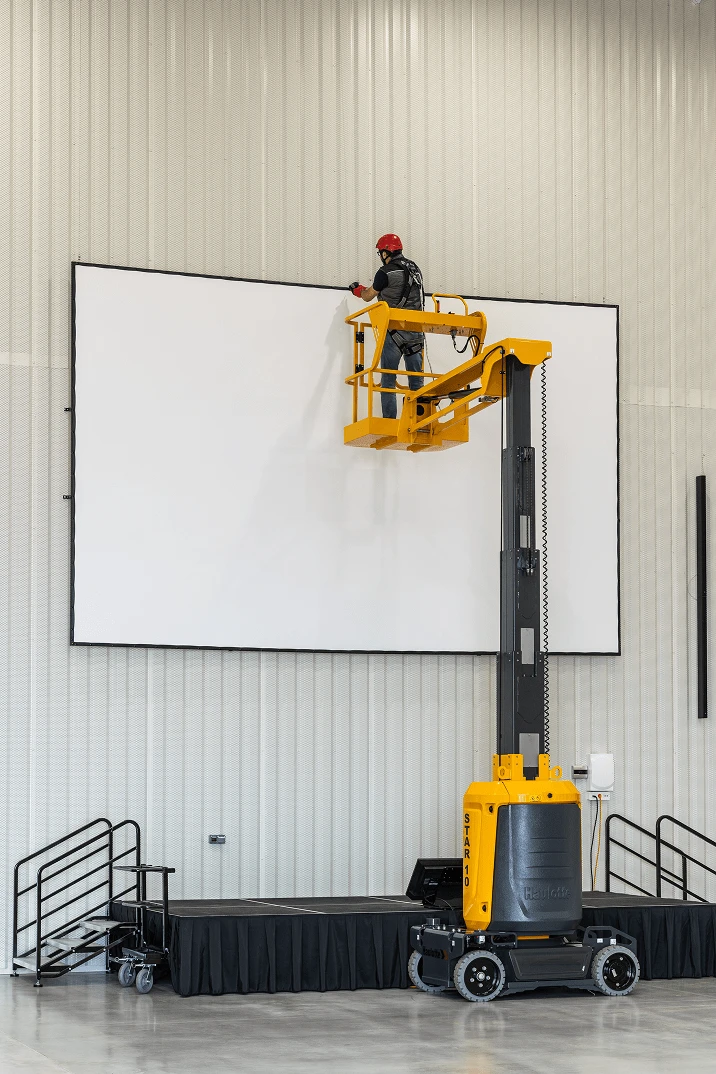

Event set up

Features

Delivers smooth, precise control and efficient power with reduced energy consumption.

Provides excellent maneuverability while protecting sensitive flooring in indoor environments.

The compact design and responsive handling make the Haulotte Star 10 easy to navigate through tight indoor spaces and congested job sites.

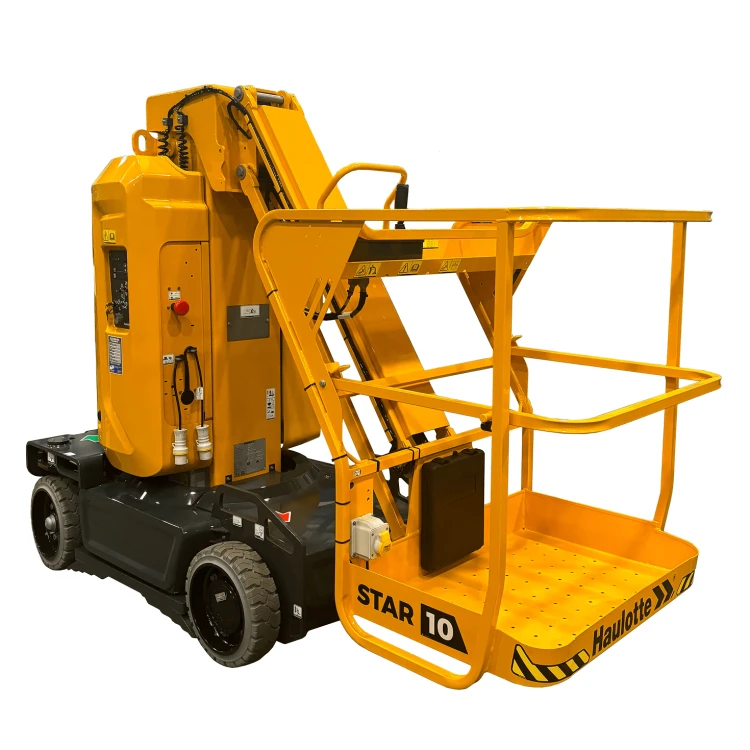

Built-in fork lift pockets allow the Haulotte Star 10 lift to be easily loaded, unloaded, and transported.

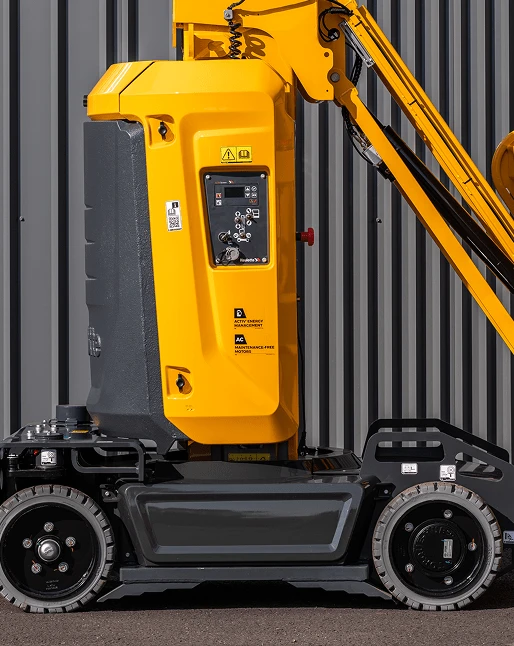

The Haulotte Star 10 features maintenance-free brushless AC motors. The Haulotte Activ'Screen onboard diagnostic and battery charge indicator, paired with the Haulotte Activ'Energy management system, ensures easy maintenance and servicing.

Allows safe operation in narrow spaces without risk of damaging surrounding structures or equipment.

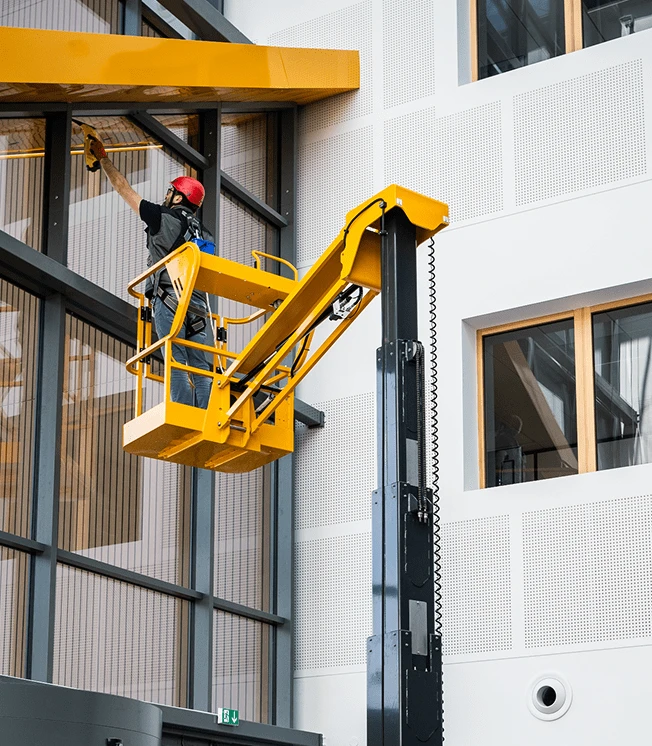

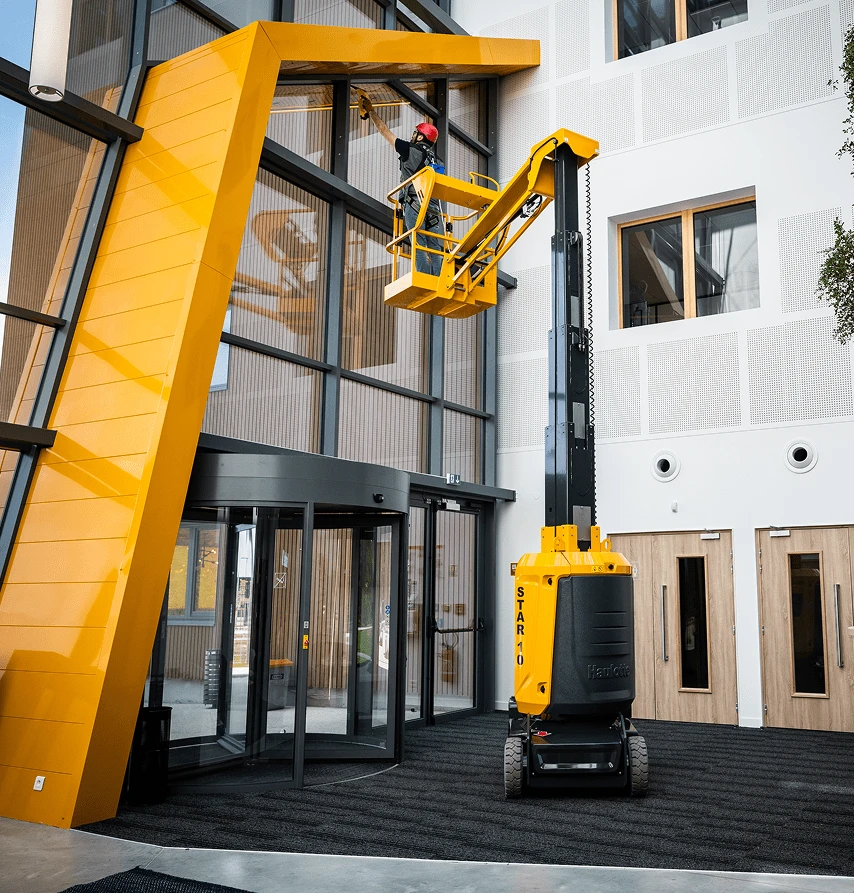

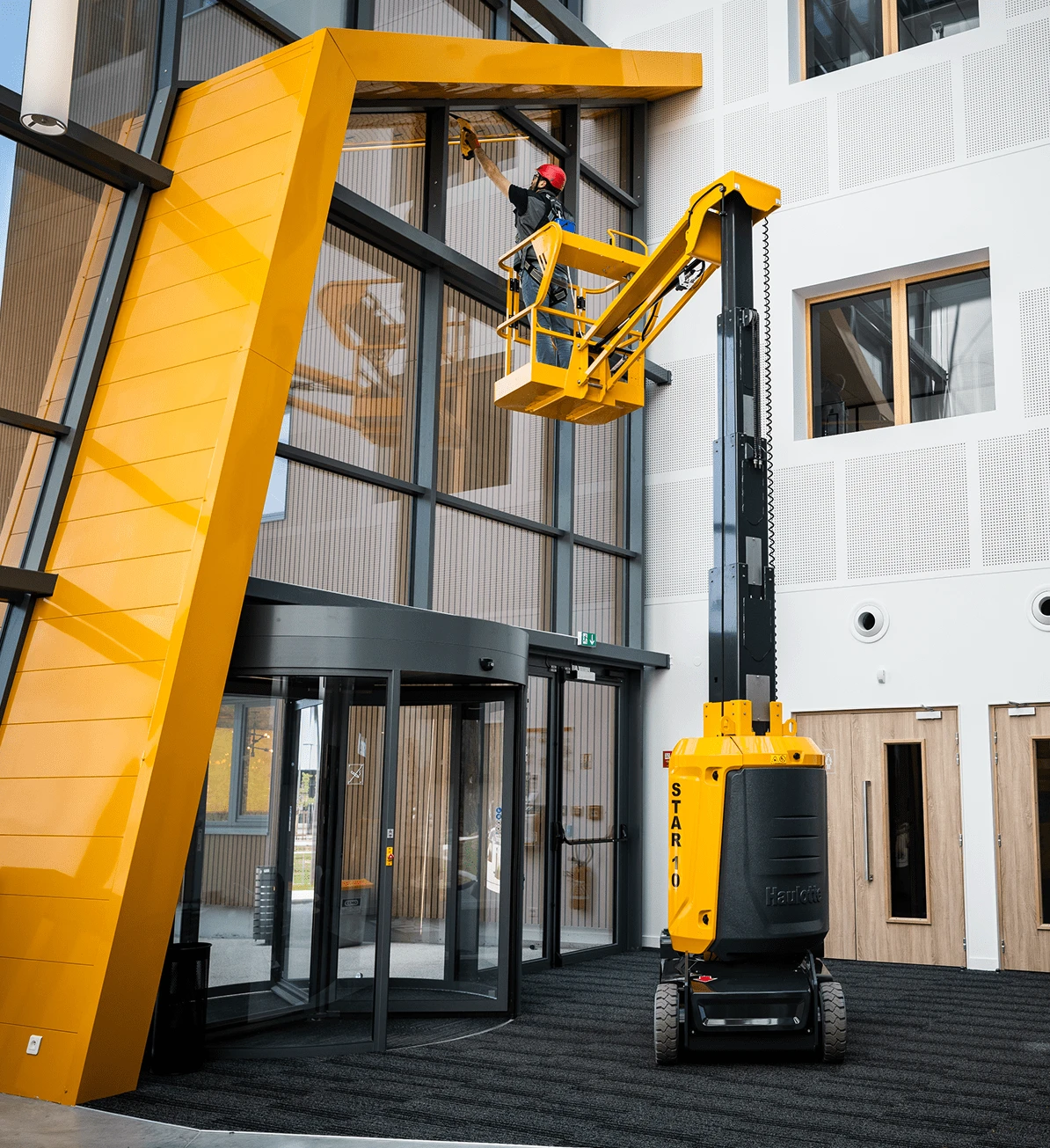

Provides extended reach and flexibility for accessing hard-to-reach areas above and around obstacles.

Easily climbs truck ramps or slight inclines.

Specification

Delivering full sized capabilities in a compact and lightweight frame.

Working height 10.00m
Platform height 8.00m
Horizontal outreach 3.00m
Lift capacity 200kg
Stowed height 1.99m
Machine width 1.00m
Machine lengh 2.70
Machine weight 2677kg
Free, no obligation site survey.

Making sure that you achieve the most from your budget.

FAQs

The Haulotte Star 10 mast boom offers a working height of 10.00m.

Yes, the Haulotte Star 10 vertical mast boom can be driven at full height.

The Haulotte Star 10 has a lifting capacity of 200kg.

Absolutely, the Haulotte Star 10 vertical mast boom is in stock now and ready for immediate delivery across the UK.

We’ve got you covered. Contact our sales team for price and availability for the Haulotte Star 10.

We are here to support you

Our only priority is to supply you with the best and safest products and support you to the highest level.

Servicing & Repairs

Genie OEM Parts

Service Contracts

Finance Options

Accessories

Part Exchange

Operator Training

Haulotte Star 10 Vertical Mast Lift

The Haulotte Star 10 is a highly maneuverable and compact vertical mast boom with high performance, the ideal solution for space-restricted areas. With a working height of 10.00m and a remarkable horizontal reach of 3.00m, it makes it a perfect solution for when working in narrow aisles, warehouses, and shops. Being only 1.00m in width and having zero tail swing enables the Star 10 to maneuver within tight spaces.

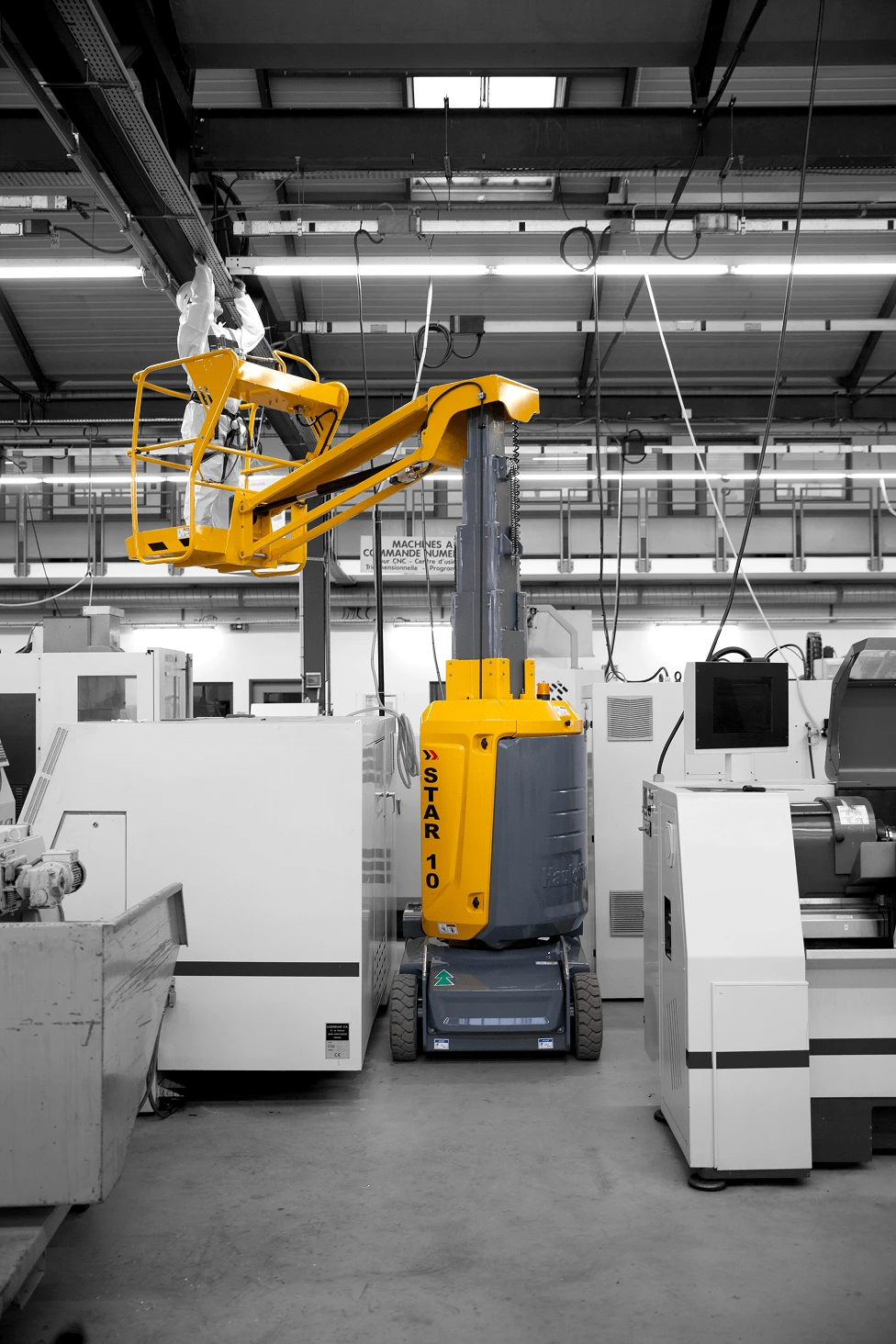

Equipped with maintenance-free electric AC motors, the Star 10 offers optimal performance with minimal loss of time. Brushless motors provide exceptional driving performance, ensuring smooth operation in all working environments. The 25% gradeability is ideal for jobs where the machine must climb slopes or lorry ramps. The 3m outreach vertical jib provides the convenience to access all types of elevated applications, perfect when operators are required to reach up and over obstacles.

Haulotte Activ's Activ'Screen onboard diagnostic and battery charge level indicator informs you about the machine's health, minimising the need for routine checks. Haulotte Activ'Energy Management optimizes battery performance for extended operating times. For maximum transportation convenience, Star 10 features forklift tine pockets, making it easy to move around the site, load, and unload.

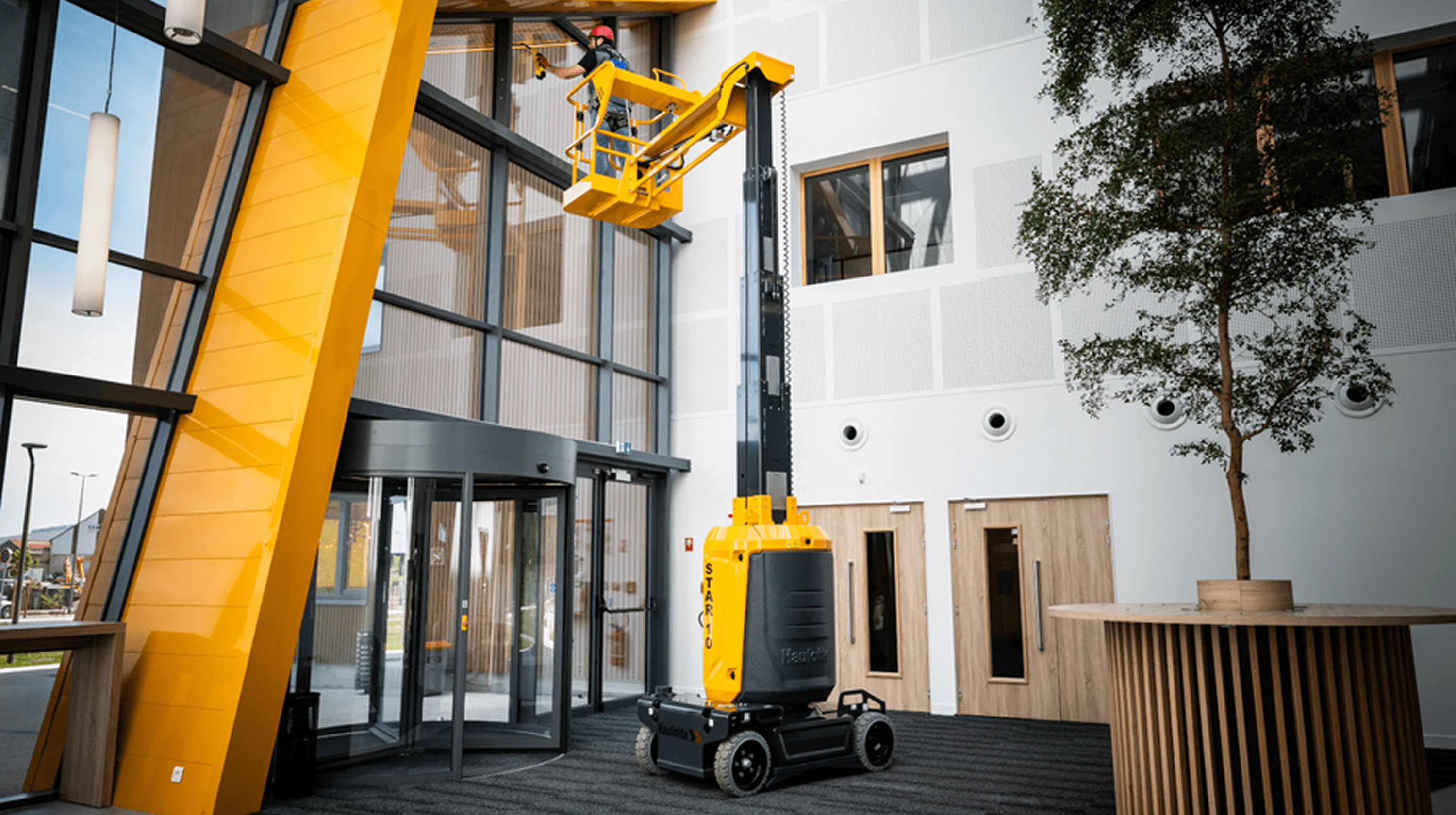

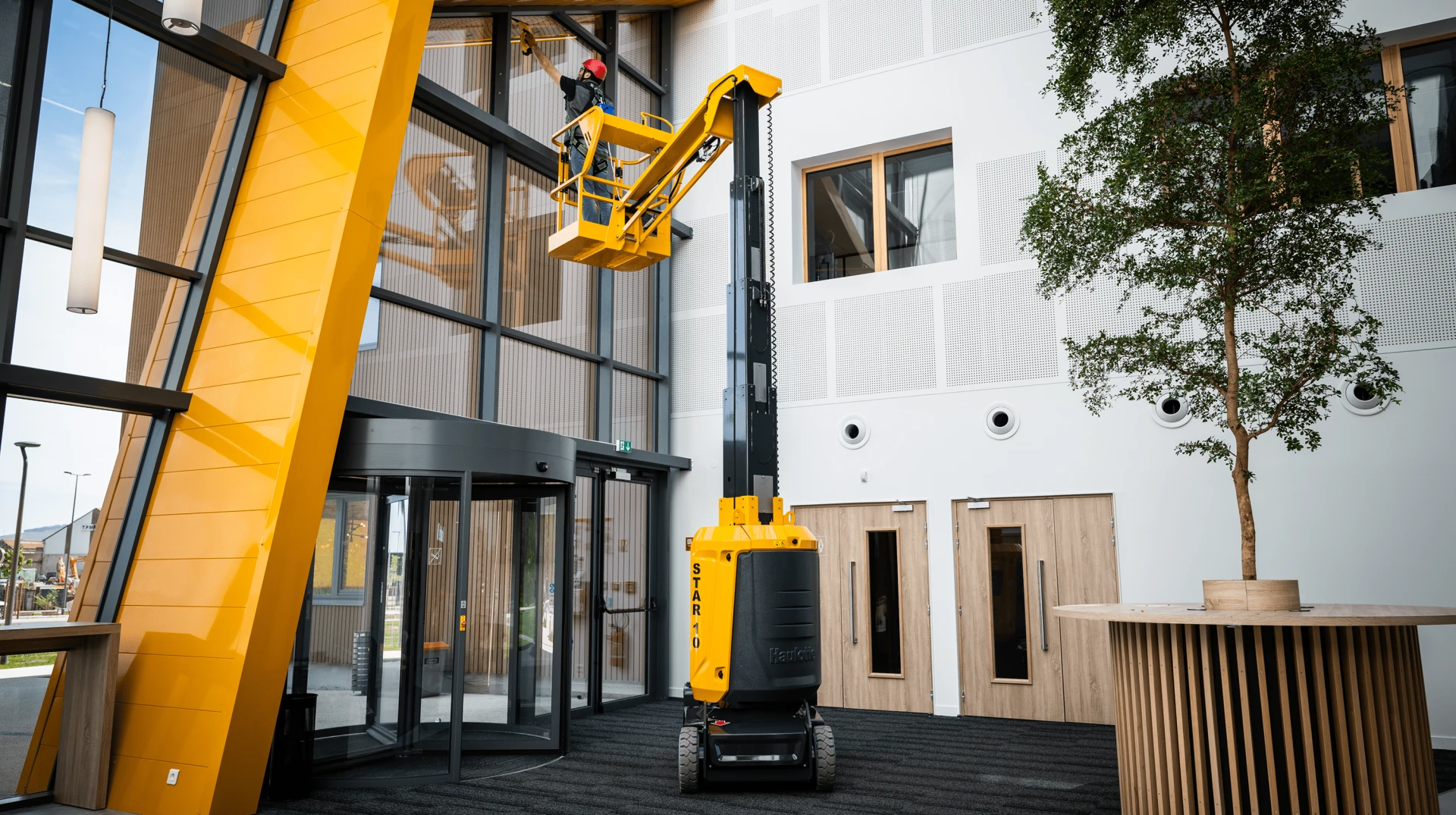

Well-suited to maintenance operations, logistics, retail environments, and event installations, the Haulotte Star 10 provides an economical solution to high-reach activities in confined areas.

Equipped with a combination of robust performance, comfort of use, and low maintenance needs, the Star 10 is a trusted option when reliability and effectiveness are needed.

Buy the Haulotte Star 10

Contact us today for information on pricing and availability.
