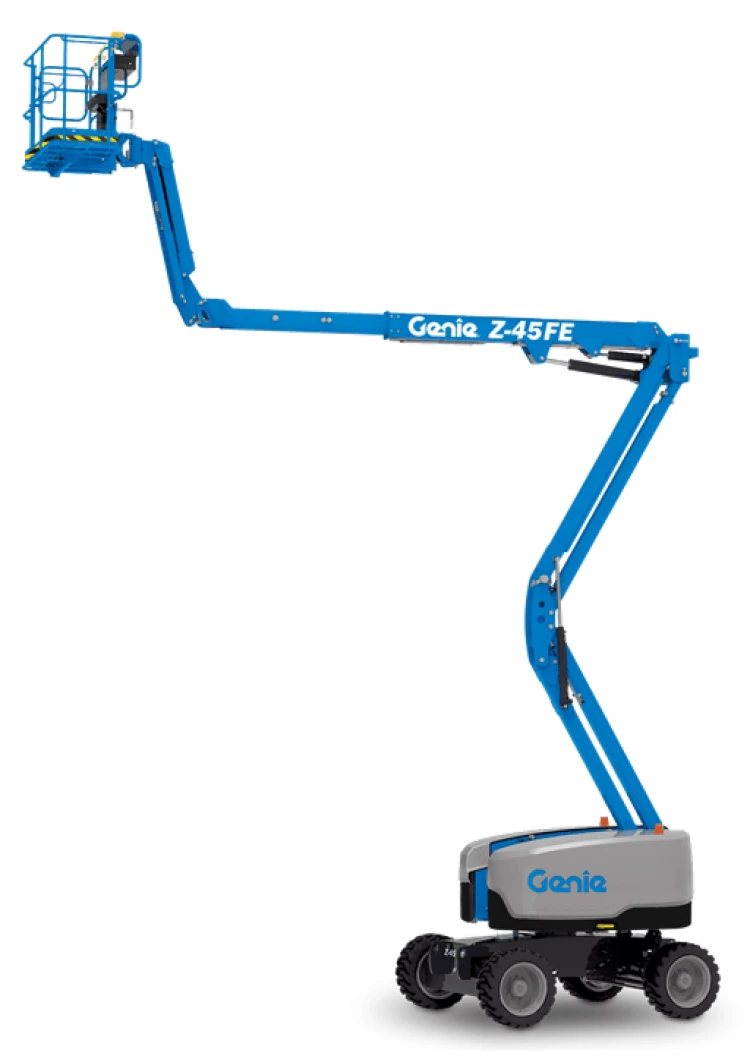

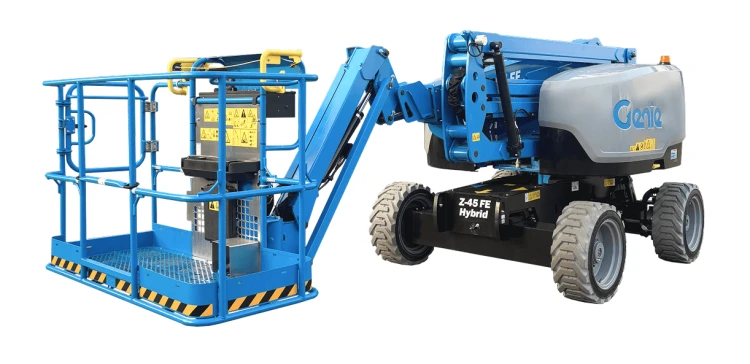

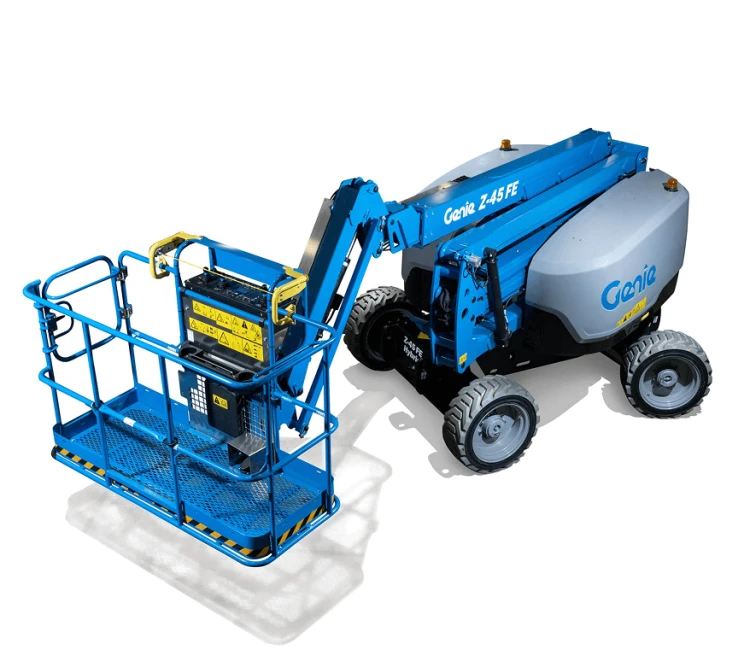

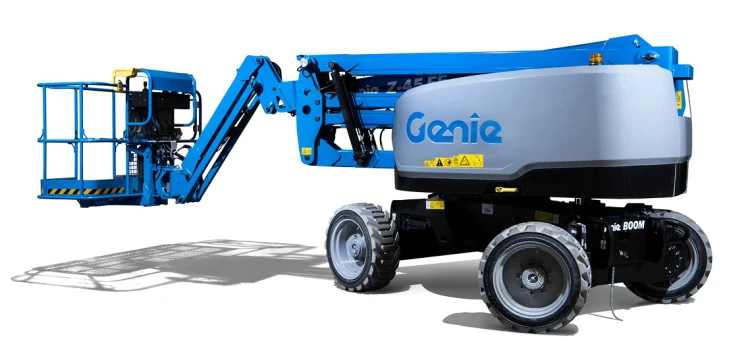

Genie Z45 FE

Genie Articulated Boom Lifts

A hybrid machine with unrivalled performance

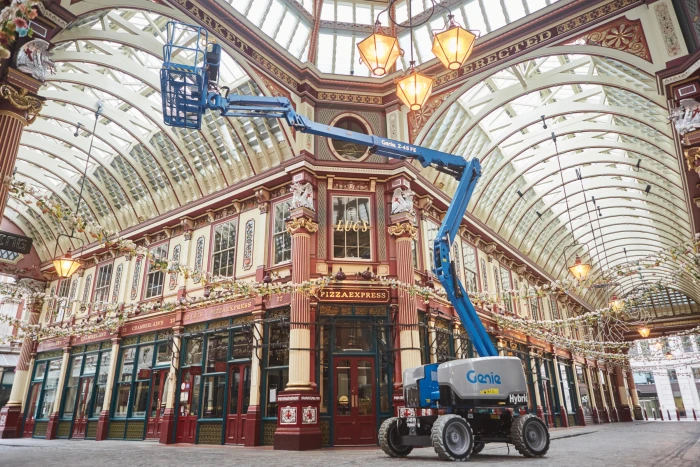

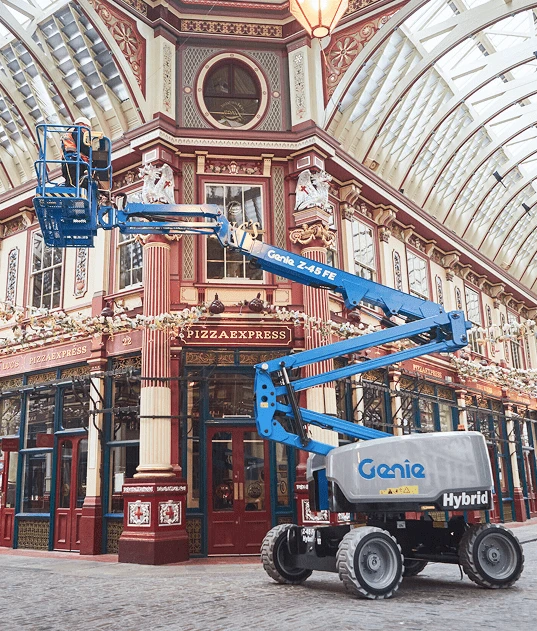

The Genie Z-45 FE is a hybrid, two-in-one articulating boom lift offering a versatile, eco-friendly and powerful solution with low operating costs. It delivers a full day of emissions-free performance in all-electric mode, or up to a week’s run time in hybrid mode on one tank of diesel. With a 15.92m working height, it’s ideal for both indoor and outdoor applications where efficiency and flexibility are key.

*Contact us for availability

Applications

Construction projects
Distribution
Inspection tasks
Installation projects
Maintenance tasks

Features

The Genie Z-45 FE articulating boom lift offers two modes of operation. Choose between fully electric or hybrid mode depending on your working environment.

Equipped with a full-time oscillating axle, the Z45 FE adjusts to uneven terrain, enabling it to maintain consistent contact with all wheels for better traction and stability on rough terrain.

Genie's industry-leading AC drive system enhances driving performance and simplifies any maintenance work.

Equipped with an articulating jib gives operators more flexibility when it comes to accurately positioning around obstacles.

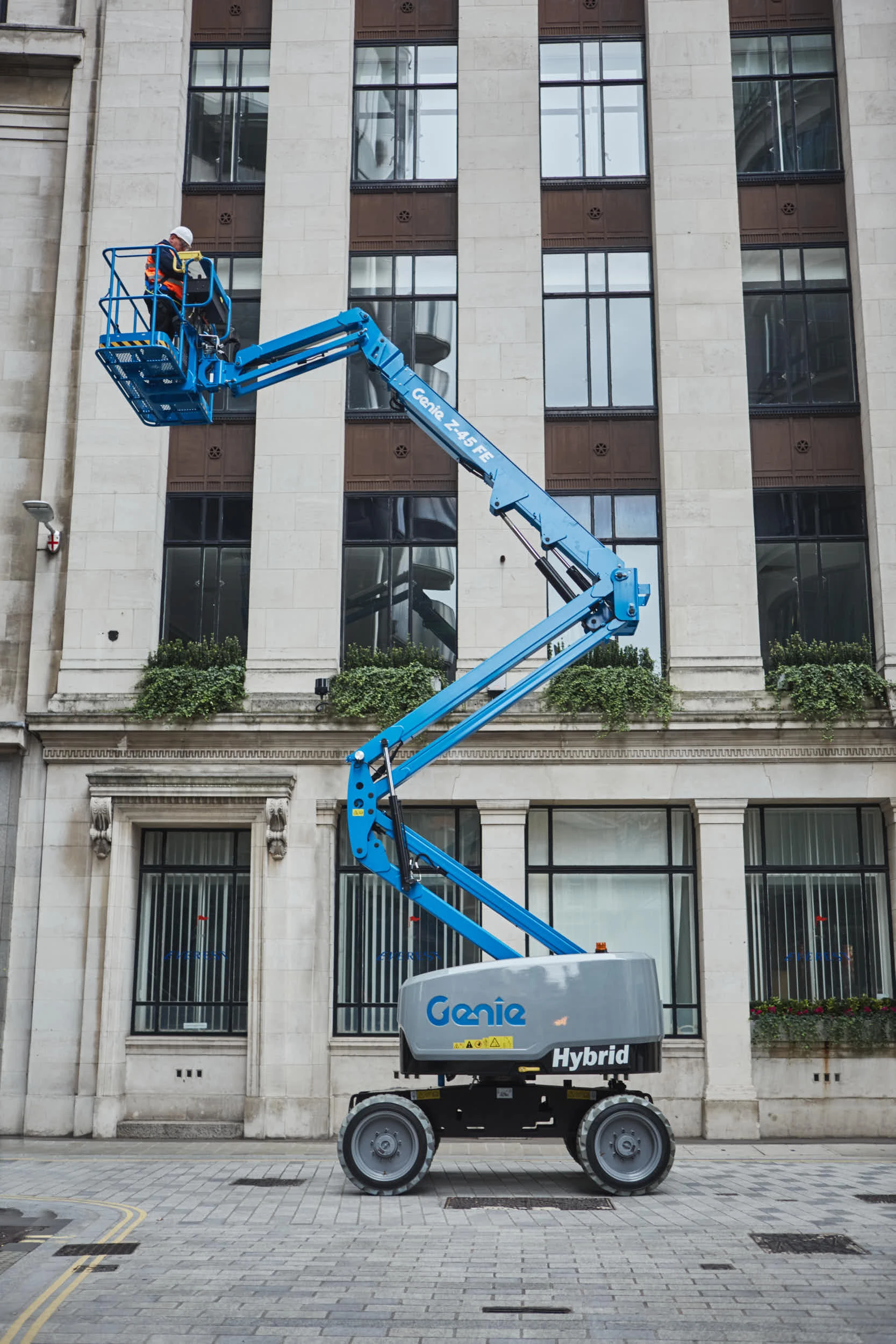

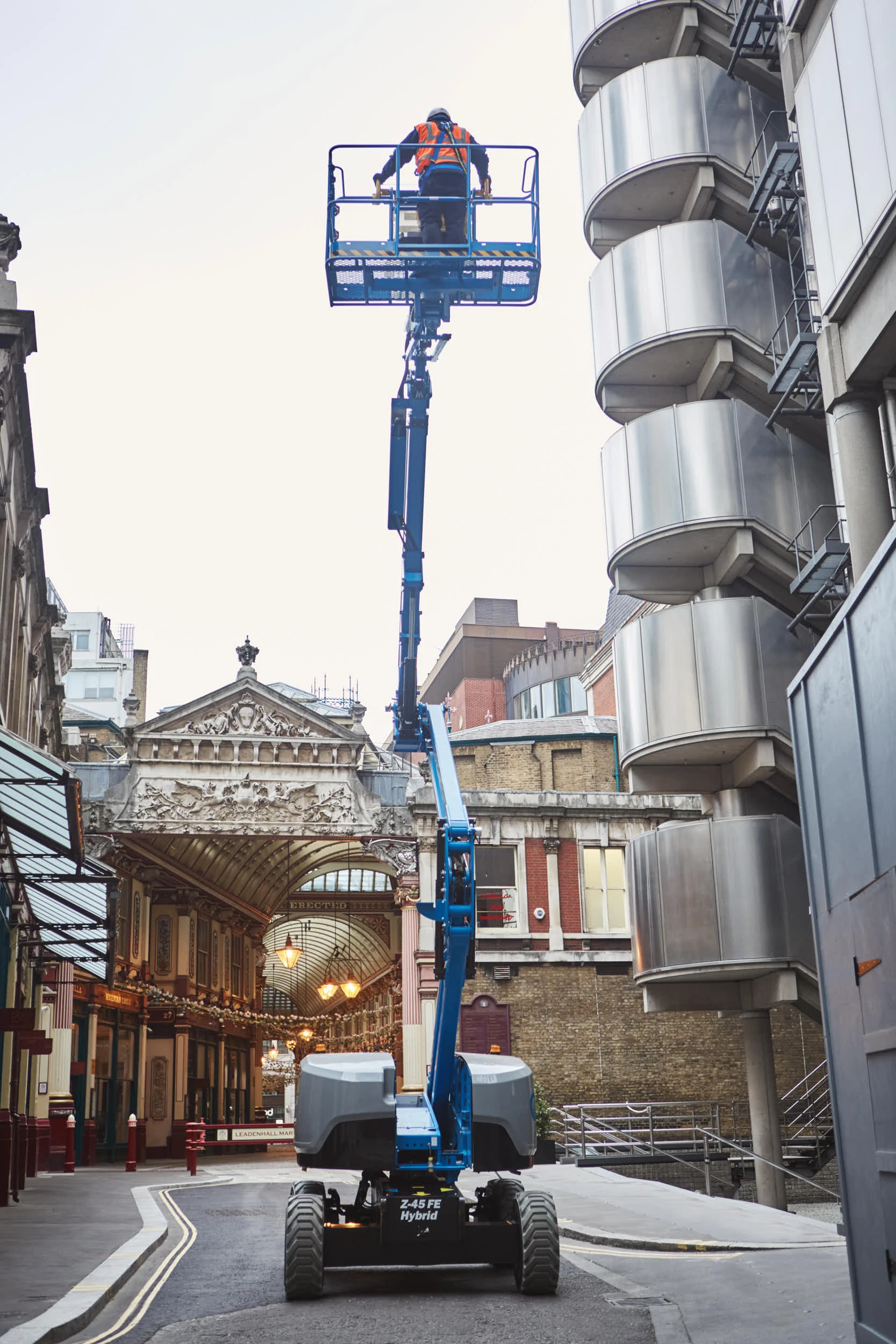

The dual parallelogram lift design allows operators to ascend and descend along a vertical plane without having to retract or extend either boom section.

Allows precise handling of both lift and drive functions, giving the operator better control and accuracy during operation.

Provides exceptional drive performance on rough terrain.

Designed to handle rough terrain surfaces while still protecting indoor surfaces, making them perfect for a wide range of applications.

Specification

A true hybrid machine giving the ability to switch between fully electric and hybrid.

Working height 15.92m
Platform height 13.92m
Horizontal reach 6.94m
Up and over clearance 7.50m
Lift capacity 300kg

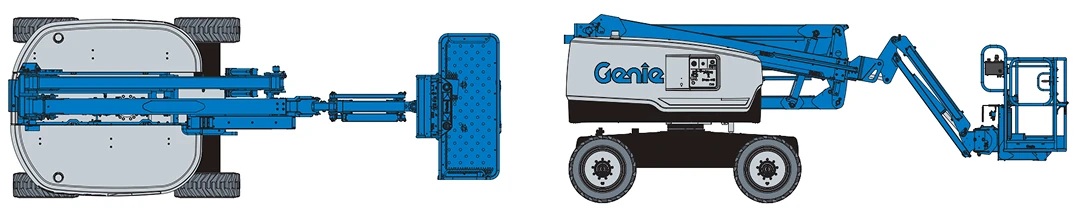

Machine width 2.29m
Stowed length 6.11m
Machine weight 6559kg
Free, no obligation site survey.

Making sure that you achieve the most from your budget.

Servicing & Repairs

Our in-house, Genie factory-trained team of mobile engineers cover the entire country, ensuring expert support is never far away.

Genie OEM Parts

Keep your Genie in operation with genuine Genie OEM parts. With thousands of parts stocked and ready for delivery nationwide.

FAQs

The Genie Z45 FE offers a working height of 15.92m.

The Genie Z45 FE can be used for a wide range of tasks both indoors and outdoors, as it is a true hybrid machine.

Yes, as the UK's authorised Genie dealer, we sell all the Genie articulating boom lifts.

The Genie Z-45 FE is the perfect solution for any task where emissions or noise pollution could be a problem.

We’ve got you covered. As the UK’s authorised Genie dealer, we provide expert advice, competitive pricing, and nationwide delivery. Contact our sales team for price and availability for the Genie Z45 FE articulated boom lift.

We are here to support you

Our only priority is to supply you with the best and safest products and support you to the highest level.

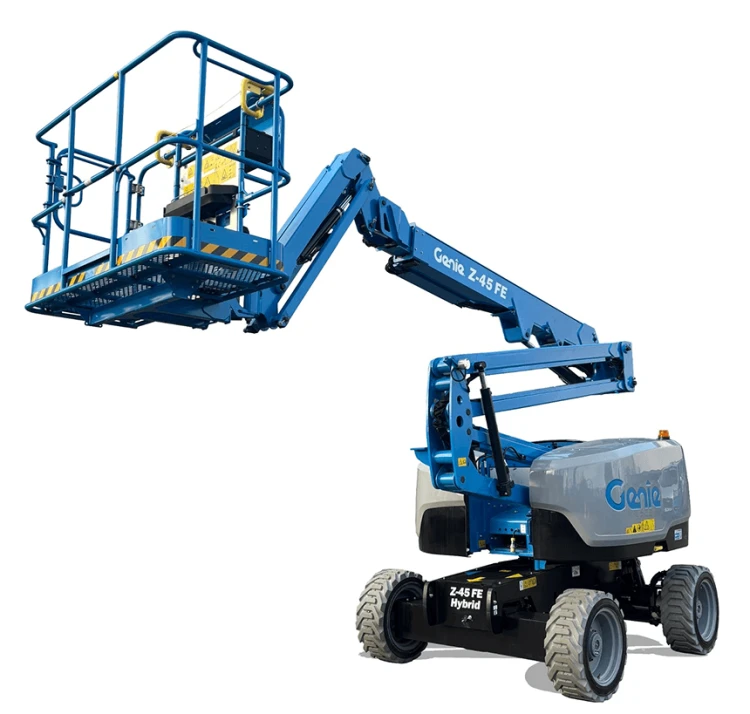

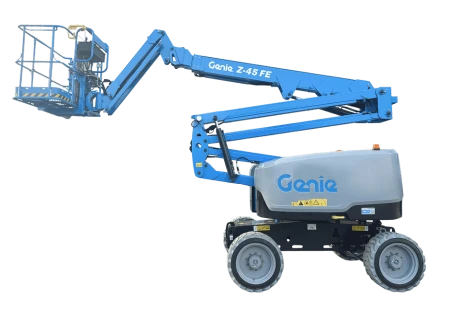

Genie Z-45 FE Articulating Boom Lift

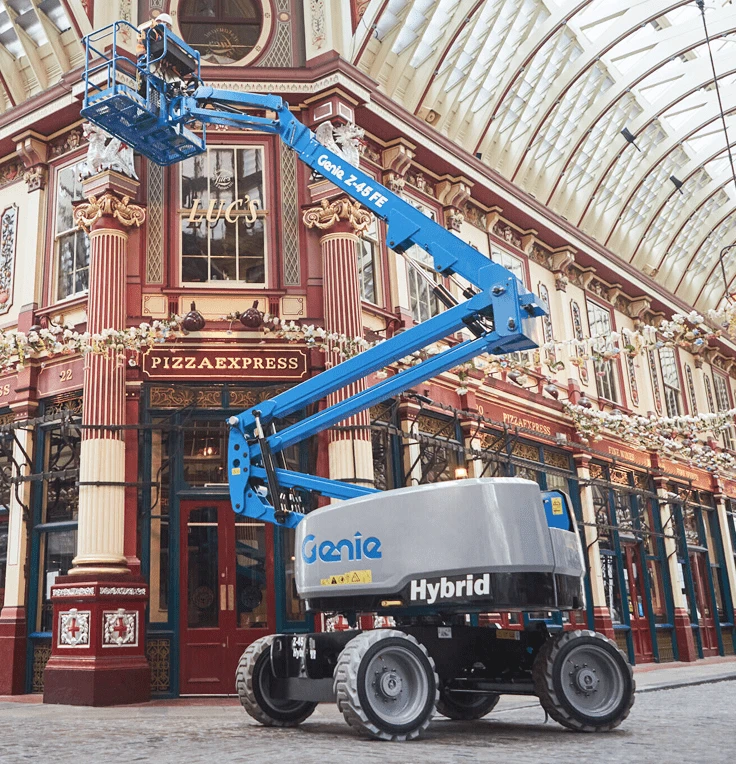

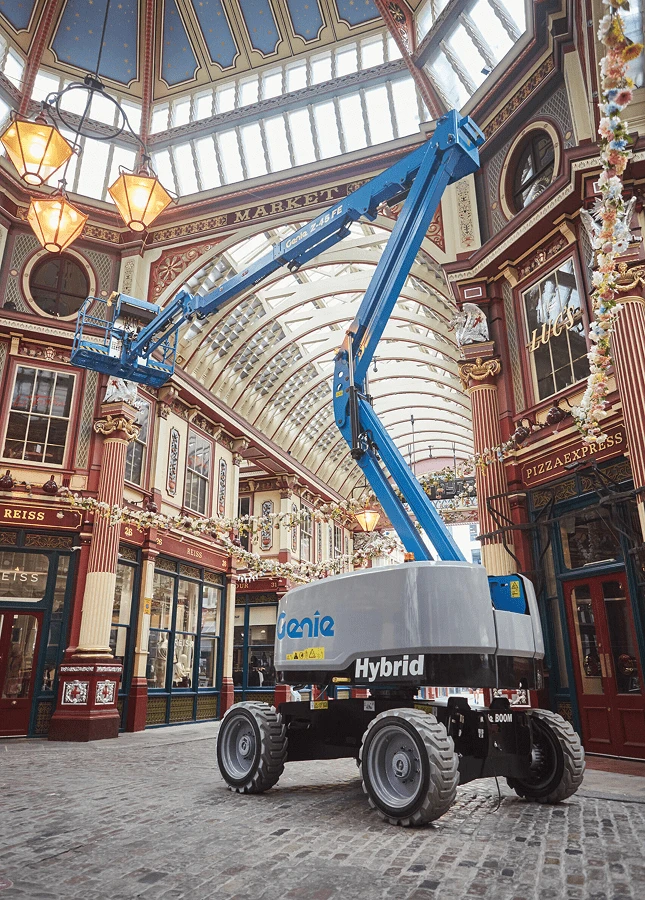

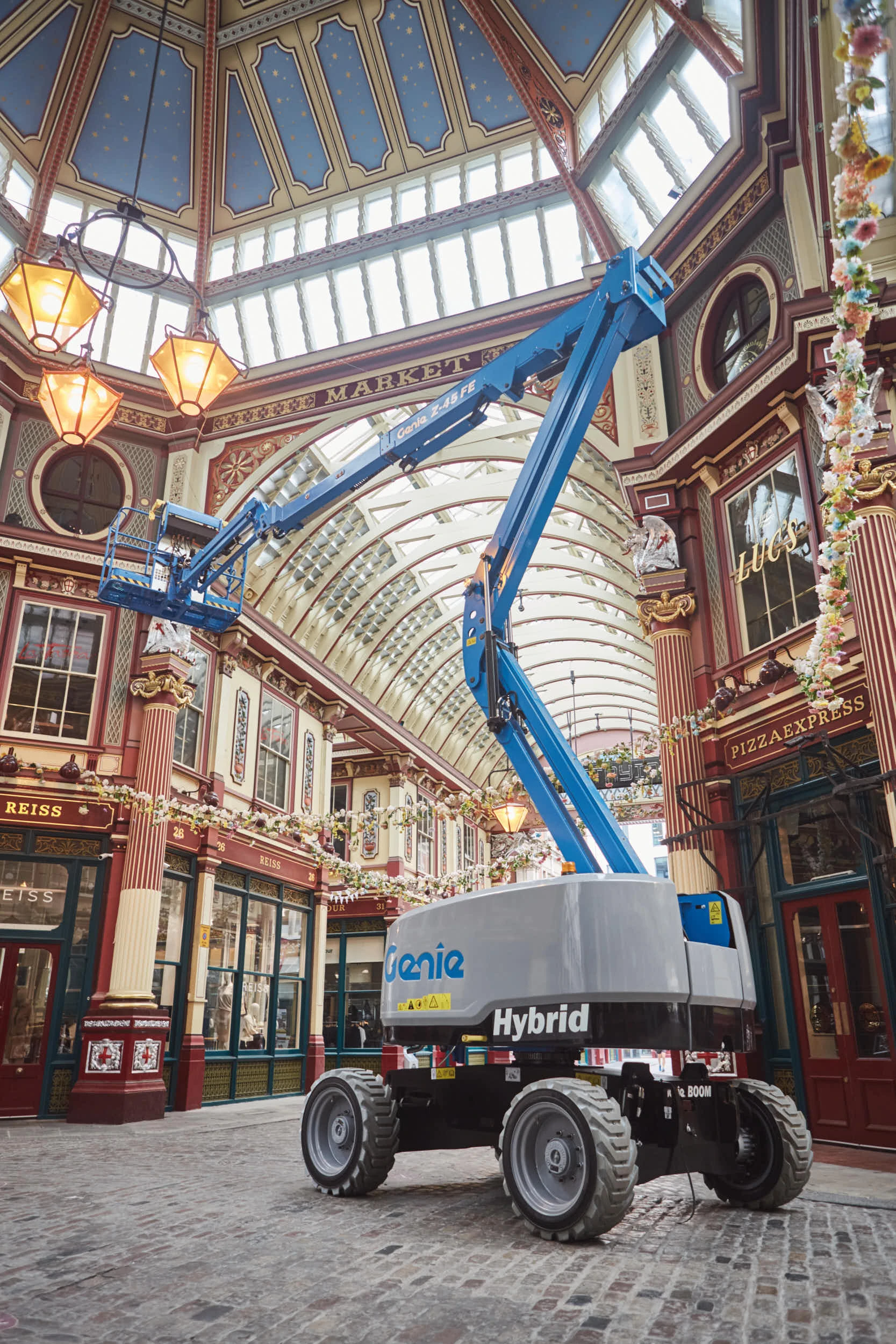

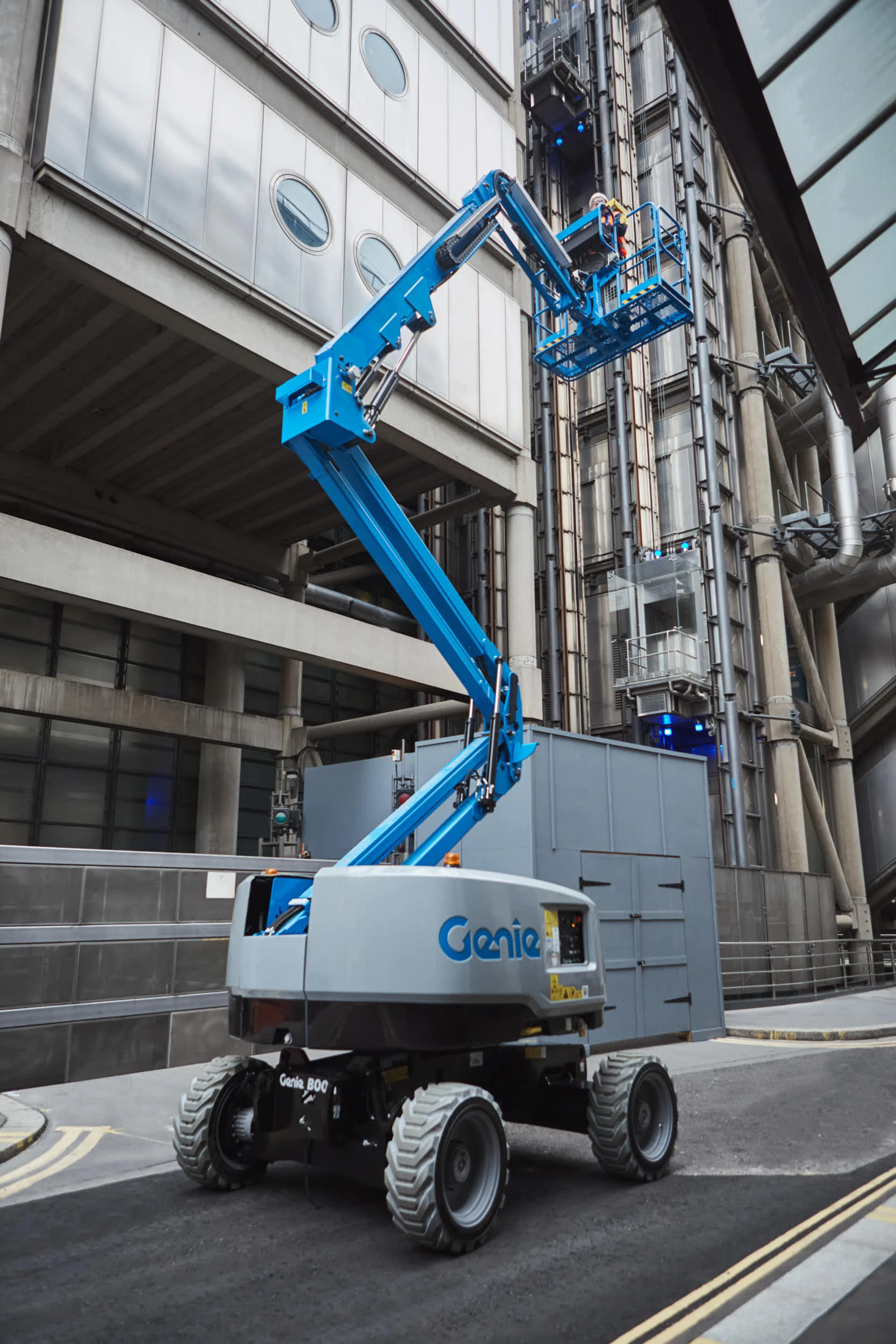

The Genie Z-45 FE hybrid articulating boom lift is a versatile machine designed for superior productivity. Combining the advantage of an all-electric machine and the power of a diesel boom, the Z-45 FE is a true hybrid two-in-one machine. In all-electric mode, it delivers an entire day of quiet, zero-emission operation on a single battery charge, ideal for indoor sensitive areas. Then switch to hybrid mode if required to operate in rough outdoor demanding environments.

With its 15.92m working height and lift capacity of 300kg, Genie Z-45 FE provides the power and lifting capacity to perform a variety of jobs like construction, maintenance, installation, and inspection.

The four-wheel drive, combined with 45% gradeability, provides it with the ability to move smoothly over rough terrain. A full-time active oscillating axle moves according to the terrain, maintaining traction and providing smooth operation.

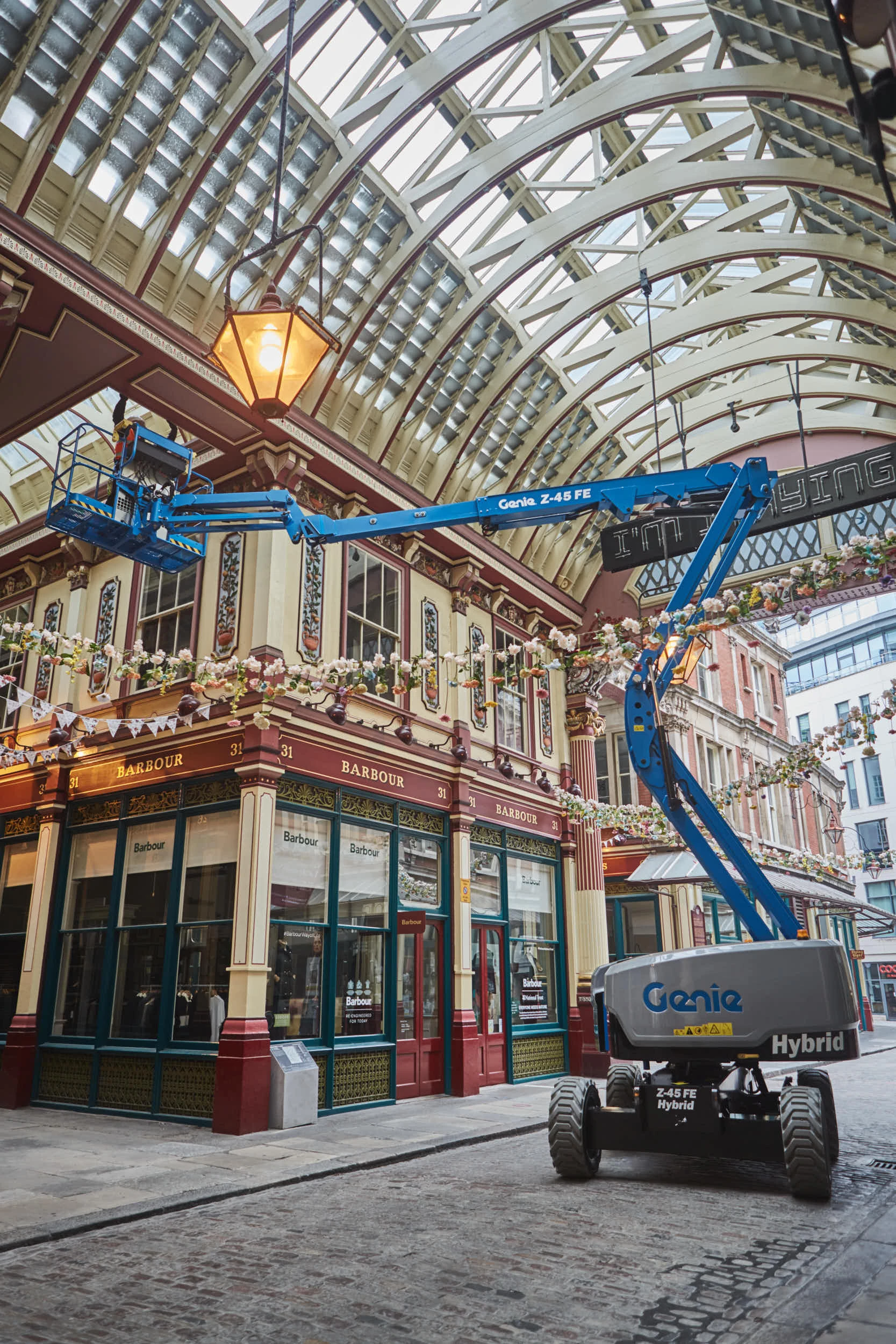

The Z-45 FE features a 1.52m articulating jib with 135 degrees of vertical movement and offers 7.50m of up-and-over reach, allowing operators to access all difficult-to-reach areas. The proportional controls allow for smooth, accurate boom movement, giving operators full positioning control.

Designed for today's workplaces that require flexibility, sustainability, and performance, the Genie Z-45 FE is an exceptionally flexible machine, capable of working in warehouses, downtown areas, building construction, and beyond. From quiet, zero-emission operation indoors to reliable runtime over rugged outdoor environments, the Z-45 FE is a true hybrid articulating boom.

Buy the Genie Z45 FE Articulating Boom Lift

Contact us today for information on pricing and availability.
