Genie Z45 XC

The Industry Favourite

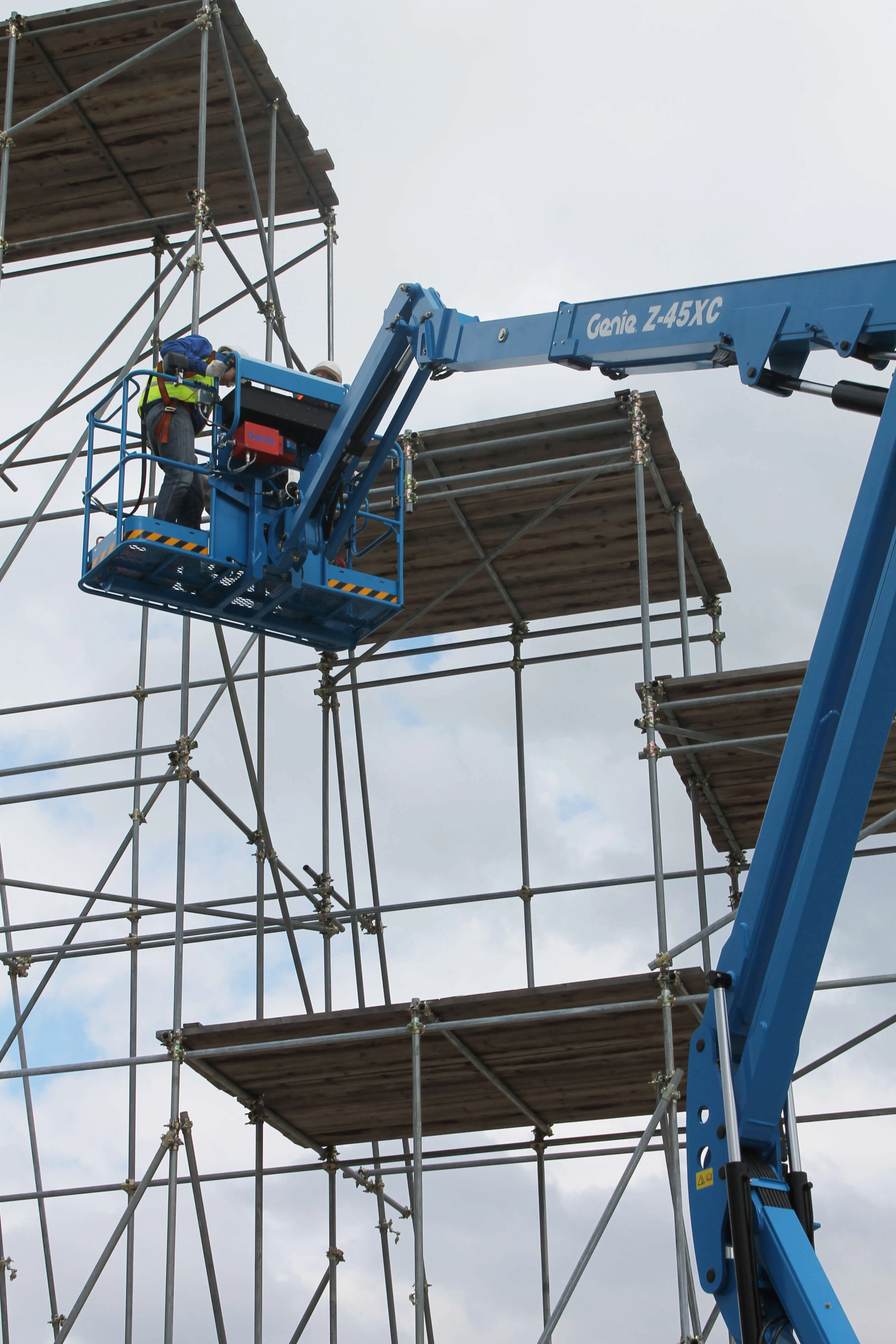

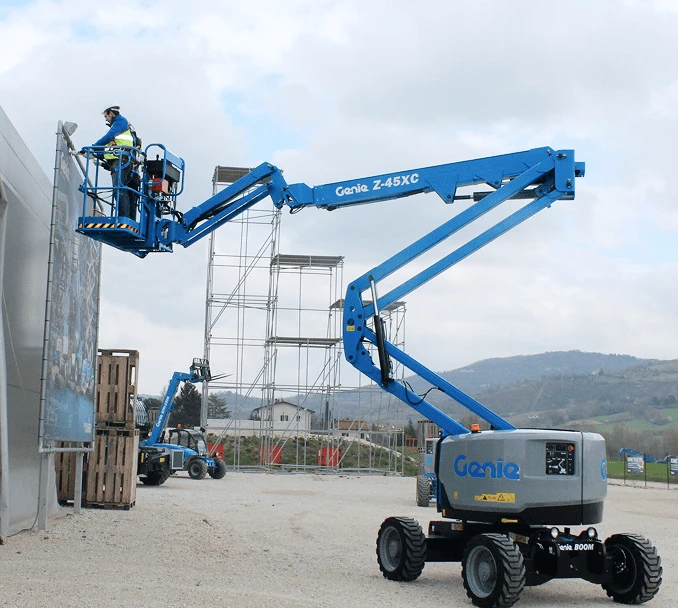

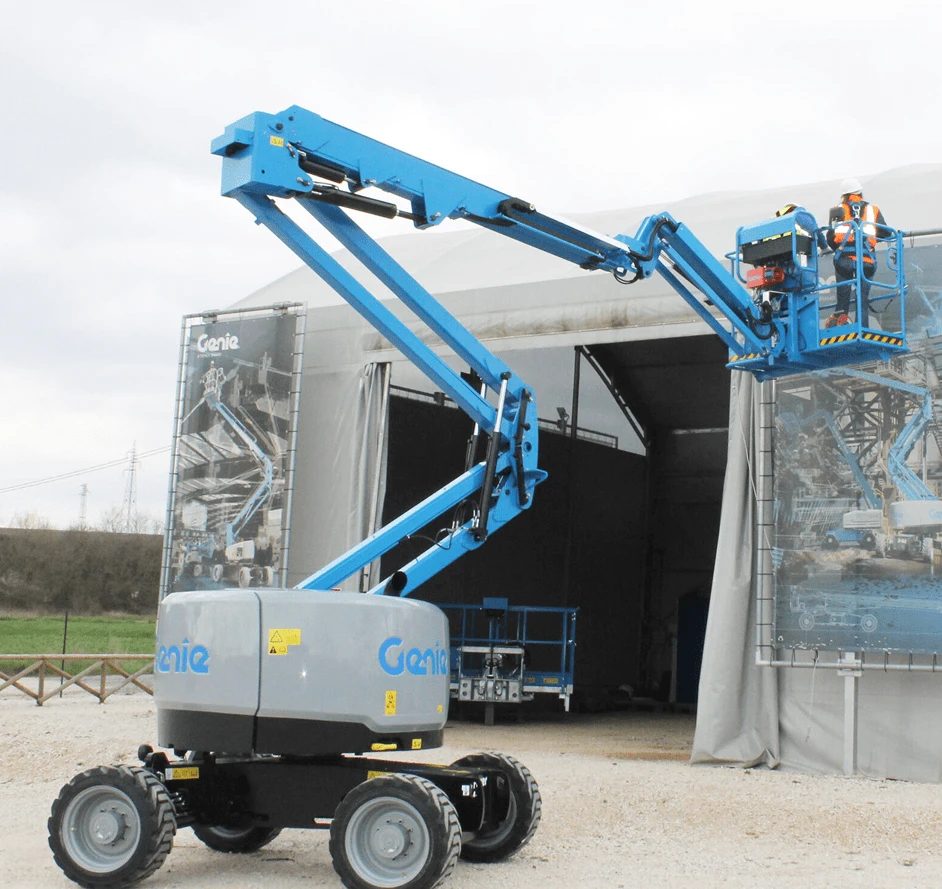

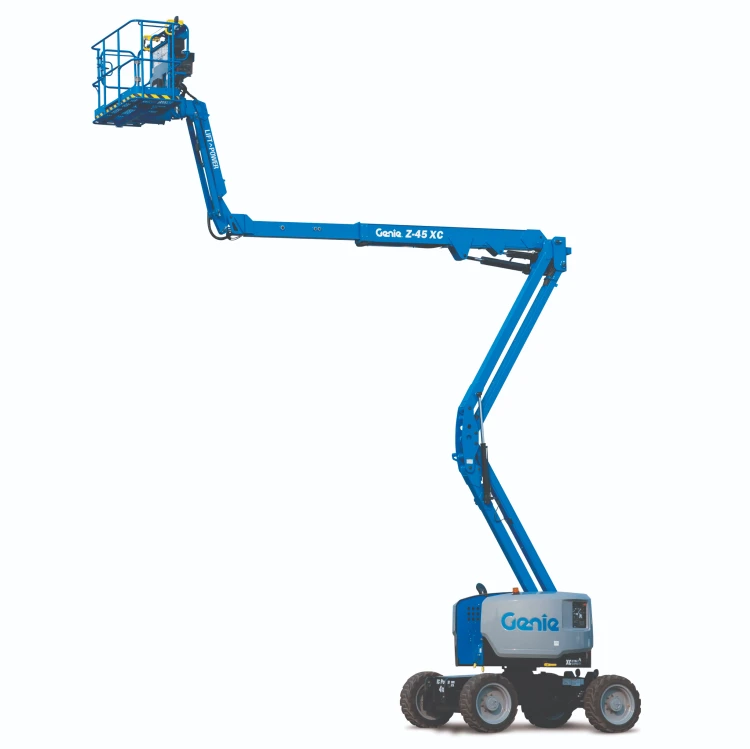

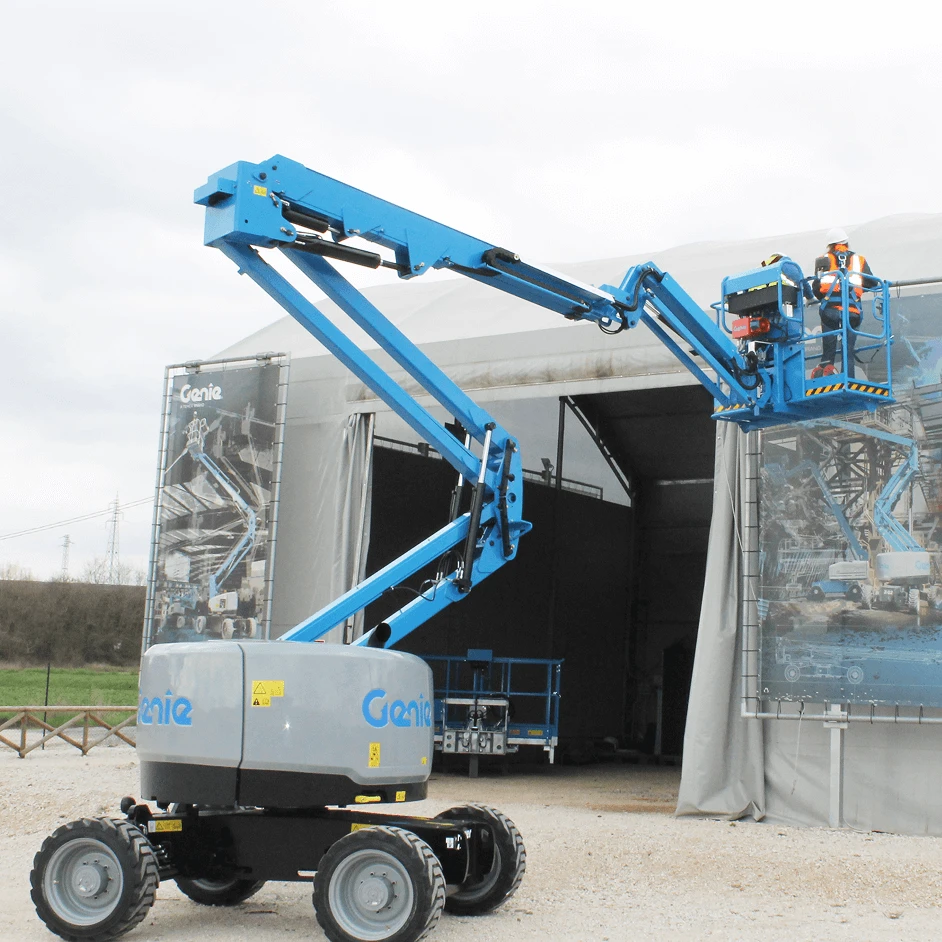

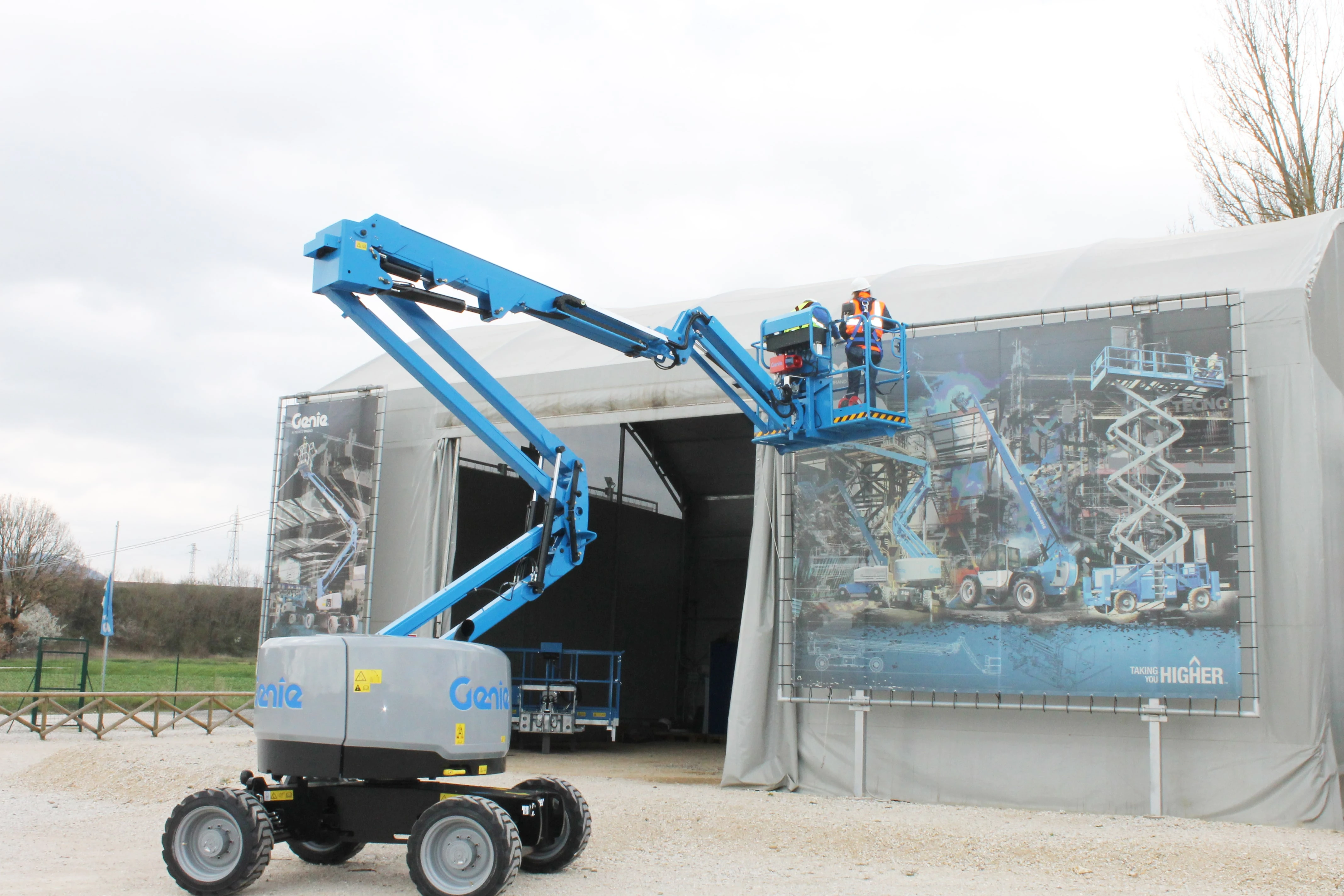

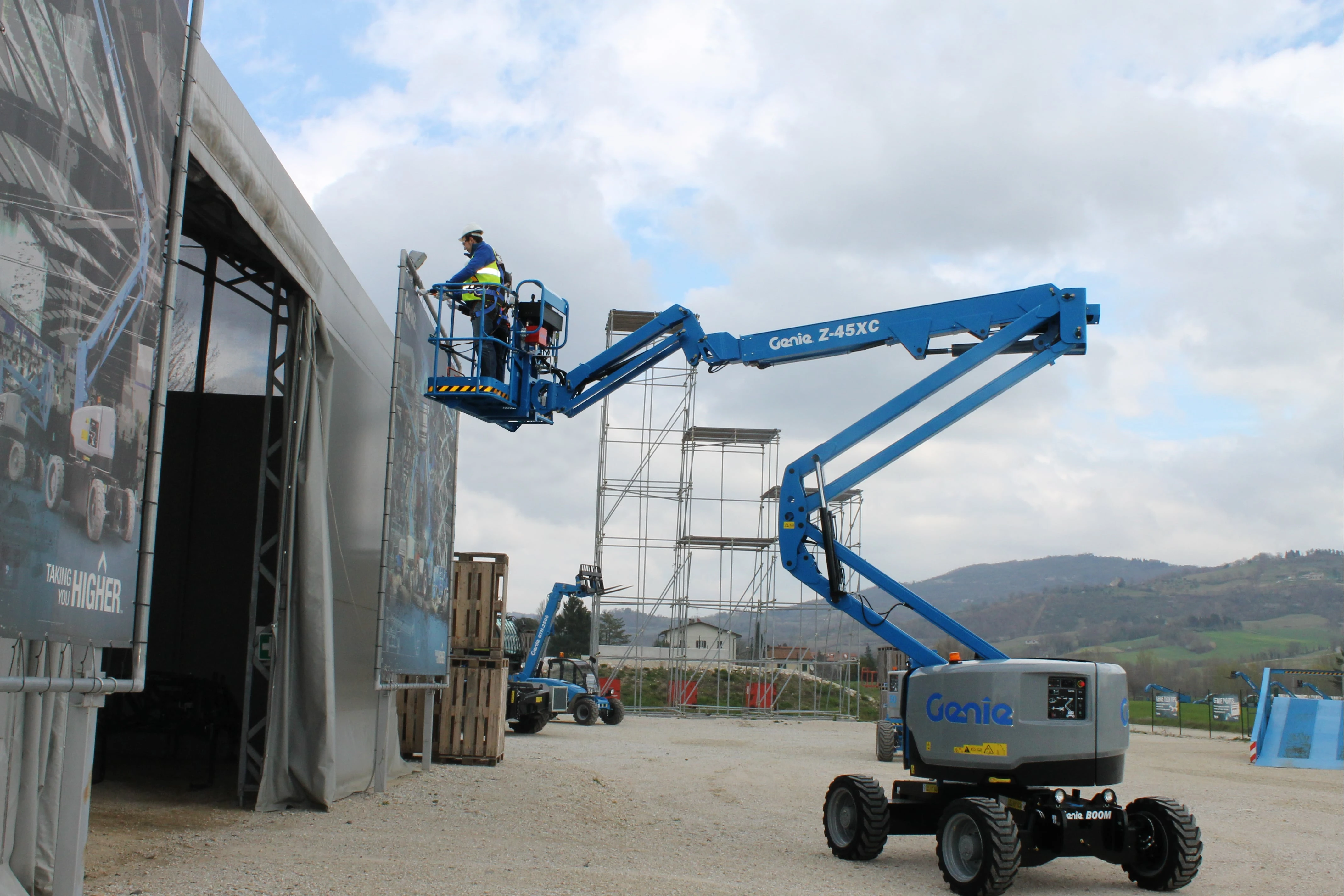

The Genie Z-45 XC is a redesigned extra capacity version of the popular Z-45/25J RT, offering a maximum working height of 15.86m and horizontal outreach of 7.55m. With an unrestricted lift capacity of 300kg and 454kg in the restricted envelope, it’s the perfect choice for heavier tasks. The dual-entry platform ensures easy access for operators.

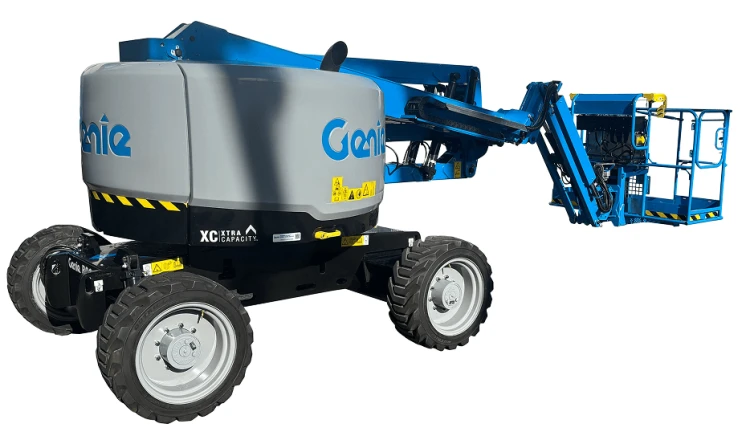

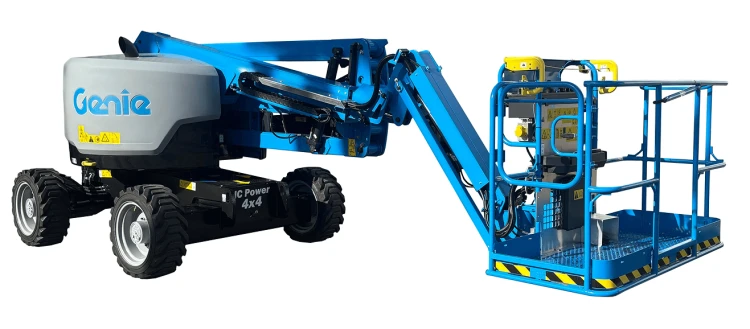

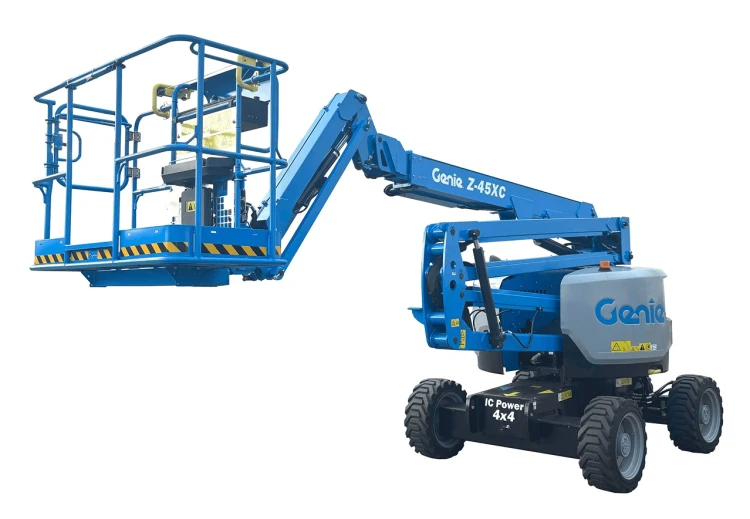

The Genie Z-45 XC articulating boom lift is a redesigned Xtra Capacity version of Genie’s best-selling rough terrain Z-45/25J RT, which now offers an increased lift capacity and enhanced versatility for demanding industrial and construction environments.

Powered by a robust diesel engine, this model combines rugged terrainability with exceptional lifting capabilities, making it a powerhouse solution for heavier-duty access work. With a maximum working height of 15.86m, a horizontal outreach of 7.55 m, and an up-and-over clearance of 7.4 m, the Z-45 XC provides the reach needed to access hard-to-reach areas while maintaining stability and safety in tough environments.

Operators benefit from an unrestricted platform capacity of 300 kg, suitable for standard tasks, and a restricted envelope capacity of 454 kg, allowing heavier tools or multiple occupants. This increased load potential makes the Z-45 XC™ ideal for applications that require both reach and power. The four-wheel drive and 45% gradeability offer excellent off-road performance across rough terrain, slopes, and uneven surfaces.

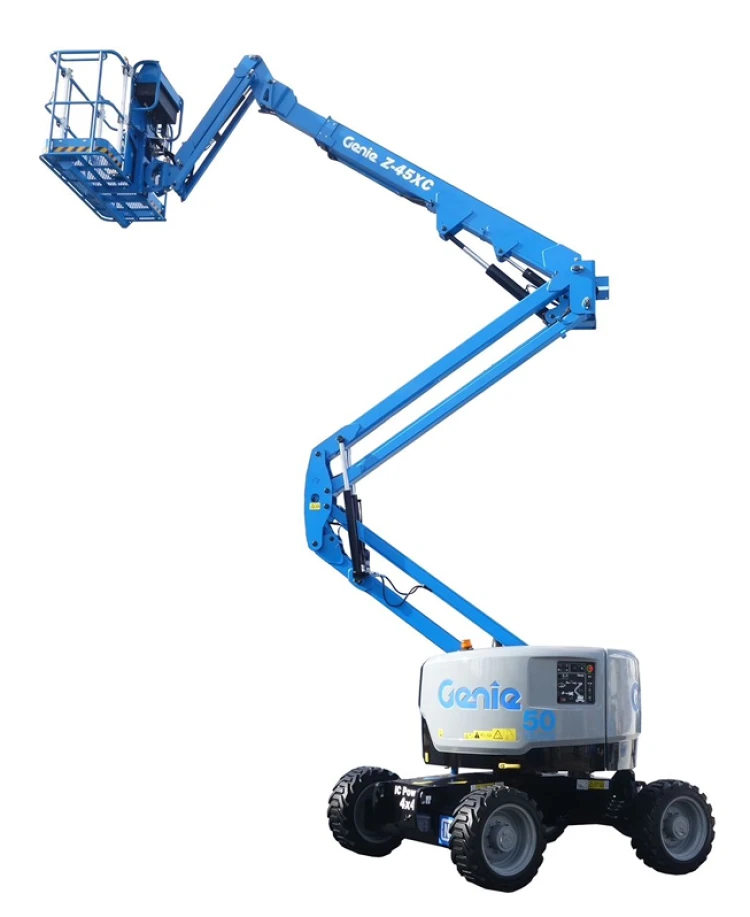

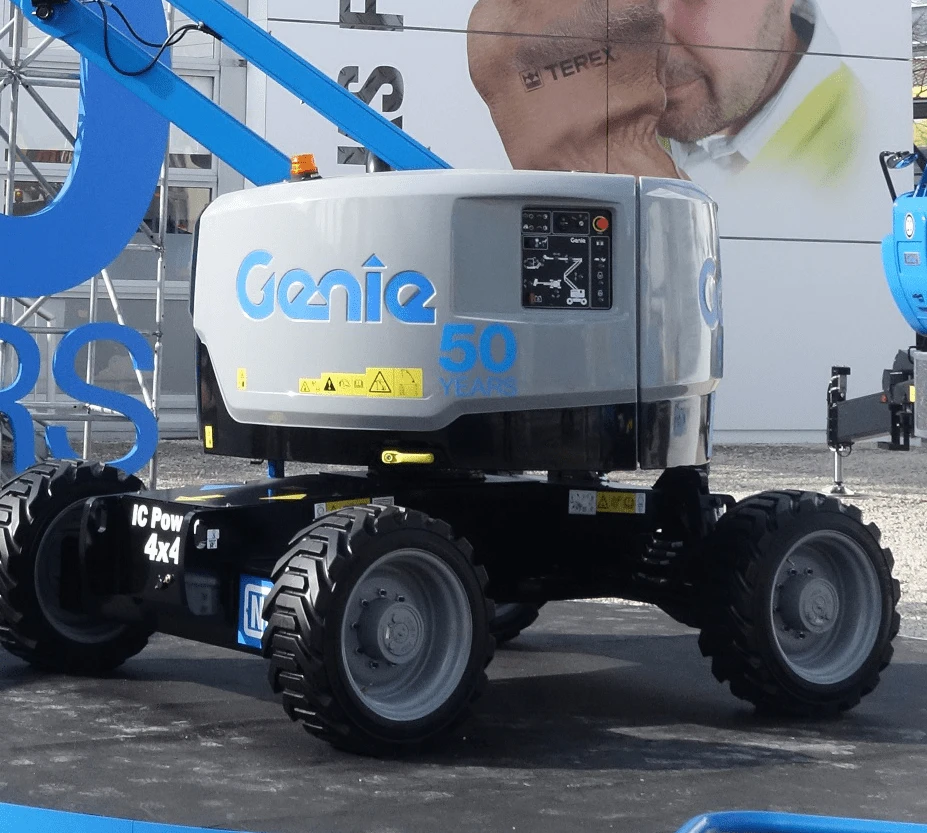

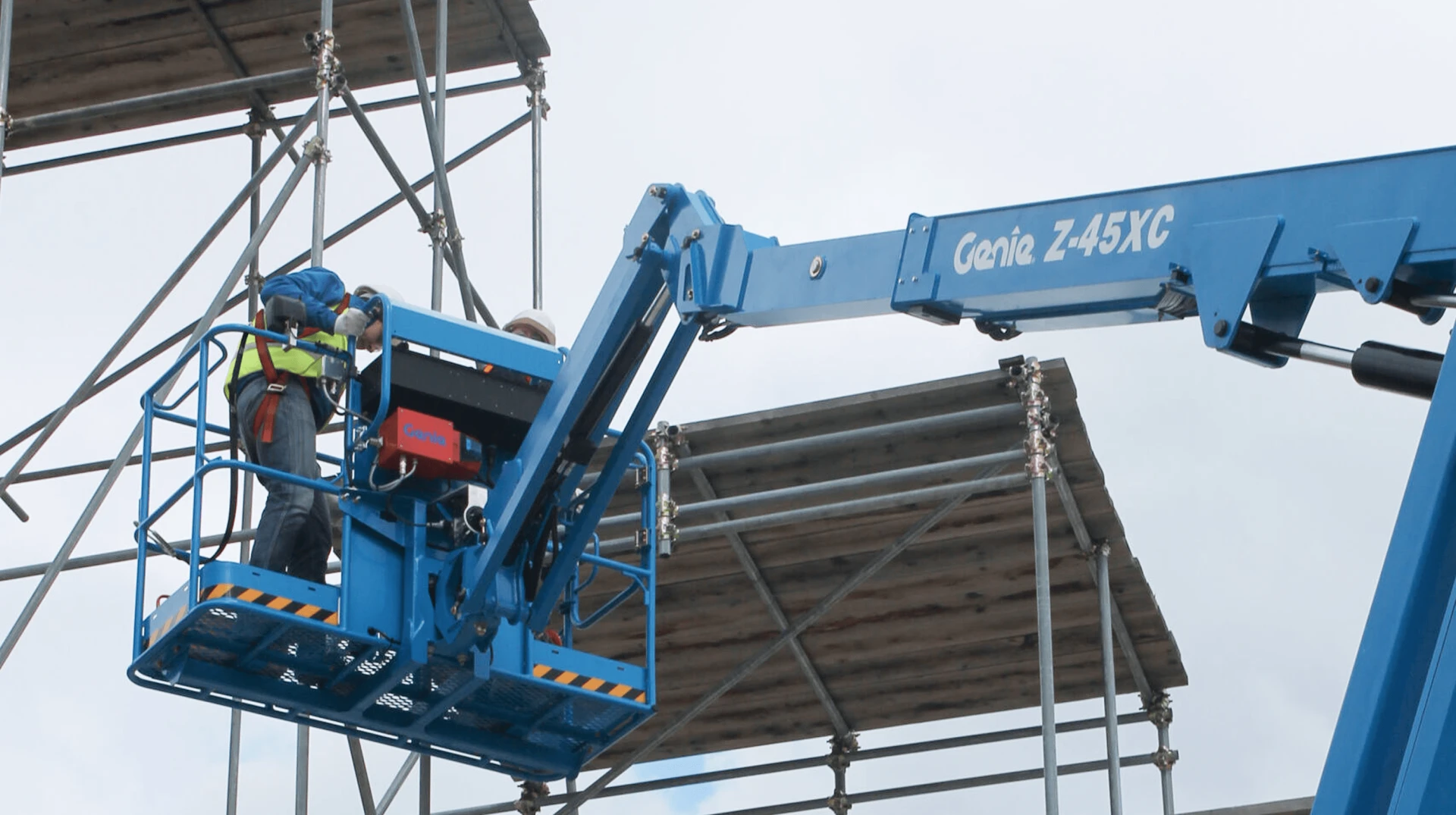

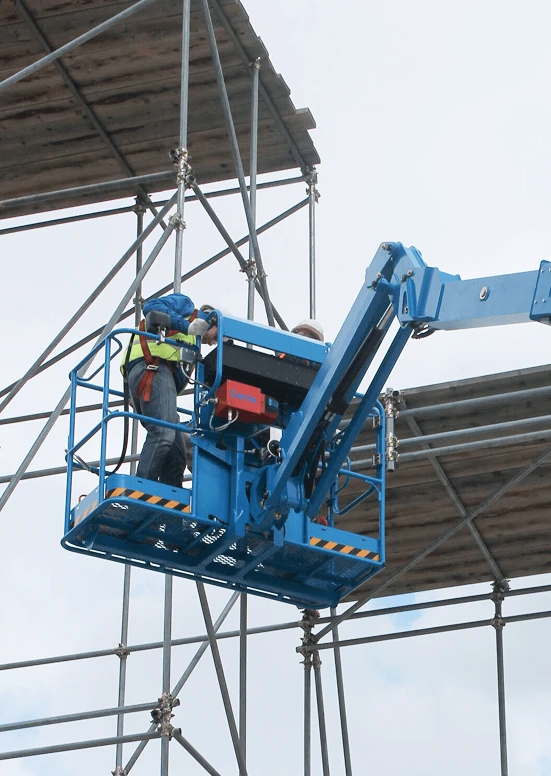

Its full-time active oscillating axle continuously adjusts to ground conditions to maximise traction, and the dual parallelogram boom design ensures smooth vertical travel without constant repositioning. For precise work positioning, the 1.52-meter articulating jib provides 135° of vertical rotation, while proportional lift and drive controls deliver smooth operation. The boom also features a dual-entry platform, equipped with a side-entry swing gate and a front sliding rail to allow quick, flexible access for both operators, improving on-site efficiency and safety.

With its rugged build, enhanced capacity, and refined operator features, the Genie Z-45 XC™ diesel articulating boom lift is the go-to choice for professionals nationwide.

Genie Articulated Boom Lifts

The Industry Favourite

*IN STOCK

Features

Specification

Free, no obligation site survey.

FAQs

Genie Z-45 XC Articulating Boom Lift

Buy the Genie Z45 XC Articulating Boom Lift

Want to know more?

Genie Z45 XC
