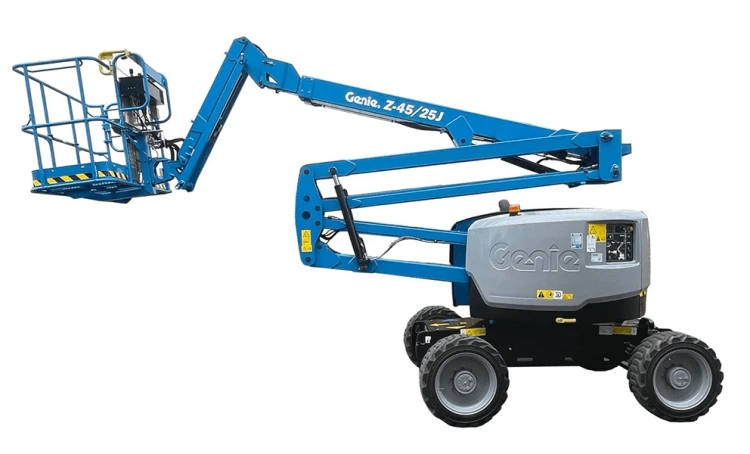

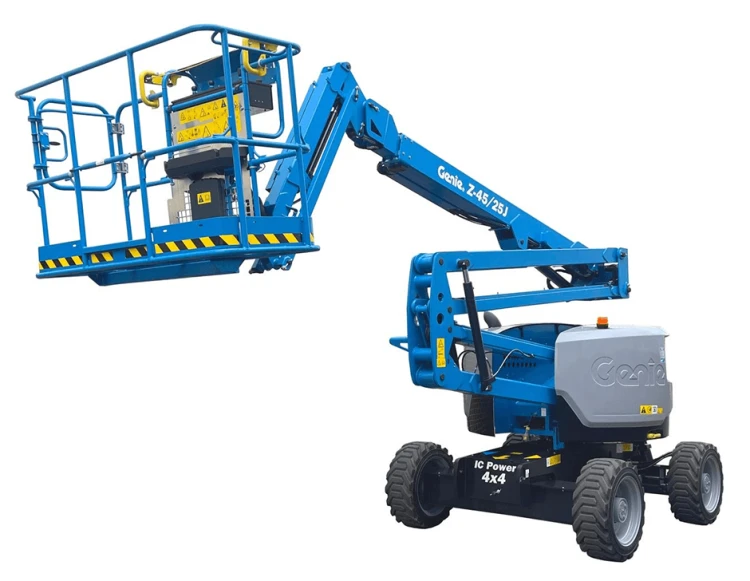

Genie Z45/25J RT

Genie Articulated Boom Lifts

Features Specifications Gallery FAQs Support

Big performance, low maintenance

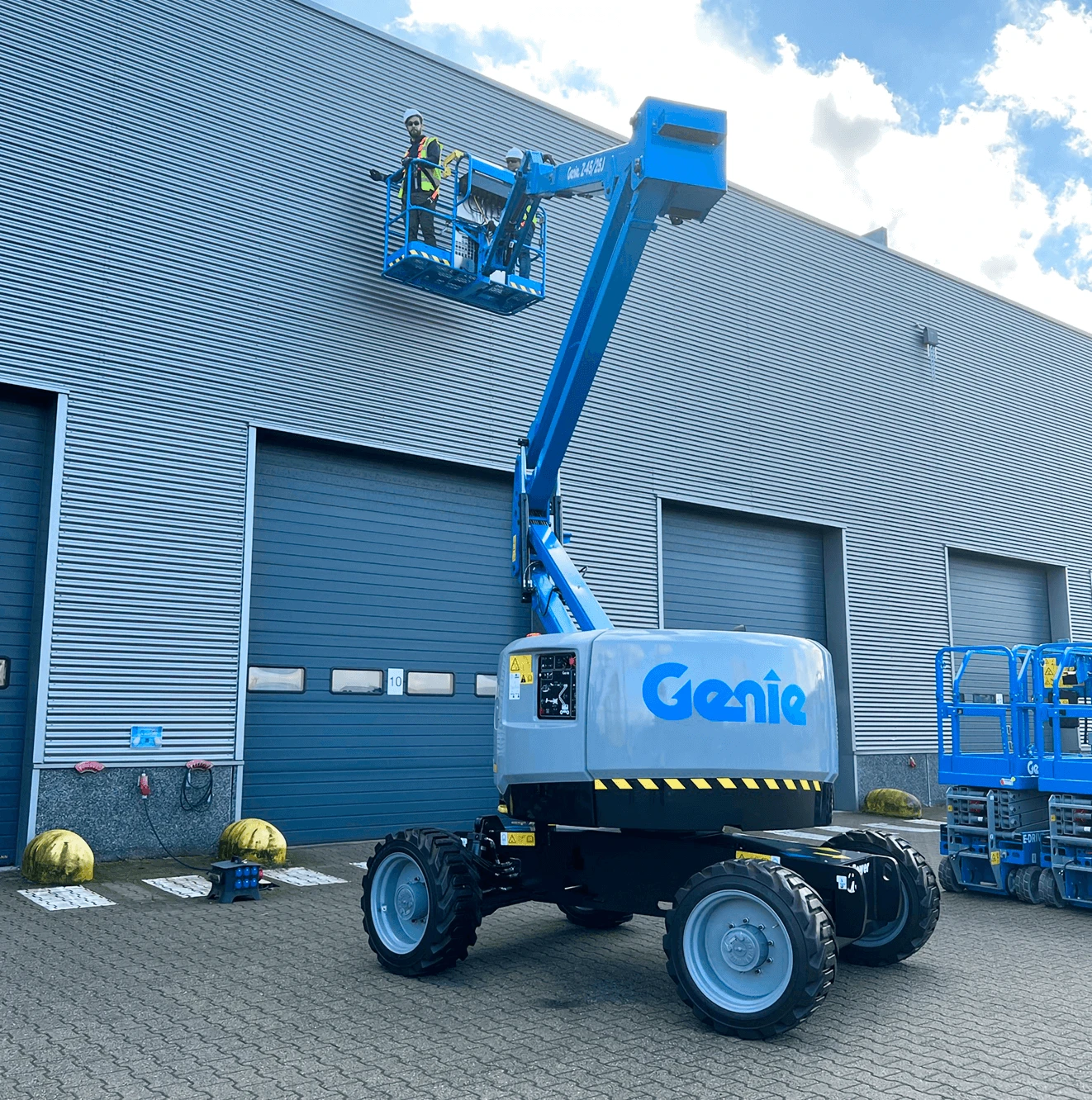

The Genie Z-45/25J RT articulating boom lift delivers a 15.86m working height and powerful diesel performance. Equipped with a Stage V/IIIA compliant engine, making the boom easier to maintain, and lowering engine maintenance costs by as much as 57% compared with larger engines found in comparably sized booms.

Applications

Confined spaces
Inspection tasks
Installation projects
Distribution
Maintenance tasks

Features

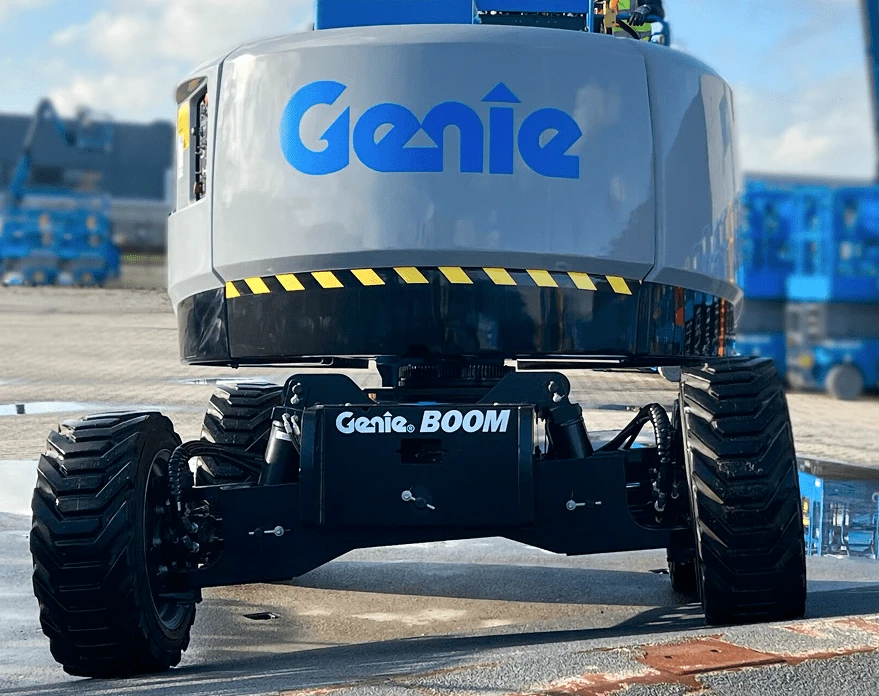

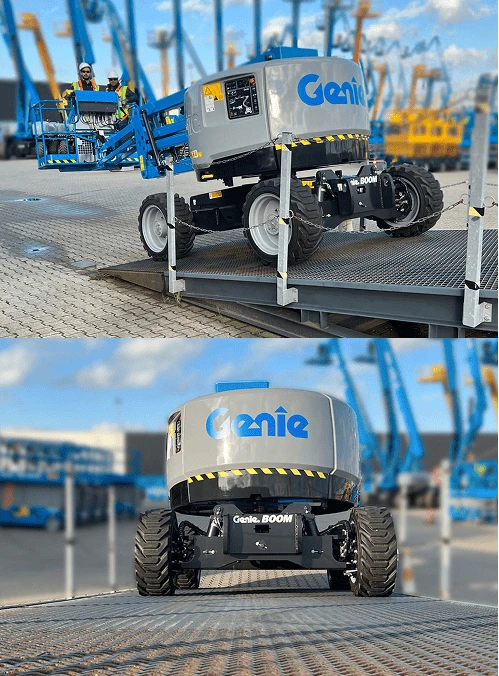

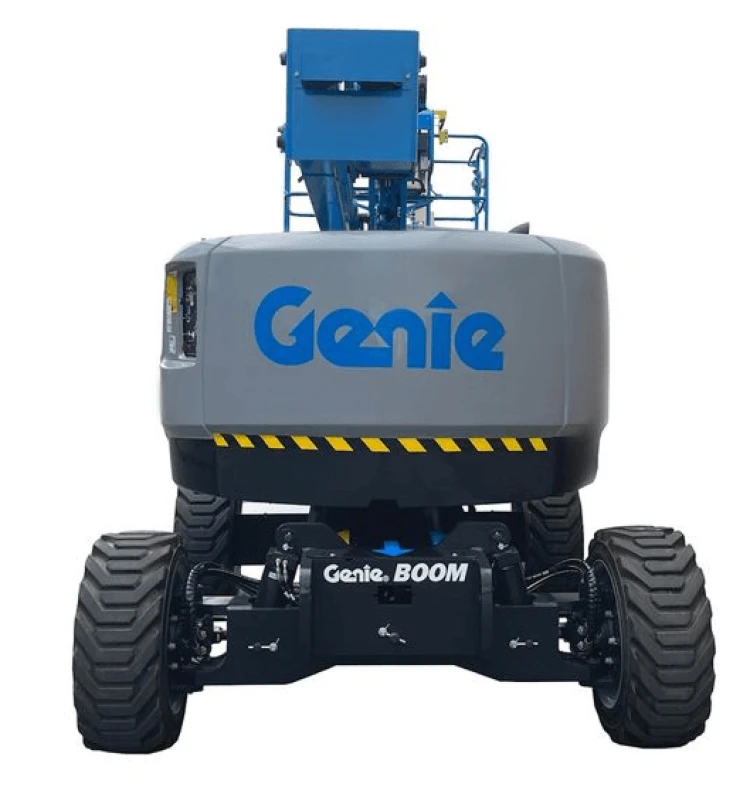

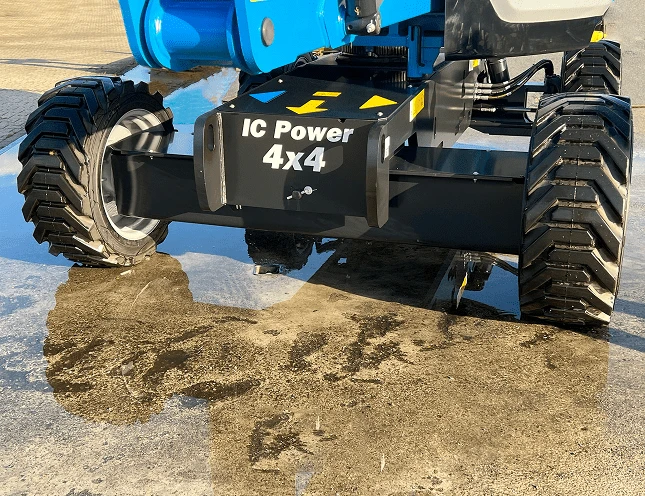

Equipped with a full-time oscillating axle, the Z45/25J RT adjusts to uneven terrain, enabling it to maintain consistent contact with all wheels for better traction and stability on rough terrain.

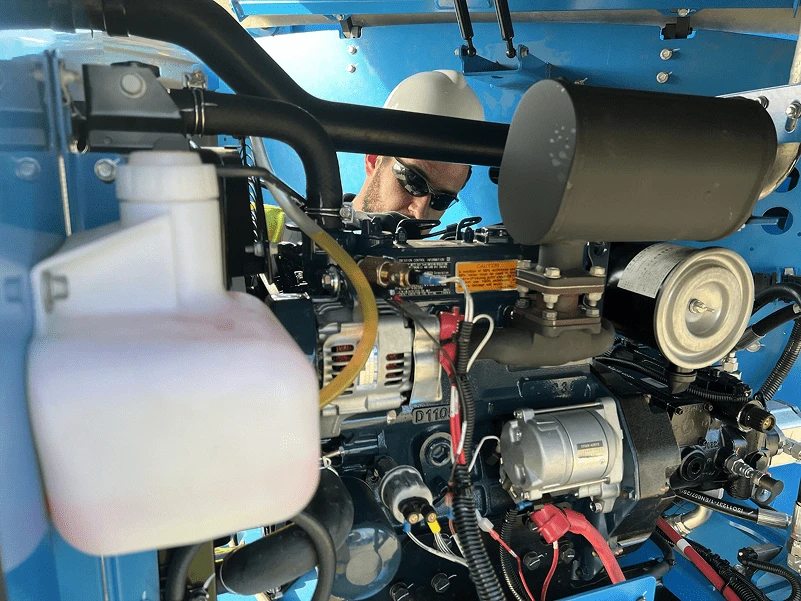

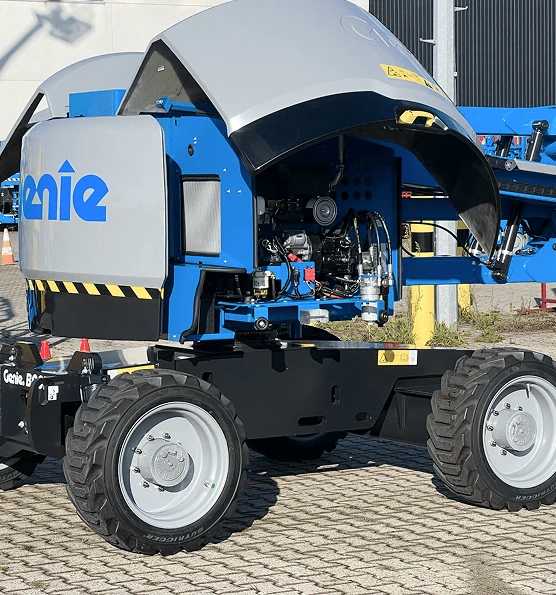

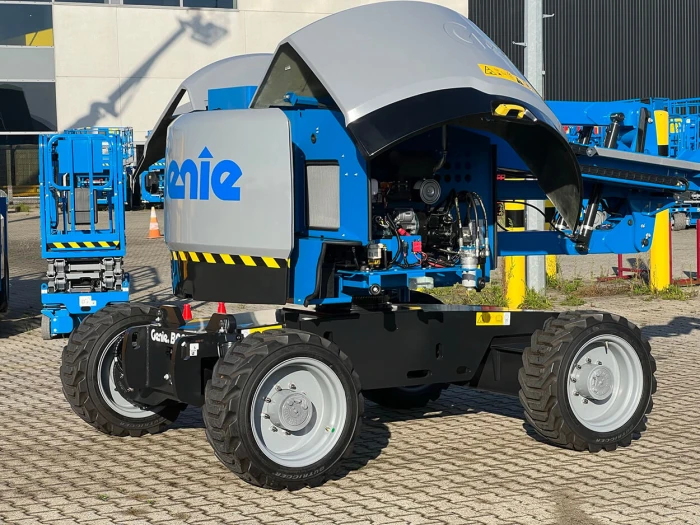

Eliminating the need for after-treatment, making the boom easier to maintain, and lowering engine maintenance costs by as much as 57%.

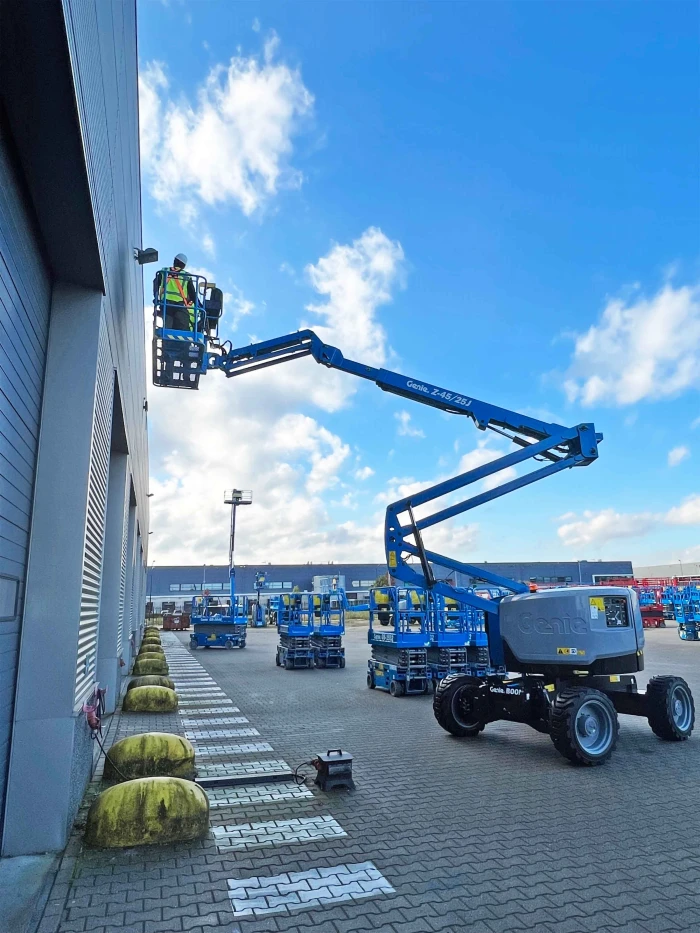

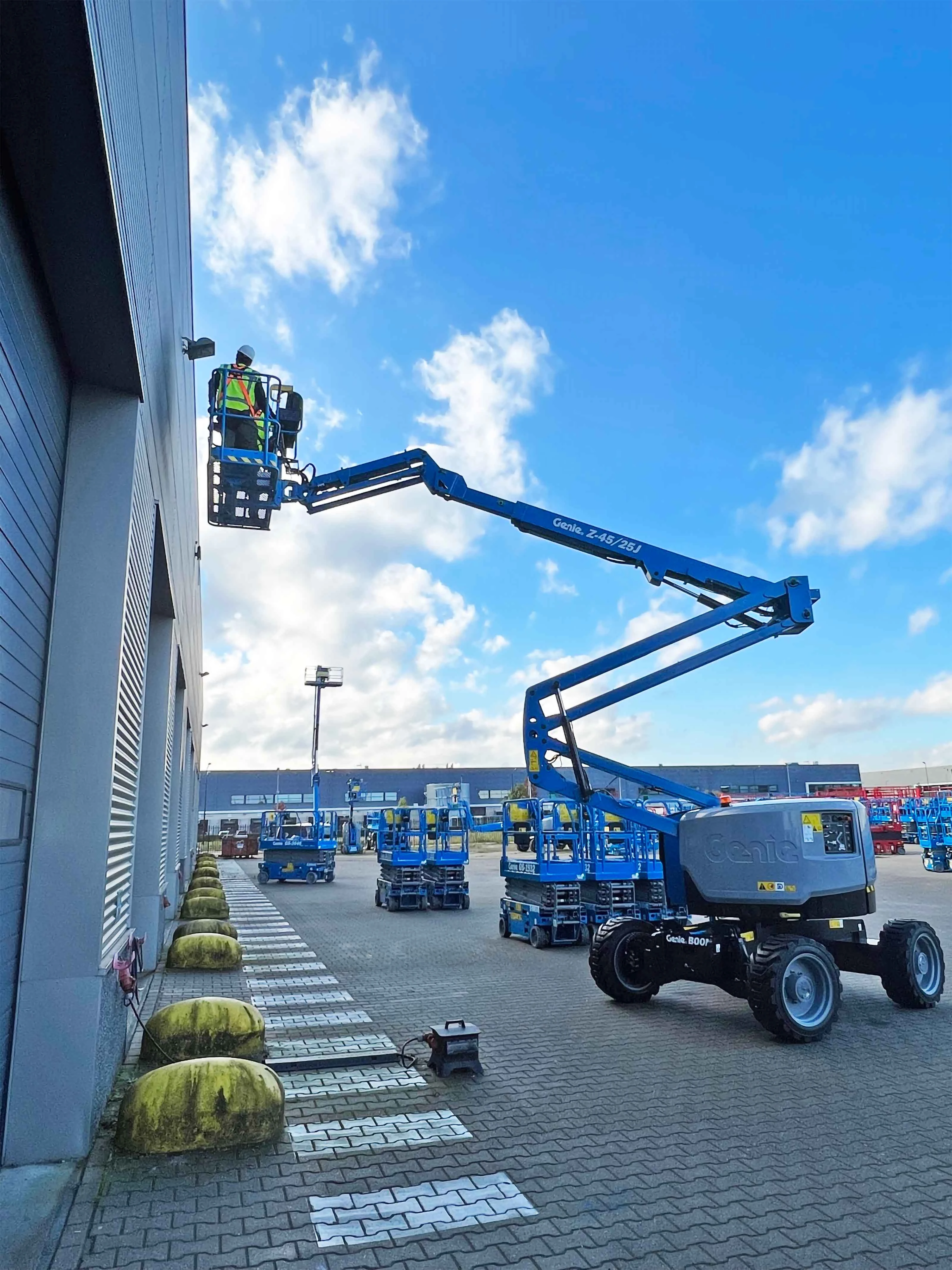

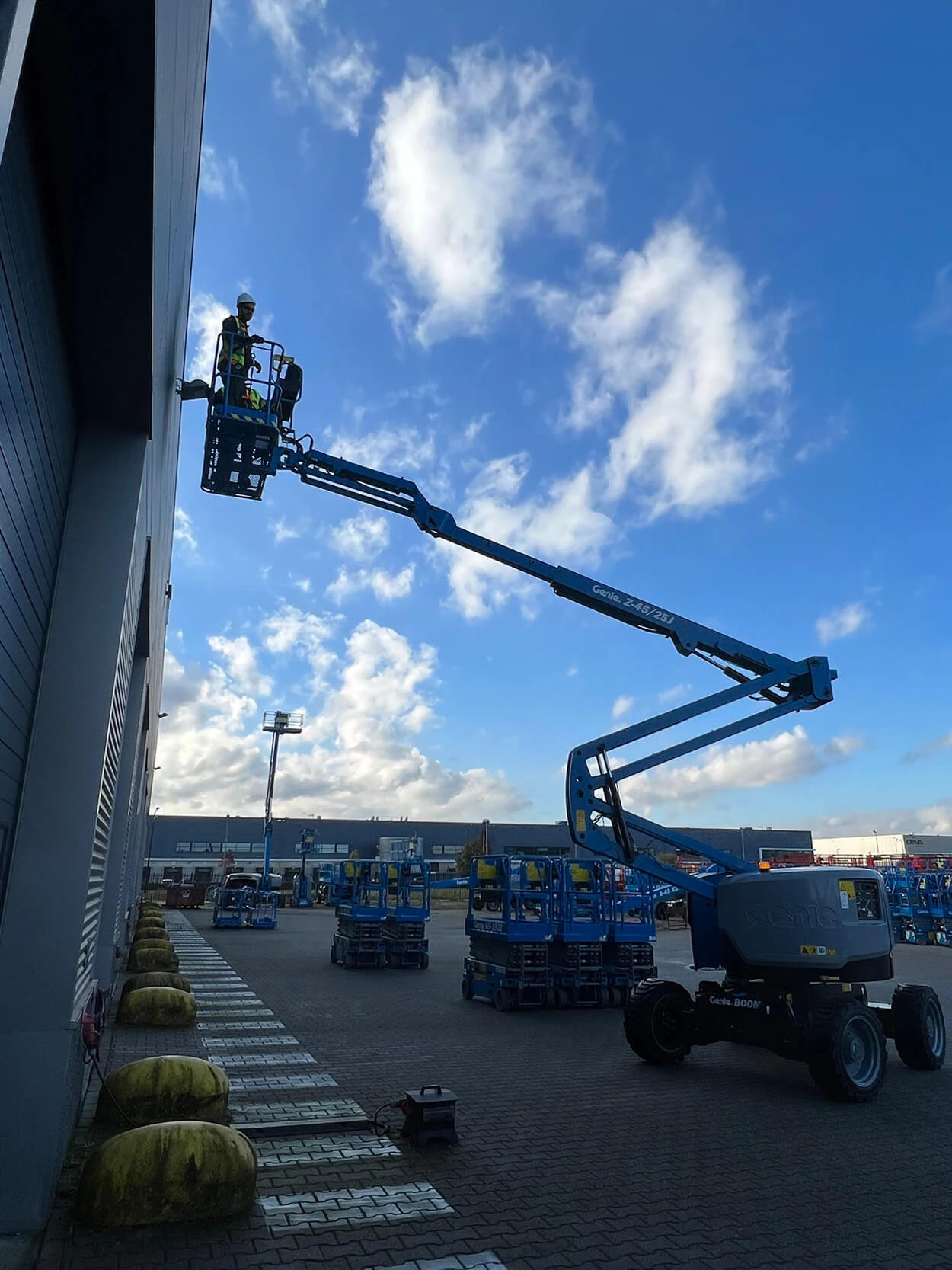

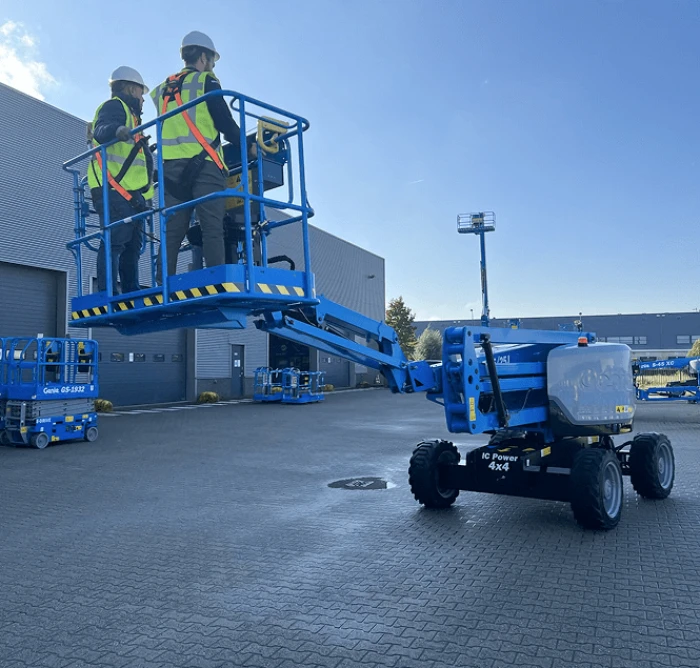

Equipped with an articulating jib gives operators more flexibility when it comes to accurately positioning around obstacles.

Diesel particulate filters are used to reduce the exhaust emissions as required by European legislation, especially particulate matter. A particulate filter traps most of the soot that is produced during diesel combustion and would normally travel down the exhaust and into the atmosphere.

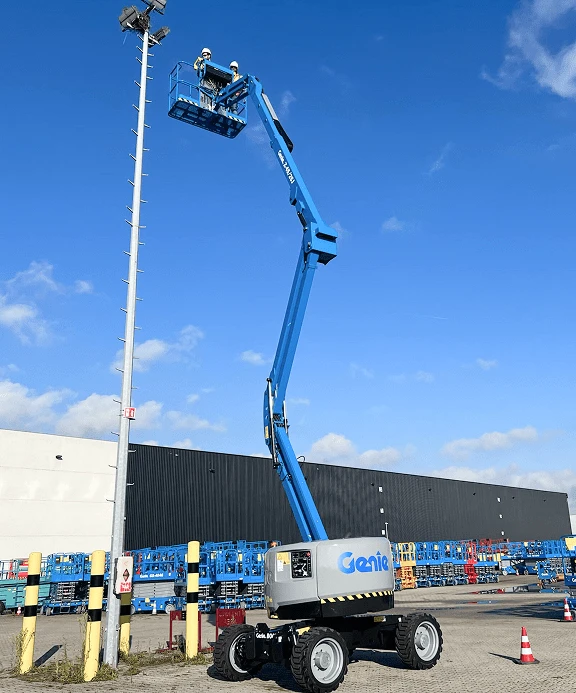

The dual parallelogram lift design allows operators to ascend and descend along a vertical plane without having to retract or extend either boom section.

Allows precise handling of both lift and drive functions, giving the operator better control and accuracy during operation.

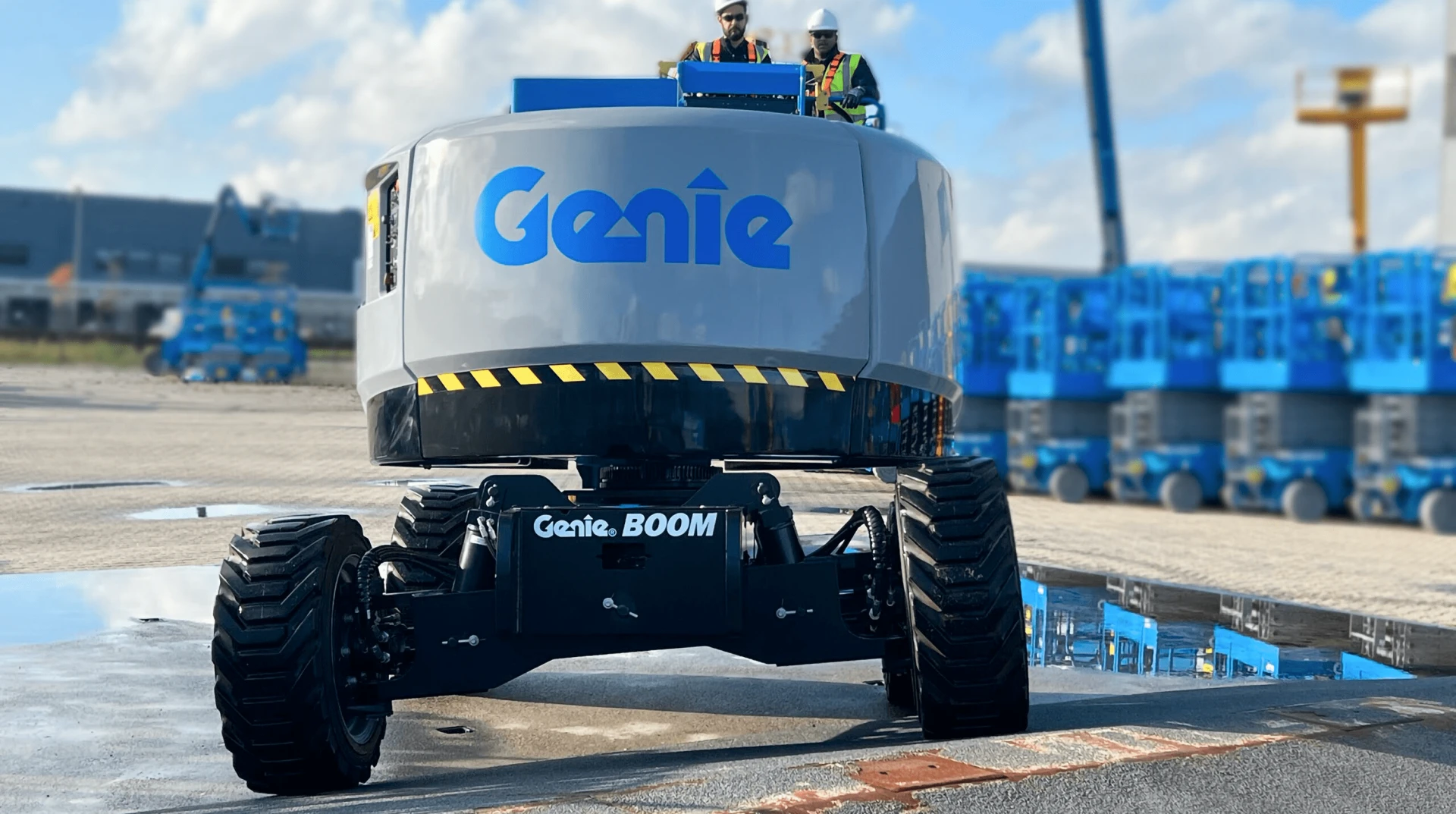

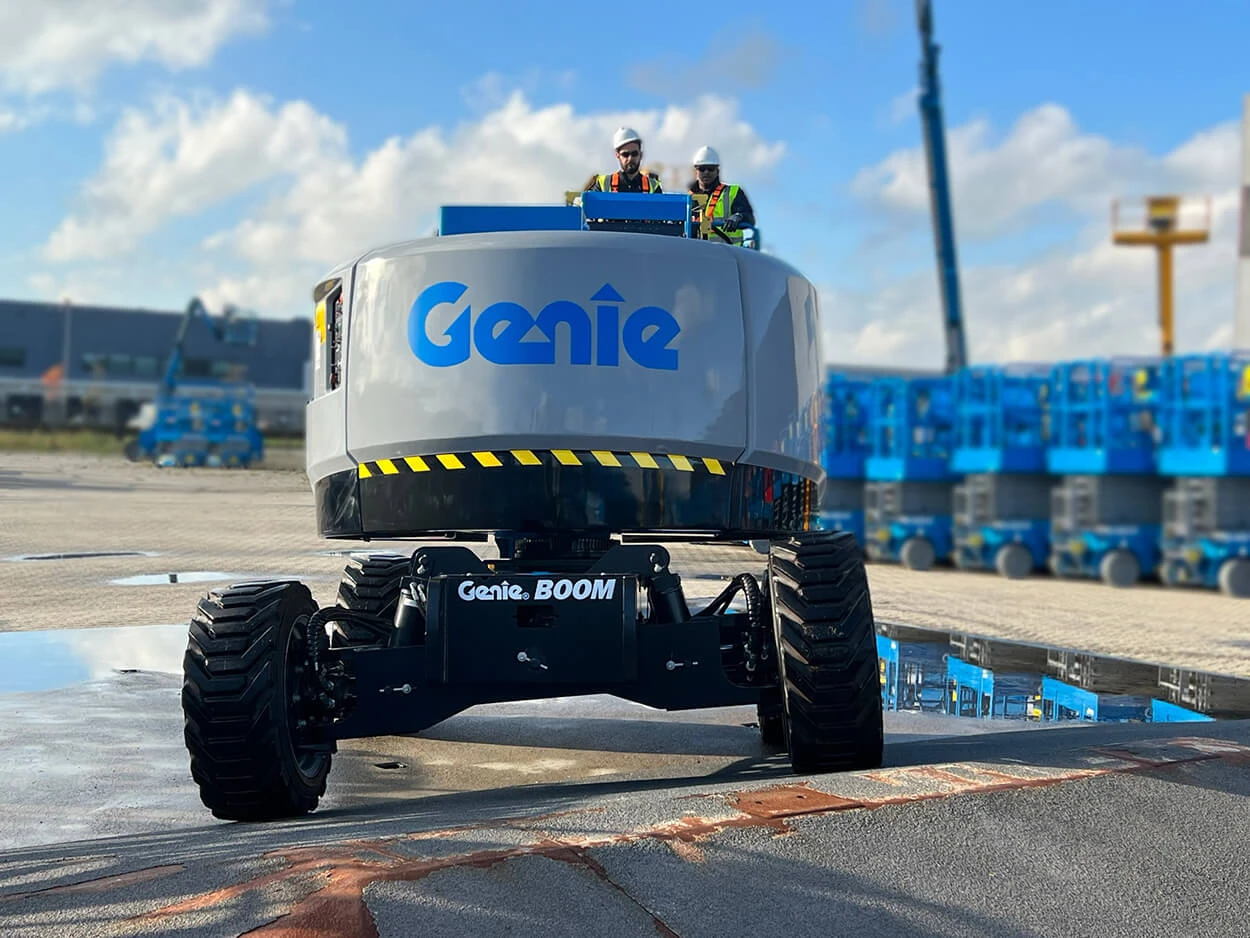

Provides exceptional drive performance on rough terrain.

Designed to handle rough terrain surfaces while still protecting indoor surfaces, making them perfect for a wide range of applications.

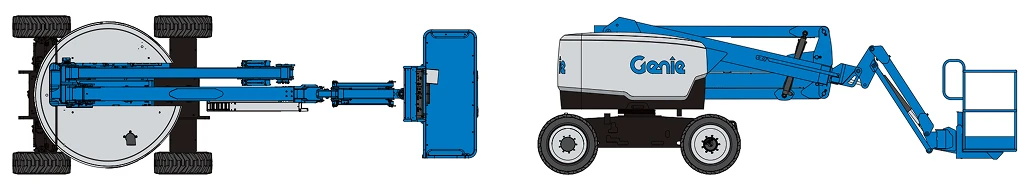

Specification

Efficient diesel-powered machine designed for high performance in demanding outdoor environments.

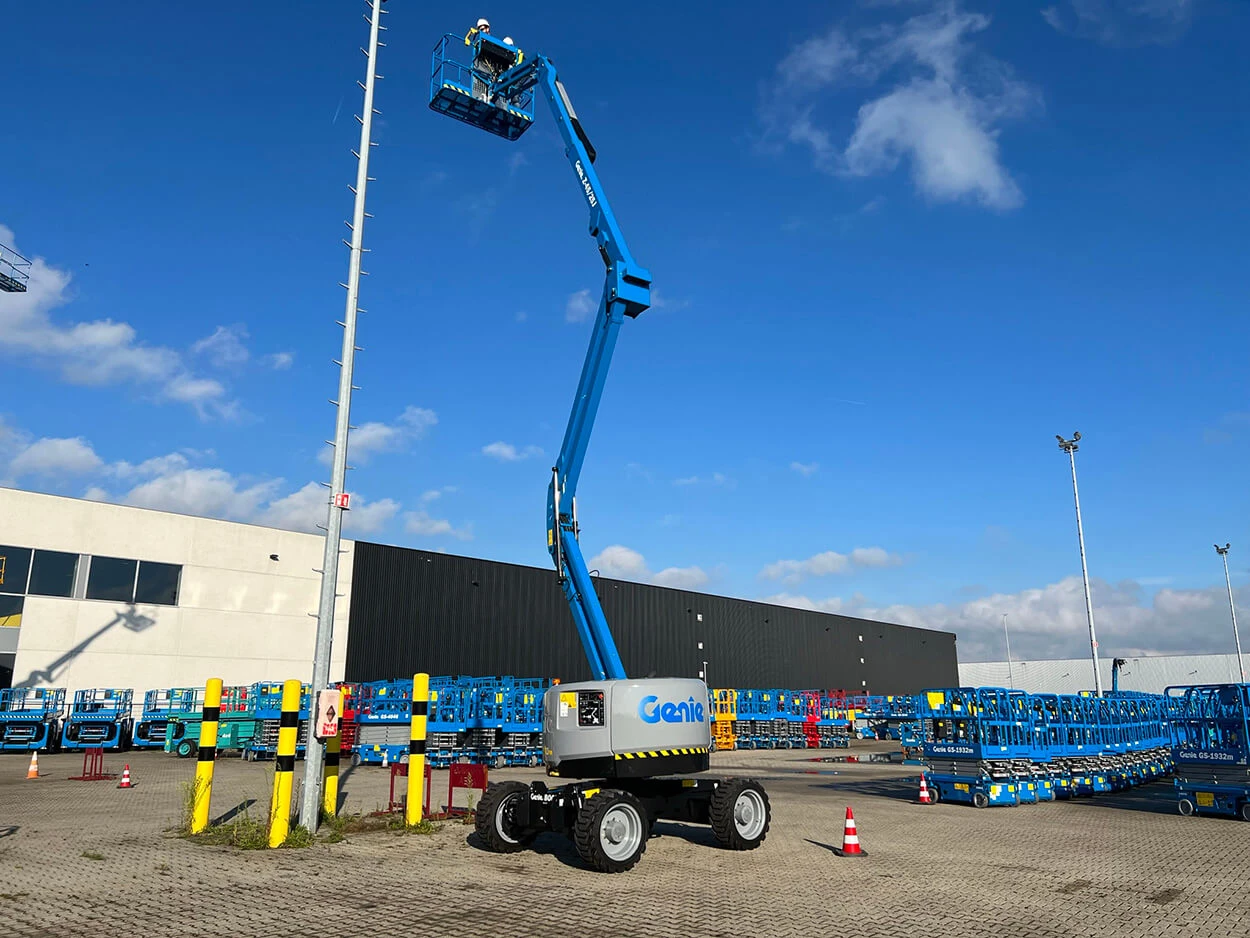

Working height 15.86m
Platform height 13.86m
Horizontal reach 7.52m
Up and over clearance 7.14m
Lift capacity 227kg
Machine width 2.29m
Stowed length 6.65m
Machine weight 6515kg
Genie Z34/22N
Genie Z51/30J RT
Free, no obligation site survey.

Making sure that you achieve the most from your budget.

Servicing & Repairs

Our in-house, Genie factory-trained team of mobile engineers cover the entire country, ensuring expert support is never far away.

Genie OEM Parts

Keep your Genie in operation with genuine Genie OEM parts. With thousands of parts stocked and ready for delivery nationwide.

FAQs

The Genie Z45/25J RT features a 24hp diesel engine, delivering robust performance for outdoor tasks.

The Z-45/25J RT has a working height of 15.86m.

Yes, as the UK's authorised Genie dealer, we sell all the Genie articulating boom lifts.

We’ve got you covered. As the UK’s authorised Genie dealer, we provide expert advice, competitive pricing, and nationwide delivery. Contact our sales team for price and availability for the Genie Z45/25J RT articulated boom lift.

We are here to support you

Our only priority is to supply you with the best and safest products and support you to the highest level.

Servicing & Repairs

Genie OEM Parts

Service Contracts

Finance Options

Accessories

Part Exchange

Operator Training

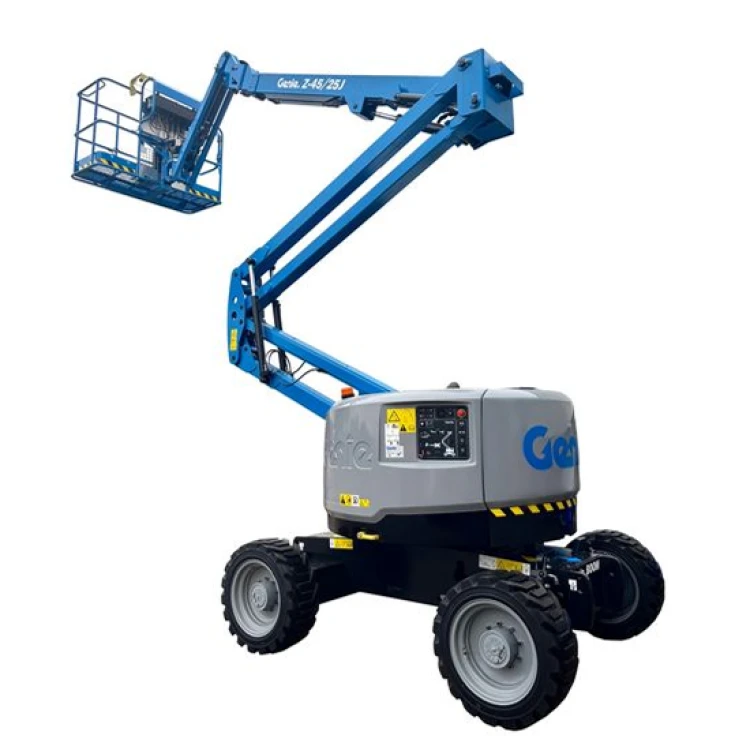

Genie Z45/25J RT Articulating Boom Lift

Genie Z-45/25J RT is an efficient and robust diesel-powered machine for high-performance operation under challenging outdoor conditions such as construction and industrial work environments. This model is powered by a 24hp engine, which is both Stage V/IIIA and DPF-free. The Genie Z-45/25J RT, therefore, offers lower maintenance intervals and reduces engine service costs by up to 57% over larger, DPF-equipped engines on comparable lifts. The result is cleaner operation with less downtime and greater long-term reliability.

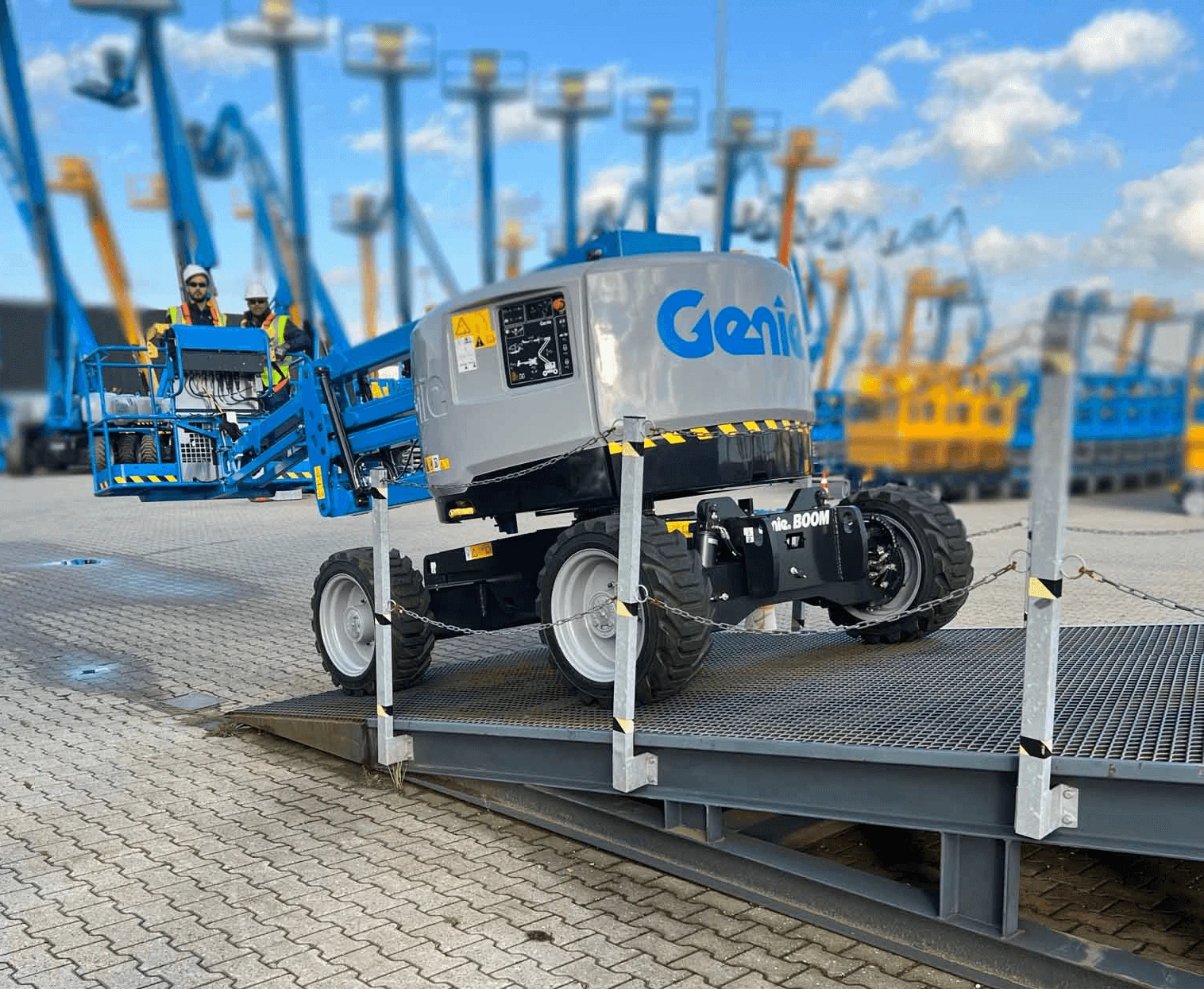

This Genie articulating boom features a tight turning radius, zero tailswing, and zero front arm swing that allows it to be operated precisely in crowded working areas. It features a full-time active oscillating axle that automatically adjusts to tough ground, 4WD traction, and 45% gradeability, which makes it a machine for rough terrain and sloping ground surfaces.

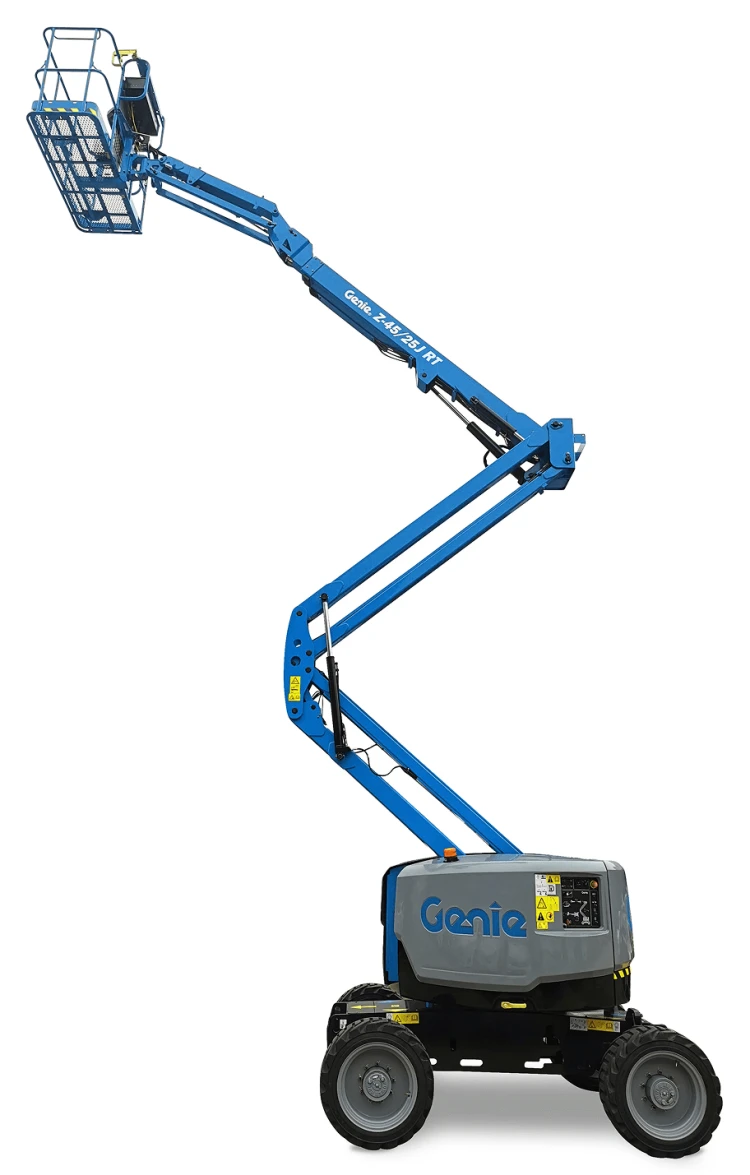

For flexibility at height, the boom lift has a 1.52m articulating jib with 135° vertical rotation, in addition to 160° hydraulic platform rotation and self-levelling platform, allowing operators to place themselves safely and precisely. Dual parallelogram boom design affords smooth vertical movement without constant readjustment.

The Genie Z-45/25J RT is a great solution for professionals who need a reliable, low-maintenance boom lift that provides exceptional versatility, efficiency, and terrain capability.

Buy the Genie Z45/25J RT Articulating Boom Lift

Contact us today for information on pricing and availability.
