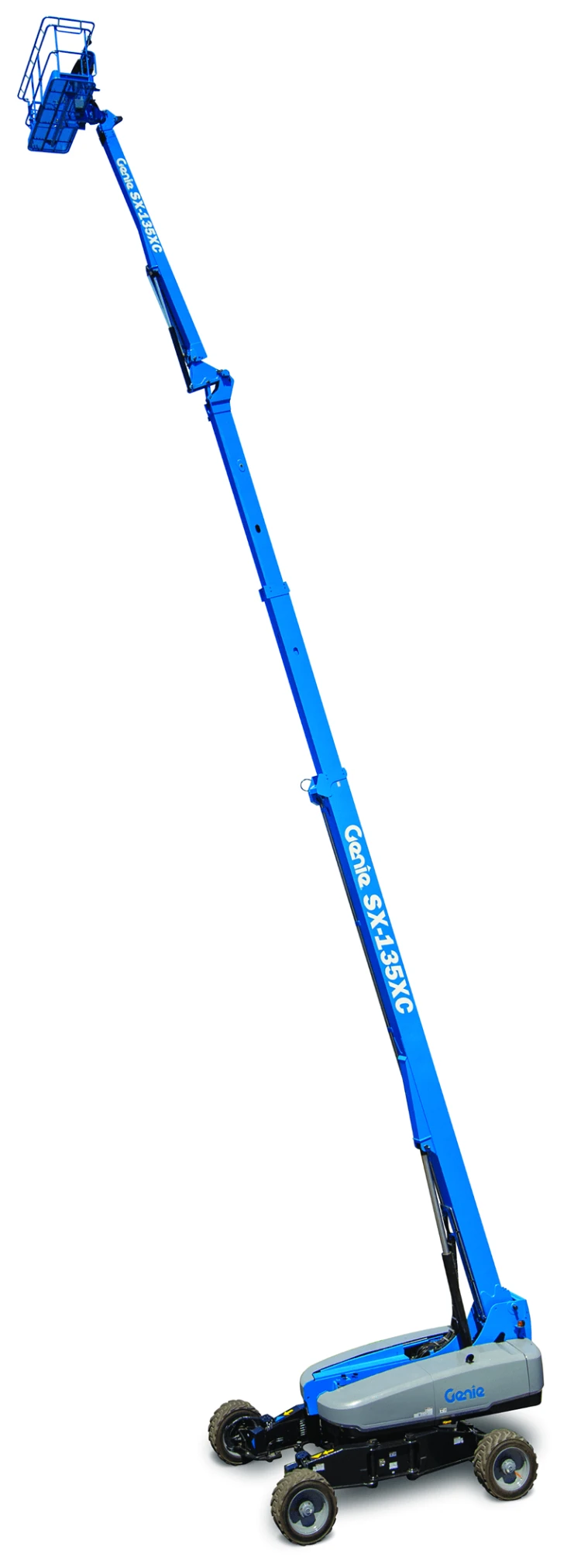

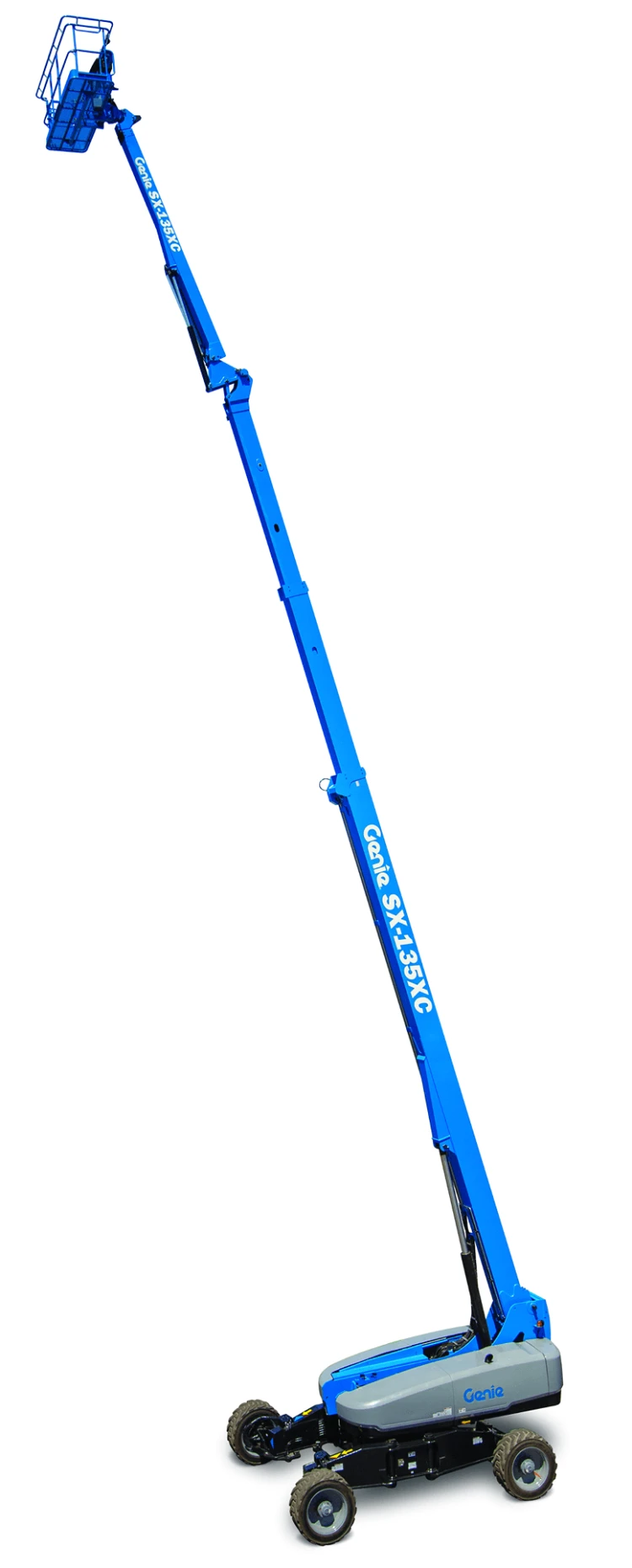

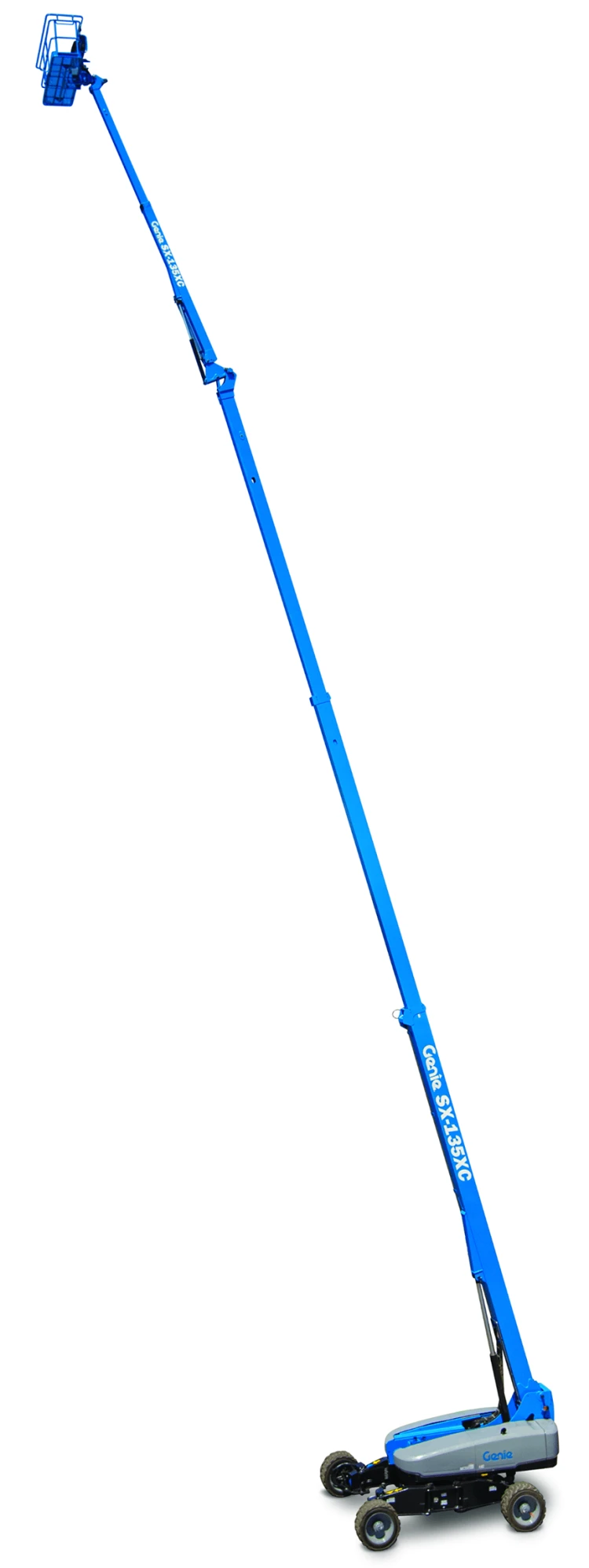

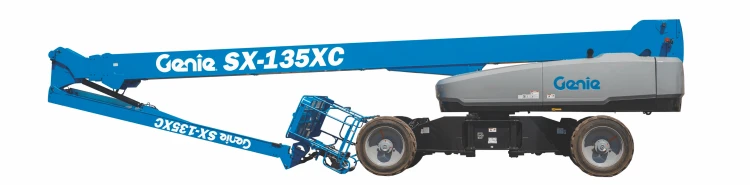

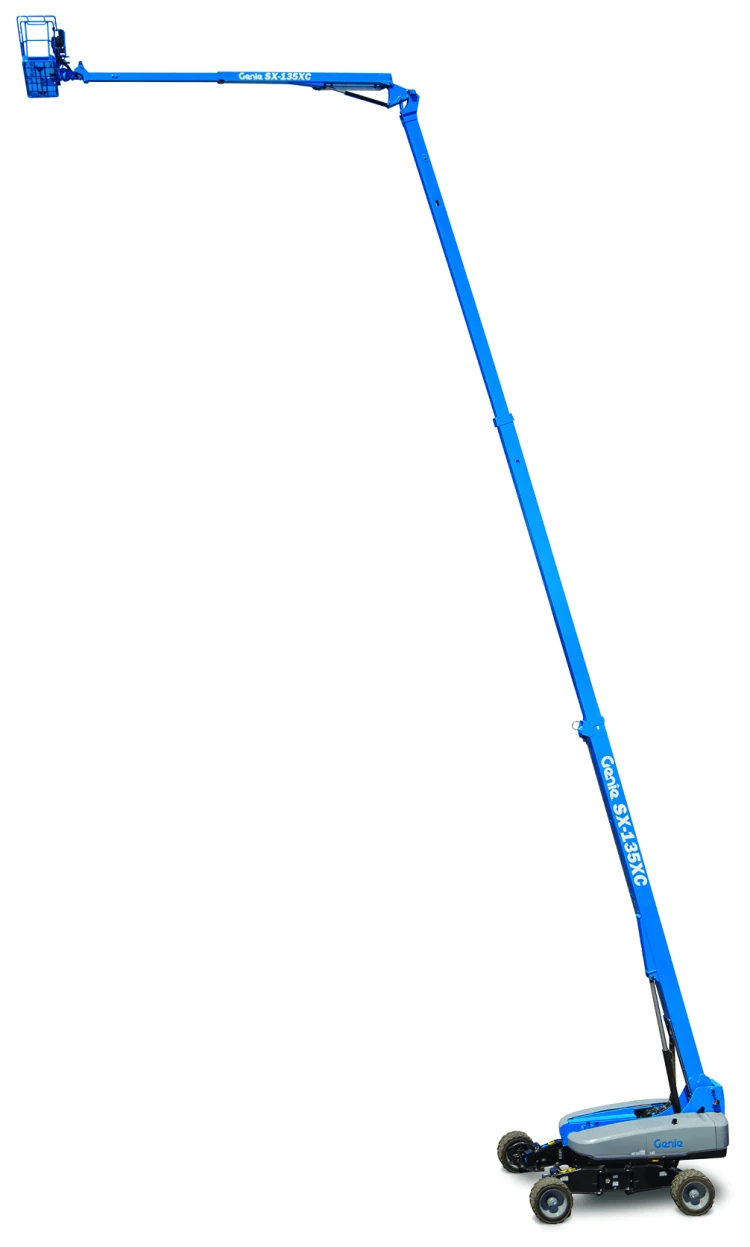

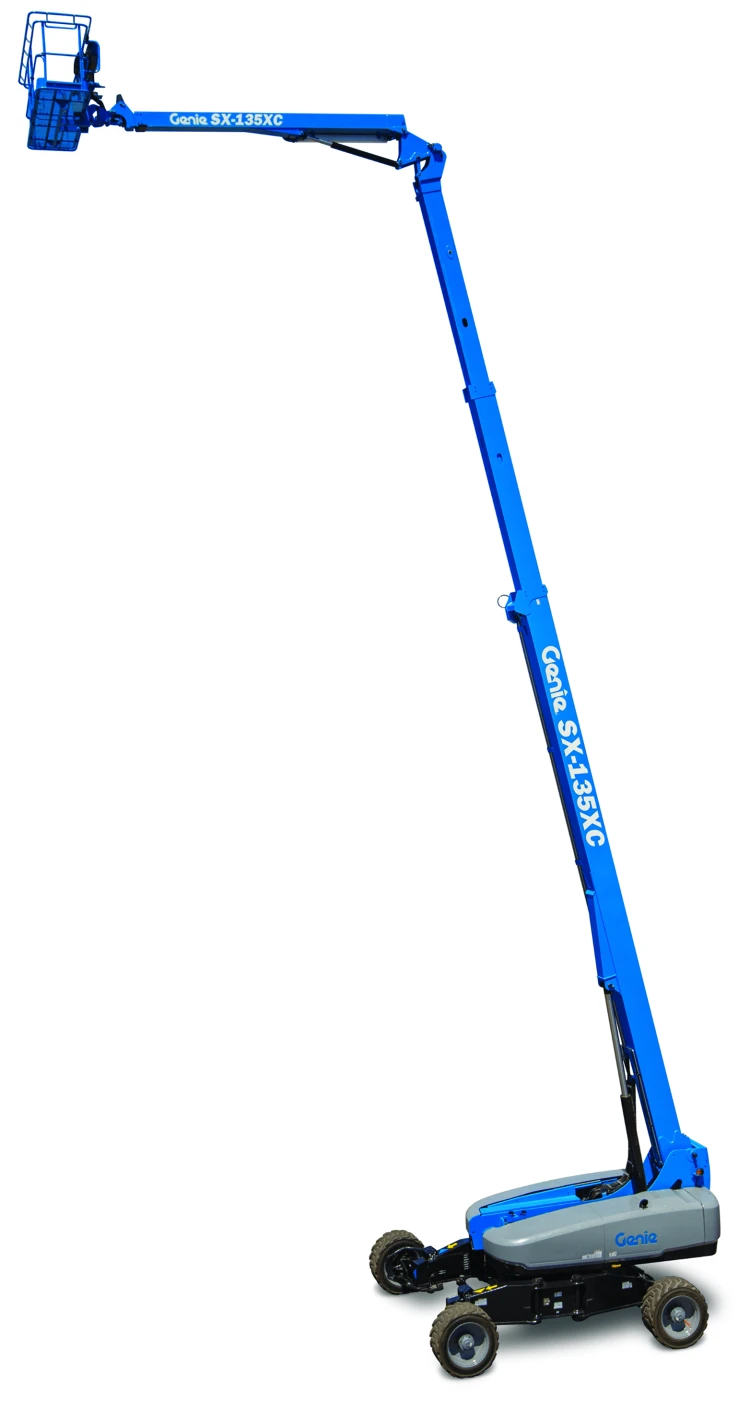

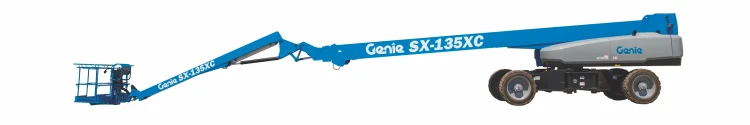

Genie SX135 XC

Genie Telescopic Boom Lifts

Features Specifications Gallery FAQs Support

Industry-leading outreach

The Genie SX135 XC model is a great choice for challenging job site applications while giving you the quality and reliability you expect from Genie. With the Mini Genie X-Chassis, this boom lift is easy to transport. The telescoping jib provides 130˚ articulation for increased range of motion, and the unique up-and-over style capability enables operators to easily navigate any obstacles at height.

Applications

Construction projects
Inspection tasks
Installation projects
Maintenance tasks
Theme parks

Features

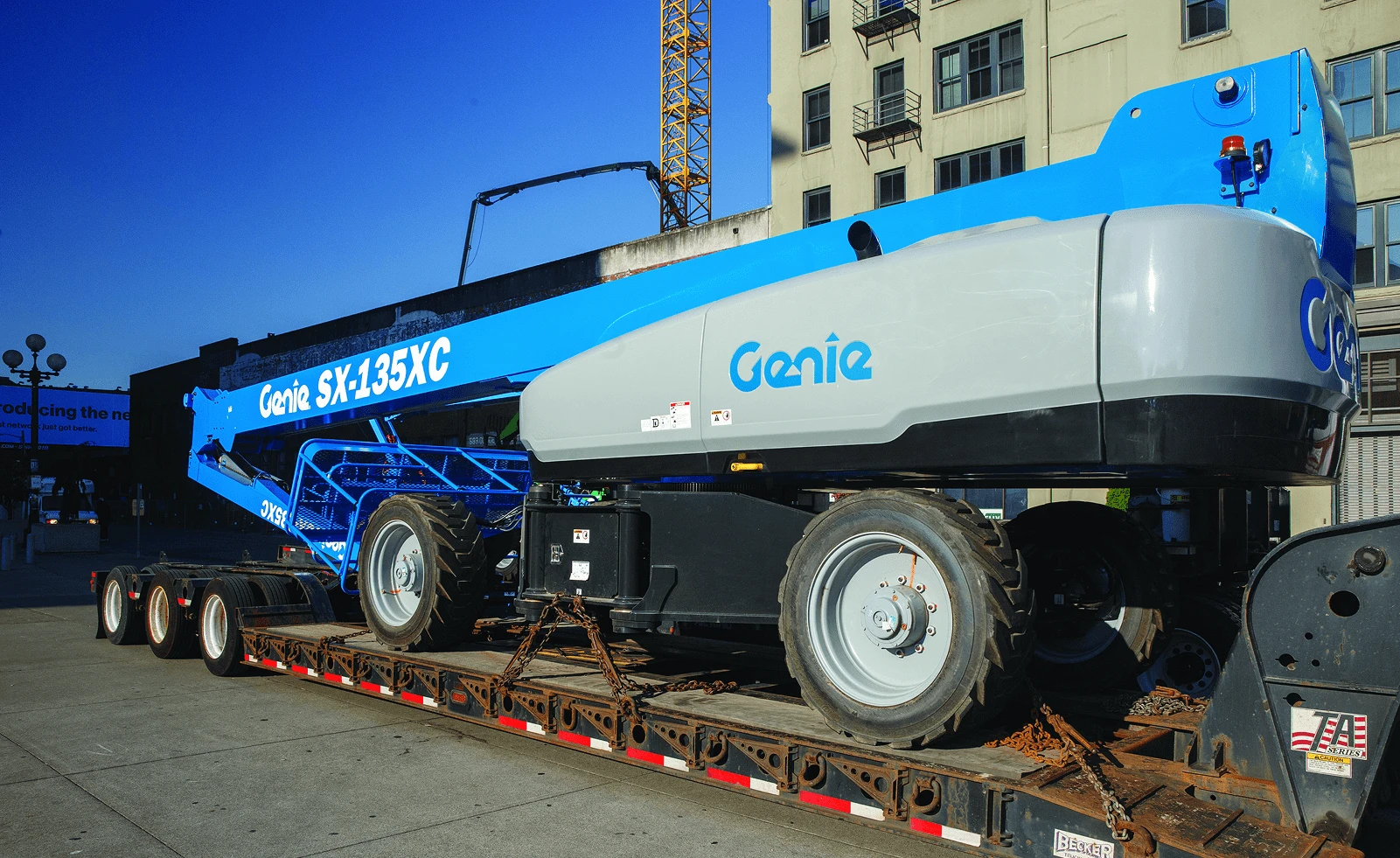

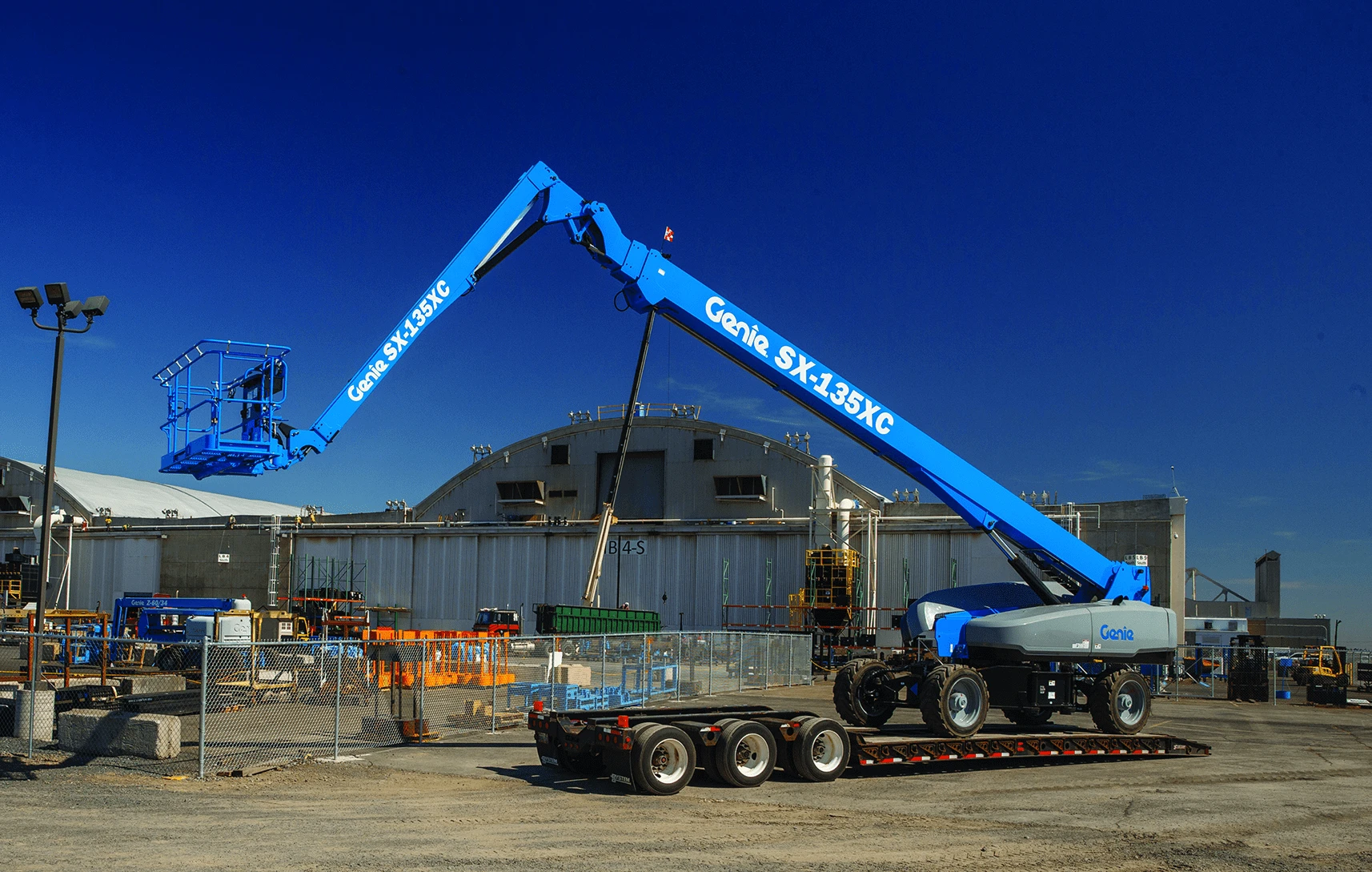

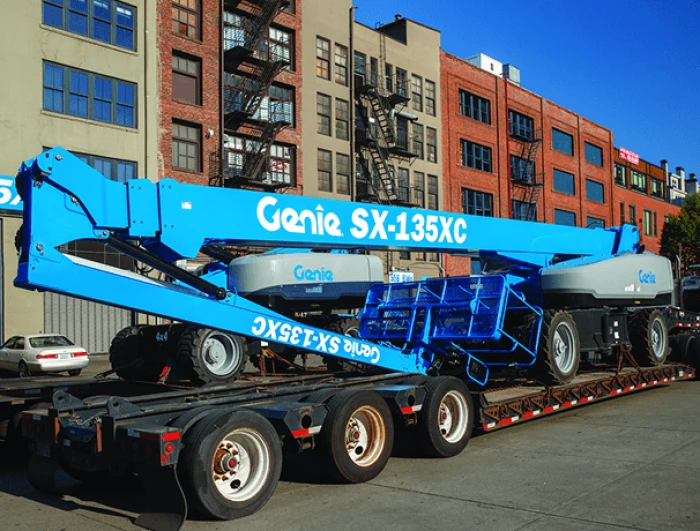

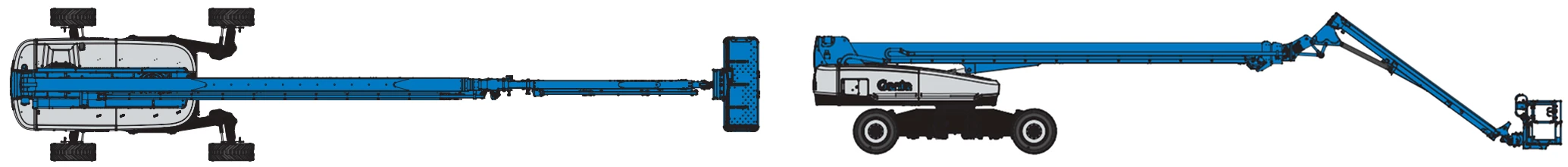

The Genie X-chassis design can retract allowing for easy transport and extend for better stability when being operated.

Allows precise handling of both lift and drive functions, giving the operator better control and accuracy during operation.

With a restricted load capacity of 454kg and an unrestricted load capacity of 300kg allows the SX-125XC to accommodate heavier tools and materials or up to 3 workers on the platform.

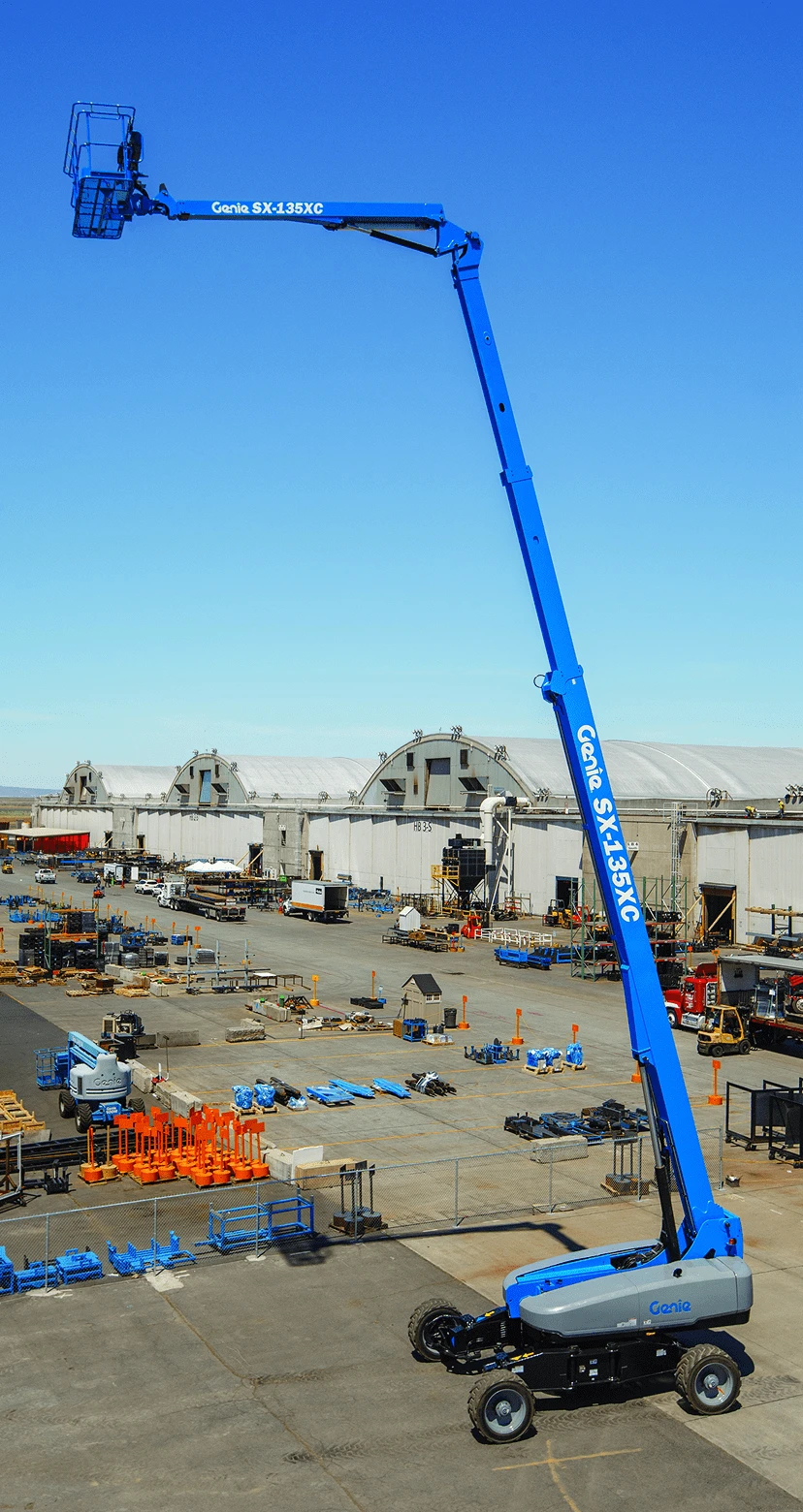

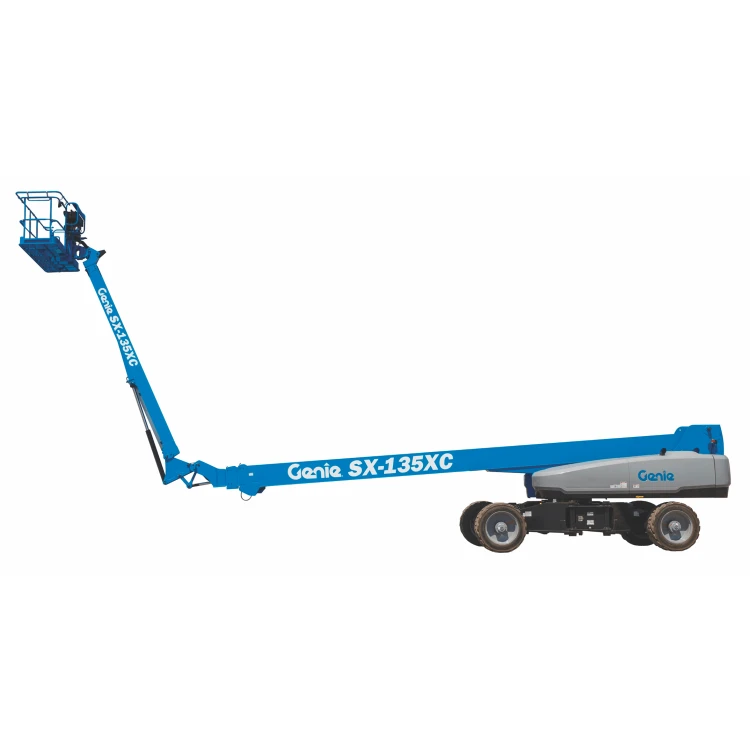

Equipped with 130° articulation, this telescoping jib extends your working envelope significantly, offering greater up-and-over access and flexibility.

Paired with the automatic envelope control technology allows operators to maximise their productivity without the need to reposition the machine.

Allows for accurate load weighing and zero-load field calibration.

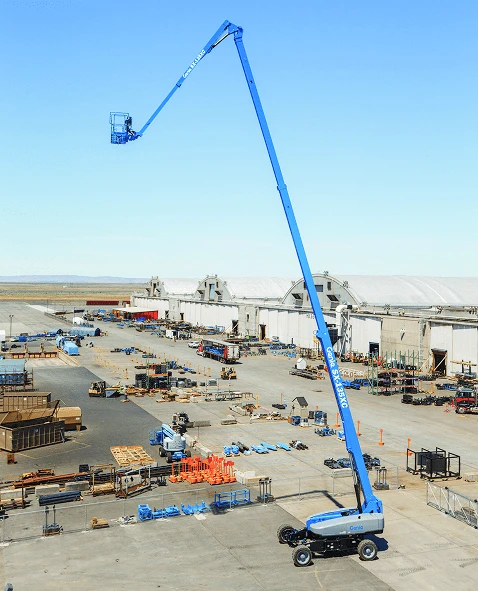

Provides an impressive horizontal outreach of 27.43m and below-ground reach of 6 m, suitable for challenging access situations.

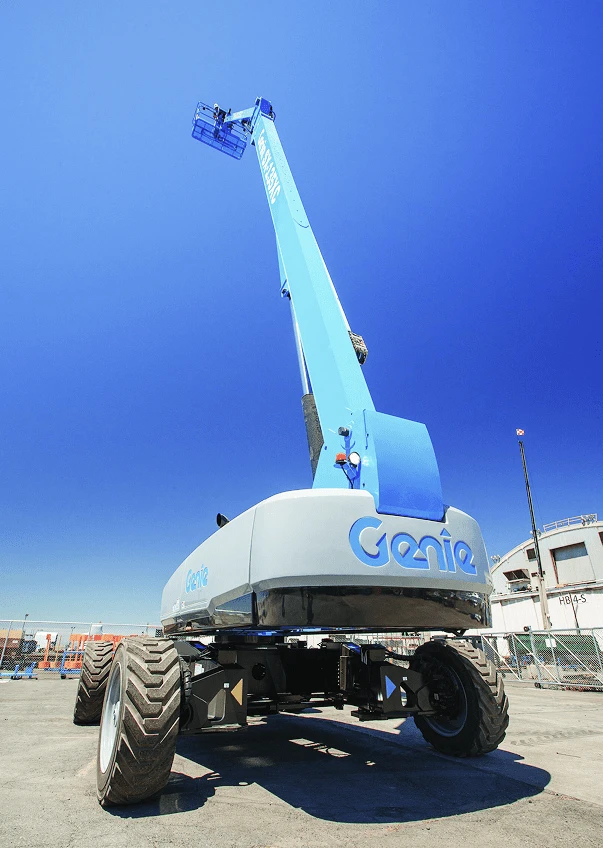

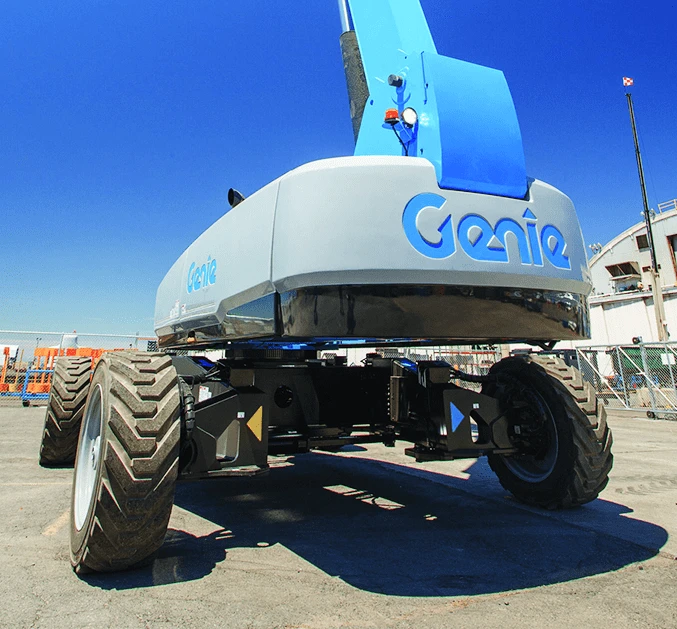

Designed with 4WD and foam-filled rough terrain tyres for reliable performance over uneven or challenging terrain.

Specification

The Genie SX-135 XC telescopic boom lift delivers outstanding outreach and heavy-lift capability, making it a top choice for challenging high-reach tasks.

Working height 43.15m
Platform height 41.15m
Horizontal reach 27.43m
Below ground reach 6.0m
Unrestricted lift capacity 300kg
Restricted lift capacity 454kg
Machine width (axles retracted) 2.49m
Machine weight 21,546kg
Genie SX125 XC
Genie SX150
Free, no obligation site survey.

Making sure that you achieve the most from your budget.

Servicing & Repairs

Our in-house, Genie factory-trained team of mobile engineers cover the entire country, ensuring expert support is never far away.

Genie OEM Parts

Keep your Genie in operation with genuine Genie OEM parts. With thousands of parts stocked and ready for delivery nationwide.

FAQs

The Genie SX-135 XC telescopic boom lift has a maximum working height of 43.15m.

The Genie SX-135 XC offers a dual lift capacity, 454kg restricted and 300kg unrestricted.

Yes, as the UK's authorised Genie dealer, we sell all the Genie telescopic boom lifts.

You're in the right place. As the UK’s authorised Genie dealer, we provide expert advice, competitive pricing, and nationwide delivery. Contact our sales team for price and availability for the Genie SX135 XC telescopic boom lift.

We are here to support you

Our only priority is to supply you with the best and safest products and support you to the highest level.

Servicing & Repairs

Genie OEM Parts

Service Contracts

Finance Options

Accessories

Part Exchange

Operator Training

Genie SX-135 XC Telescopic Boom Lift

Genie SX-135 XC telescoping boom lift is for applications which require high-reach, extensive outreach and heavy lifting capacity. With a maximum working height of 43.15m, horizontal reach of 27.43 metres, and impressive below-ground reach of 6m, the machine is designed for maximum versatility and productivity in construction, industrial, and infrastructure works.

Thanks to its 300kg unrestricted and 454kg restricted dual lift capacity, the SX-135 XC can safely and reliably carry up to three workers, plus tools and materials. For even greater reach and accuracy, the SX-150 XC is equipped with a telescoping jib which can extend from 5.48m to 9.14m with 130° of articulation, allowing it to position workers precisely where they are required.

With industry-leading outreach combined, the SX-135 XC provides operators with access to the toughest work areas—up, out, or down. This machine features the Mini Genie X-Chassis®, a light and stable frame that is easy to transport and access confined job sites. It's also equipped with Genie’s smart technologies such as automatic envelope control, chassis tilt sensors, zero-load field calibration, and onboard diagnostics to reduce downtime and maximise productivity.

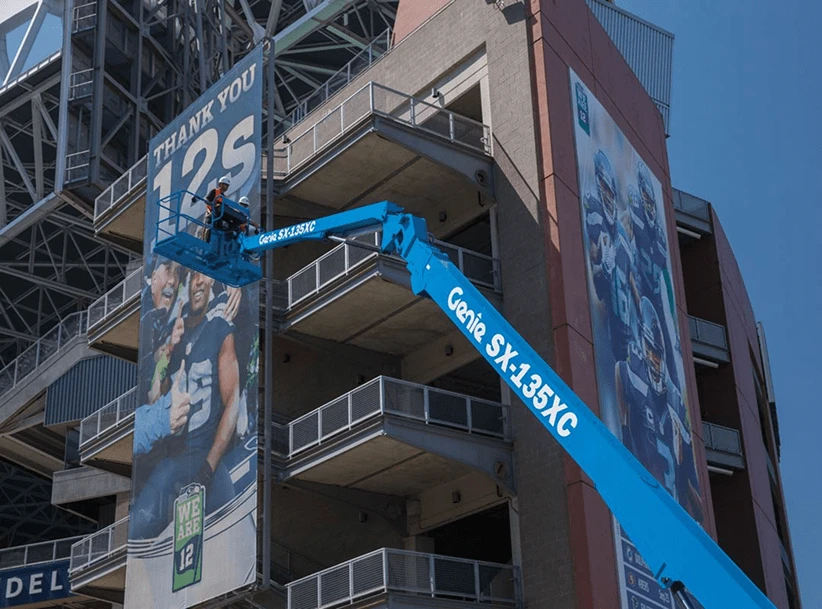

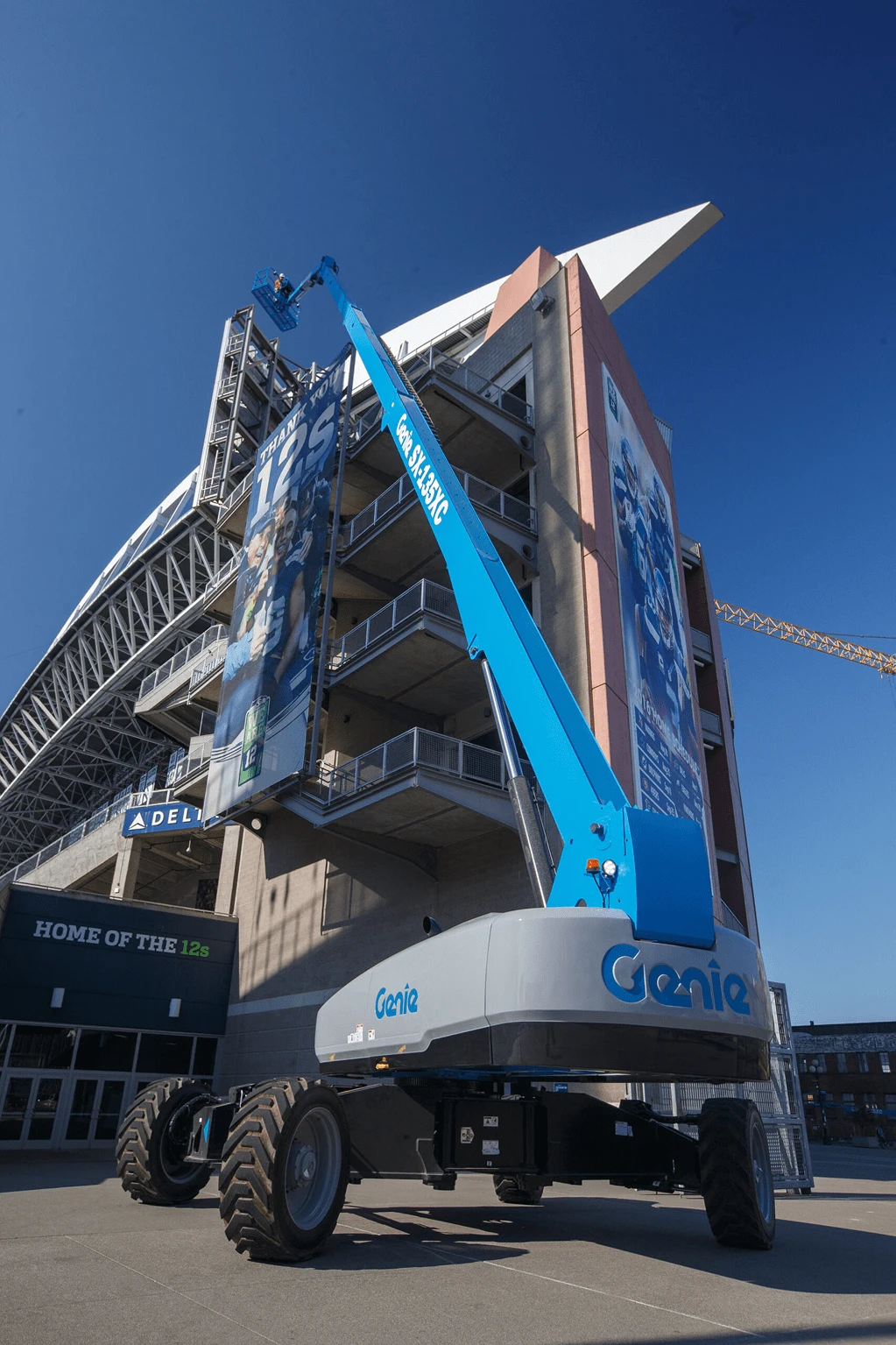

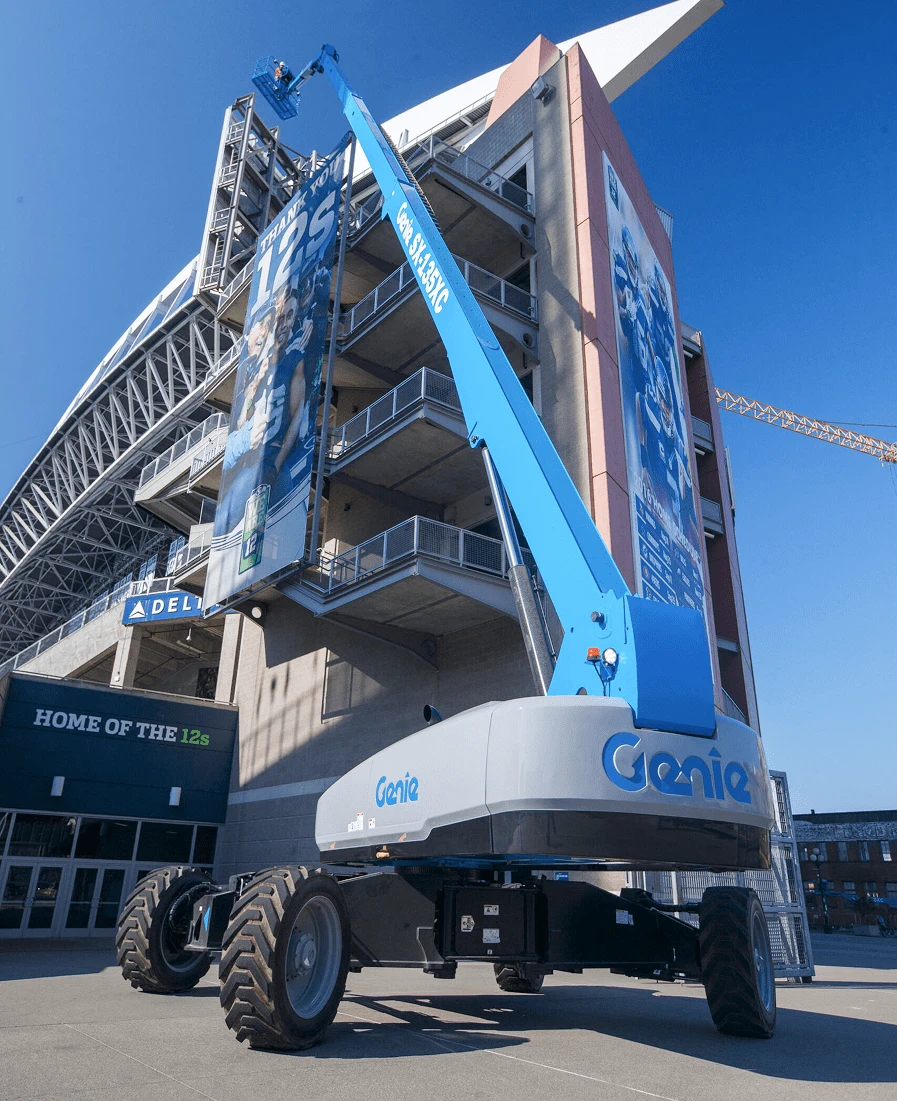

Whether the task is building bridges, repairing stadiums, or heavy building, the Genie SX-135 XC gives you the reach, capacity, and power you need to get the job done.

Buy the Genie SX-135 XC Telescopic Boom Lift

Contact us today for information on pricing and availability.
