Genie Z45/25J DC

Genie Articulated Boom Lifts

Features Specifications Gallery FAQs Support

Quiet and emission-free

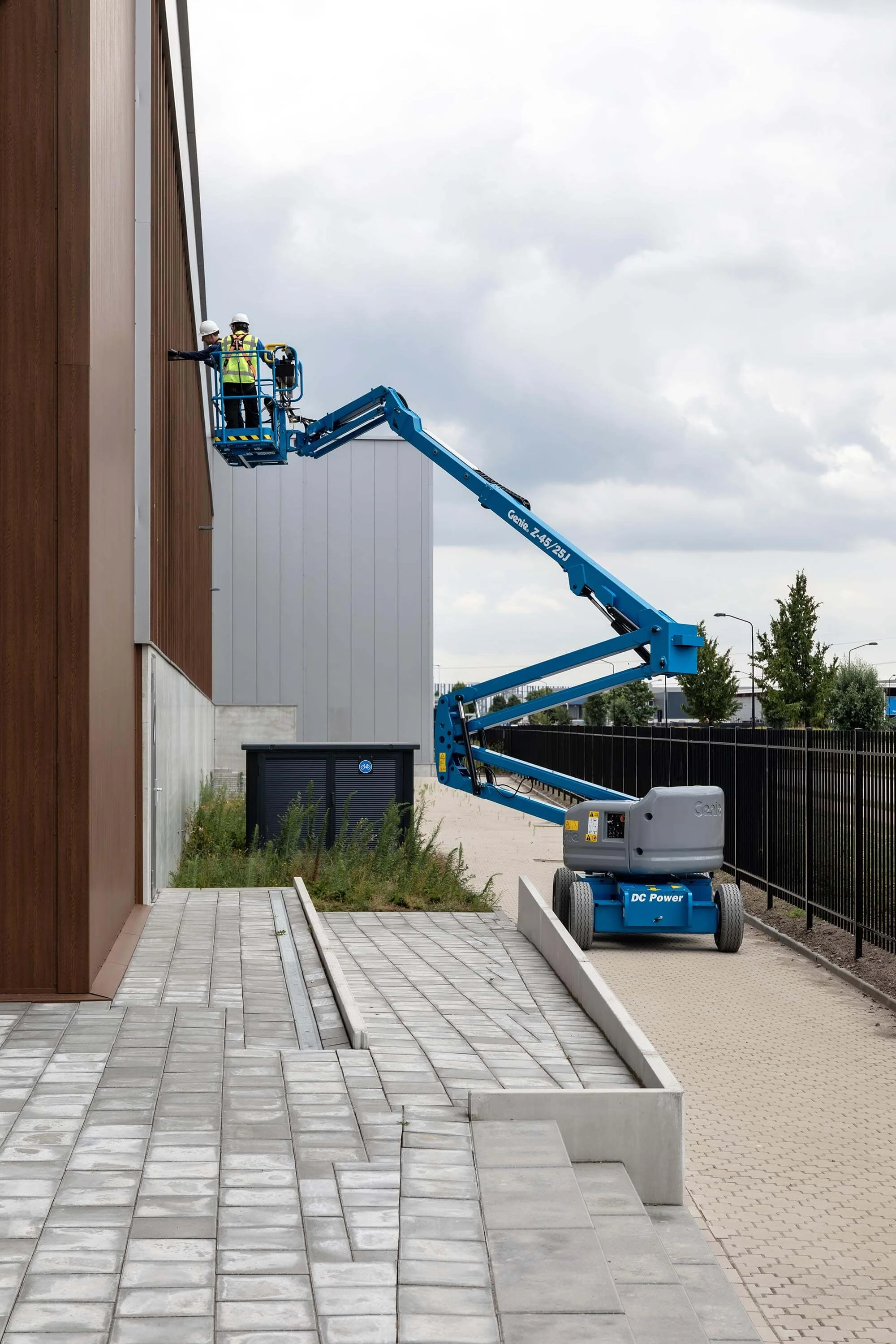

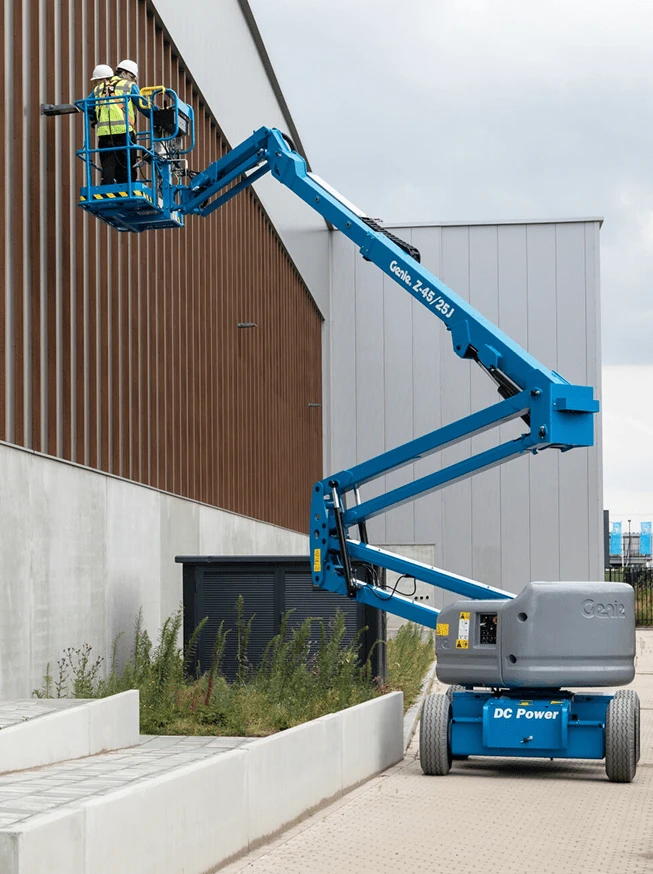

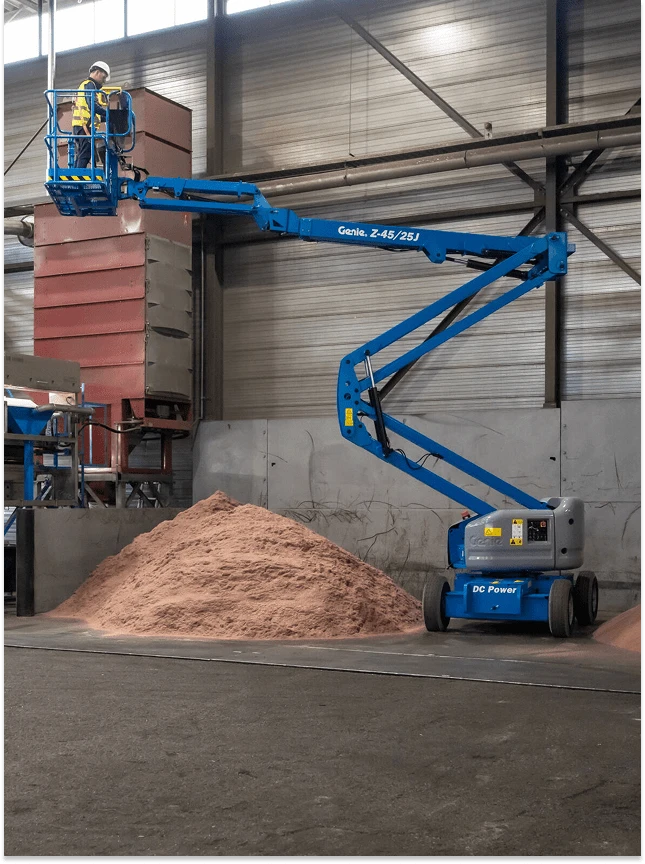

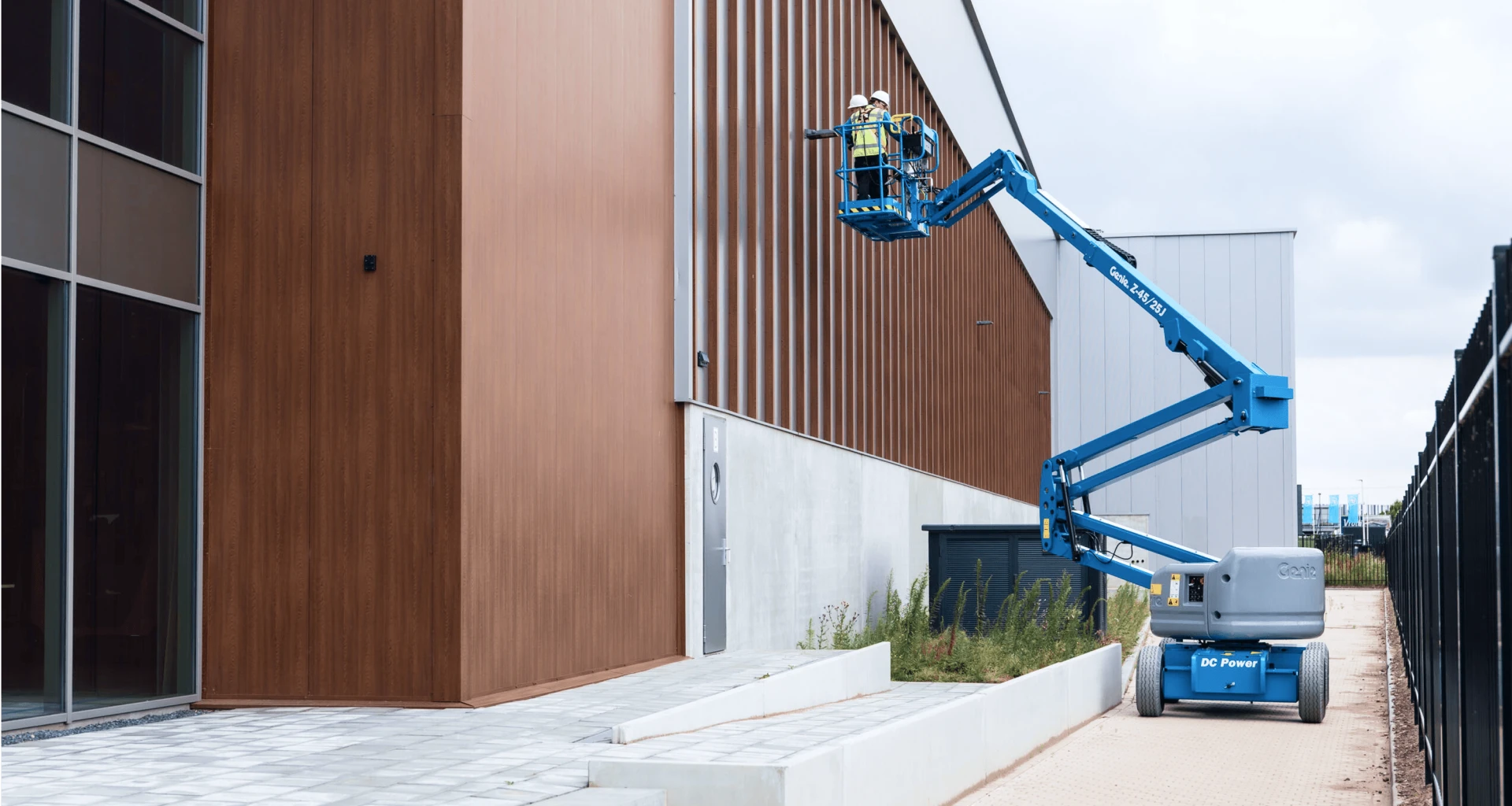

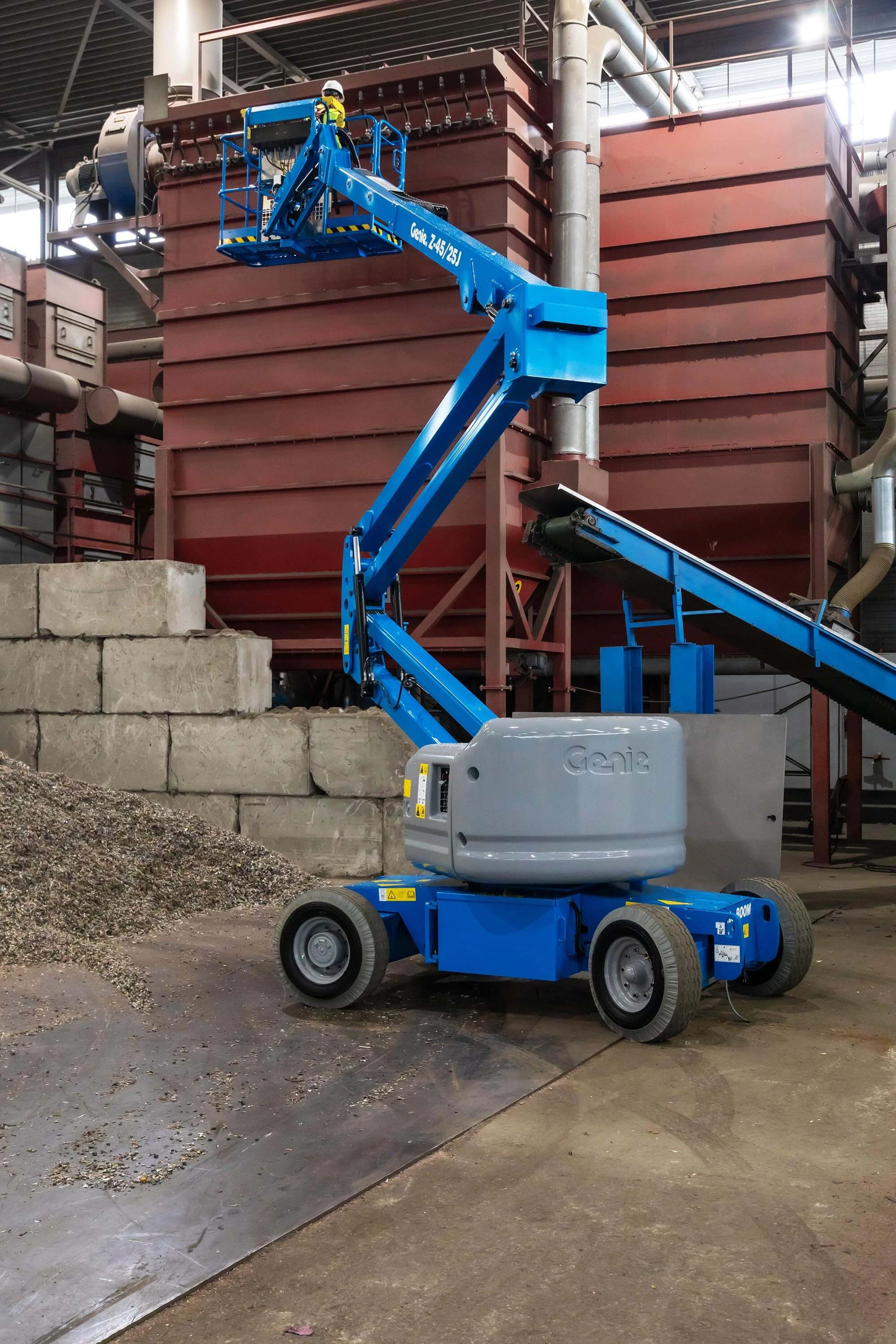

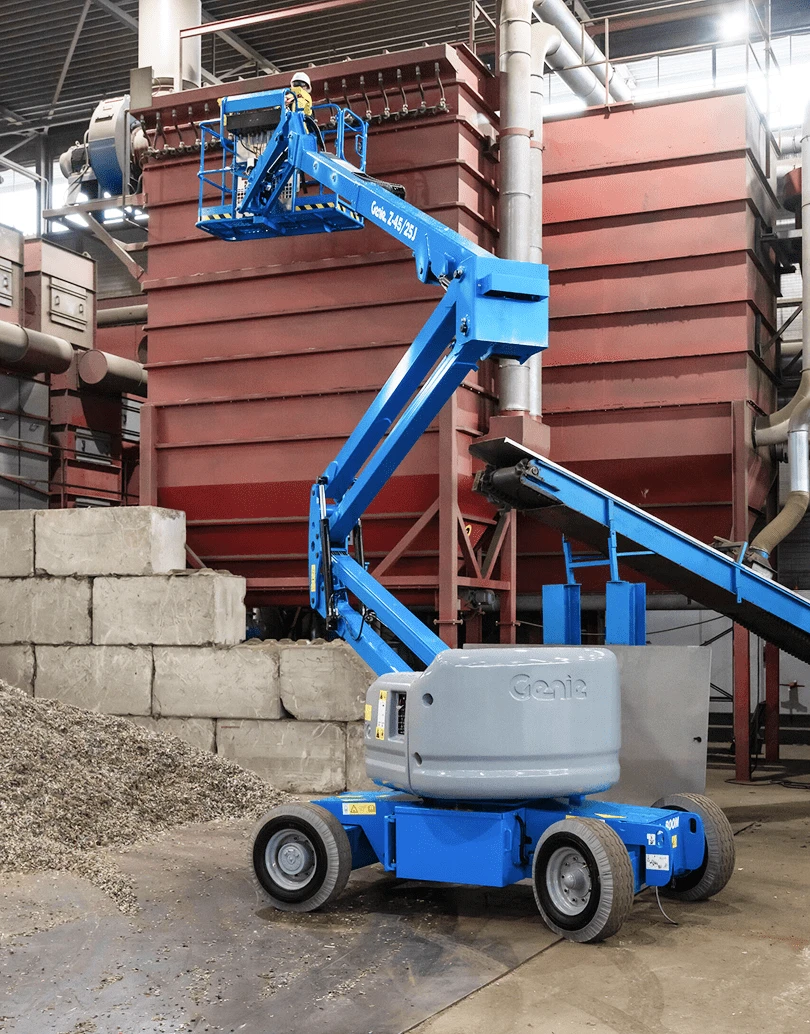

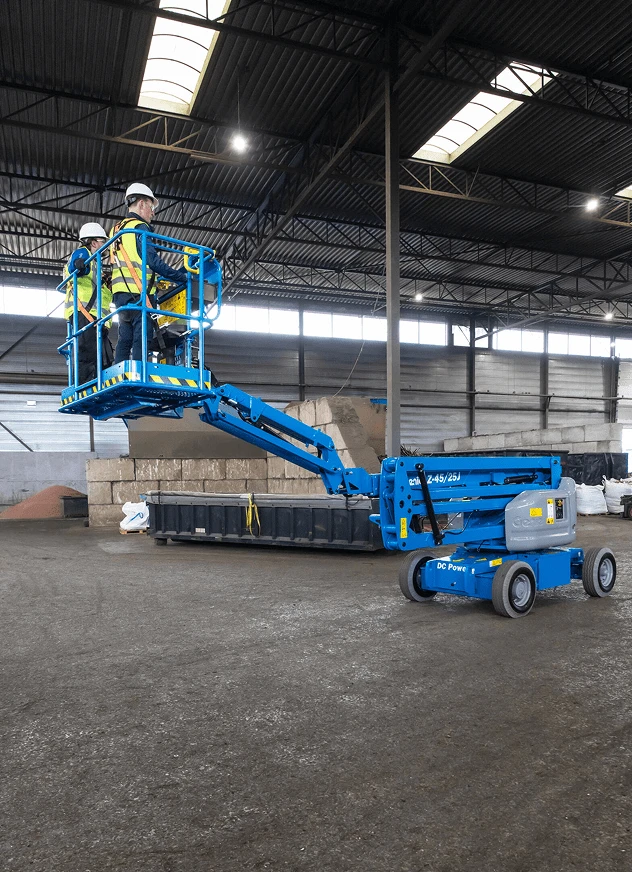

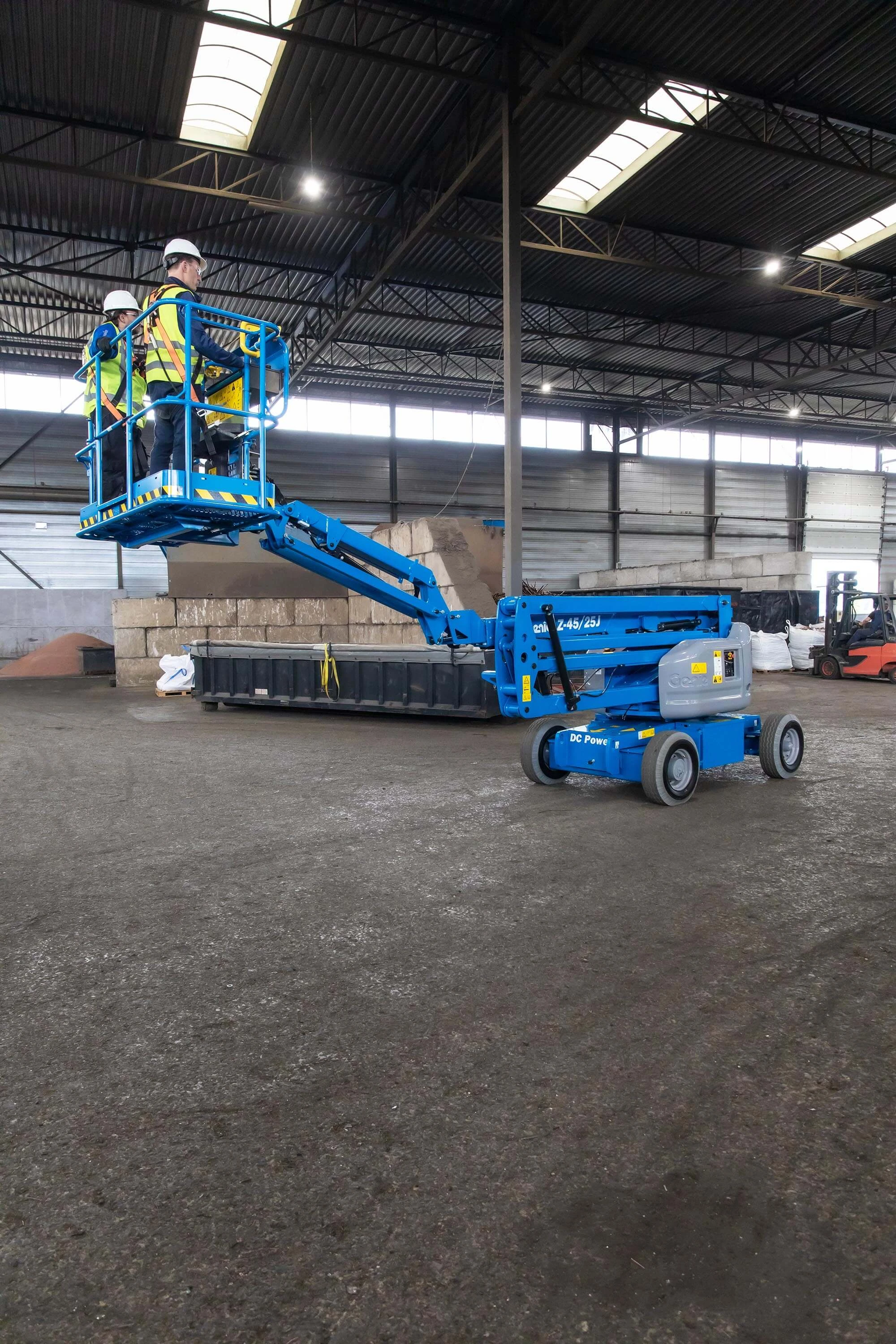

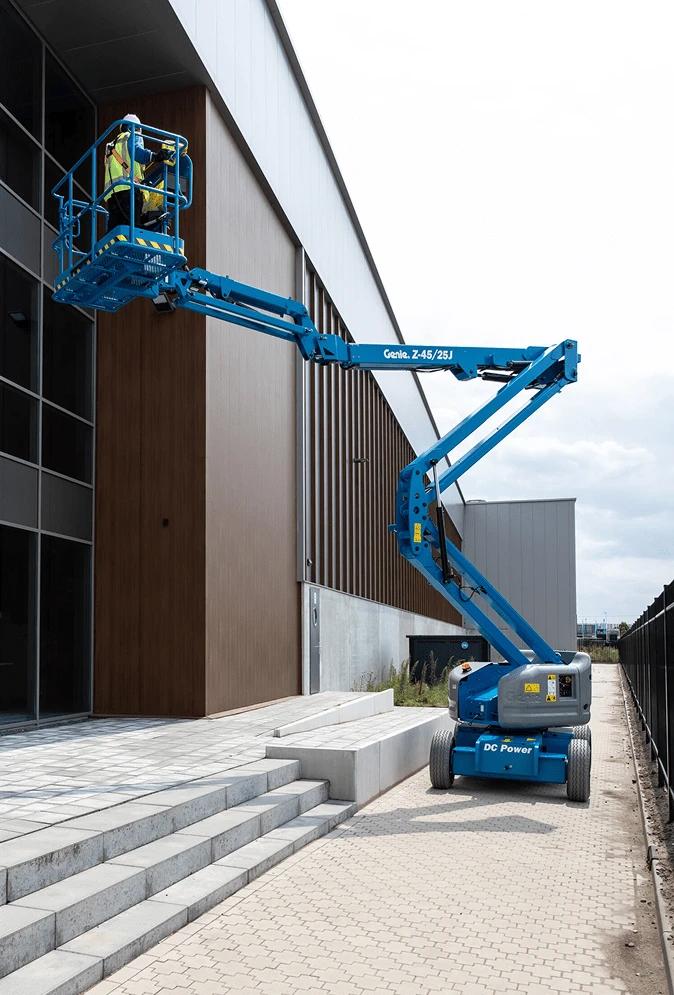

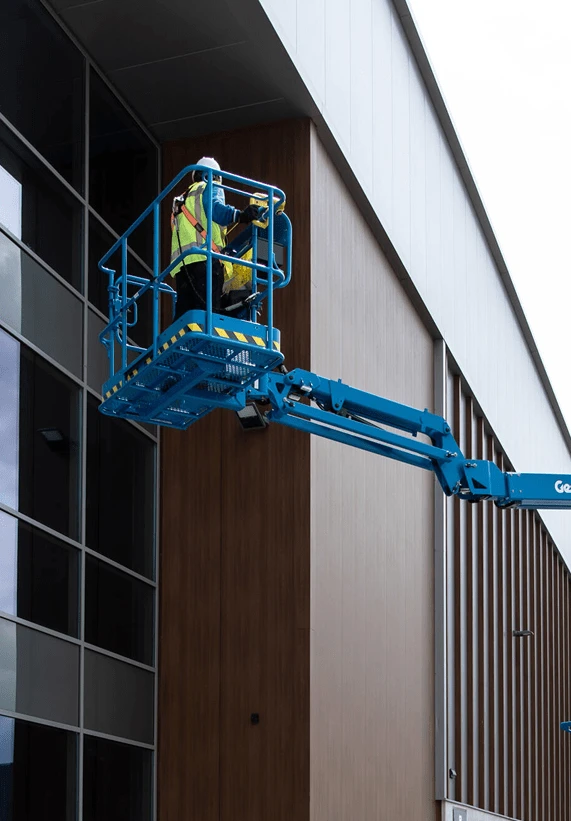

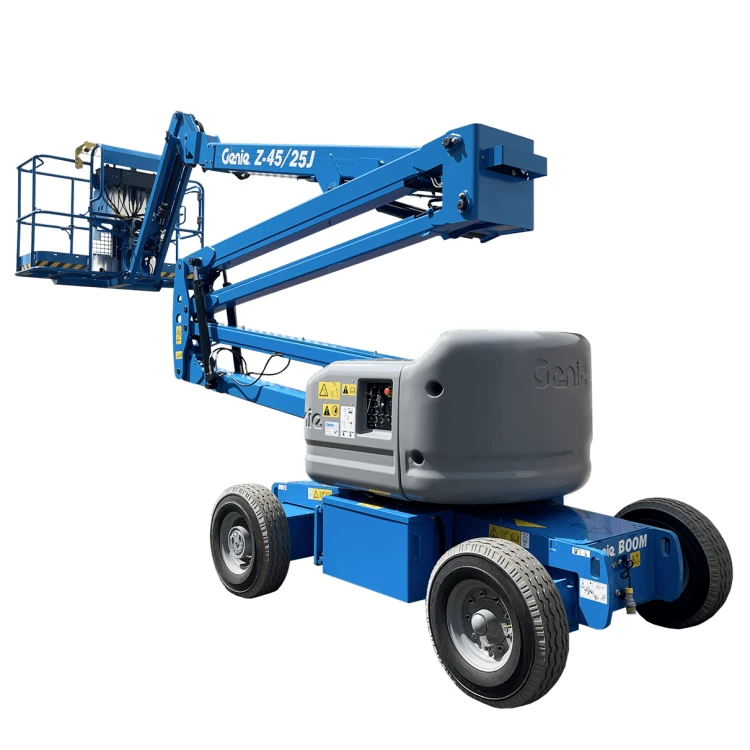

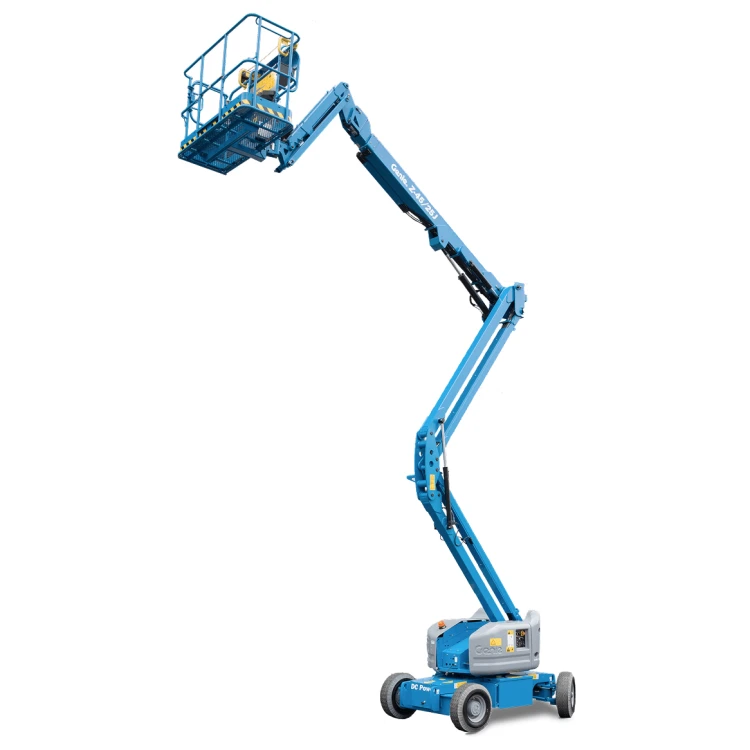

The Genie Z45/25J DC electric articulating boom comes as standard with a 1.52m jib boom, providing 135 degrees of vertical jib rotation, allowing operators to work close to buildings or around obstacles, and access overhead work from aisles. With a working height of 15.94m, this electric boom lift offers quiet, emission-free operation, making it suitable for indoor applications.

Applications

Construction projects
Inspection tasks
Installation projects
Distribution
Maintenance tasks

Features

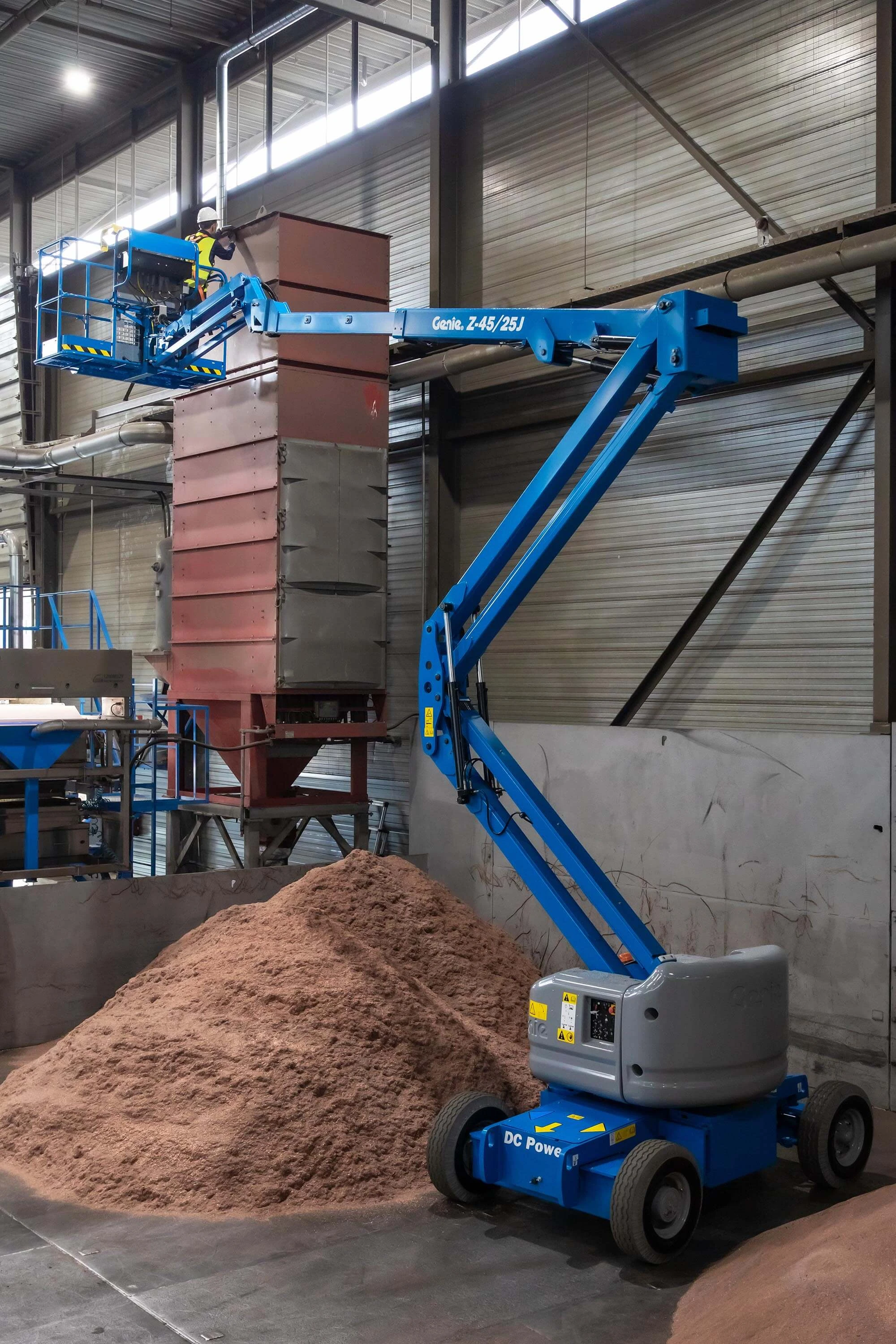

Provides smooth, safe navigation in confined or congested workspaces, ideal for indoor use or tight outdoor sites with limited space.

Provides excellent drive performance across sloped or slightly uneven terrain while maintaining efficient movement between job locations.

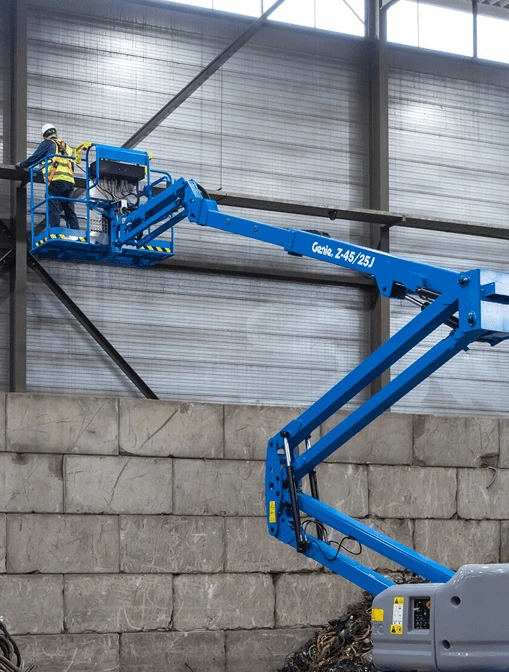

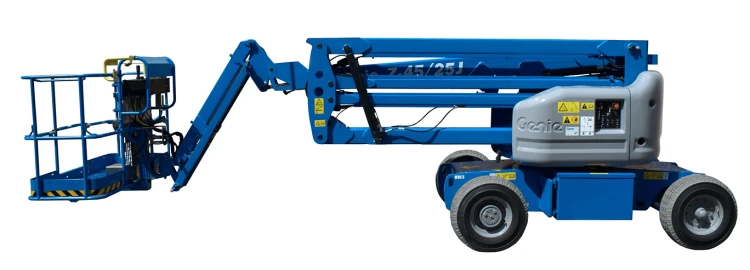

Equipped with an articulating jib gives operators more flexibility when it comes to accurately positioning around obstacles.

Ensures easy, controlled platform adjustment while maintaining balance and stability, allowing operators to navigate the machine precisely.

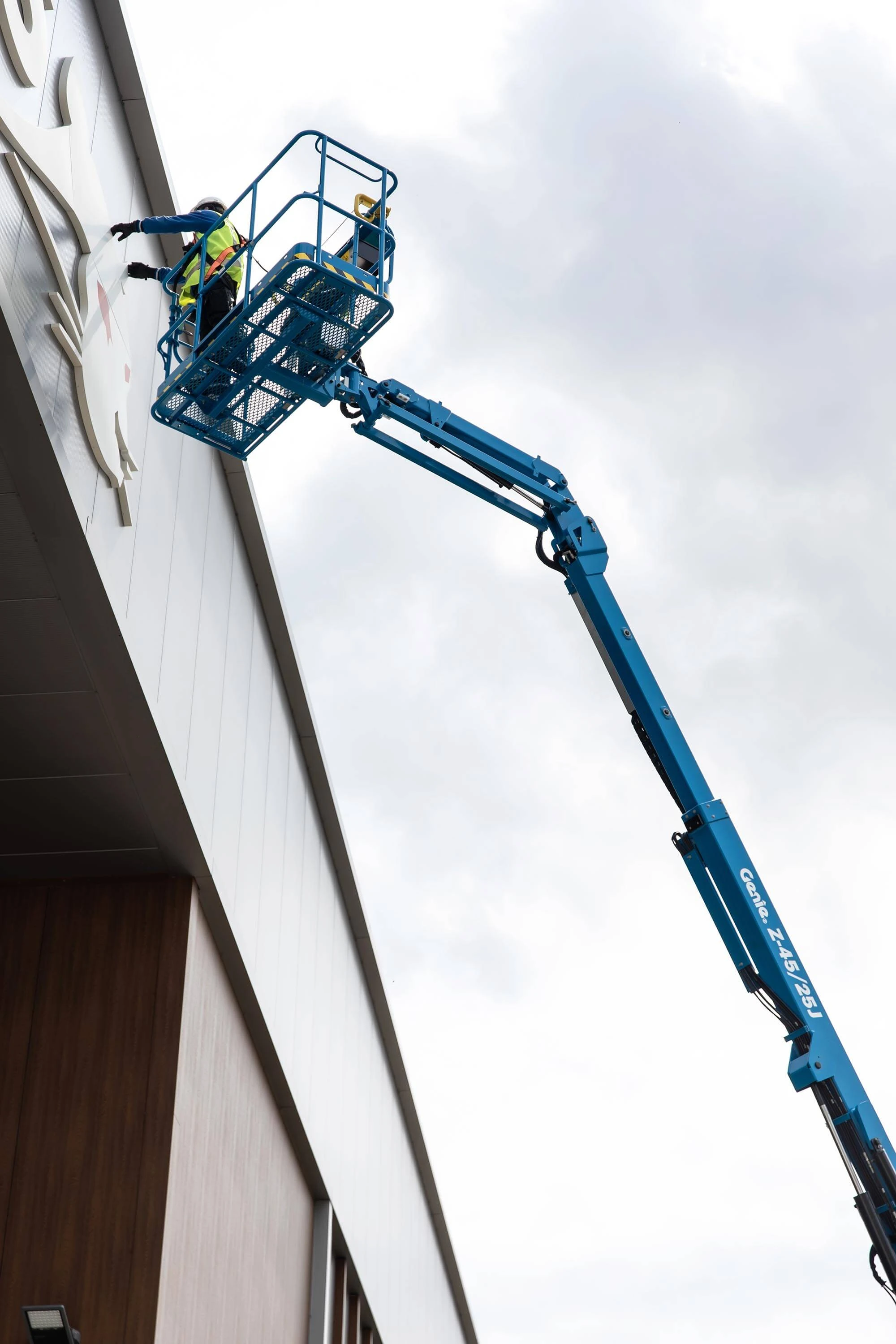

Spacious and durable, the platform supports up to 227kgs, increasing productivity and comfort while working at height.

The Genie Z-45/25J DC articulating boom is fully electric, offering zero emission and quiet operation, perfect for indoor noise-sensitive applications.

The dual parallelogram lift design allows operators to ascend and descend along a vertical plane without having to retract or extend either boom section.

Allows precise handling of both lift and drive functions, giving the operator better control and accuracy during operation.

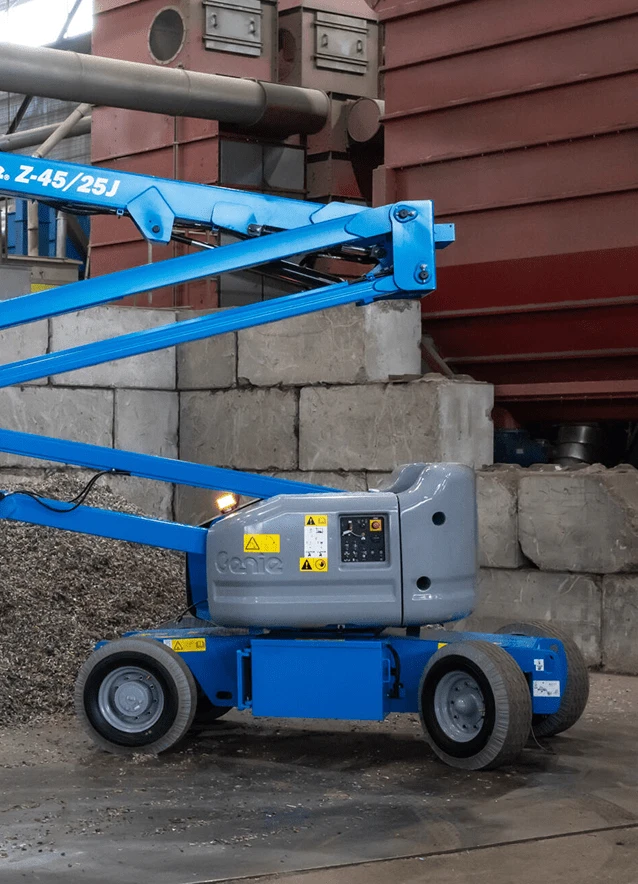

The industrial non-marking foam-filled tyres provide good traction and durability while ensuring no marks are left on the surface.

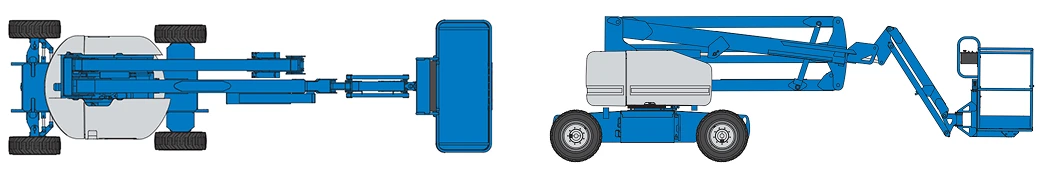

Specification

The Genie Z-45/25J DC electric articulating boom lift is the ideal solution for indoor or sensitive work environments requiring quiet, zero-emission operation.

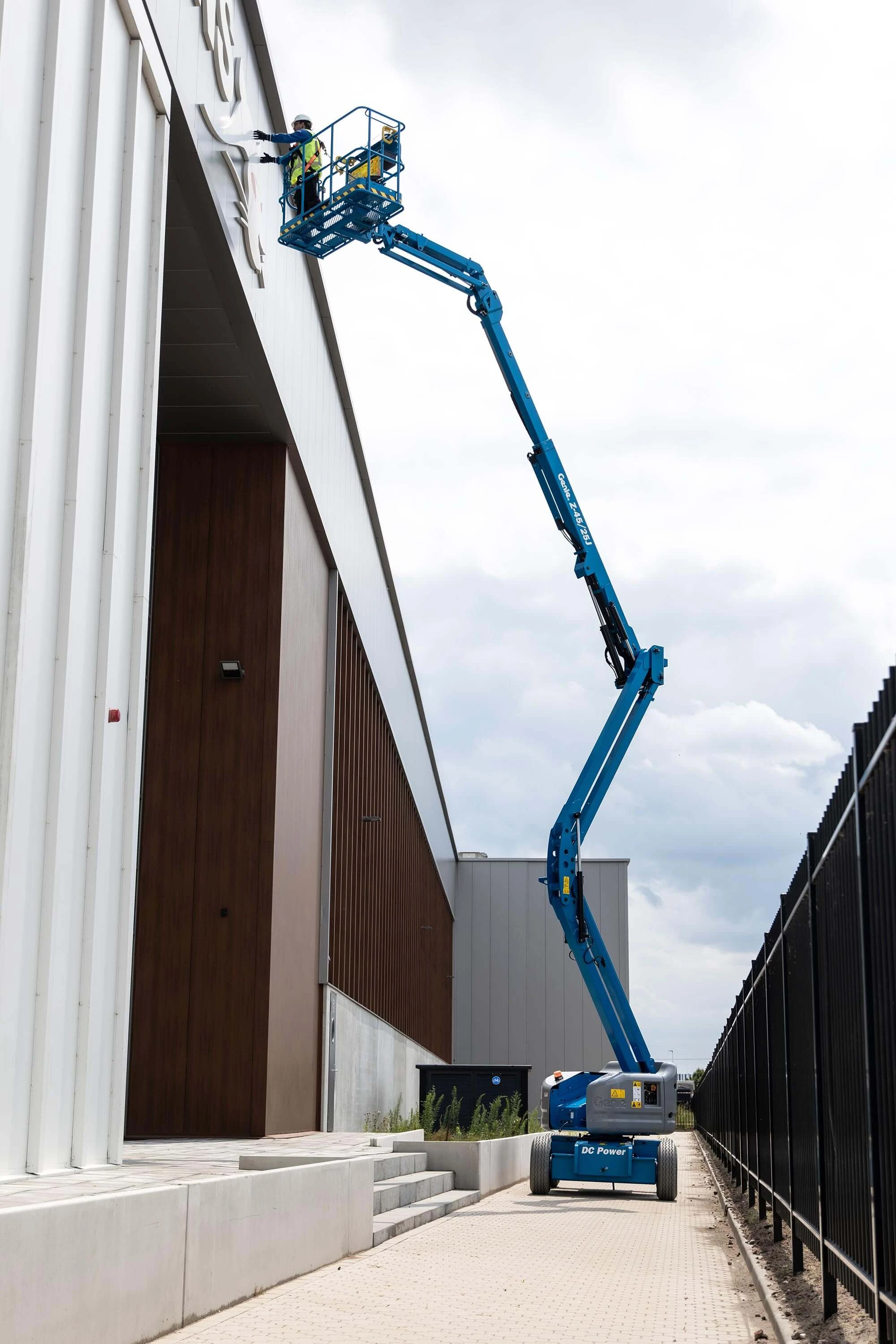

Working height 15.94m
Platform height 13.94m
Horizontal reach 7.65m
Up and over clearance 7.24m
Lift capacity 227kg
Machine width 1.79m
Stowed length 6.83m
Machine weight 7400kg
Genie Z34/22N
Genie Z51/30J RT
Free, no obligation site survey.

Making sure that you achieve the most from your budget.

Servicing & Repairs

Our in-house, Genie factory-trained team of mobile engineers cover the entire country, ensuring expert support is never far away.

Genie OEM Parts

Keep your Genie in operation with genuine Genie OEM parts. With thousands of parts stocked and ready for delivery nationwide.

FAQs

The Genie Z45/25J DC offers a working height of 15.94m.

The Z45/25J DC is only 1.79 m in width, making it a perfect solution for confined areas.

The Genie Z45/25J DC is commonly used for indoor maintenance and inspection tasks.

Yes, as the UK's authorised Genie dealer, we sell all the Genie articulating boom lifts.

We’ve got you covered. As the UK’s authorised Genie dealer, we provide expert advice, competitive pricing, and nationwide delivery. Contact our sales team for price and availability for the Genie Z45/25J DC articulated boom lift.

We are here to support you

Our only priority is to supply you with the best and safest products and support you to the highest level.

Servicing & Repairs

Genie OEM Parts

Service Contracts

Finance Options

Accessories

Part Exchange

Operator Training

Genie Z45/25J DC Articulating Boom Lift

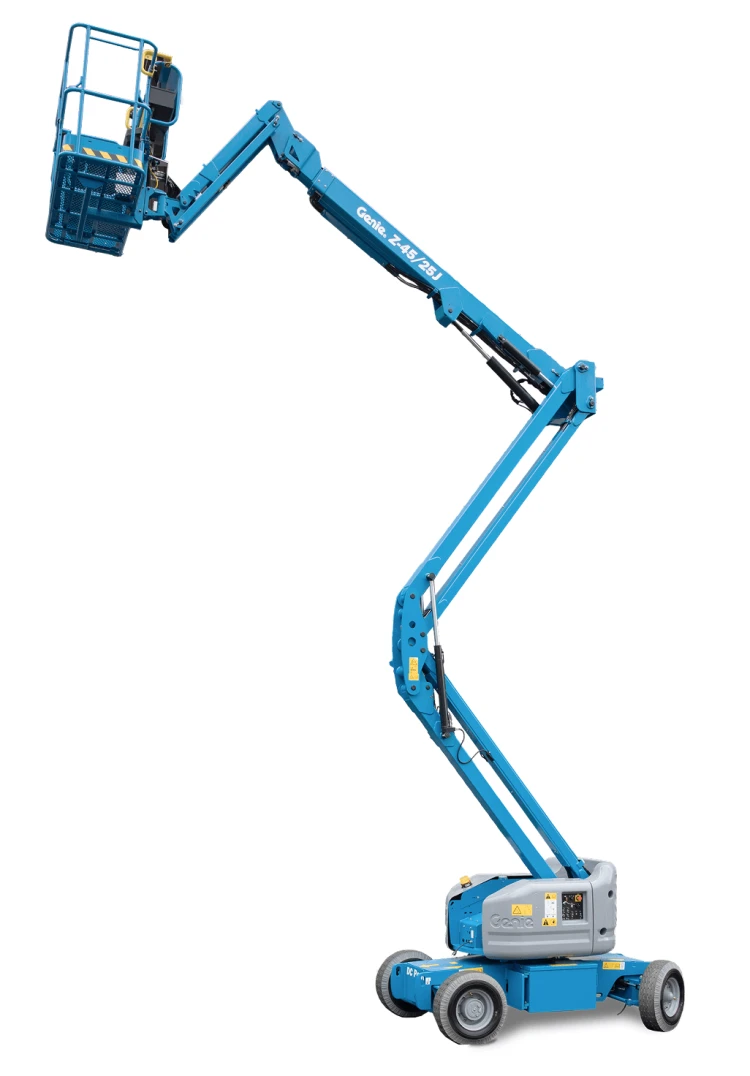

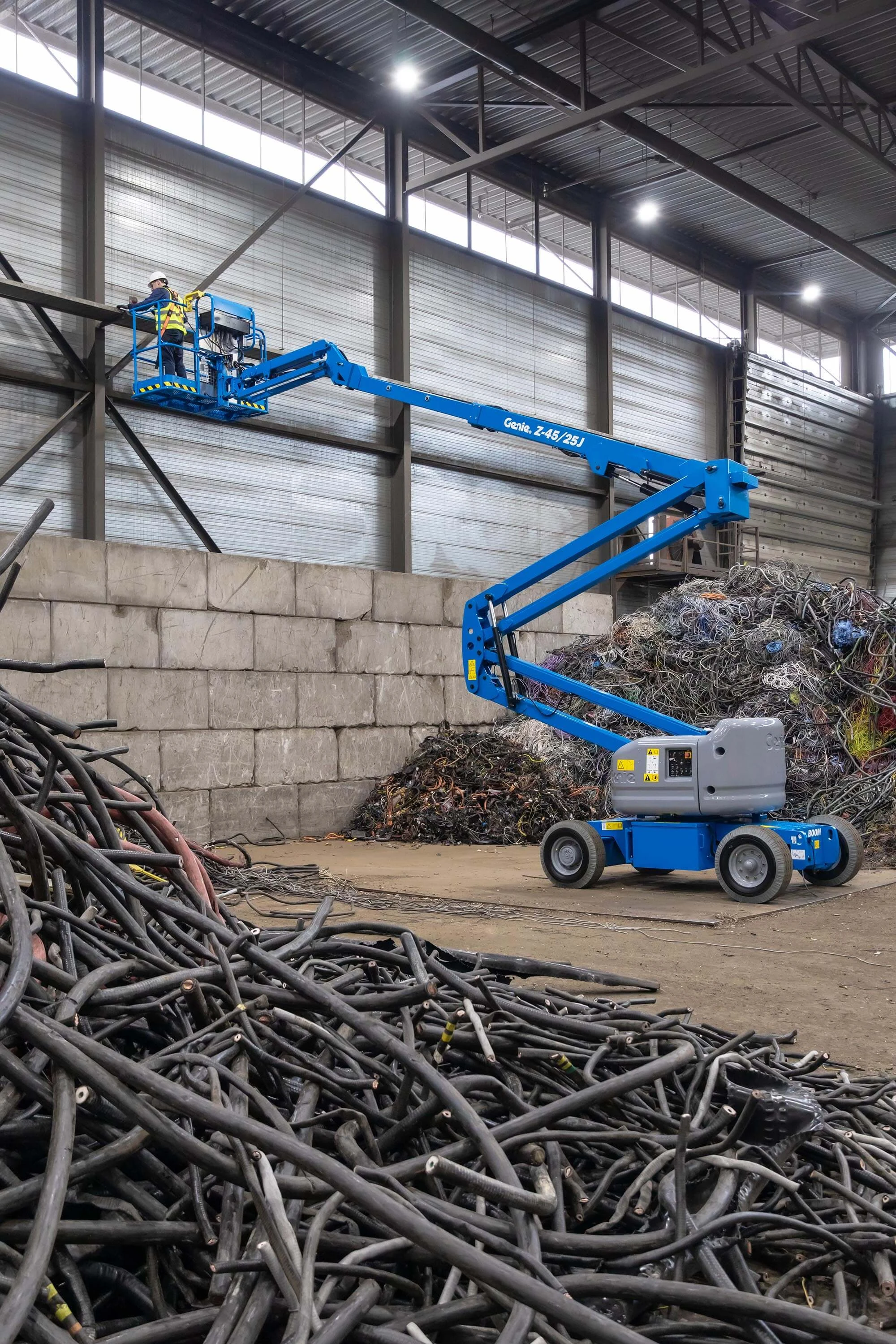

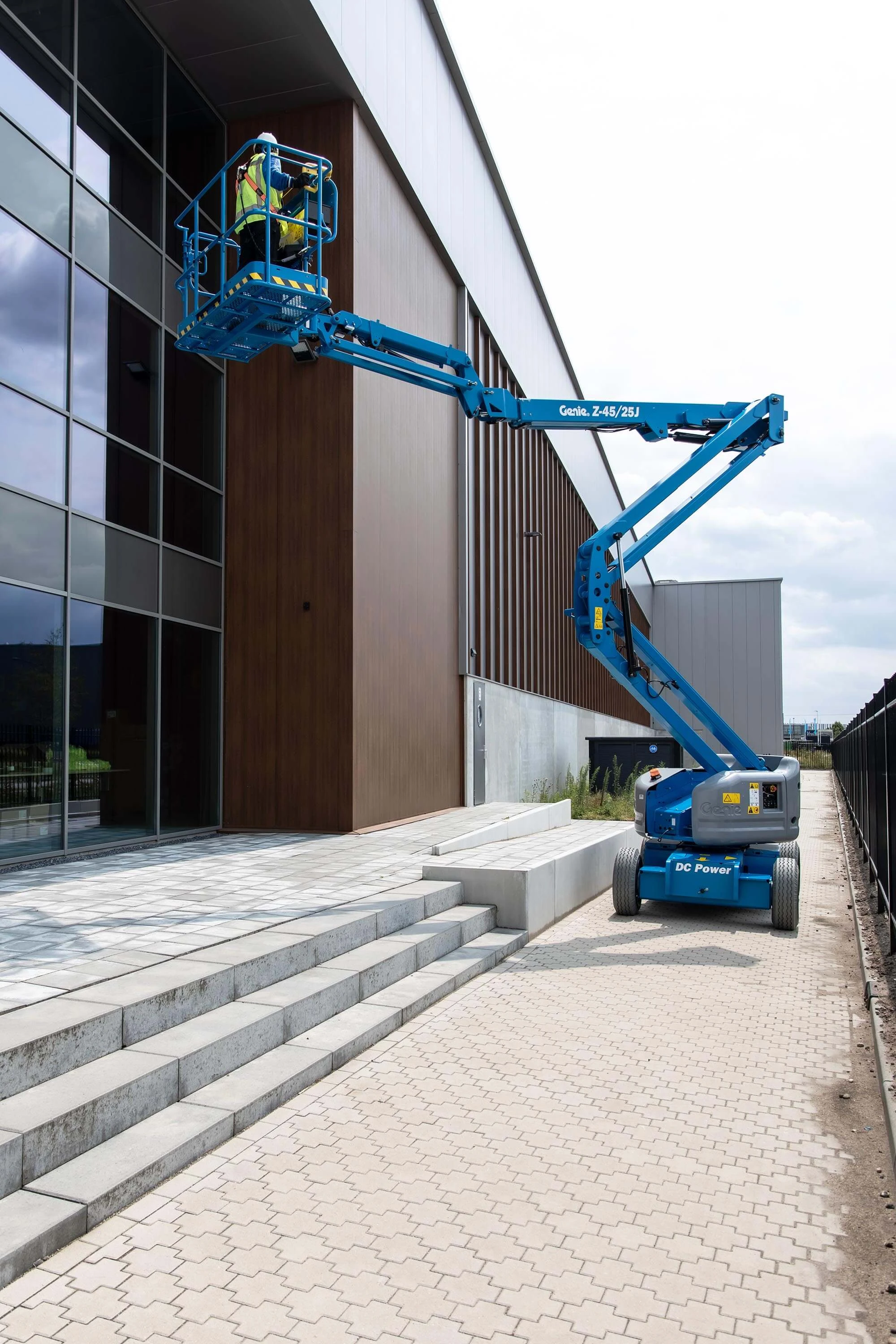

The Genie Z-45/25J DC electric articulating boom lift is the ideal solution for indoor or sensitive work environments where quiet, emission-free operation without a sacrifice of power or reach is required. Its 15.94m working height makes this electric boom lift ideal for use in numerous indoor and outdoor applications, including maintenance, installation, construction, and inspection work.

Equipped with a 1.52m articulating jib boom offering 135° vertical rotation, the Z-45/25J DC enables precise movement around obstructions, against buildings, and in aisles. Zero tailswing, tight turning radius, and 30% gradeability offer excellent manoeuvrability on job sites.

This model features a broad 1.83m steel platform with 227kg lift capacity, 160° hydraulic platform rotation, and a self-levelling system for smooth and safe working. The dual parallelogram lift design provides smooth vertical wall travel without frequent boom readjustments, improving productivity. Equipped with foam-filled industrial tyres are the standard, providing excellent traction without puncture threat.

Whether you’re working in warehouses, construction zones, or industrial facilities, the Genie Z-45/25J DC boom lift delivers superior reach, safe elevated access, and unmatched performance in an eco-friendly electric package.

Buy the Genie Z45/25J DC Articulating Boom Lift

Contact us today for information on pricing and availability.
