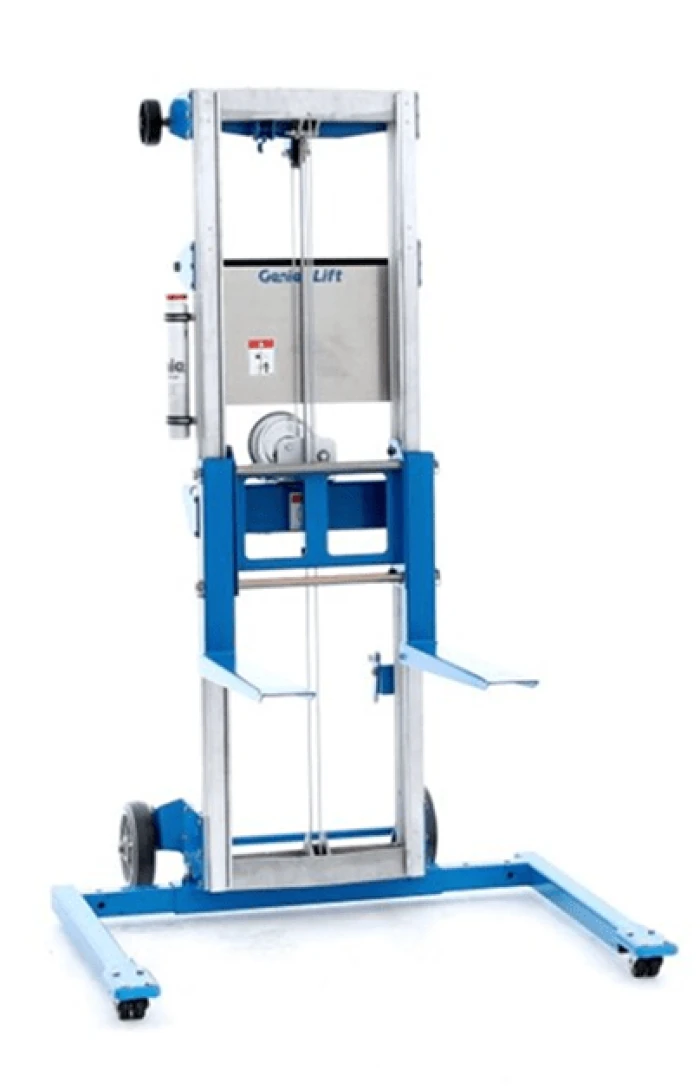

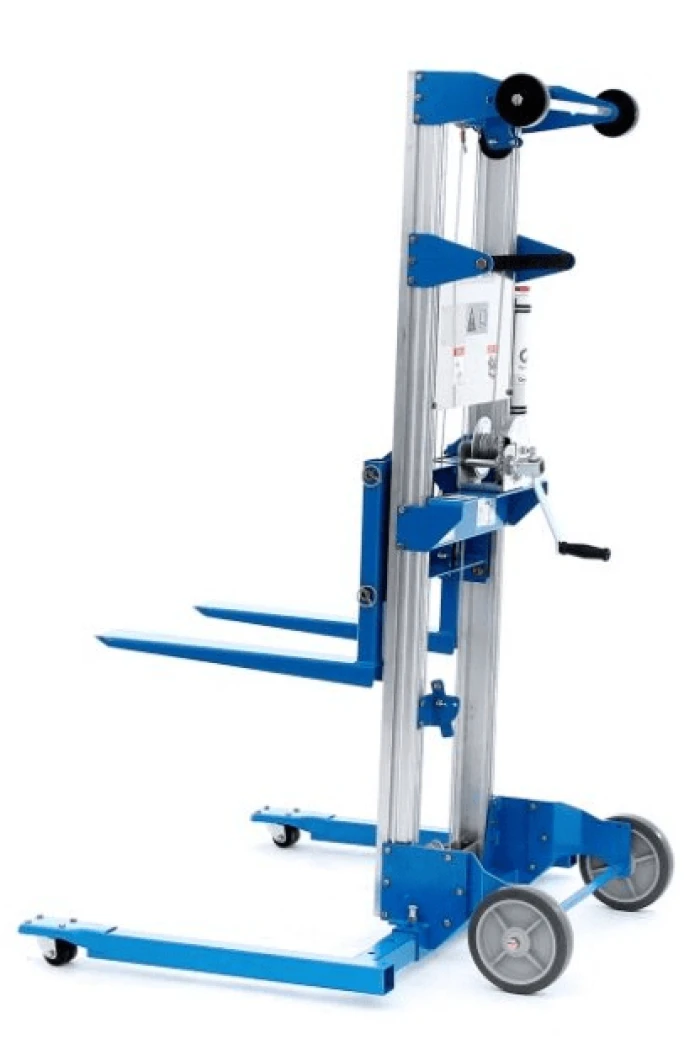

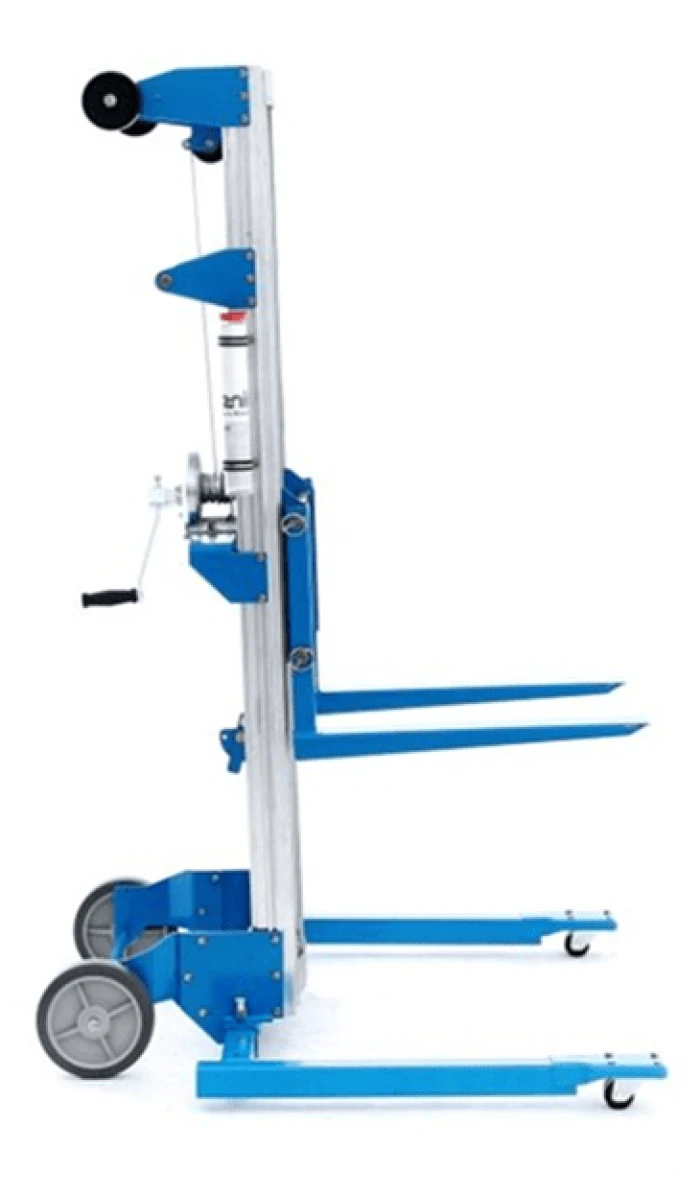

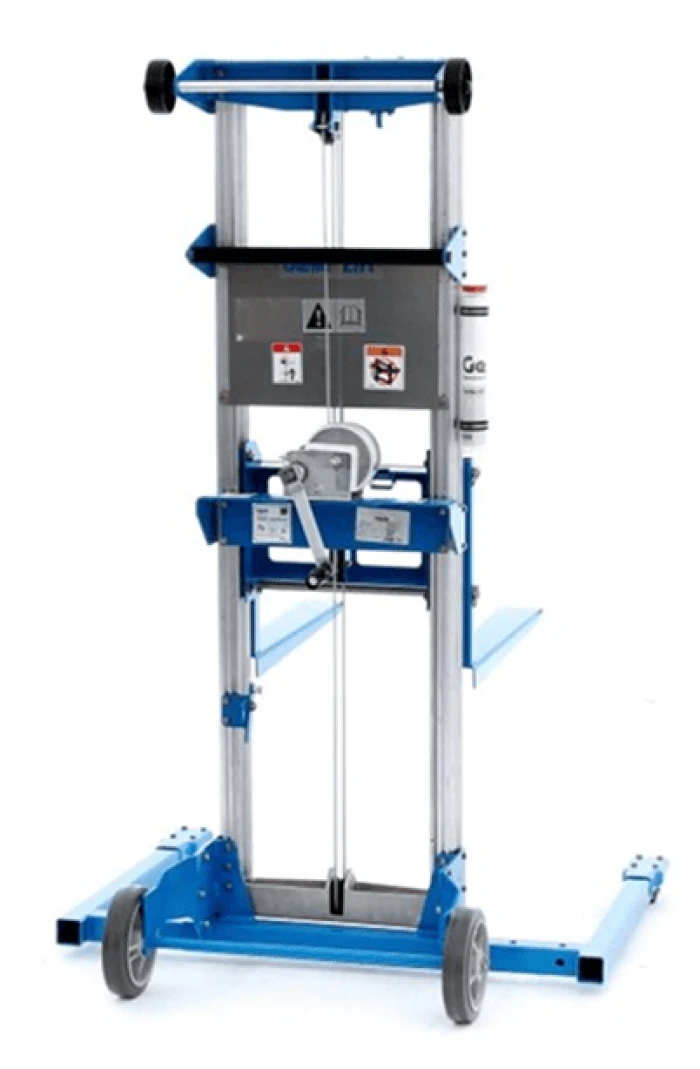

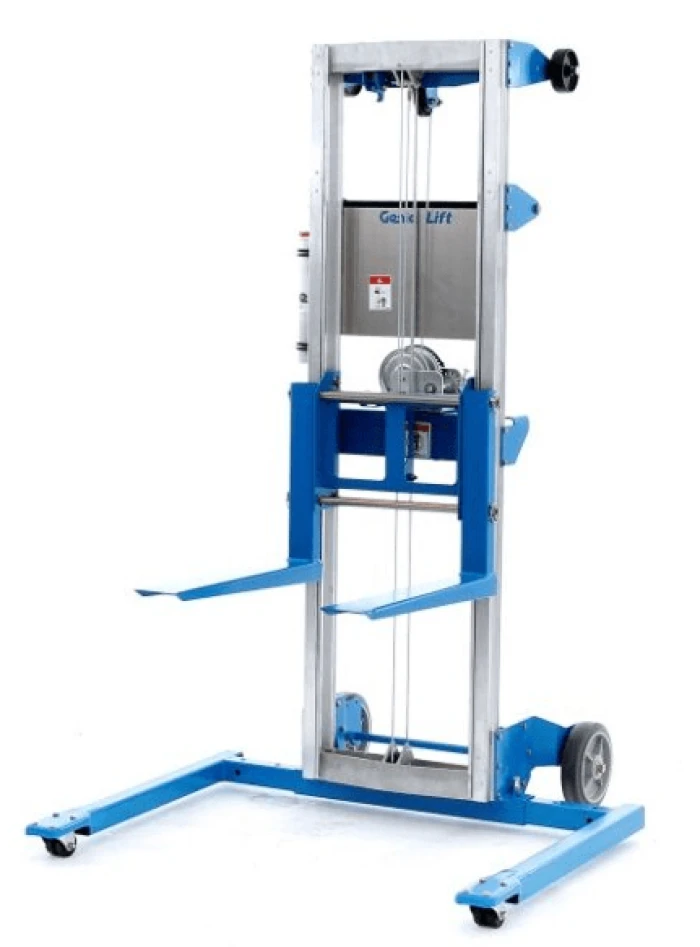

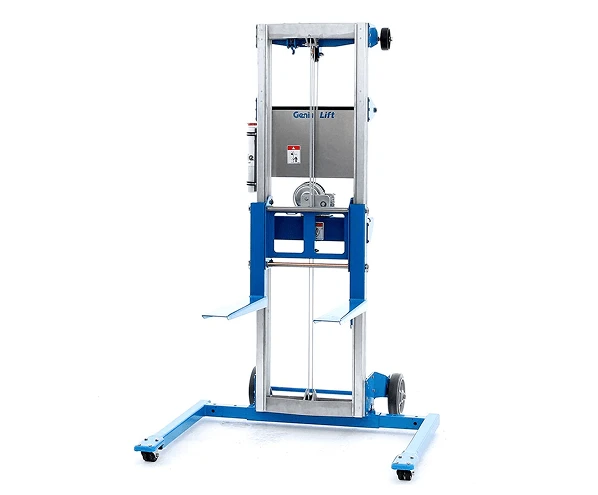

Genie GL4 Straddle base

Genie Lift

Adapt to Your Needs

The Genie GL4 Straddle Base model is designed for maximum versatility, giving you the ability to adjust the width of the legs to accommodate loads up to 0.91 m wide. Perfect for small pallets, appliances and other bulky objects. The GL4 straddle can lift 227kg to a maximum height of 1.80m with the forks up.

Applications

Construction projects

Installation projects

Inventory management

Loading and unloading

Maintenance tasks

Order picking

Stocking shelves

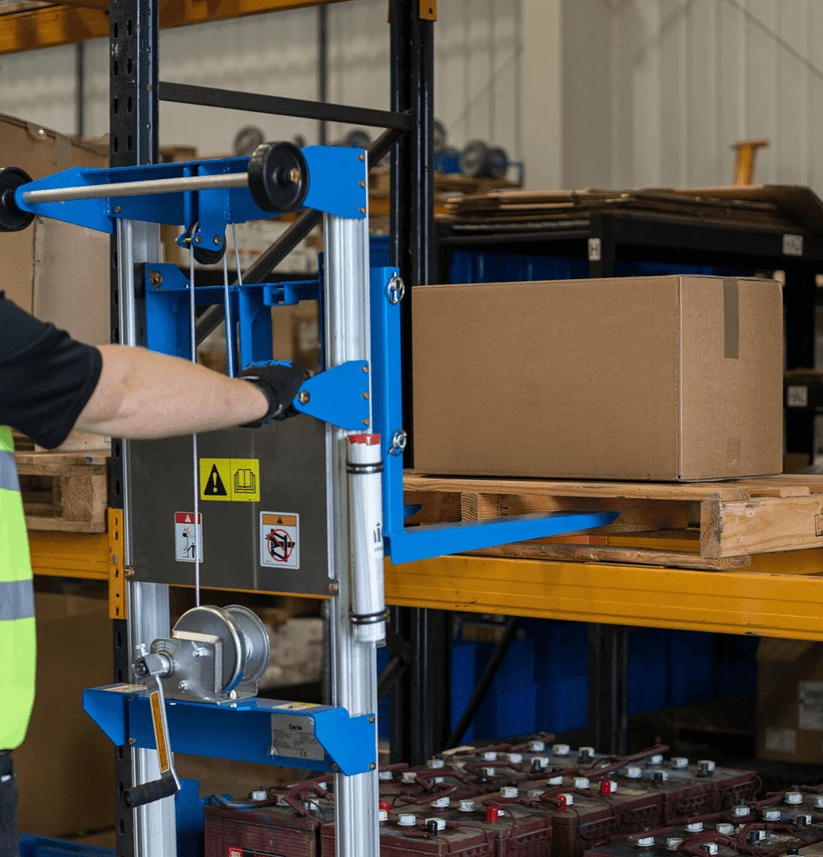

Warehouse work

Features

The Genie GL4 straddle can be set up by one person without the need for any tools and can be transported in the back of a van. By having a straddle base, it enables the material lift to accommodate loads up to 0.91m wide.

The Genie GL4 straddle has a lifting capacity of 227kg, making it a reliable solution for a wide range of material handling tasks across industries such as warehousing, manufacturing, maintenance, and logistics.

The Genie GL4 straddle base can be fully customised with a range of attachments allowing it to meet your specific lifting requirements.

Manufactured with the quality and durability associated with the Genie brand for long-lasting performance, ensuring you get the most out of your investment.

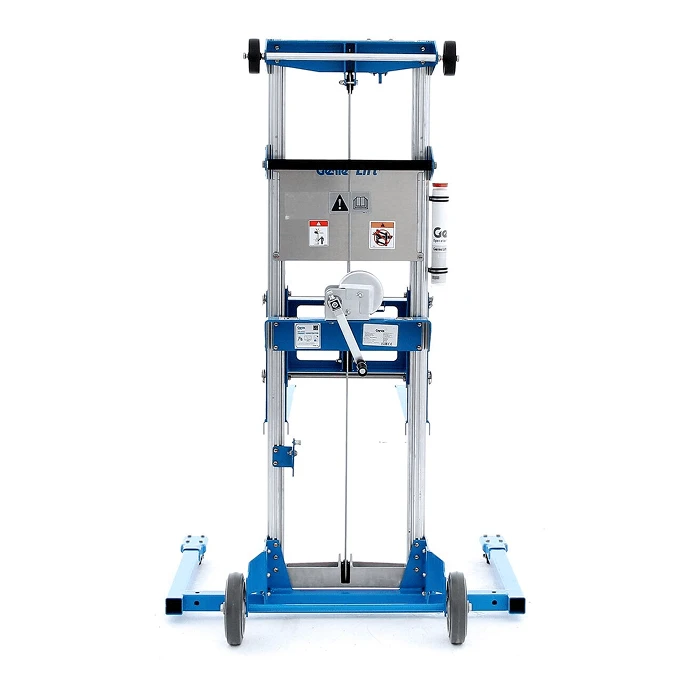

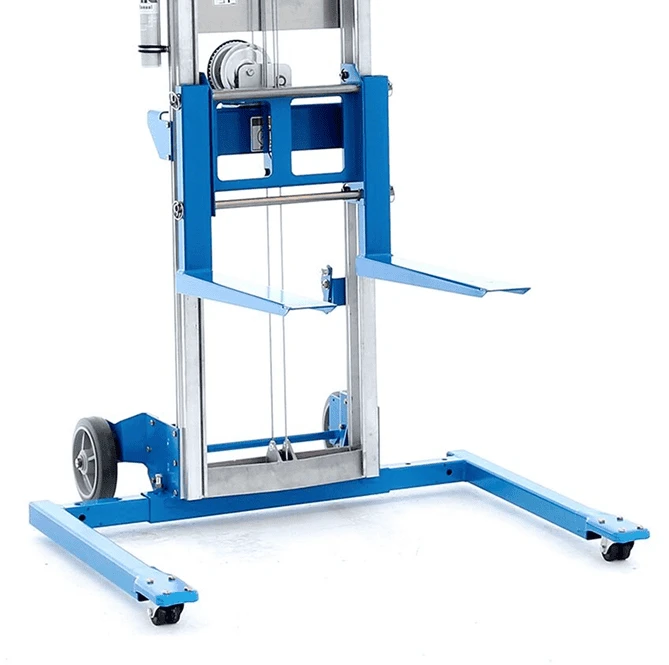

Equipped with a straddle base, this material lift can handle loads up to 0.91m as the legs can be extended laterally, a great solution to lift wider objects.

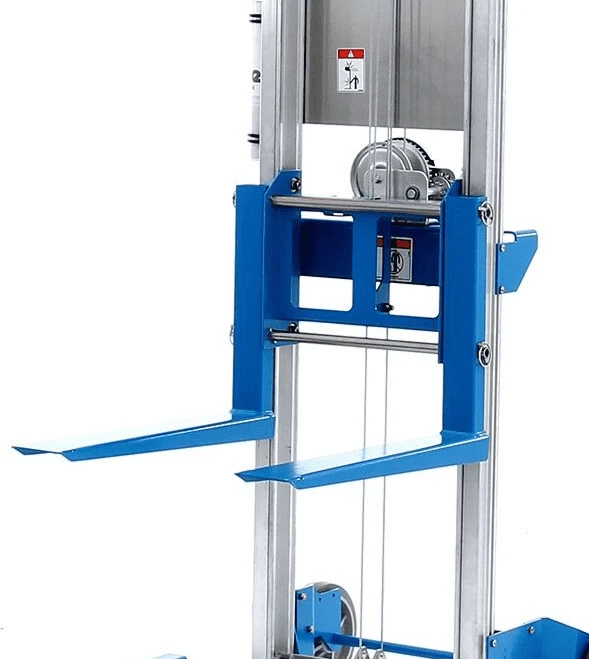

The GL4 straddle base comes with standard forks, which can be flipped, adding an additional 0.54m to the lifting height.

Specification

Trust the Genie GL4 Straddle base for its reliable performance and flexible functionality.

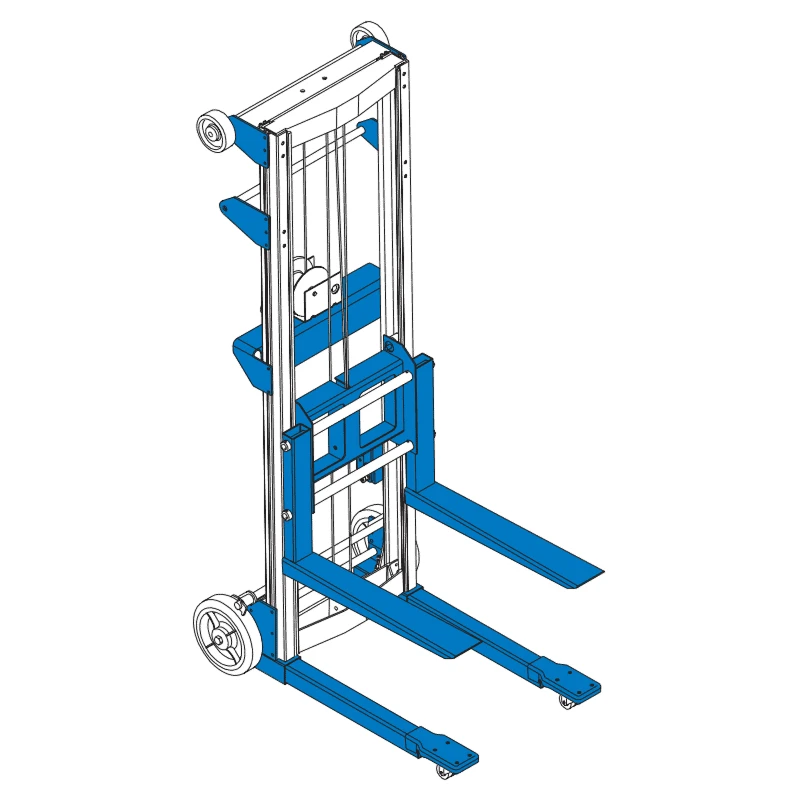

/assets/product-images/genie-gh38/group-2-(33)-(6).png

Lifting height 1.26m forks down / 1.80m forks up

Stowed Height 1.72m

Load Capacity 227kg

Machine Weight 57kg

Attachments

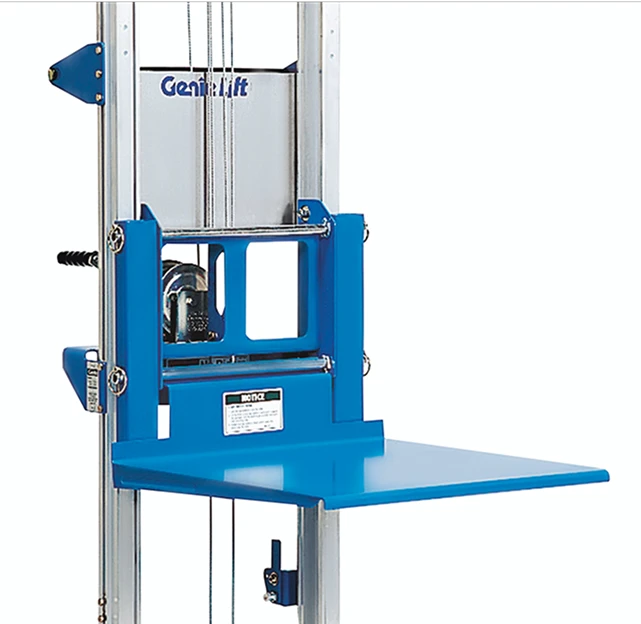

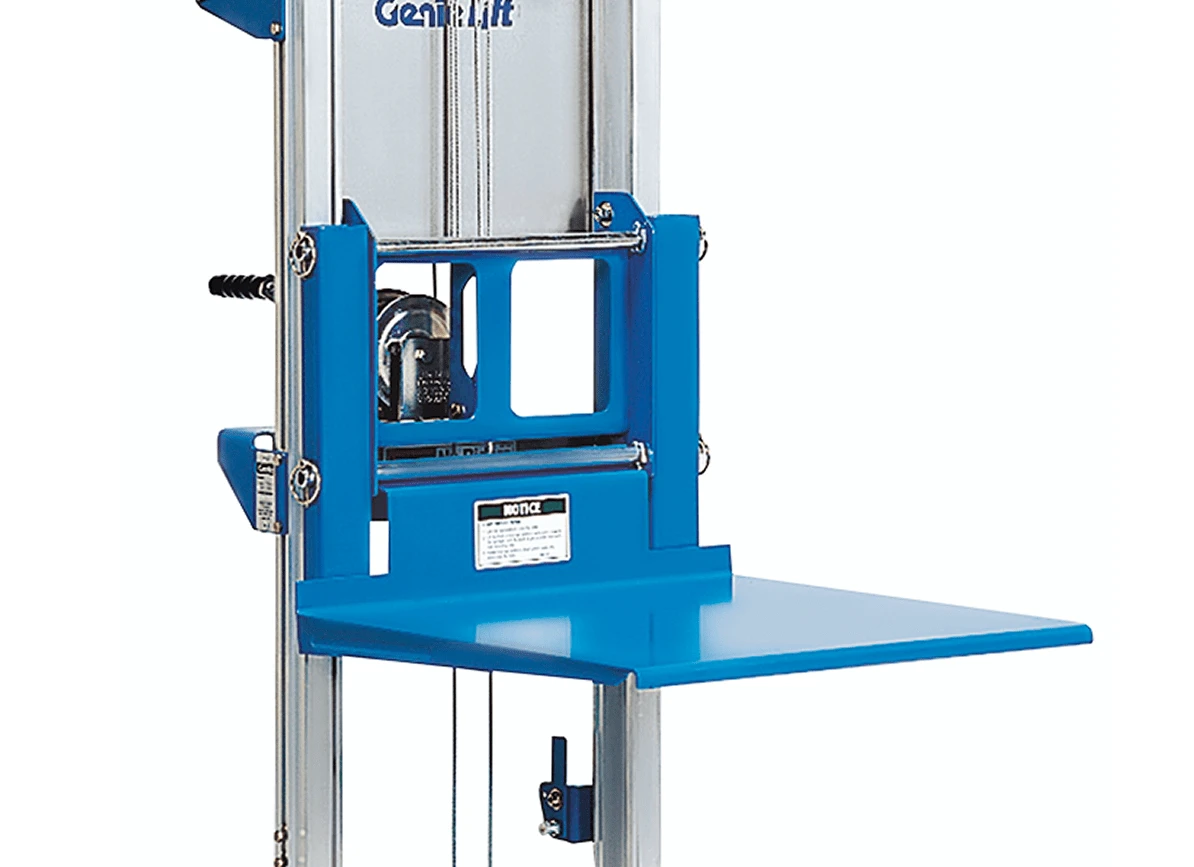

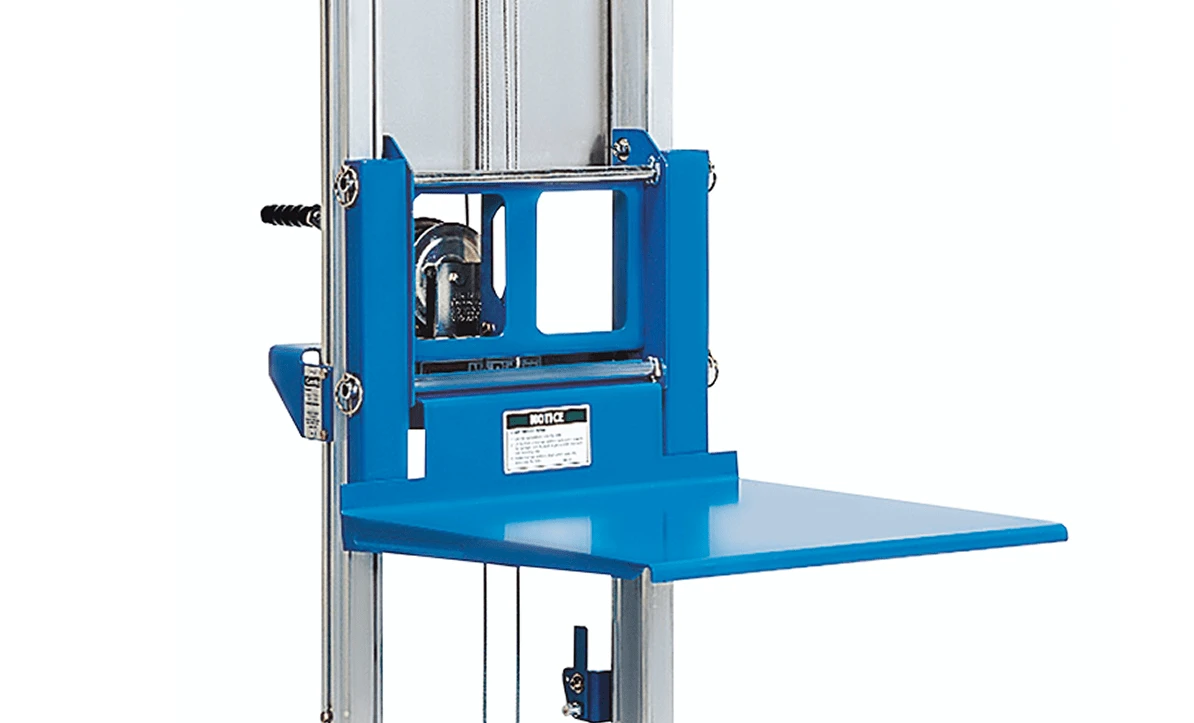

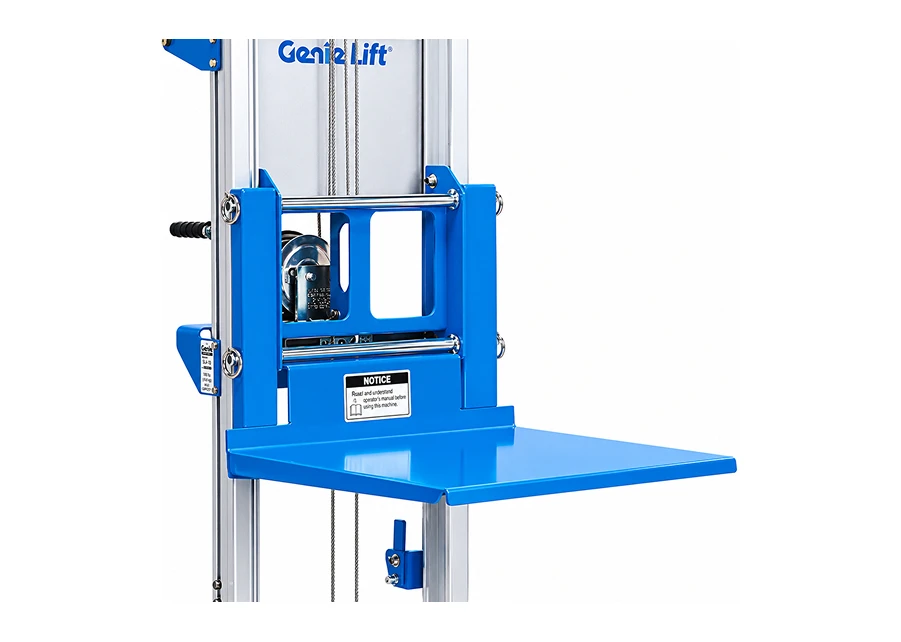

The optional load platform fits easily over forks to handle odd-shaped loads and can also be used as a portable work table.

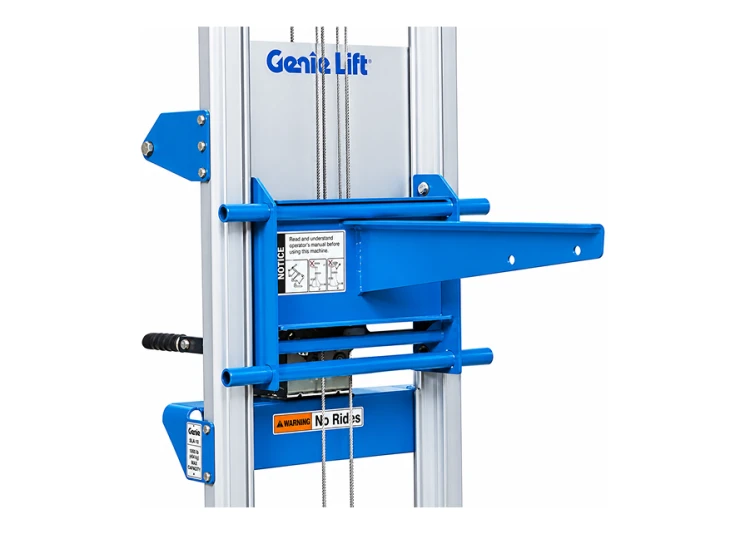

The GL boom attachment turns your Genie material lift into a hoist.

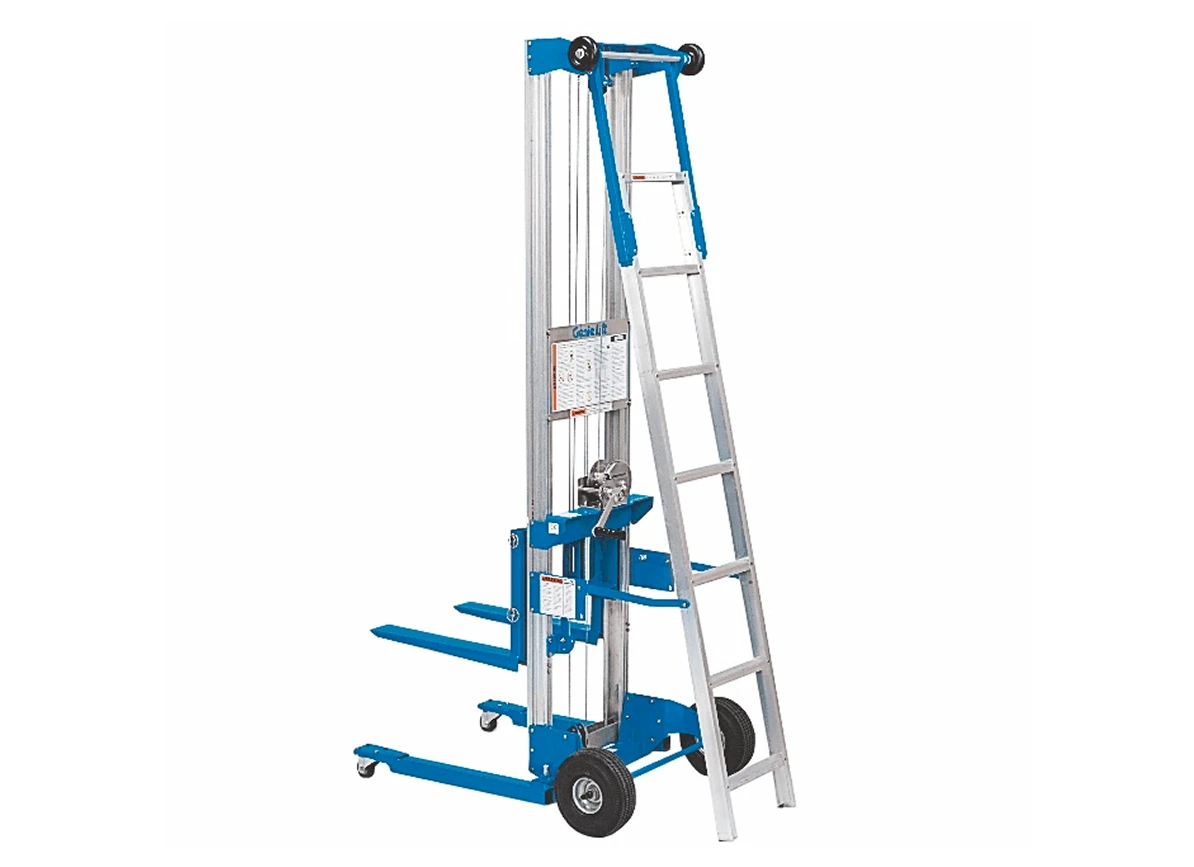

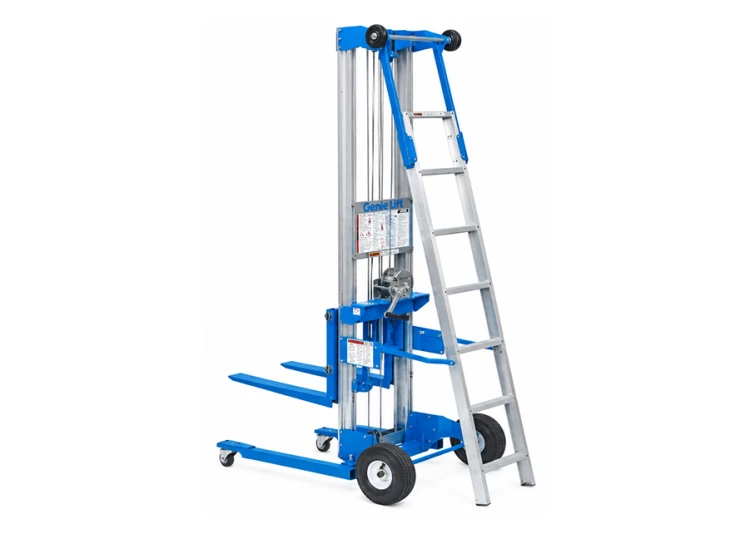

Attaching the aluminum ladder accessory to the genie lift increases your access to lifting and installation tasks (available on standard and straddle base models).

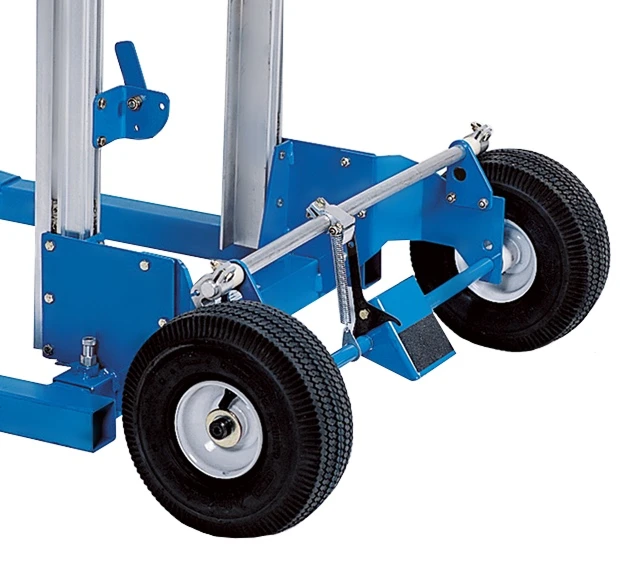

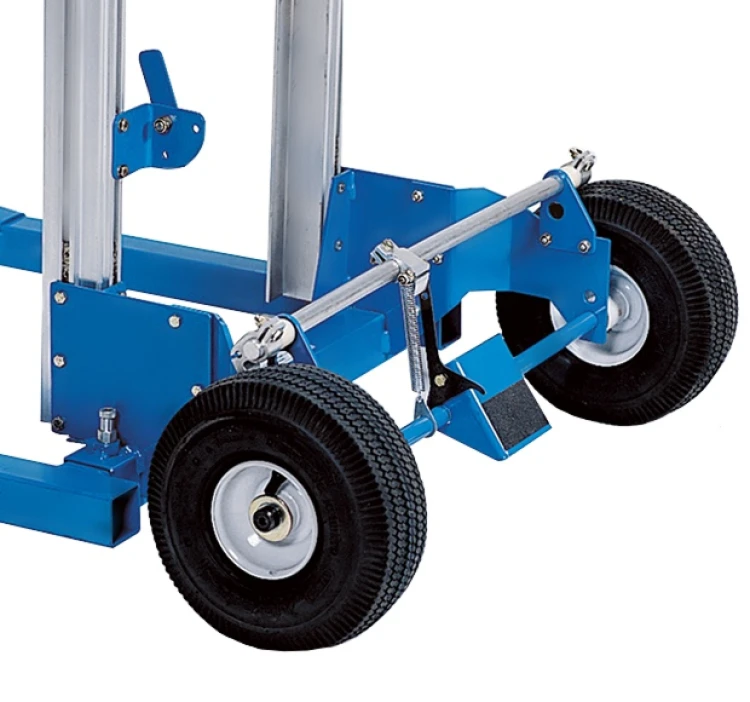

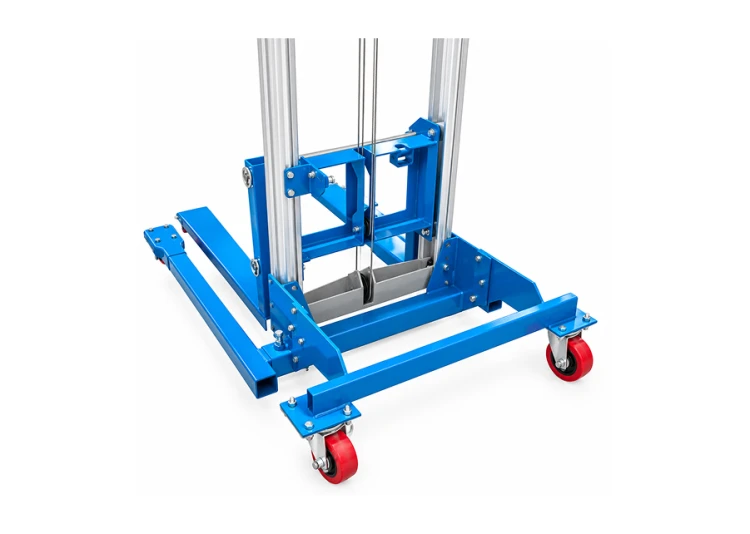

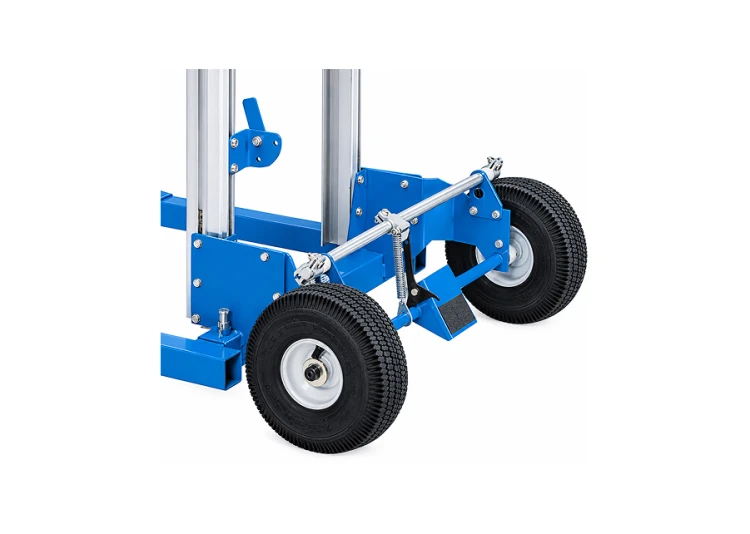

On the GL 8in (20 cm) non-marking rear wheels and 2in (5 cm), front-swivel casters are standard on the standard and straddle base models. 5 in (12 cm) rear-swivel casters with side brakes and fixed 4 in (10 cm) front wheels are standard on the counterweight base model. Optional pneumatic rear tires and foot-release brake available (standard and straddle base only).

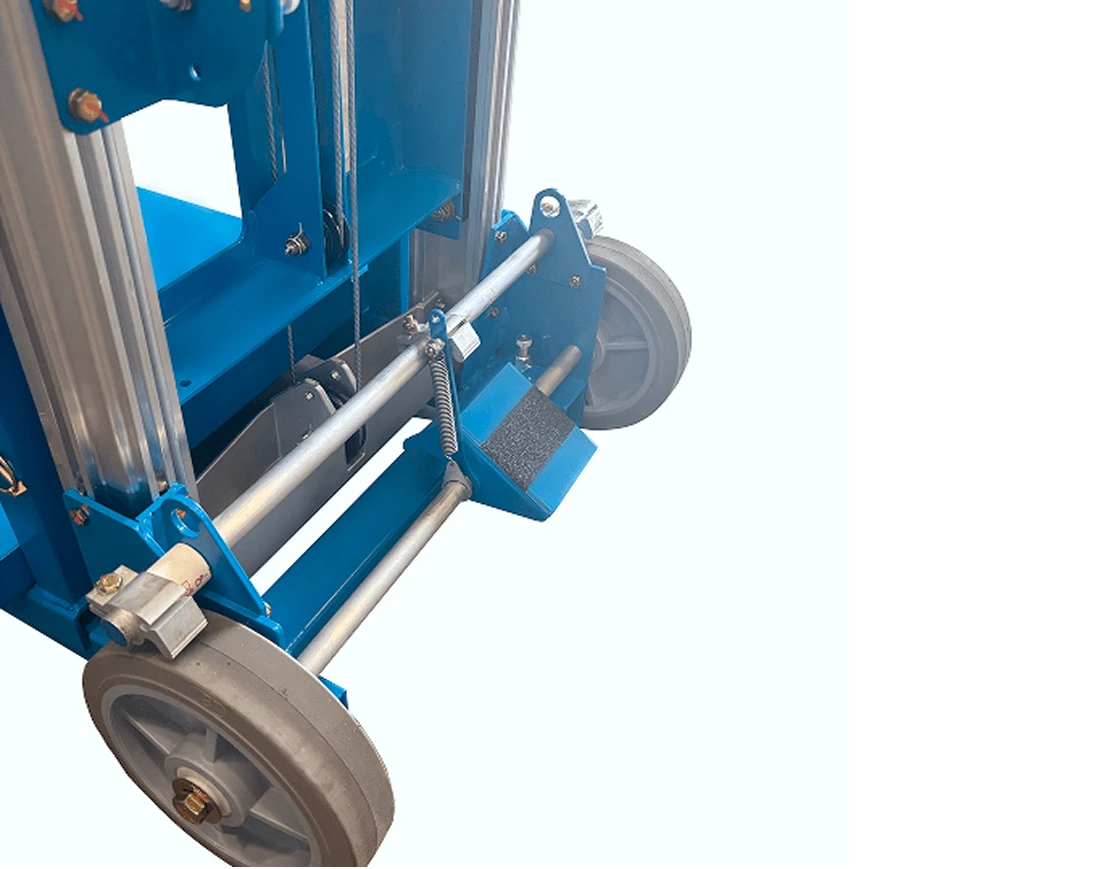

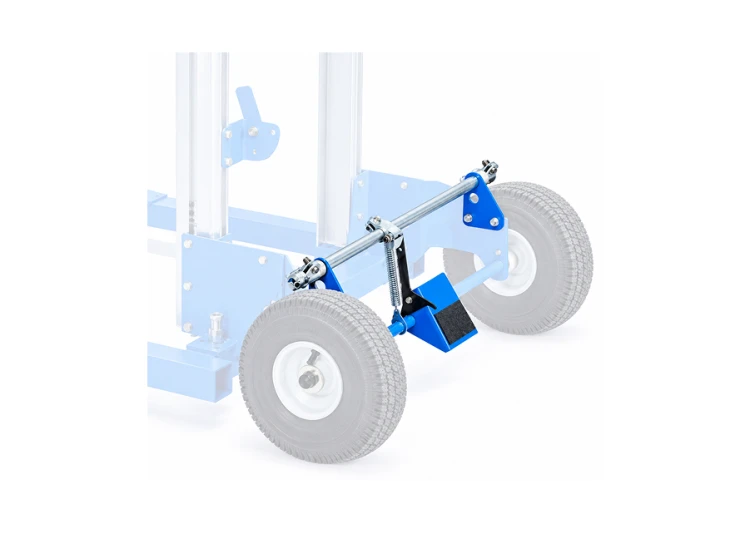

Allows operators to lock the Genie Lift in position.

Need an attachment?

Leading the industry for decades. Why settle for anything less?

Genie Authorised Dealer

Next Day Delivery

Same Day Collection

Industry Leading Expertise

Nationwide Delivery

Largest Stock In The UK

Servicing & Repairs

Our in-house, Genie factory-trained team of mobile engineers cover the entire country, ensuring expert support is never far away.

Genie OEM Parts

Keep your Genie in operation with genuine Genie OEM parts. With thousands of parts stocked and ready for delivery nationwide.

FAQs

The Genie GL4 Straddle base is a manual operated material lift used when having to lift with wider objects.

The Genie GL4 straddle has a lifting height of 1.26m with the forks down and 1.80m with the forks up.

The Genie GL4 straddle has a maximum load capacity of 227kg.

The GL4 straddle is compact and lightweight, allowing it to be easily loaded in a pickup truck for easy transport. It can be set up within minutes by one person without the need for any tools.

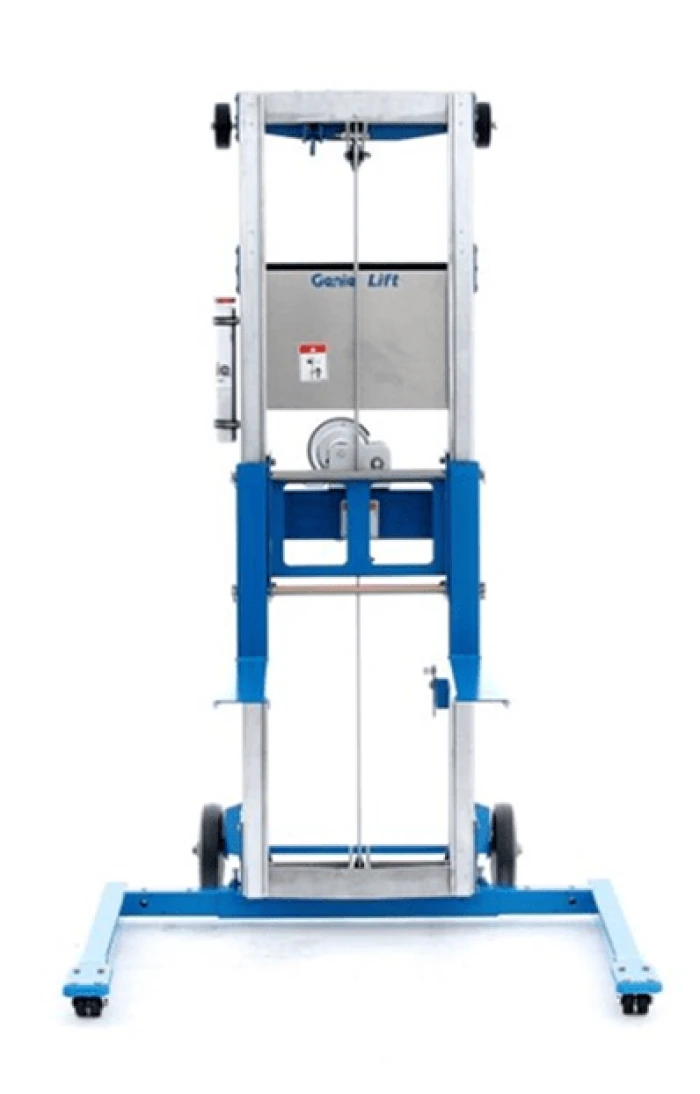

On the GL4 Straddle base, the legs can be extended laterally, allowing them to lift wide loads of up to 0.91m. On the standard based Genie GL4 model, the legs are fixed.

Absolutely, we are the UK's authorised Genie dealer. Selling the full Genie Lift range. Please contact a member of our sales team.

The Genie GL4 Straddle base is one of the smallest in the Genie lift lineup. It’s compact, easy to move, and durable, with a lifting capacity up to 227kg. Depending on how you position the forks, you’ll get a lift height of either 1.26 meters (forks down) or up to 1.8 meters (forks flipped up), which gives you some additional flexibility.

What makes this model different from the Genie GL4 Standard is the straddle base design. The legs can extend out to the sides, letting you handle loads up to 0.91 meters wide. That extra width is needed to get around larger or awkwardly shaped items.

All Genie material lifts are used across different industries, from maintenance and installations to warehousing and retail. It’s practical, straightforward, and just makes the job easier. Whether you're loading up a shelf, moving inventory, or picking orders, it makes material handling efficient and safe.

The Genie GL4 Straddle can be set up in seconds with no tools required. Its portable design means you can roll it into place and be ready to lift in seconds. The standard forks flip to suit different lifting heights, which is a nice bonus when the task changes from one day to the next.

The GL4 Straddle has multiple accessories that can be attached, a flat load platform, a boom attachment, or a ladder accessory to give you some extra reach. Pneumatic wheels on the rear help it move smoothly over rougher surfaces, and a foot brake keeps everything steady once you're in position.

All in all, the GL4 Straddle Base is a compact and reliable piece of equipment that is perfect for tight spaces, but still strong enough to get the job done right.
