Genie Z60 FE

Genie Articulated Boom Lifts

Two in one powerhouse

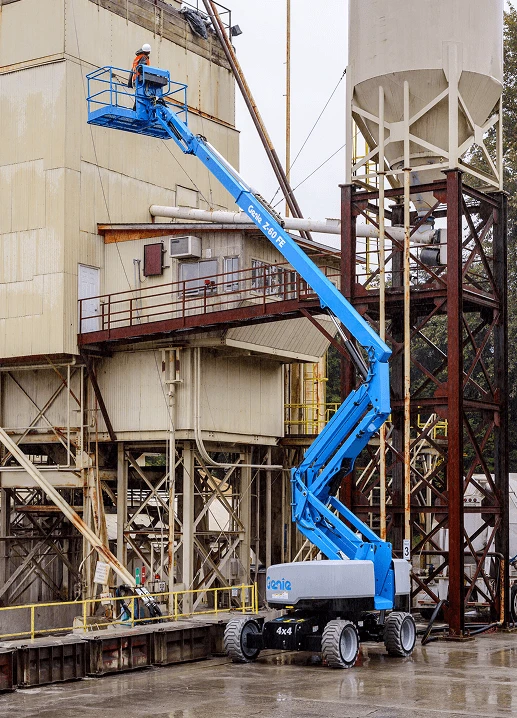

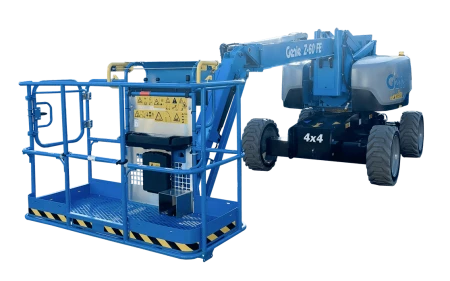

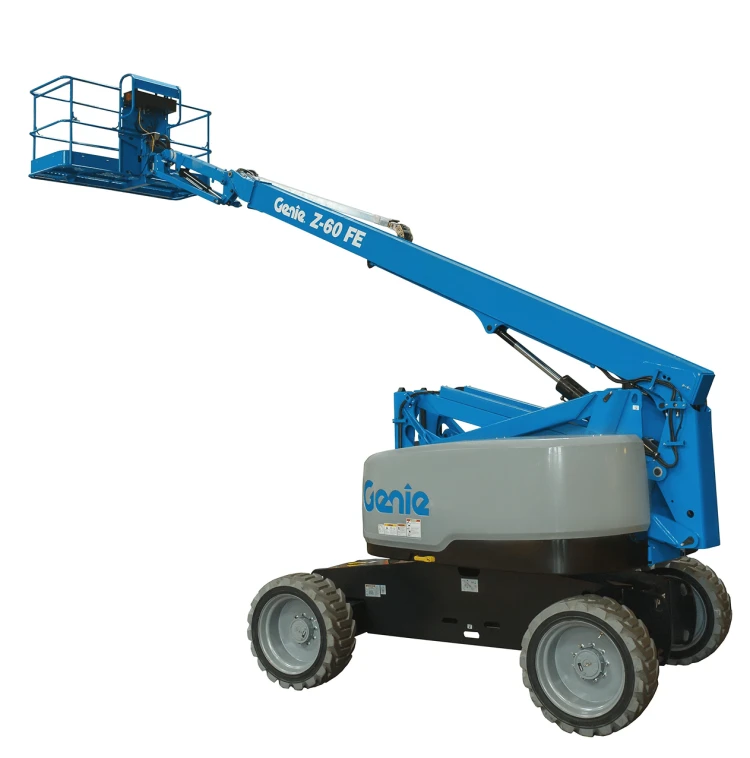

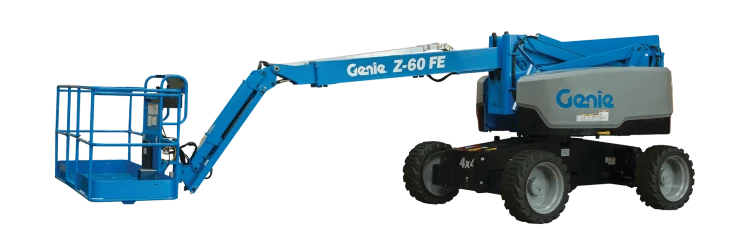

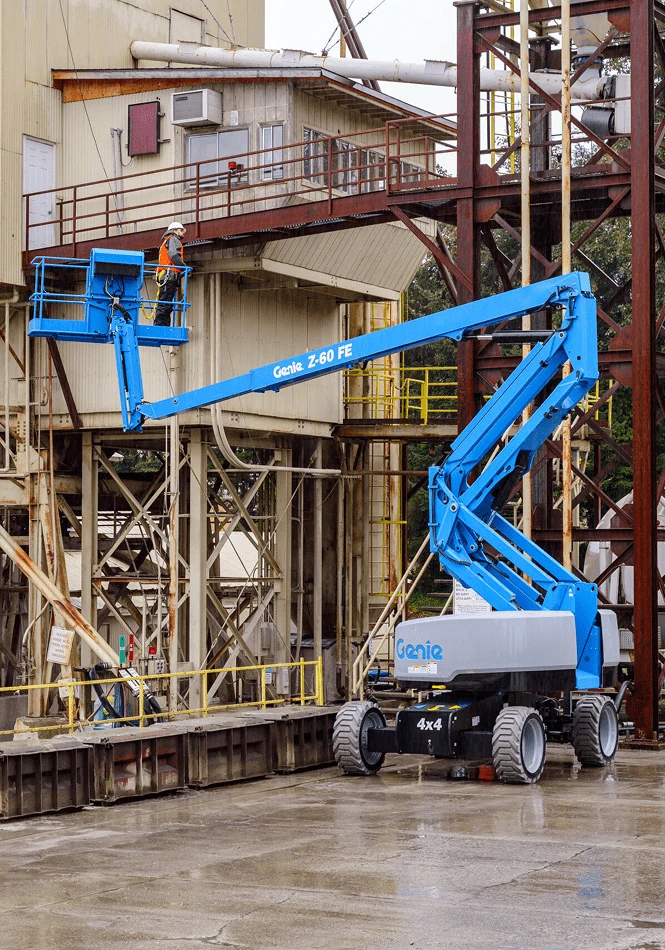

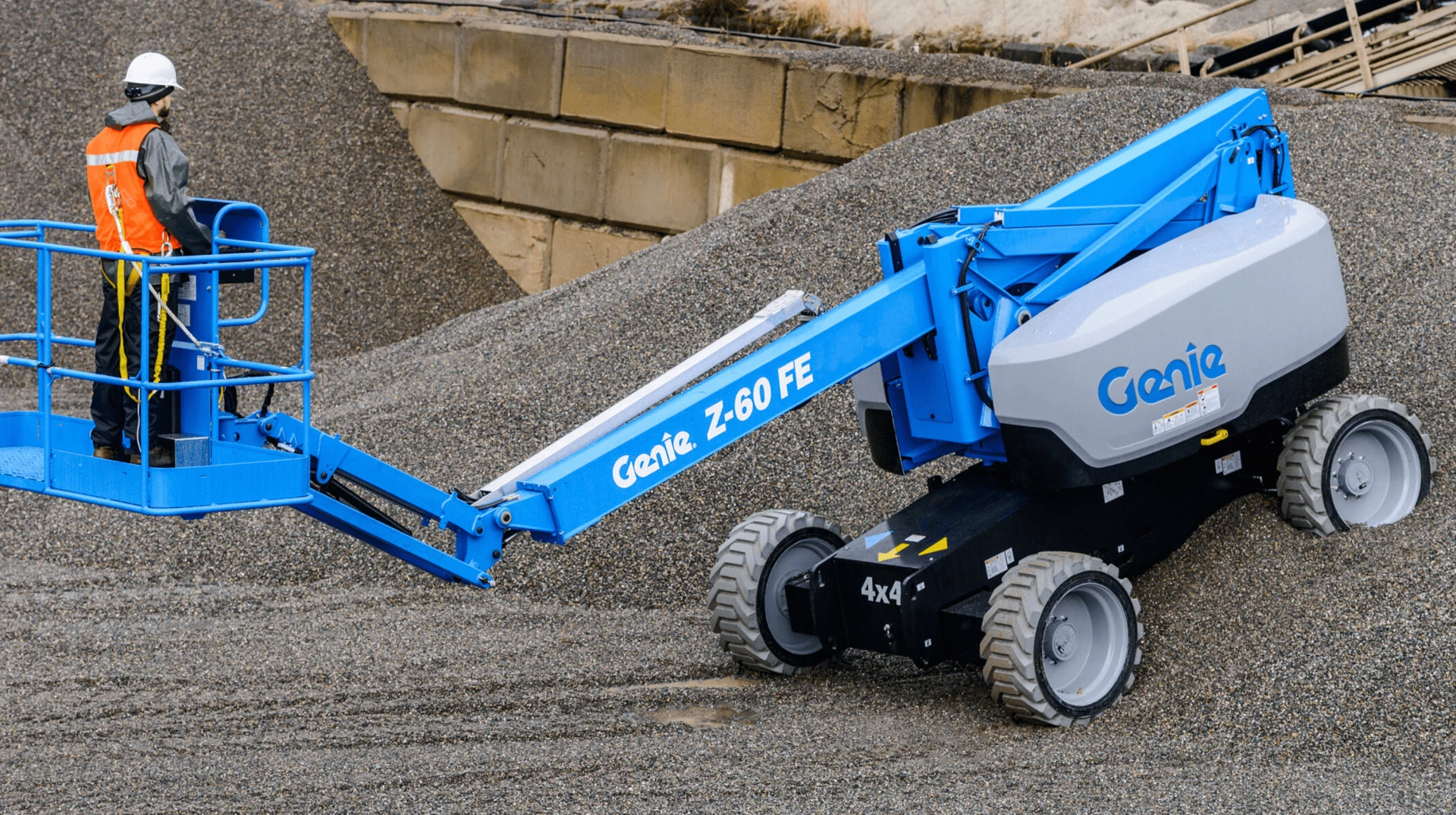

With a working height of 20.16m, the Genie Z-60 FE articulating boom lift provides the choice of two modes of operationfull electric or hybrid. The full electric will provide the operator with a full day of emission-free performance on a single charge.  The hybrid mode can provide more than a week of run time on a single tank of diesel. Its engine-powered generator constantly monitors the battery state, keeping it topped up for maximum run time.

*Contact us for availability

Applications

Construction projects
Inspection tasks
Installation projects
Distribution
Maintenance tasks

Features

The ‘full electric’ mode offers a full-day, emission-free run time on a single charge. The ‘hybrid’ mode offers one week of run time on a single tank of diesel.

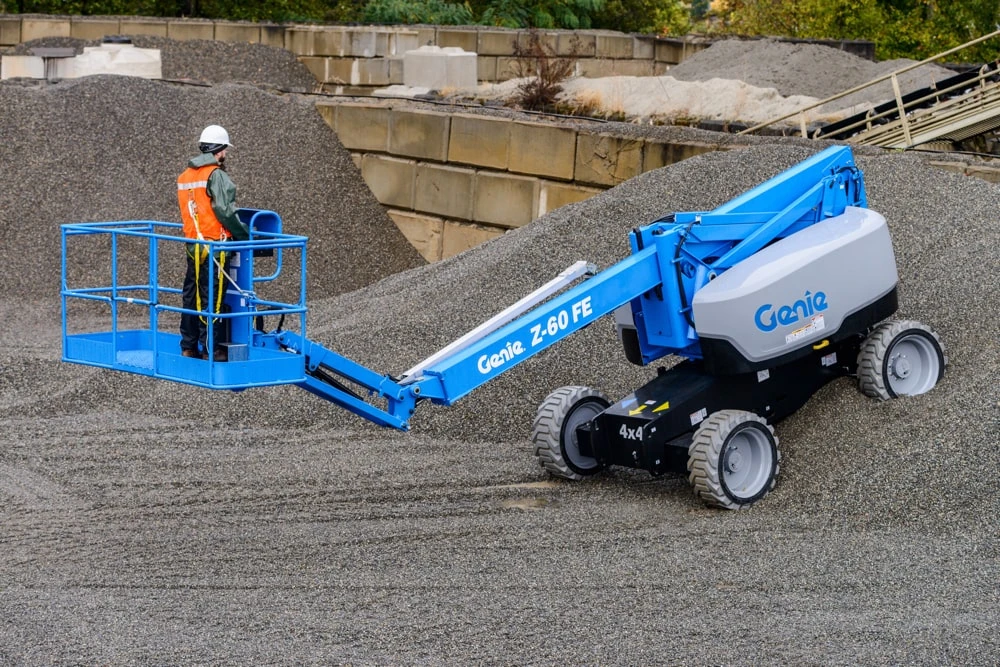

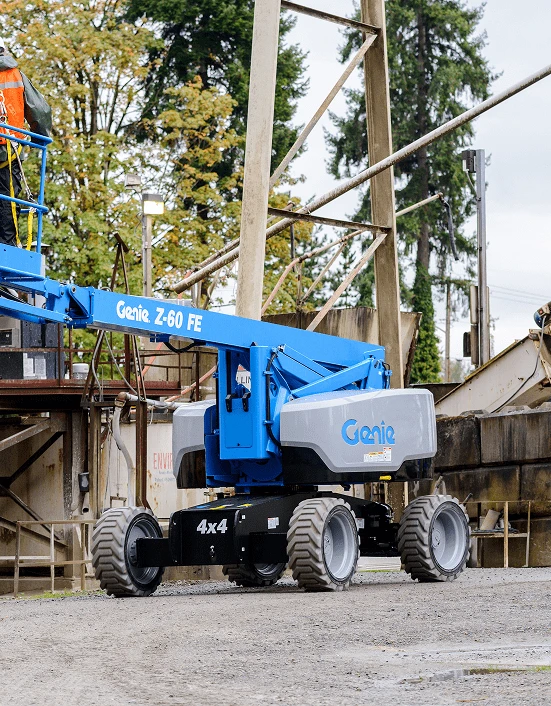

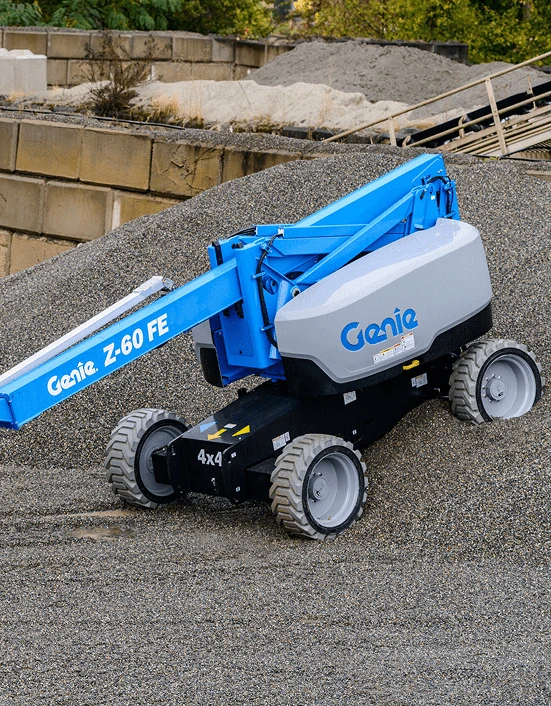

Equipped with a full-time oscillating axle, the Z60 FE adjusts to uneven terrain, enabling it to maintain consistent contact with all wheels for better traction and stability on rough terrain.

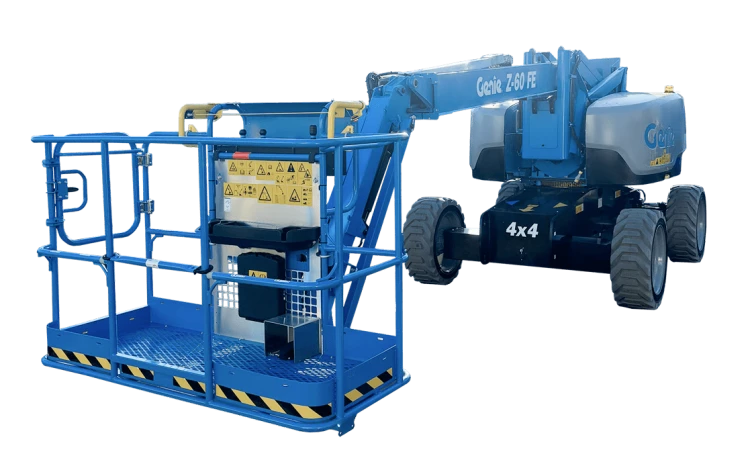

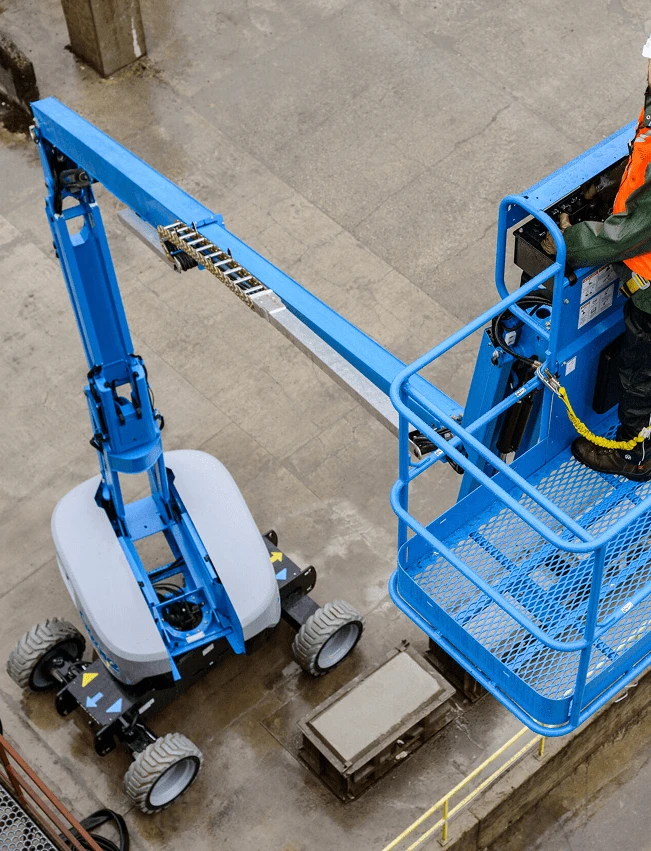

Equipped with an articulating jib gives operators more flexibility when it comes to accurately positioning around obstacles.

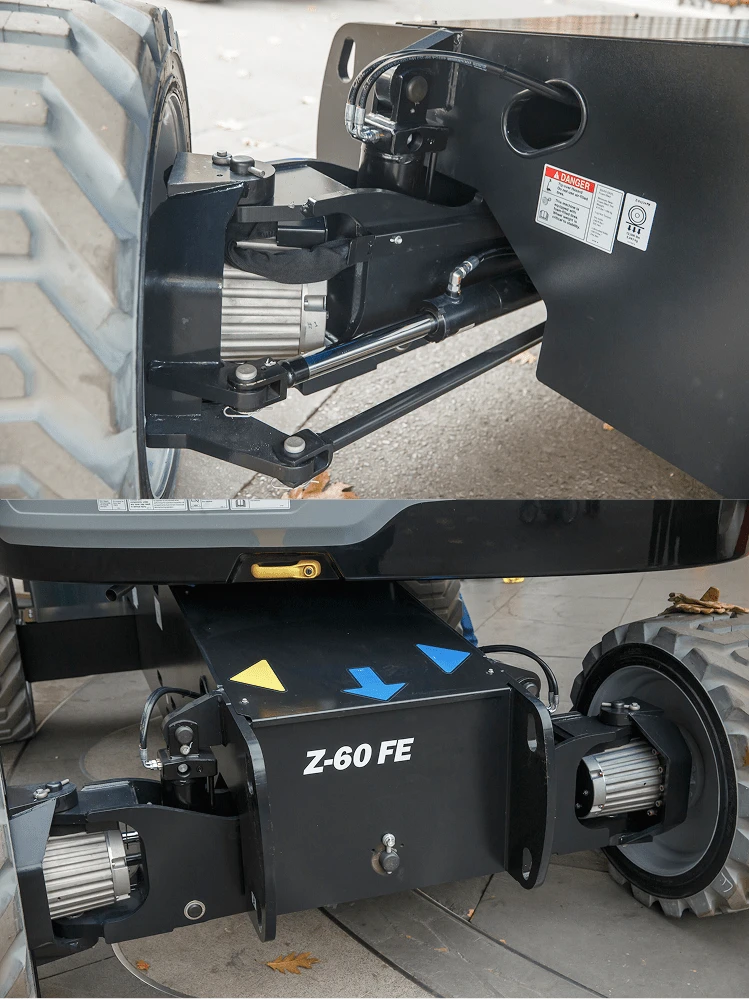

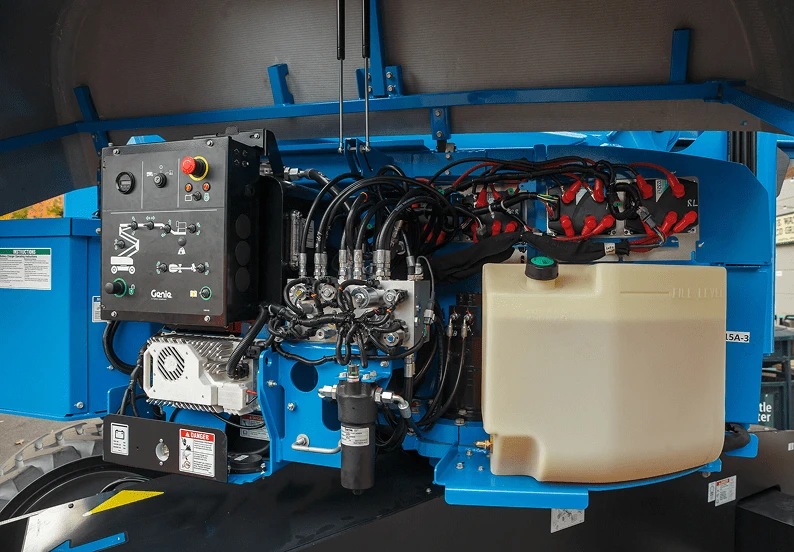

Genie's high-efficiency AC drive system provides industry-leading driving performance and simplified maintenance.

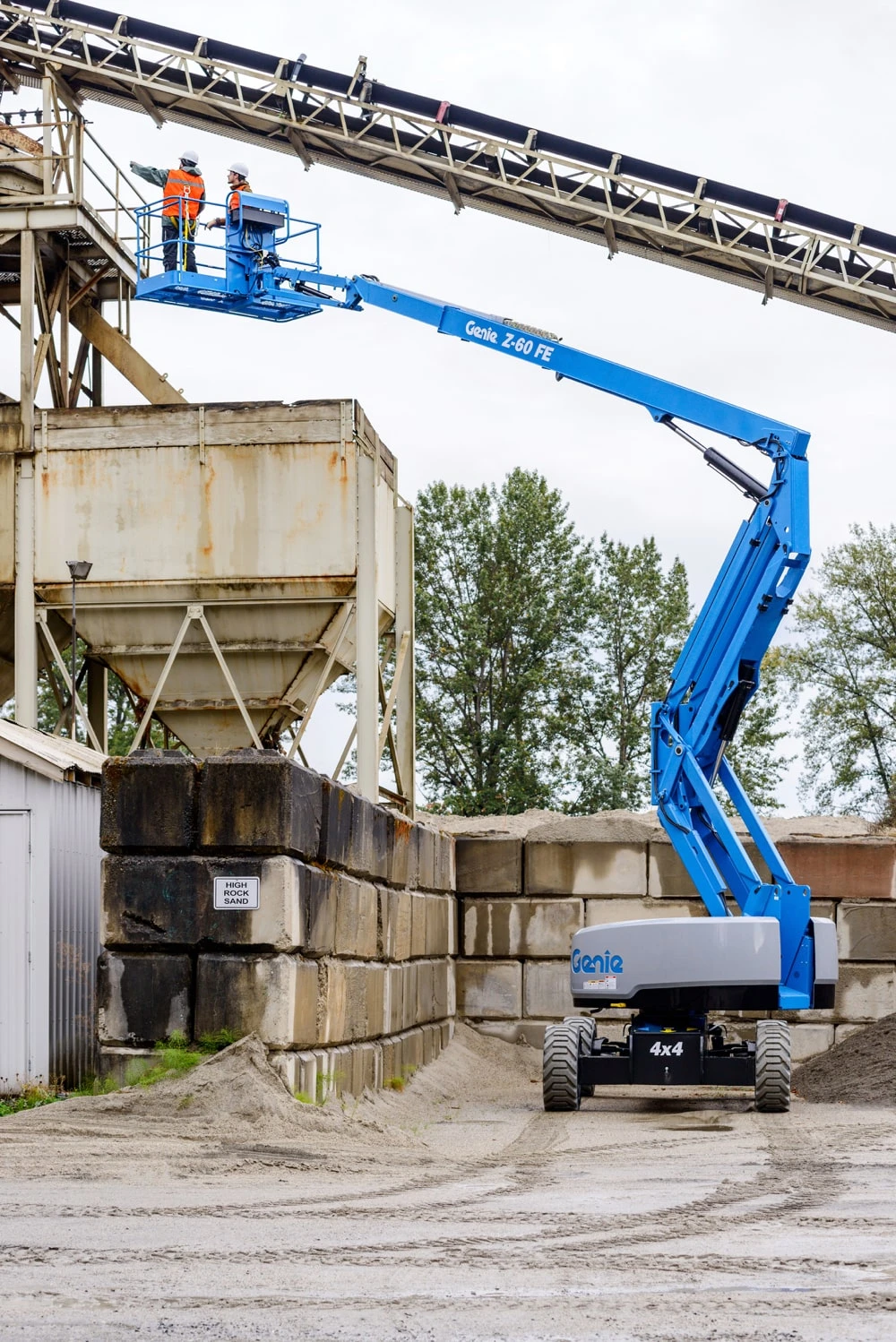

The dual parallelogram lift design allows operators to ascend and descend along a vertical plane without having to retract or extend either boom section.

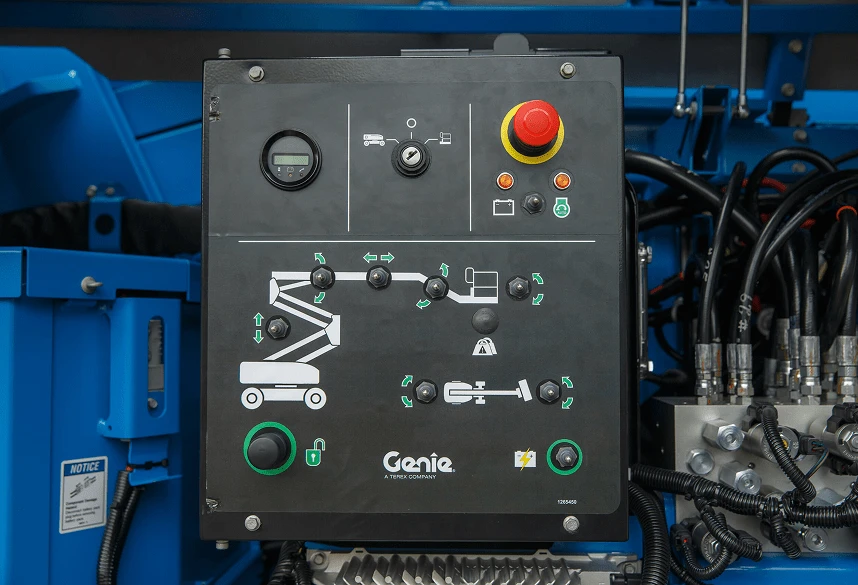

Allows precise handling of both lift and drive functions, giving the operator better control and accuracy during operation.

Provides exceptional drive performance on rough terrain.

Allows operators to descend and retrieve materials and quickly return to working height.

Improves operational range without the need to reposition the base, enhancing productivity on the jobsite.

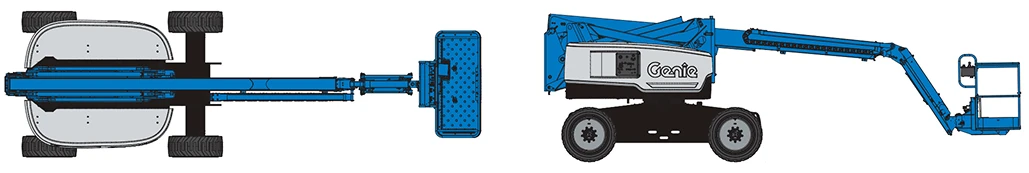

Specification

Powerful and eco-friendly solution designed to handle demanding tasks both indoors and out.

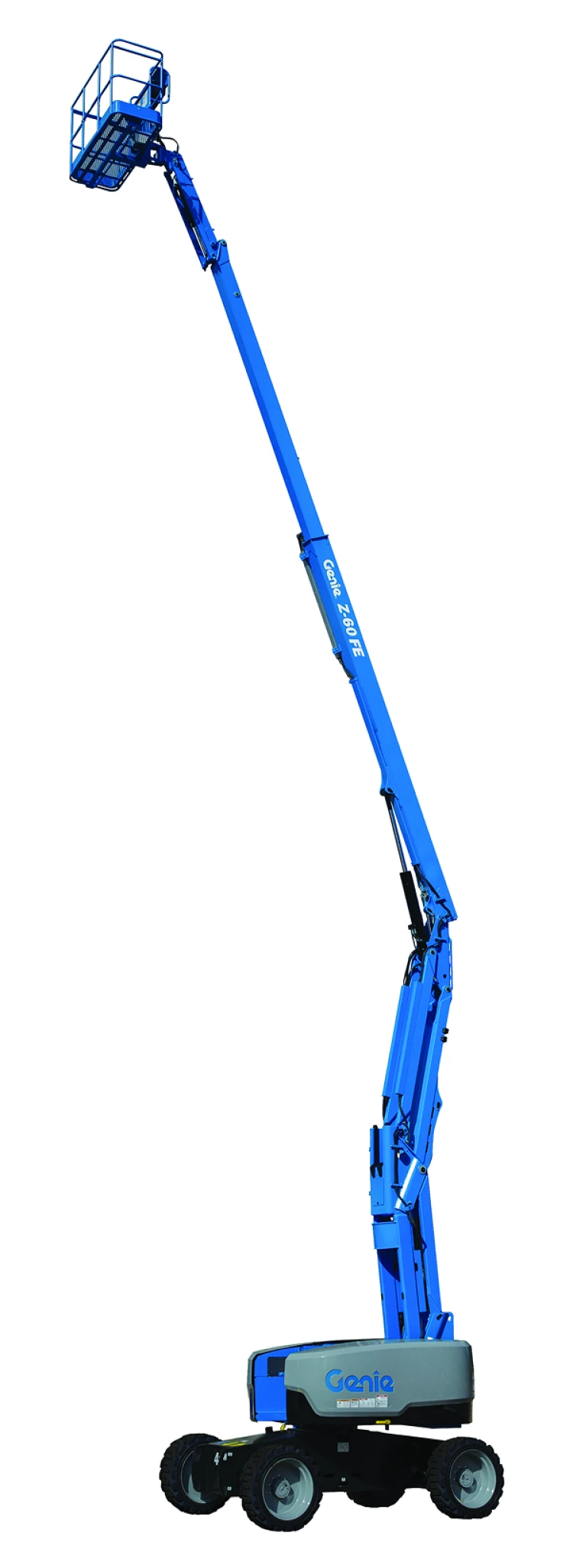

Working height 20.16m
Platform height 18.16m
Horizontal reach 11.15m
Up and over clearance 7.39m
Lift capacity 227kg
Machine width 2.49m
Below ground reach 2.46
Machine weight 7756kg
Free, no obligation site survey.

Making sure that you achieve the most from your budget.

Servicing & Repairs

Our in-house, Genie factory-trained team of mobile engineers cover the entire country, ensuring expert support is never far away.

Genie OEM Parts

Keep your Genie in operation with genuine Genie OEM parts. With thousands of parts stocked and ready for delivery nationwide.

FAQs

The Genie Z60 FE offers a working height of 20.16m.

Offering versatility thanks to its dual power modes, the Z60 FE boom lift excels in industrial and construction settings.

Yes, as the UK's authorised Genie dealer we sell all the Genie articulating boom lifts.

We’ve got you covered. As the UK’s authorised Genie dealer, we provide expert advice, competitive pricing, and nationwide delivery. Contact our sales team for price and availability for the Genie Z60 FE articulated boom lift.

We are here to support you

Our only priority is to supply you with the best and safest products and support you to the highest level.

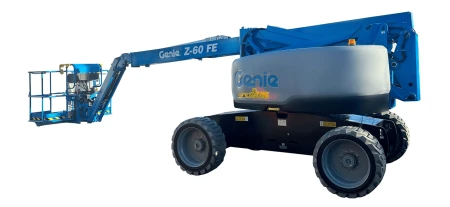

Genie Z-60 FE Articulating Boom Lift

The Genie Z-60 FE articulating boom lift is a robust and eco-friendly solution that can handle demanding work inside and outside. It enables operators to choose between two operation modes, full electric or hybrid, depending on their working environment.

The all-electric mode offers an entire day of zero-emission run time from a single charge of the batteries, which is suitable for environmentally sensitive spaces. In hybrid mode, the machine will operate for longer than a week on one tank of diesel fuel, with an onboard generator that automatically recharges the batteries, so operations keep running efficiently.

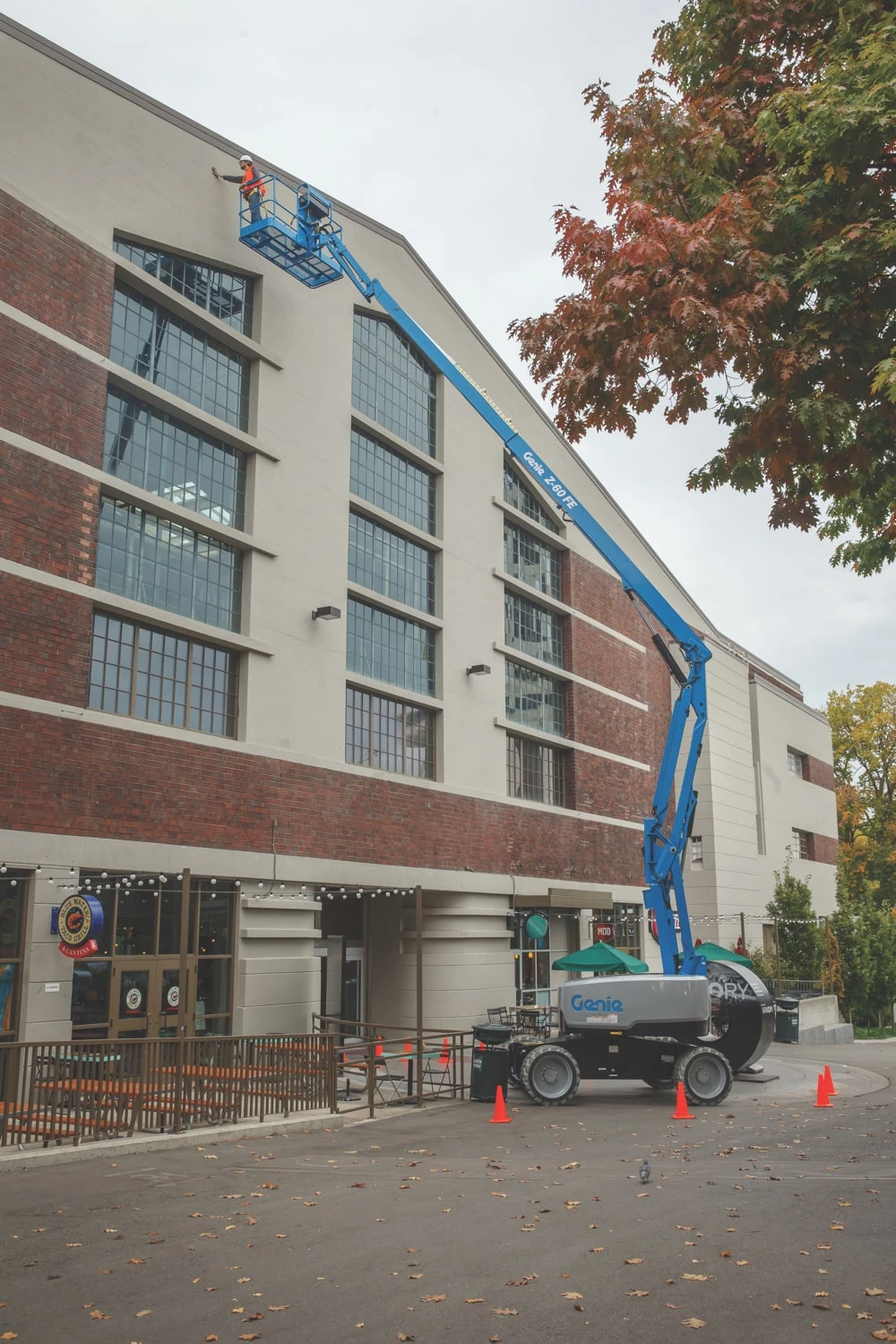

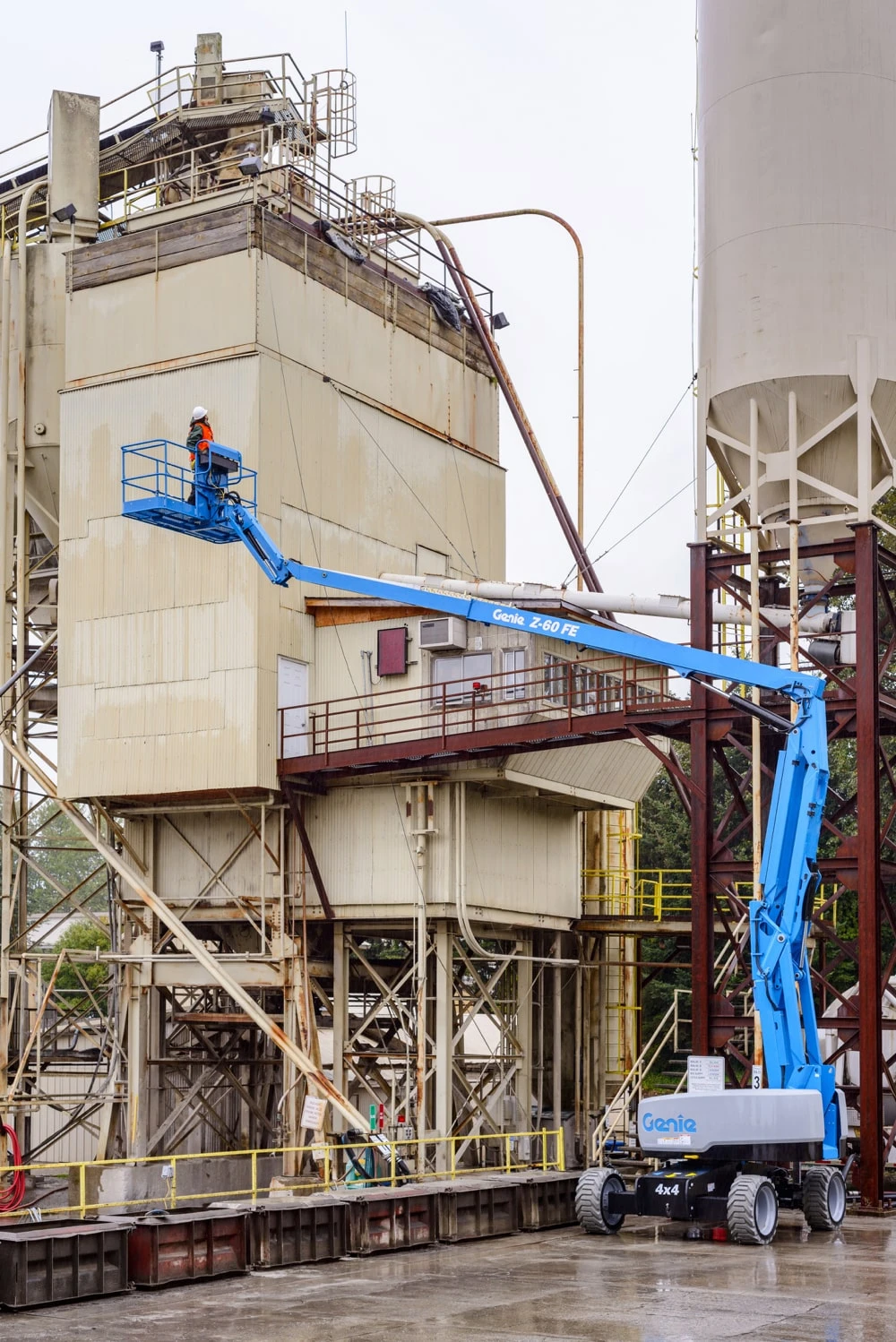

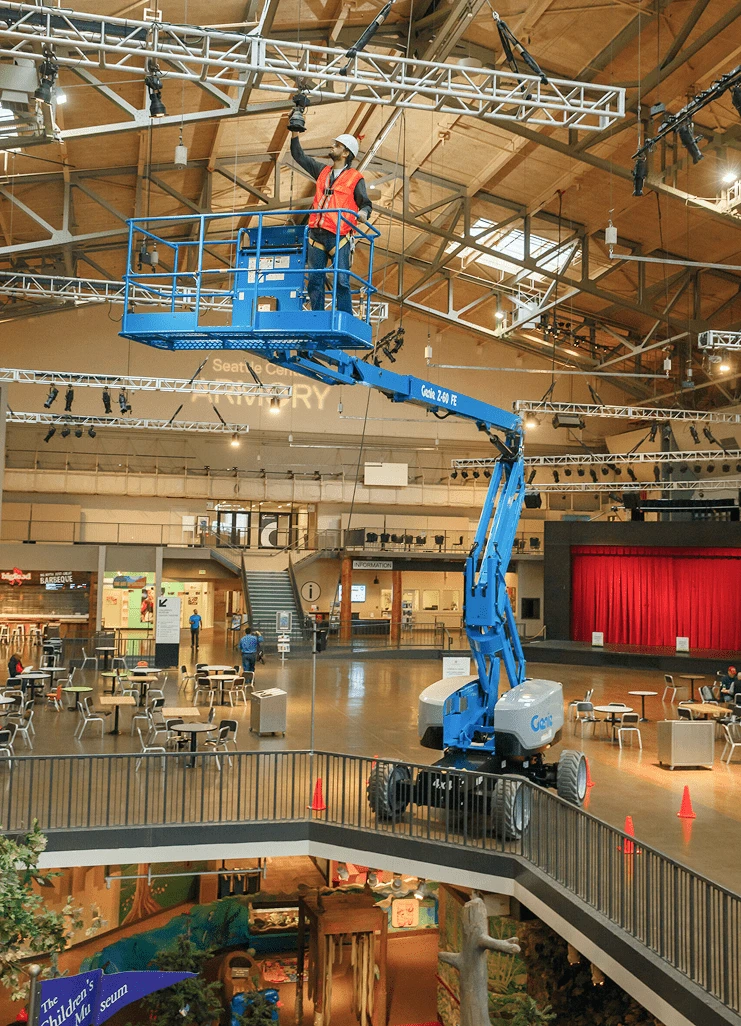

The Genie Z60 FE has a working height of up to 20.16m, horizontal outreach of 11.15m, and up-and-over clearance of 7.39m, making it a great machine to access areas which are hard to reach. The boom's narrow footprint, compactness, and low tail swing make it ideal for use in tight conditions such as construction sites, shopping centres, and pedestrian streets.

Equipped with Genie’s high-efficiency AC drive system enhances drive performance and facilitates ease of maintenance, and the 4WD and 45% gradeability of the machine deliver superior traction and ground manoeuvrability. The active oscillating axle with full-time activation offers the capability to balance on rough terrain so that operators can travel effortlessly over challenging surfaces.

For precise positioning, the Genie Z-60 FE features a dual parallelogram boom and proportional drive and lift controls. Smooth navigation around obstacles is delivered by the 1.52-meter articulating jib with 135° of vertical rotation, while the Genie Fast Mast system enables people to rapidly descend to ground level to get tools or materials. The machine allows 355° non-continuous turntable rotation with a degree of flexible movement at height.

The Genie Z-60 FE combines strength, reach, and sustainability, making it an effective choice for a variety of maintenance, installation, inspection, and construction applications.

Buy the Genie Z60 FE Articulating Boom Lift

Contact us today for information on pricing and availability.
