Genie SX105 XC

Genie Telescopic Boom Lifts

Features Specifications Gallery FAQs Support

Impressive height and lift capacities

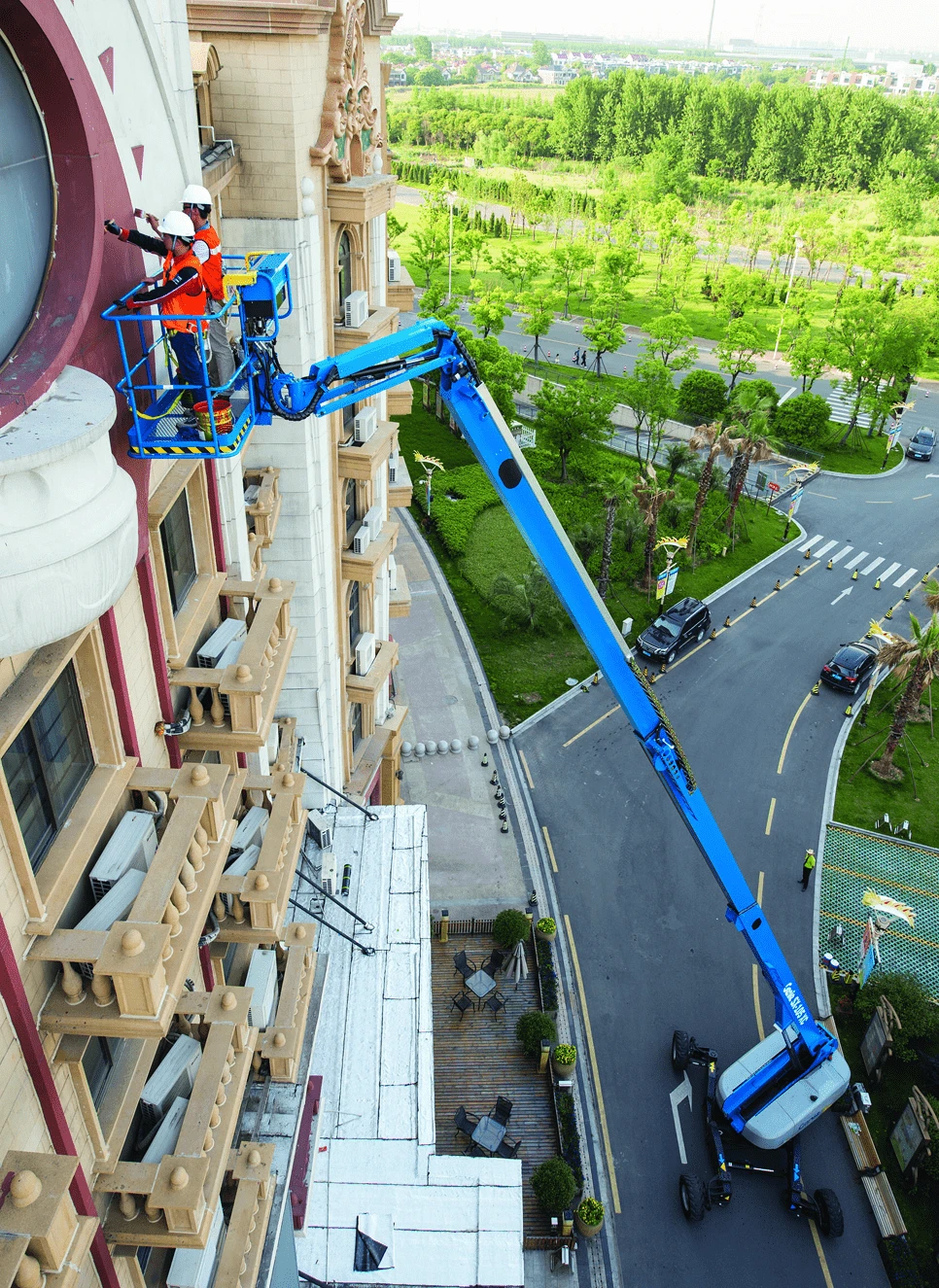

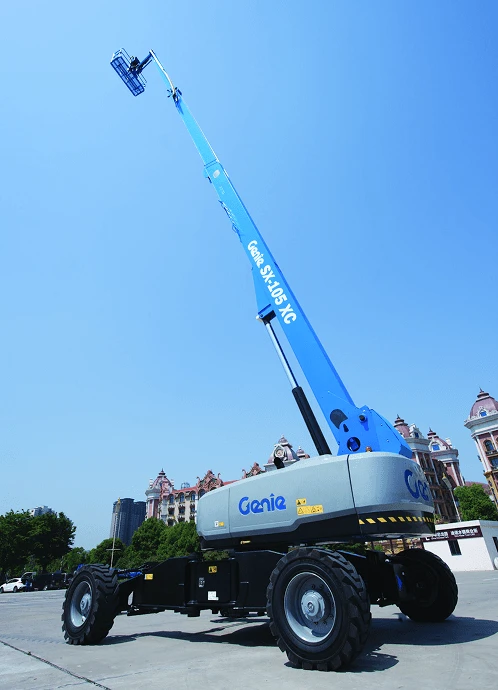

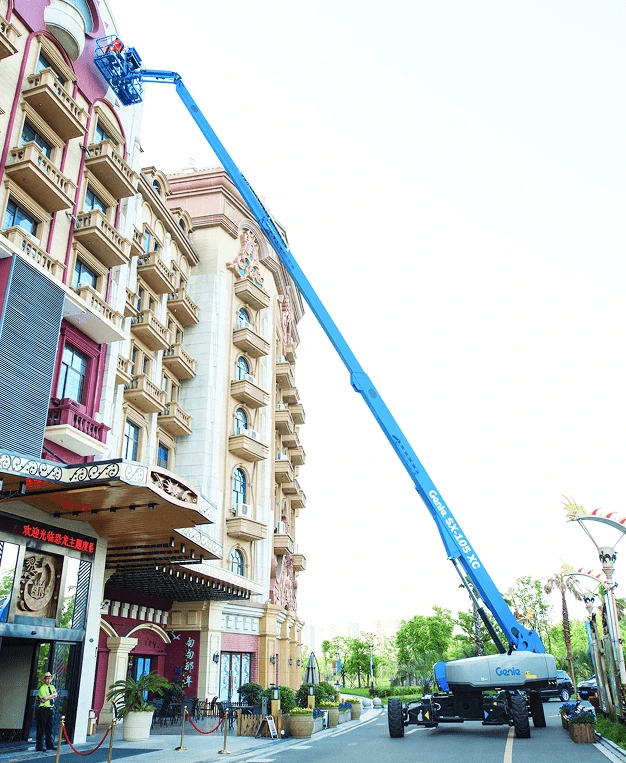

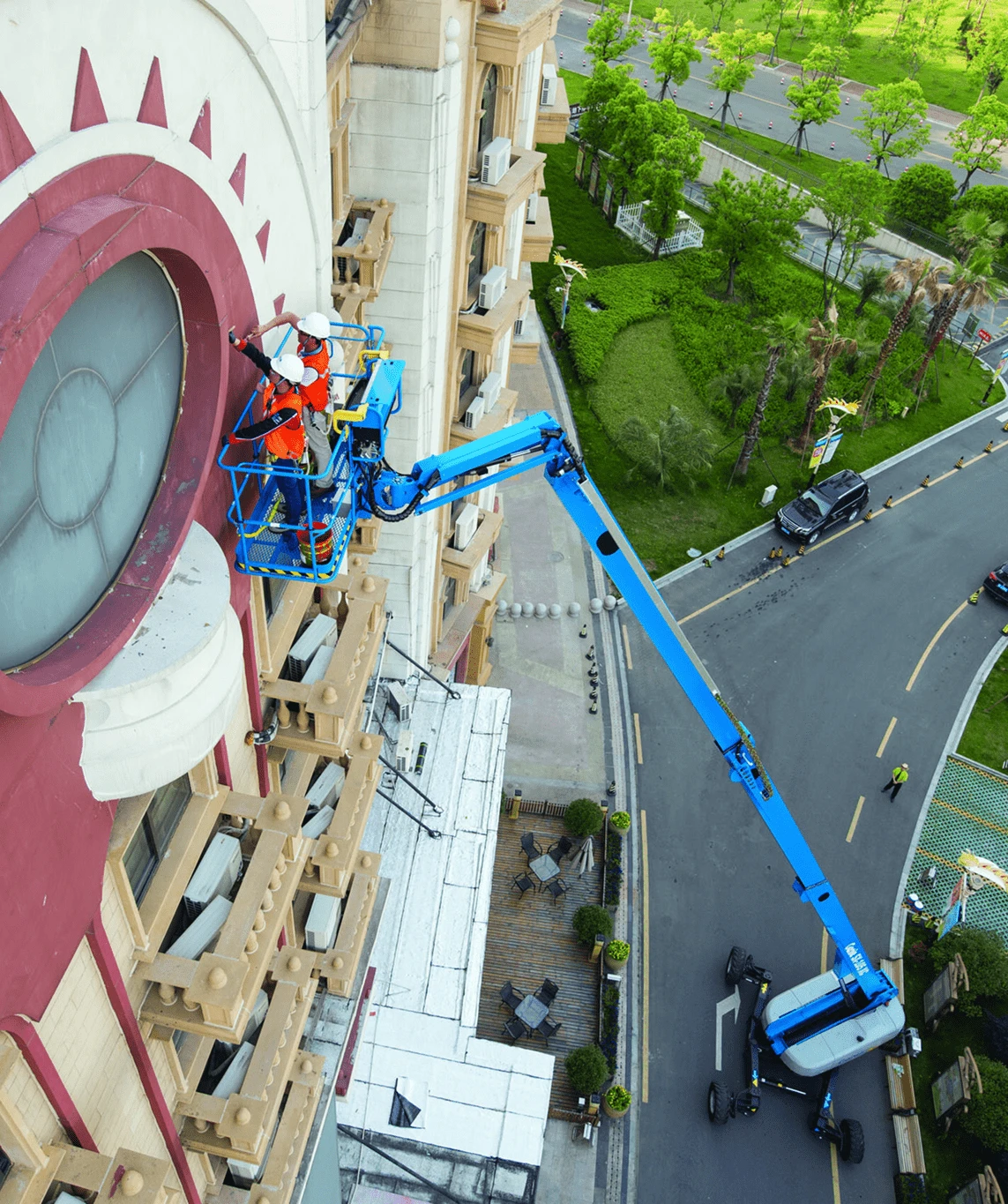

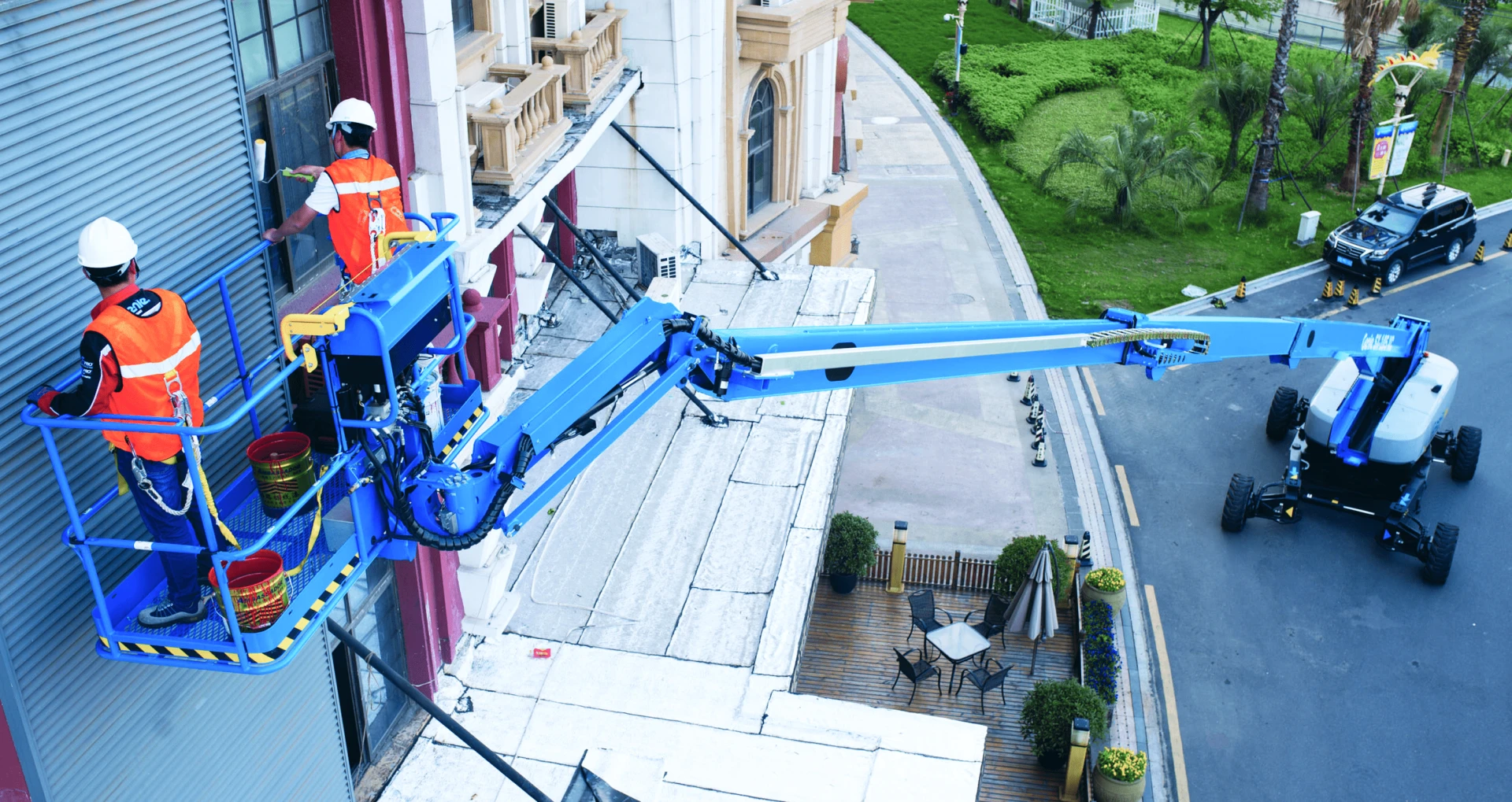

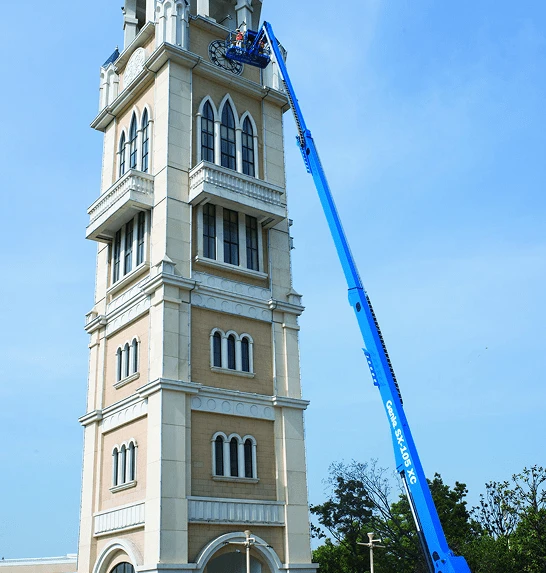

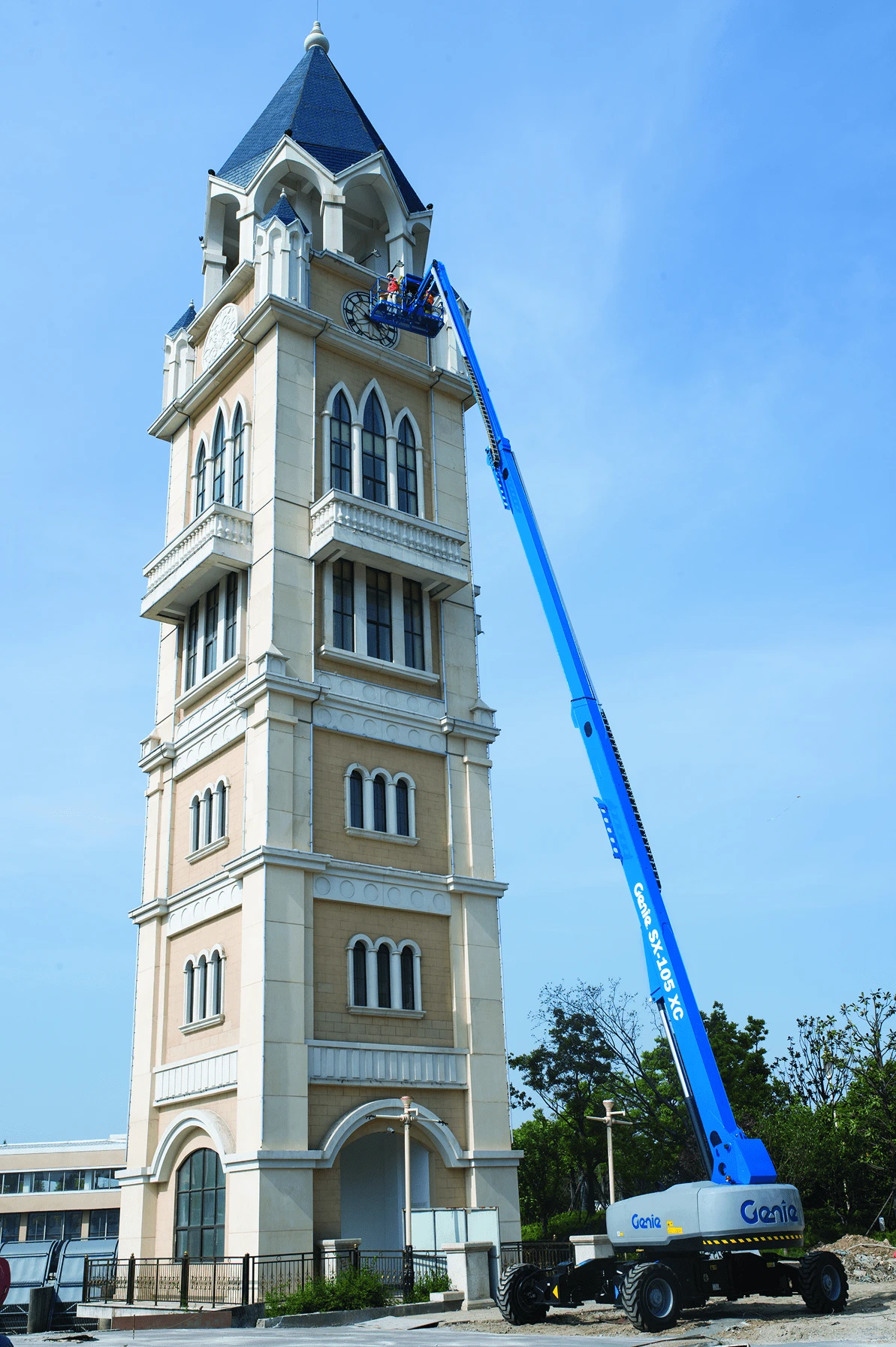

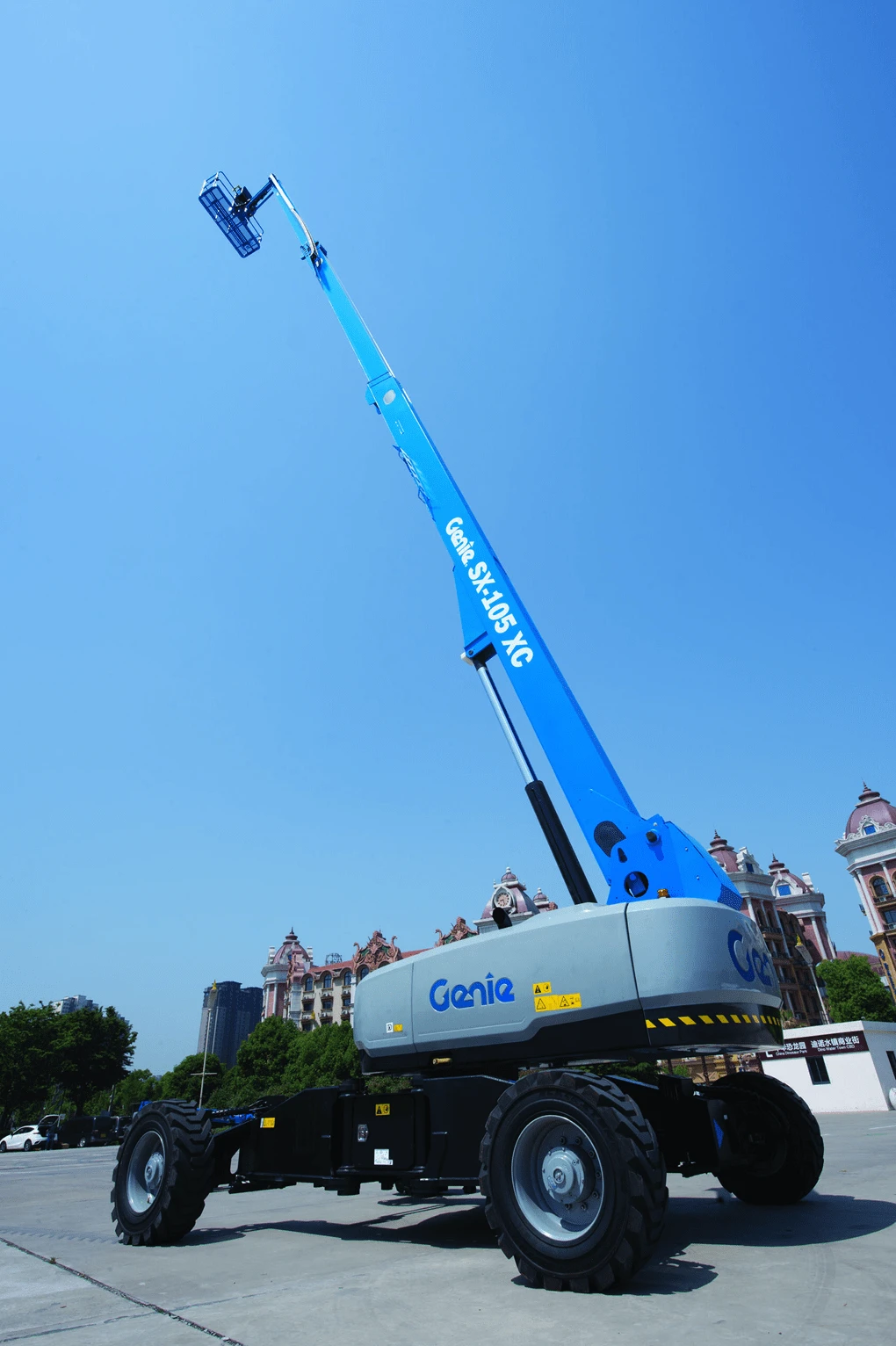

The Genie SX-105 XC telescopic boom lift provides a 34.00m working height and offers 24.38m of horizontal reach. Built for high-reach applications where extra lift capacity is essential. With a dual lift capacity of 300kg unrestricted and 454kg restricted, it’s ideal for heavy-duty work across construction, industrial, telecoms, and utility.

Applications

Construction projects
Inspection tasks
Installation projects
Maintenance tasks
Theme parks
Finishings

Features

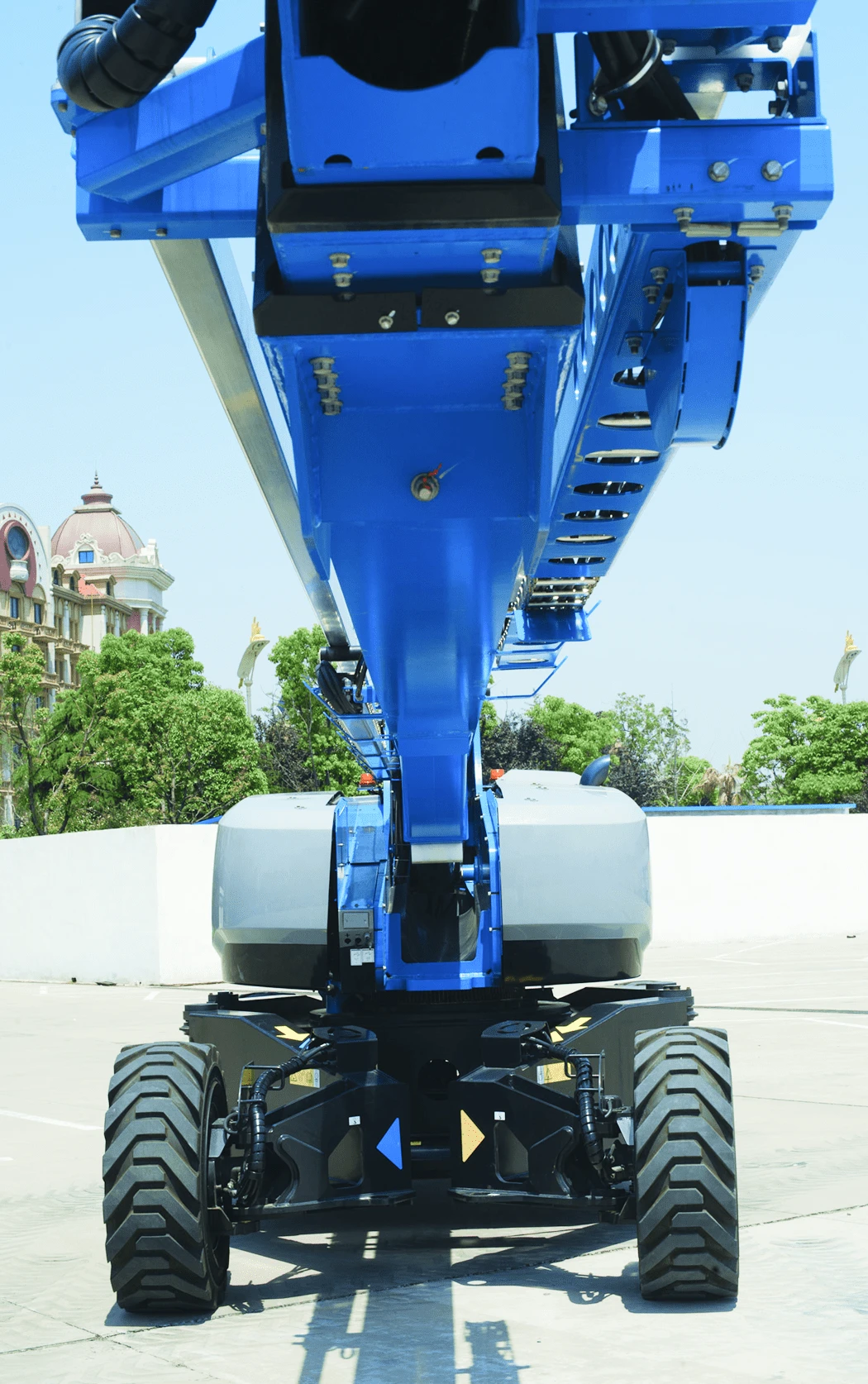

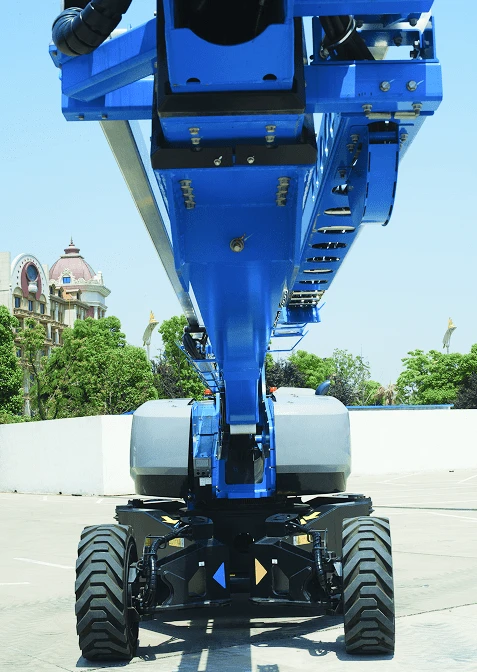

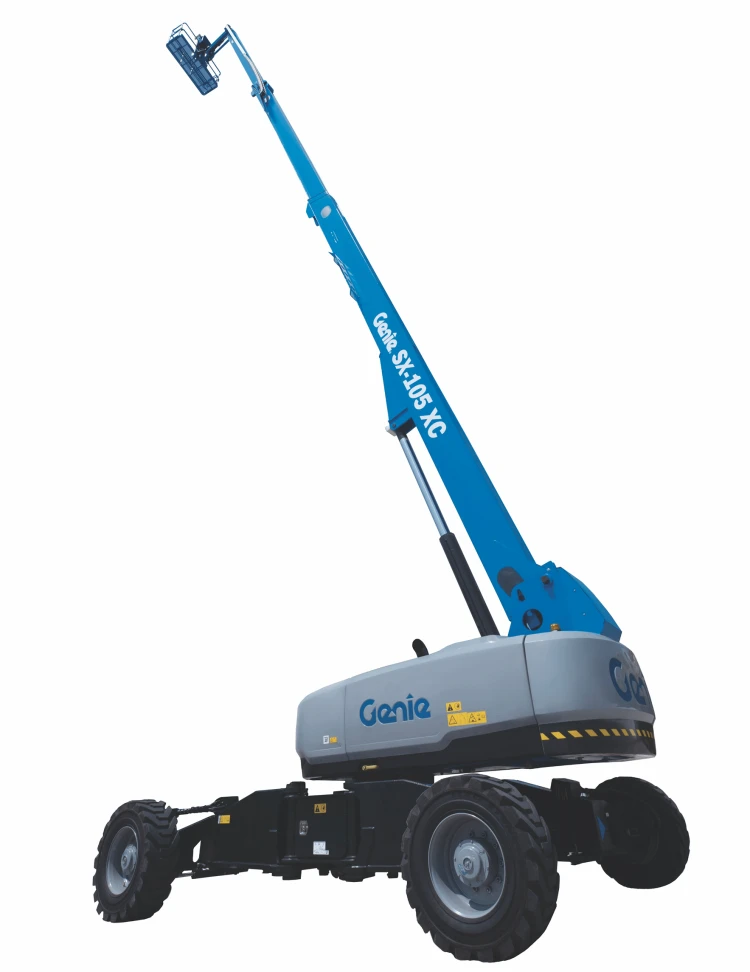

The Genie X-chassis design can retract, allowing for easy transport and extend for better stability when being operated.

Allows precise handling of both lift and drive functions, giving the operator better control and accuracy during operation.

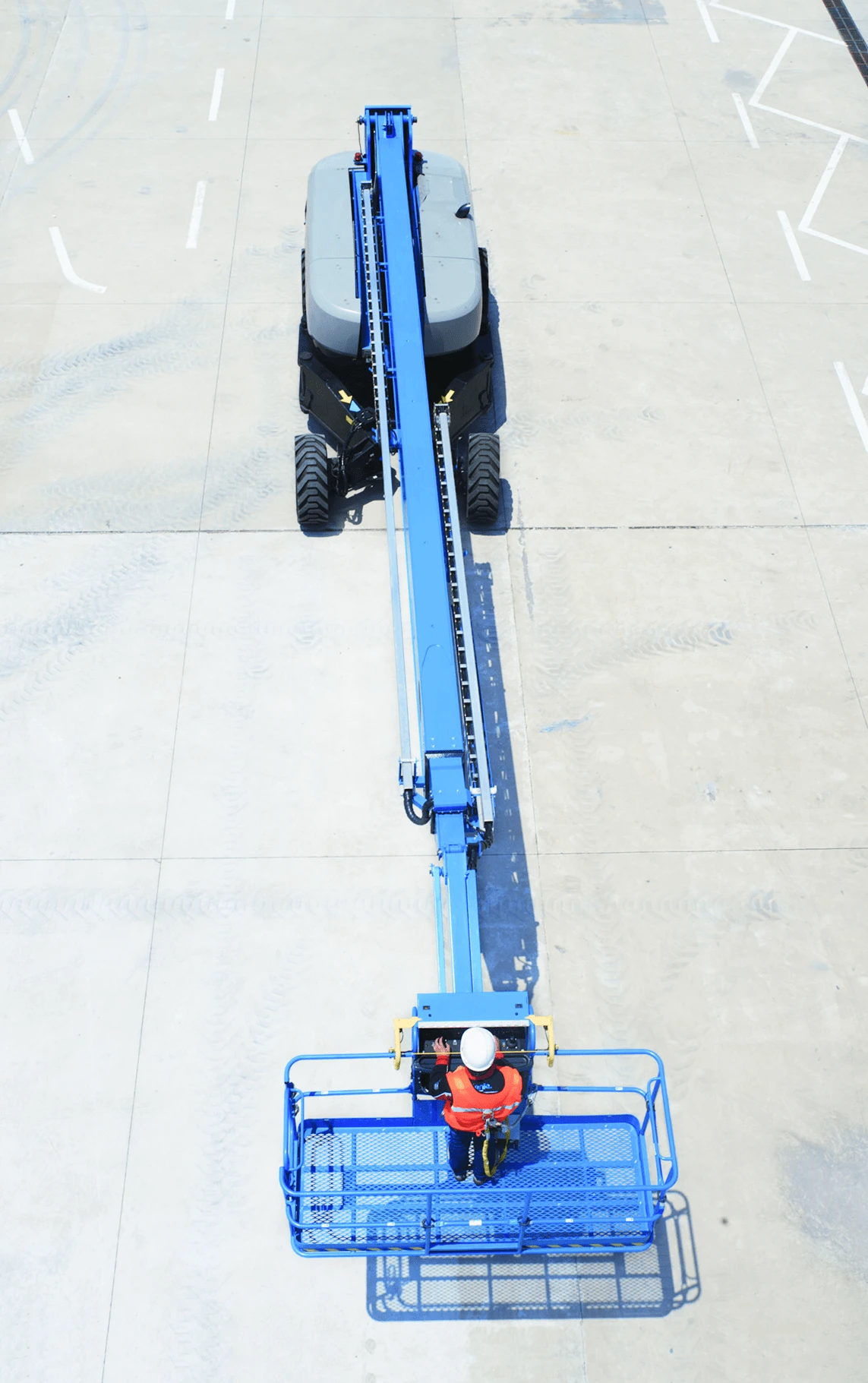

With a restricted load capacity of 454kg and an unrestricted load capacity of 300kg allows the SX-105XC to accommodate heavier tools and materials or up to 3 workers on the platform.

Paired with the automatic envelope control technology allows operators to maximise their productivity without the need to reposition the machine.

Allows for accurate load weighing and zero-load field calibration.

Provides 2.69m of below-ground reach, which helps access sunken working areas.

Designed with 4WD and foam-filled rough terrain tyres for reliable performance over uneven or challenging terrain.

Provides flexibility and accurate positioning of operators and tools at height.

Specification

The Genie SX-105 XC provides extreme reach, dual lift capacity, and rough terrain capabilities.

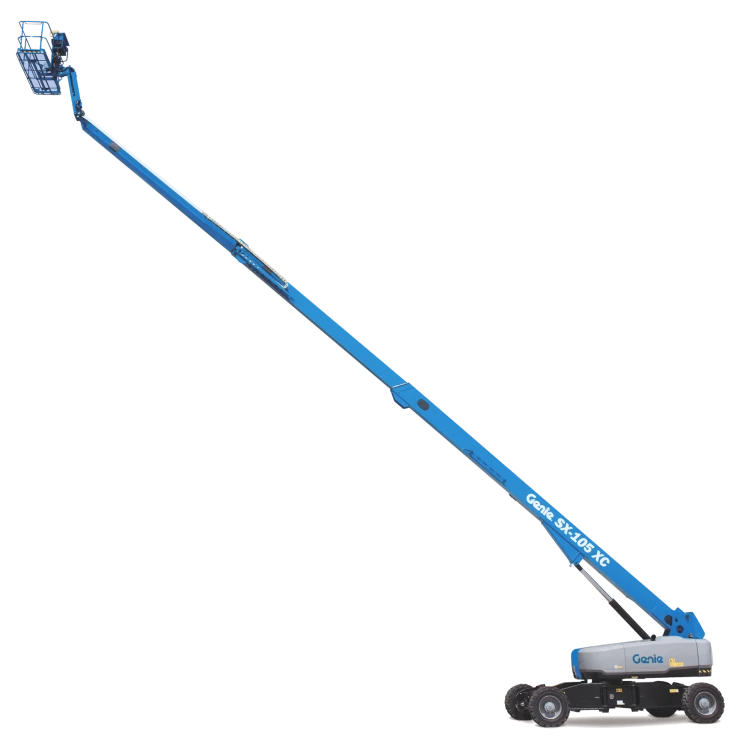

Working height 34.00m
Platform height 32.00m

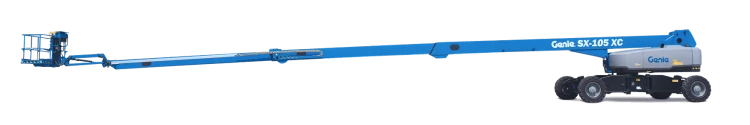

Horizontal reach 24.38m
Below ground reach 2.69m
Unrestricted lift capacity 300kg
Restricted lift capacity 454kg
Machine width (axles retracted) 2.49m
Machine weight 19,300kg
Genie S85 XC
Genie SX125 XC
Free, no obligation site survey.

Making sure that you achieve the most from your budget.

Servicing & Repairs

Our in-house, Genie factory-trained team of mobile engineers cover the entire country, ensuring expert support is never far away.

Genie OEM Parts

Keep your Genie in operation with genuine Genie OEM parts. With thousands of parts stocked and ready for delivery nationwide.

FAQs

The Genie SX-105 XC telescopic boom lift has a maximum working height of 34.00m.

The Genie SX-105 XC offers a dual lift capacity, 454kg restricted and 300kg unrestricted.

Yes, as the UK's authorised Genie dealer we sell all the Genie telescopic boom lifts.

You're in the right place. As the UK’s authorised Genie dealer, we provide expert advice, competitive pricing, and nationwide delivery. Contact our sales team for price and availability for the Genie SX105 XC telescopic boom lift.

We are here to support you

Our only priority is to supply you with the best and safest products and support you to the highest level.

Servicing & Repairs

Genie OEM Parts

Service Contracts

Finance Options

Accessories

Part Exchange

Operator Training

Genie SX-105 XC Telescopic Boom Lift

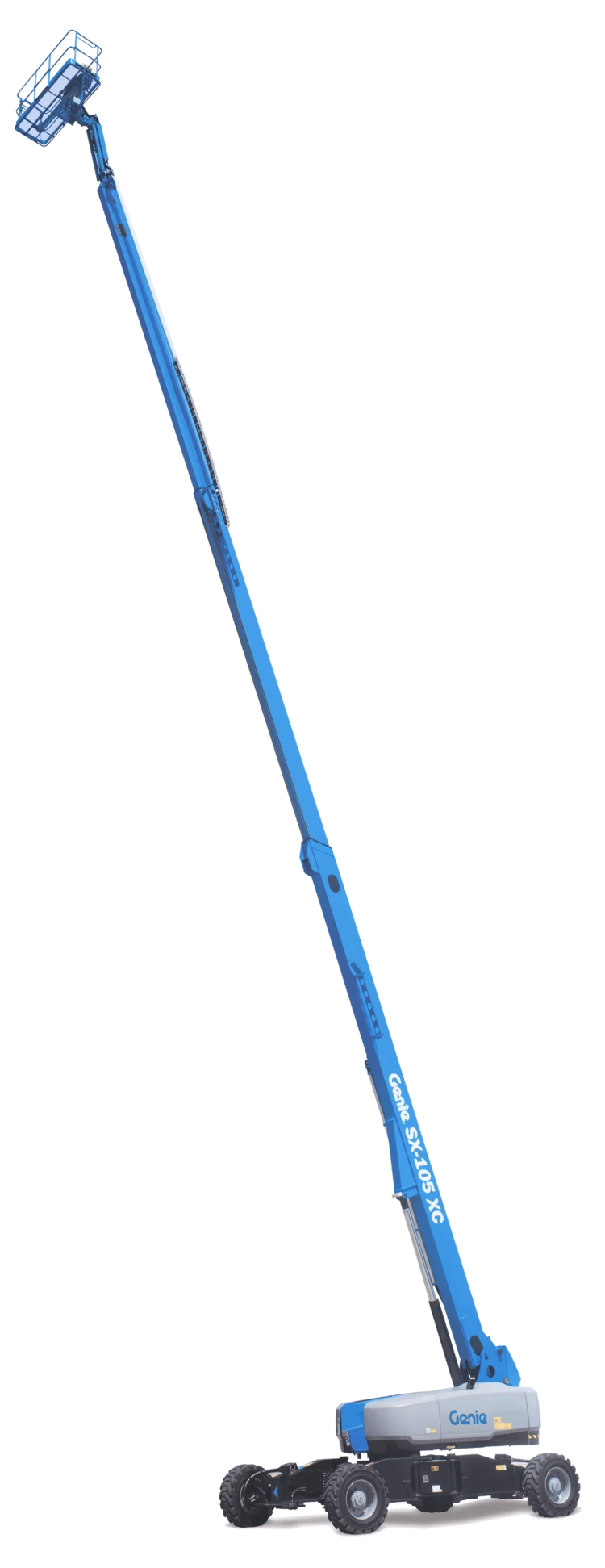

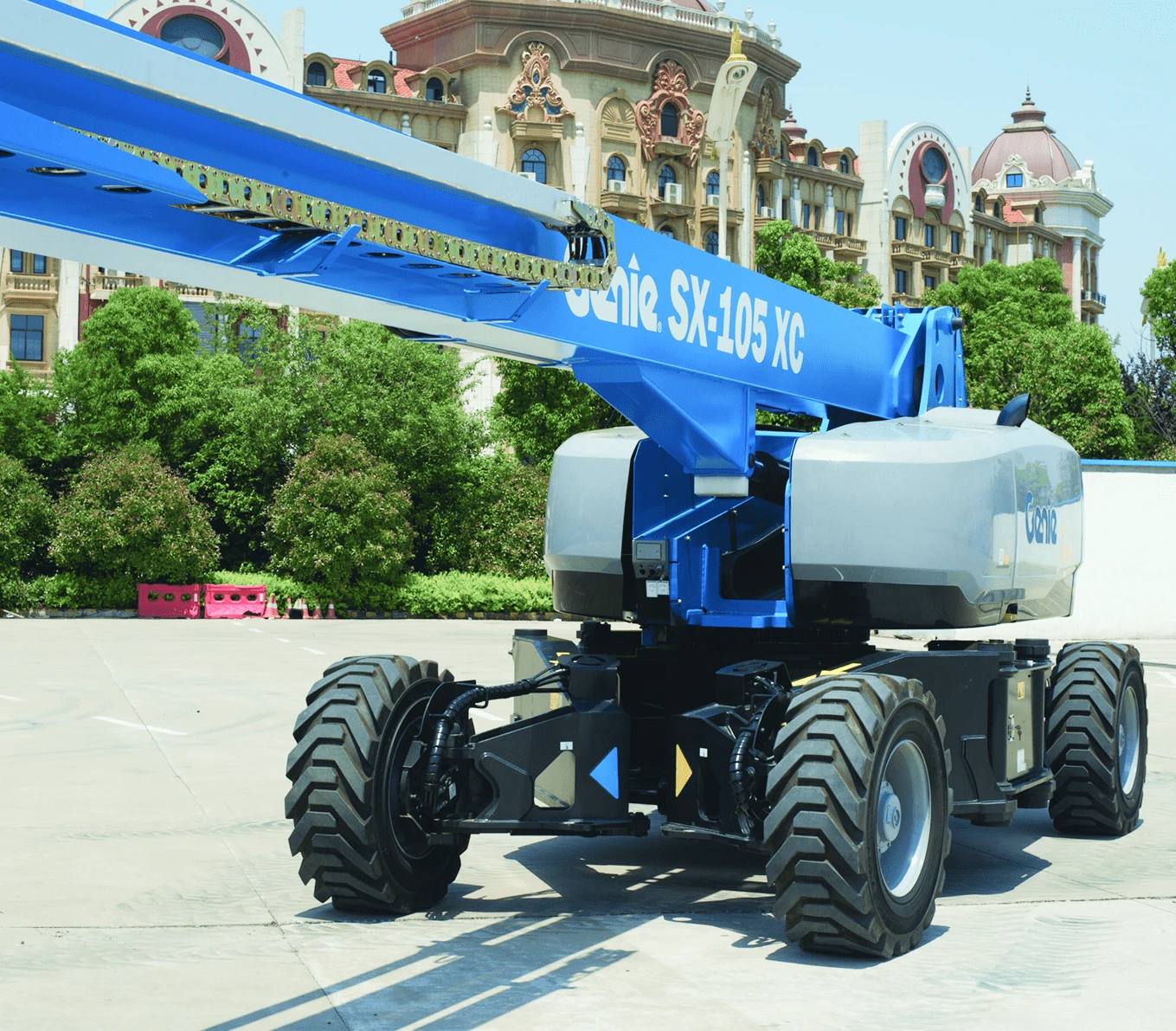

Genie SX-105 XC is a market-leading telescopic boom lift designed for applications which require big reach and heavy-duty lifting capacities. It has a 34.00m maximum working height, 24.38m of horizontal reach and 2.69m below-ground reach, making it a versatile machine for a range of working at height applications

Designed with heavy-duty operation in mind, the SX-105 XC features double lift capacity—unrestricted 300 kg, restricted 454 kg, allowing the stick boom to hold up to three operators and equipment. It's perfectly suited for construction, industrial, telecom, and utility applications, where greater lifting capacity and more operators are needed.

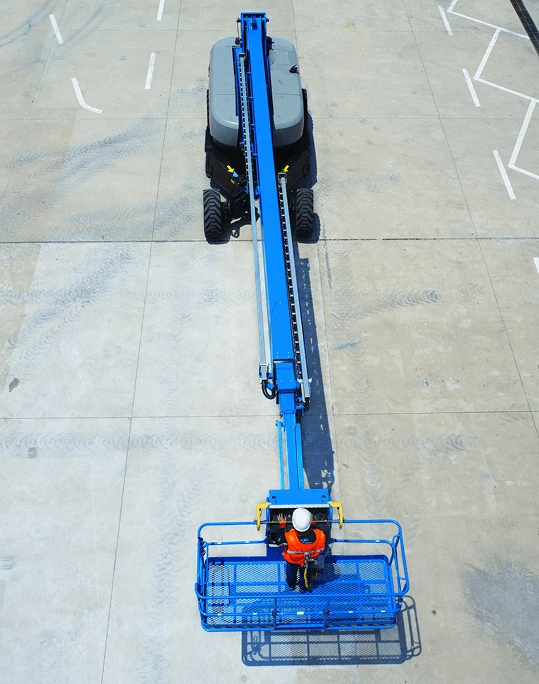

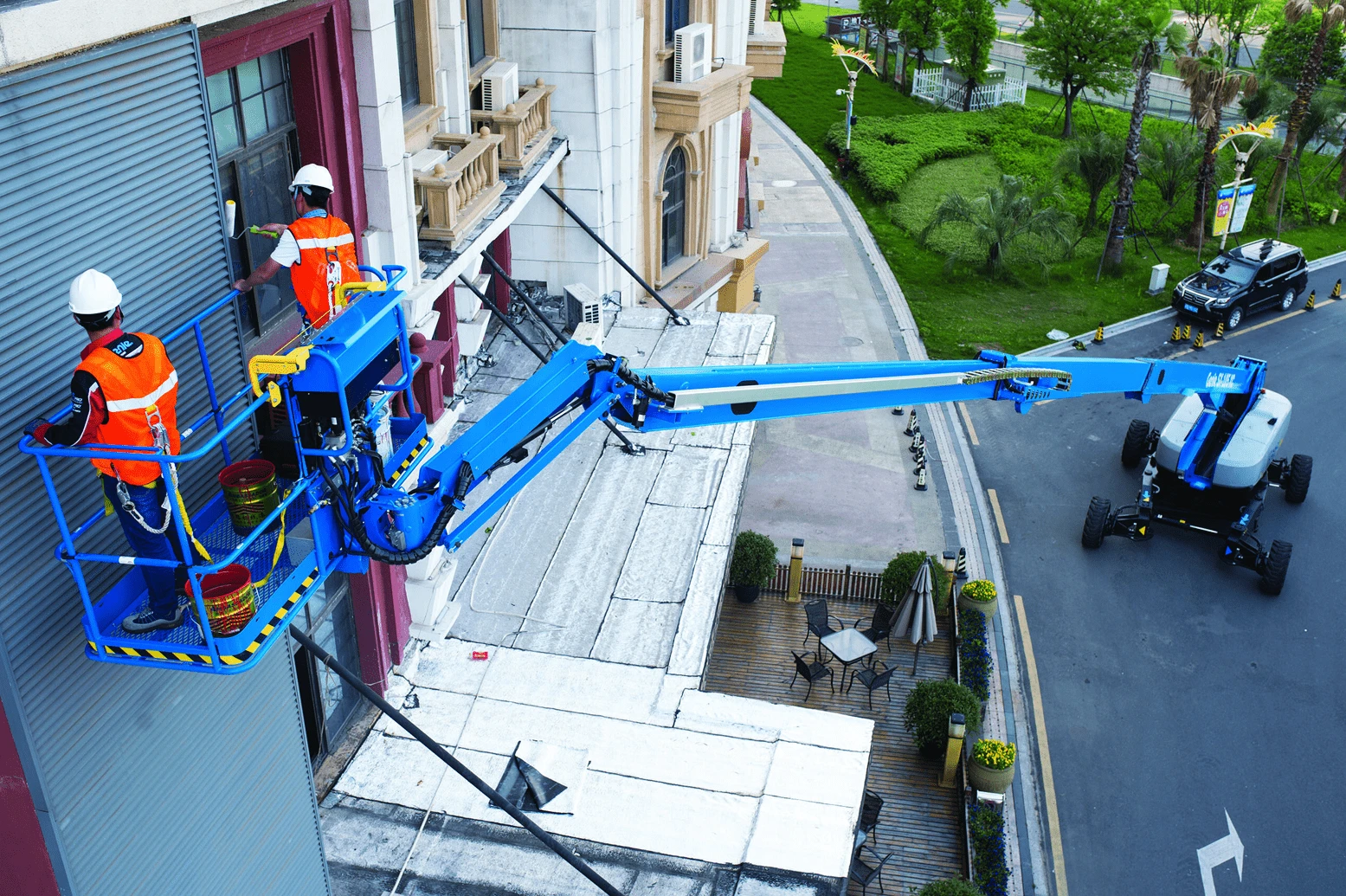

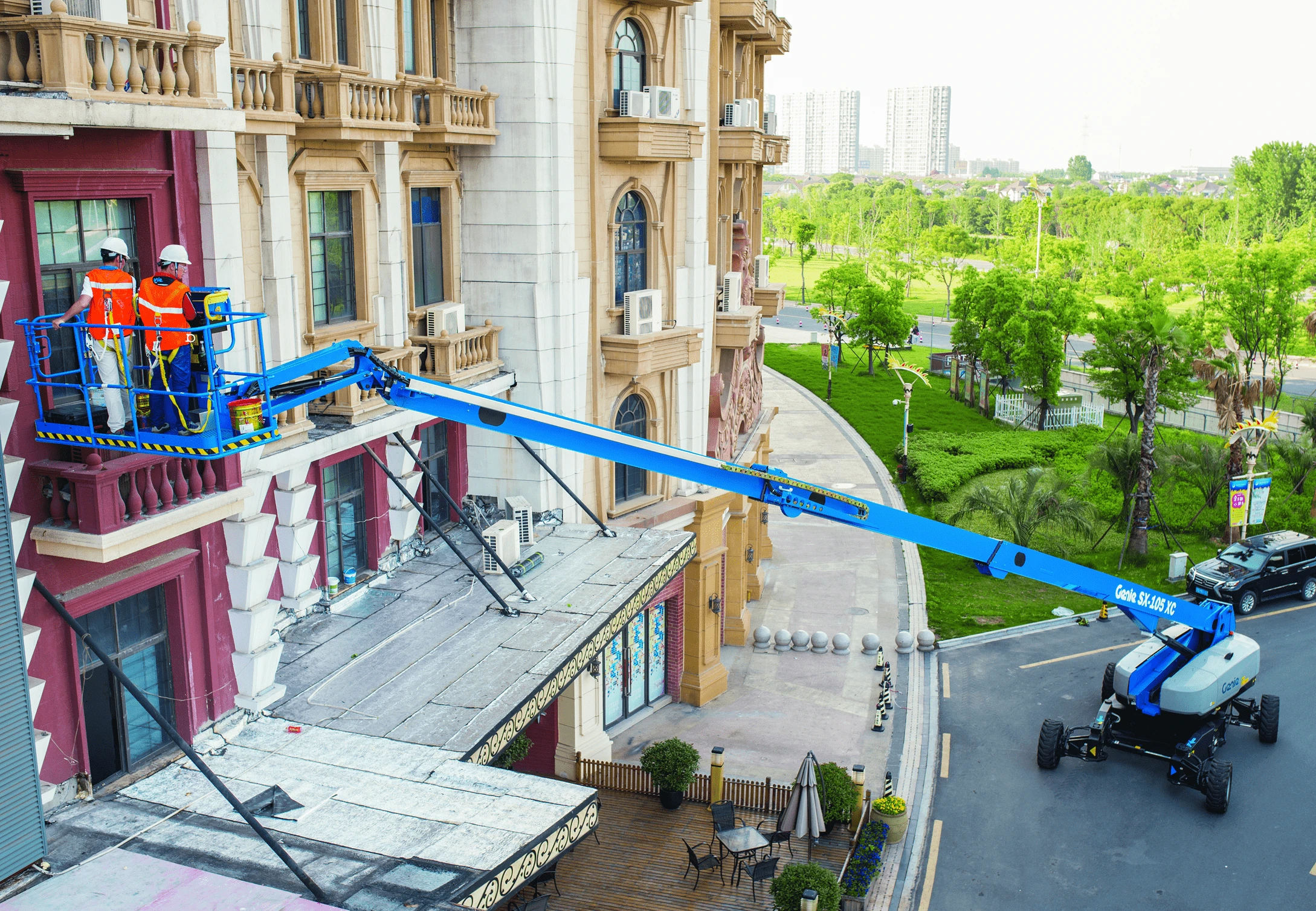

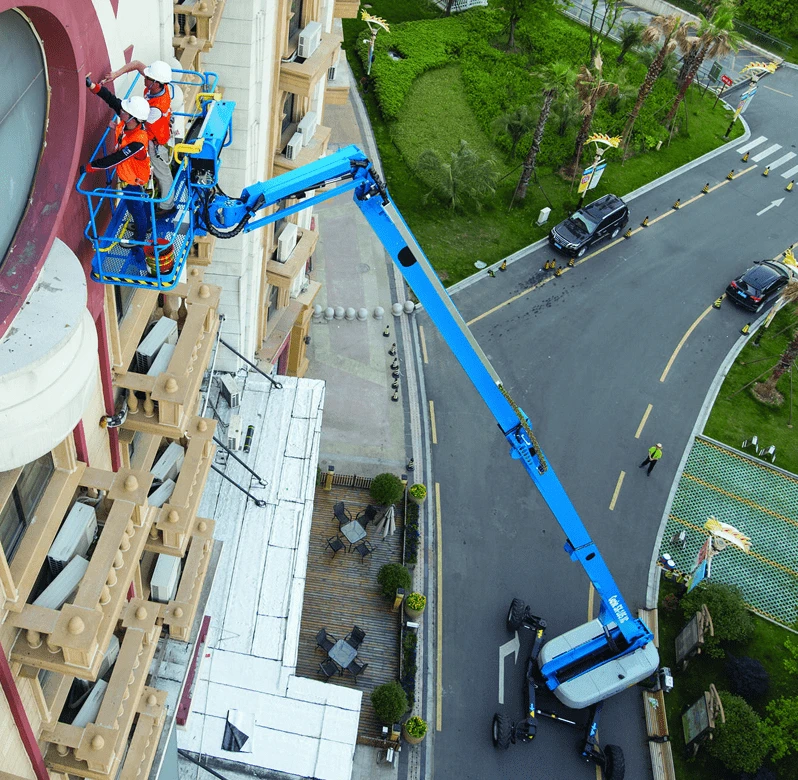

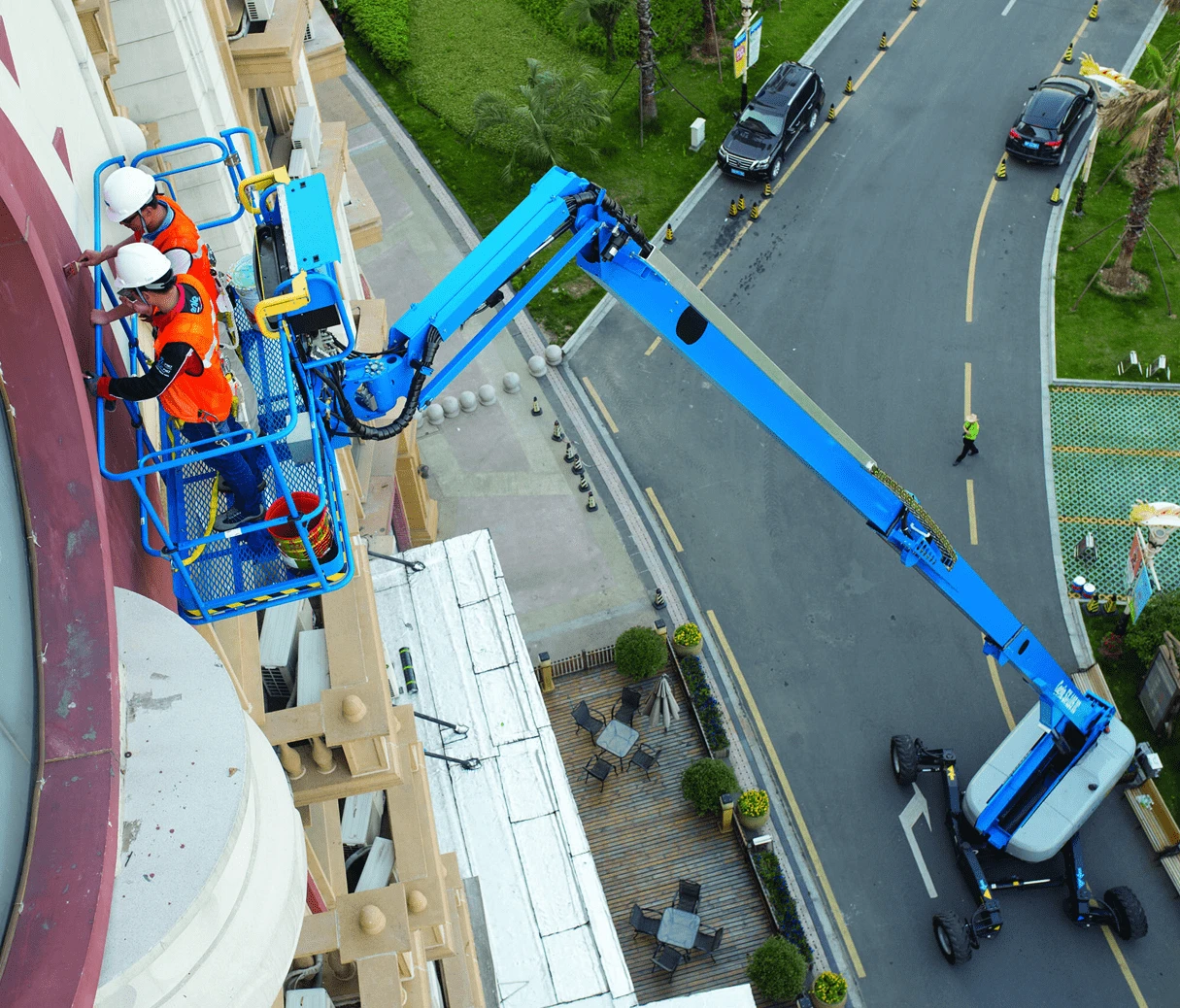

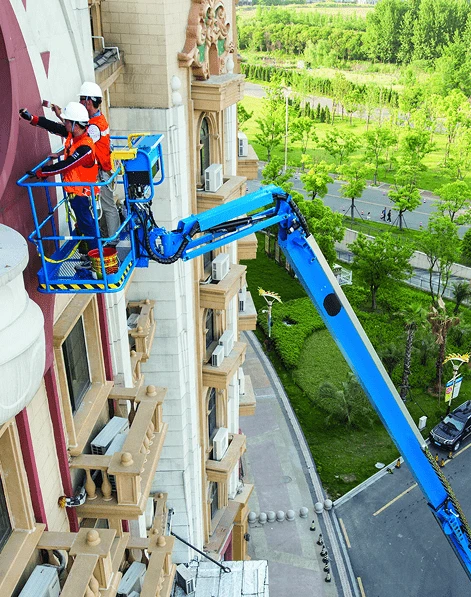

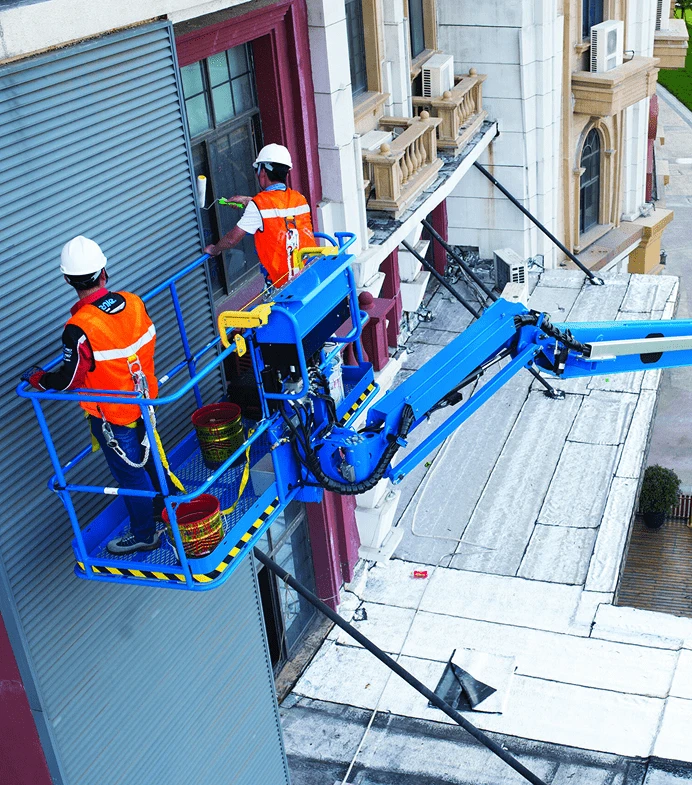

The Genie SX-105 XC is equipped with a 1.52 m articulating jib for precise placement and added flexibility to get around obstructions. The Mini Genie X-Chassis® system allows for compact transport and outstanding jobsite stability, even in confined spaces. Diesel-powered and equipped with 4WD rough terrain features such as oscillating axles and foam-filled tires, the SX-105 XC is capable of working on uneven ground surfaces comfortably.

Genie’s advanced load sense technology offers protection through automatic measurement of the platform load and zero-load field calibration for easy maintenance and diagnostics.

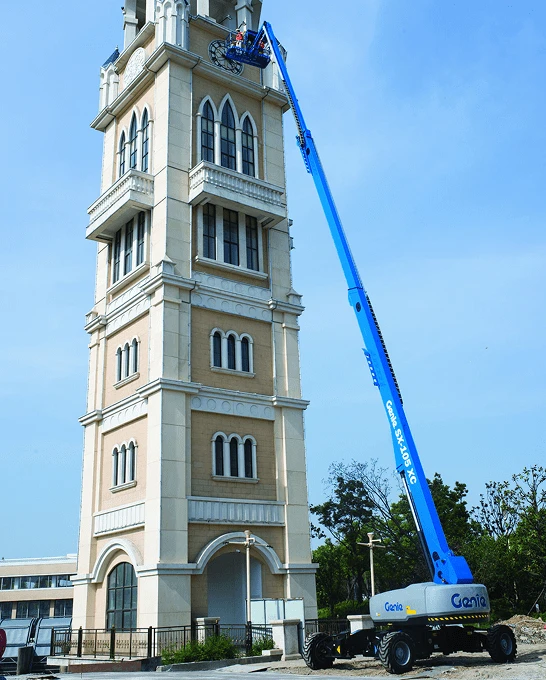

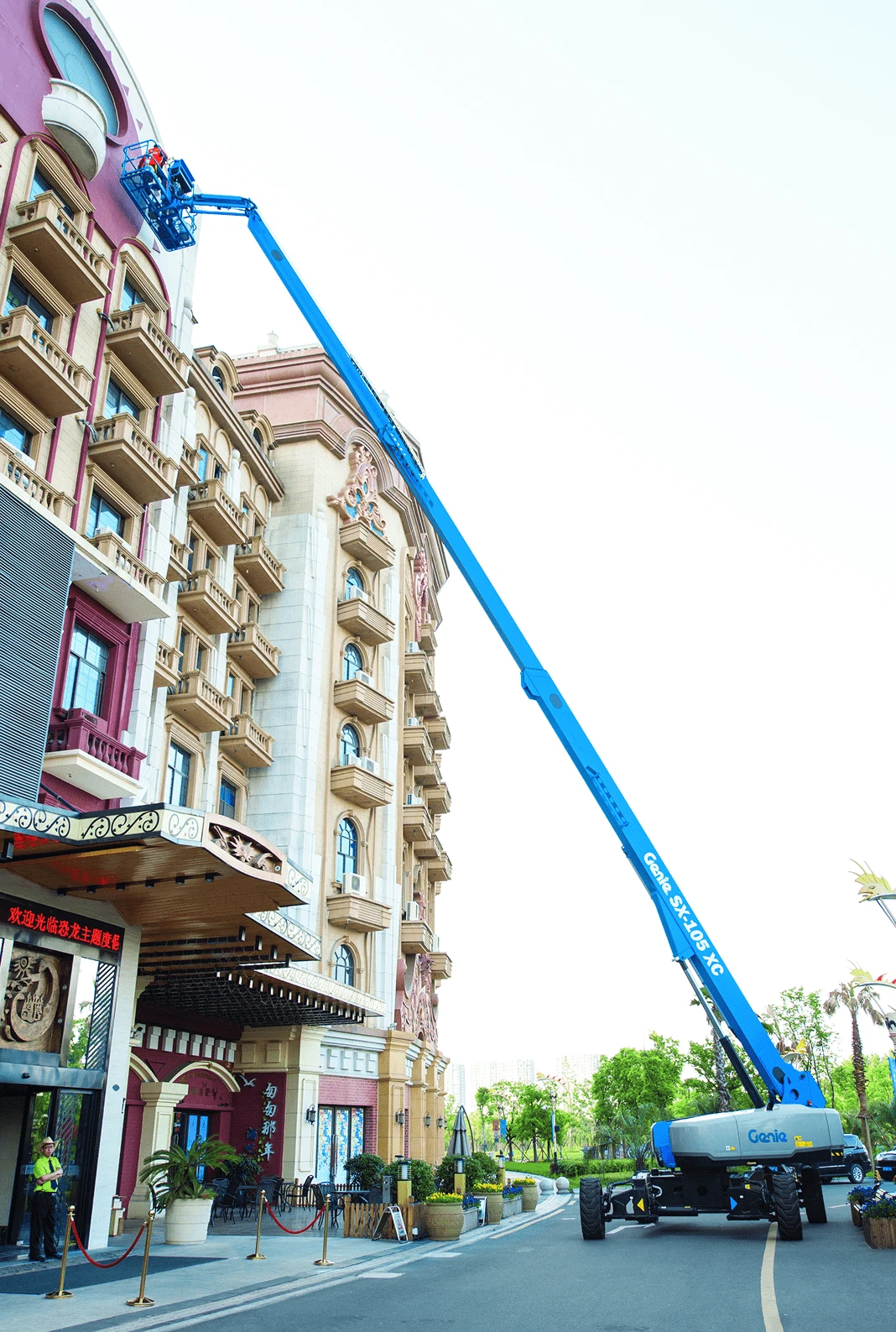

Ideal for installation, maintenance, inspection, and construction applications, the Genie SX-105 XC provides extreme reach, heavy capacity, and rugged off-road capability to tackle even the toughest access jobs.

Buy the Genie SX-105 XC Telescopic Boom Lift

Contact us today for information on pricing and availability.
