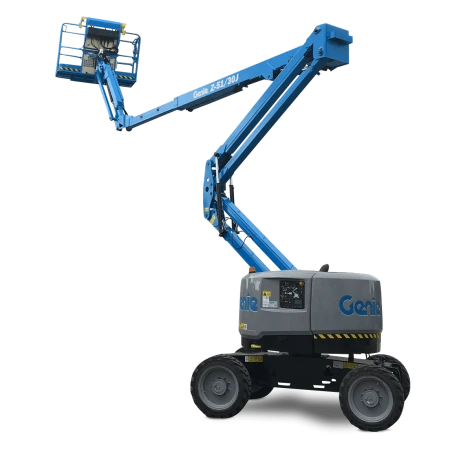

Genie Z51/30J RT

Genie Articulated Boom Lifts

When you need that little bit more

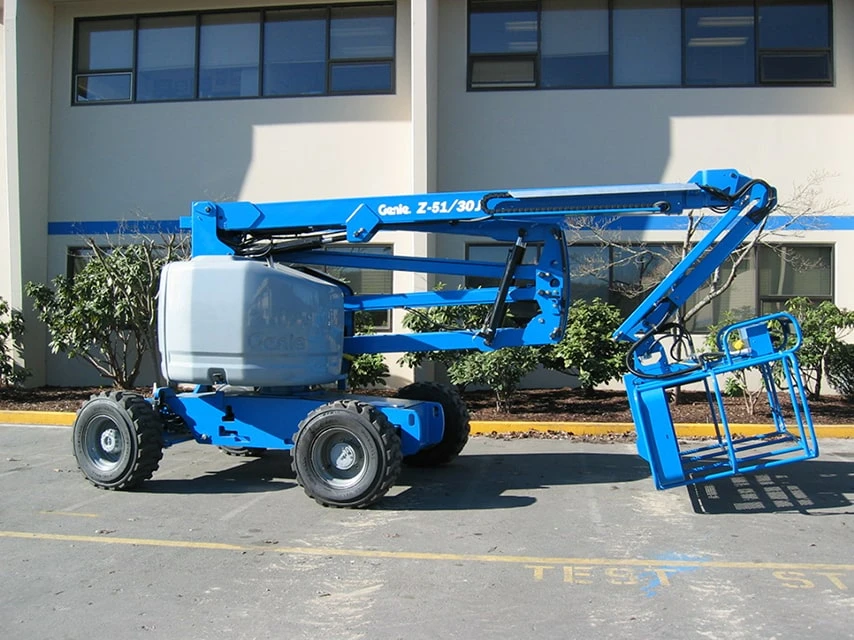

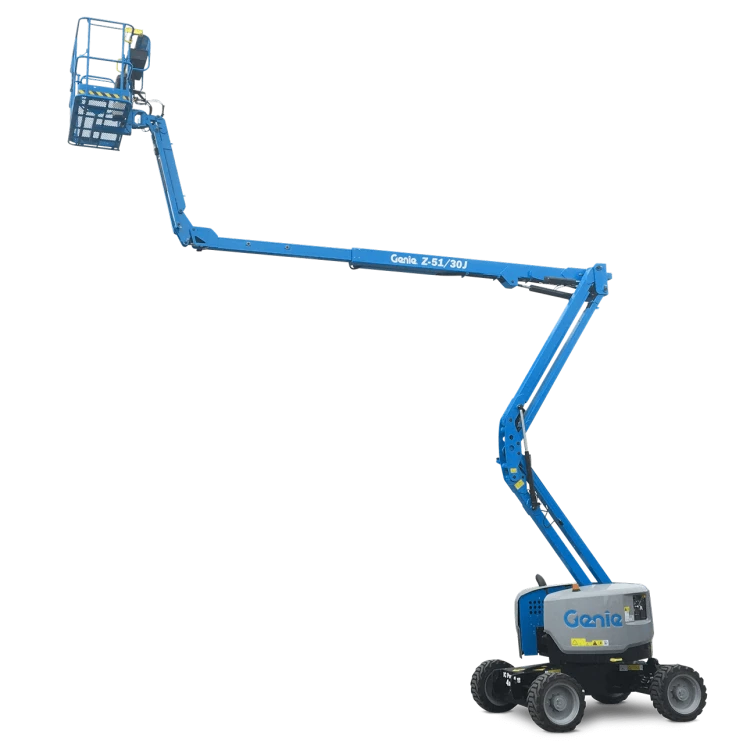

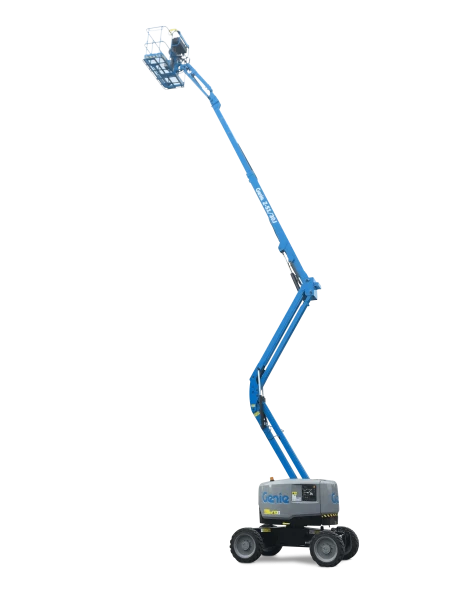

The Genie Z-51/30J RT articulating Boom comes standard with a 1.52m articulating jib and has an impressive driveable working height of 17.59m and maximum horizontal reach of 9.37m. If you are looking for one machine to cover many bases, the Z-51/30J RT cherry picker is a great option.

*IN STOCK

Applications

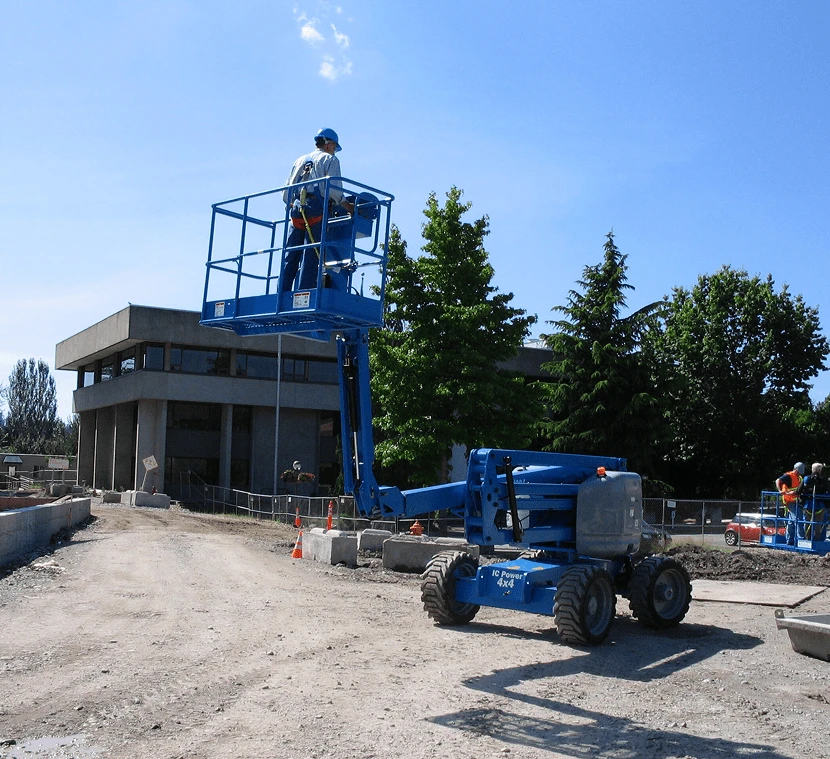

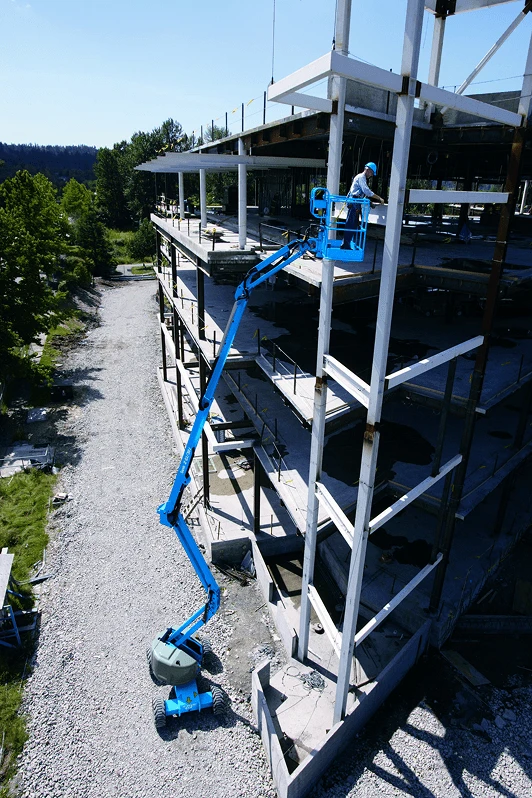

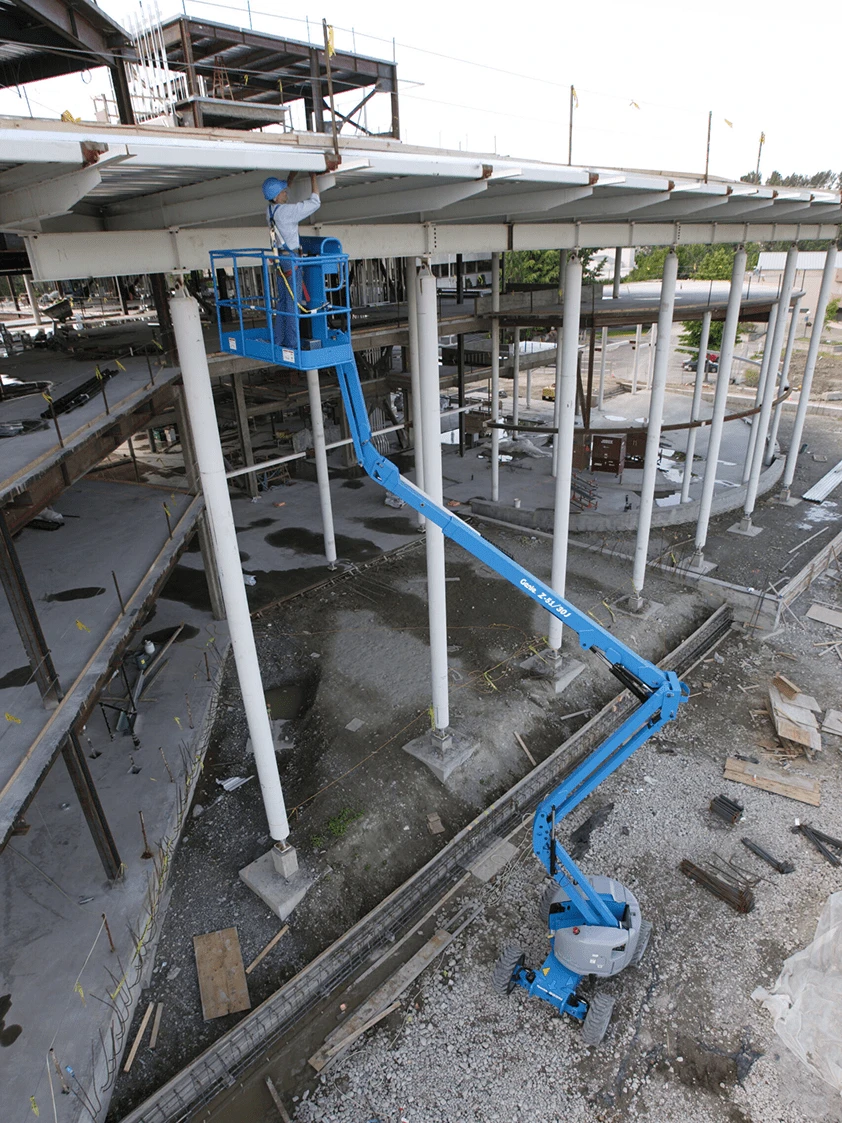

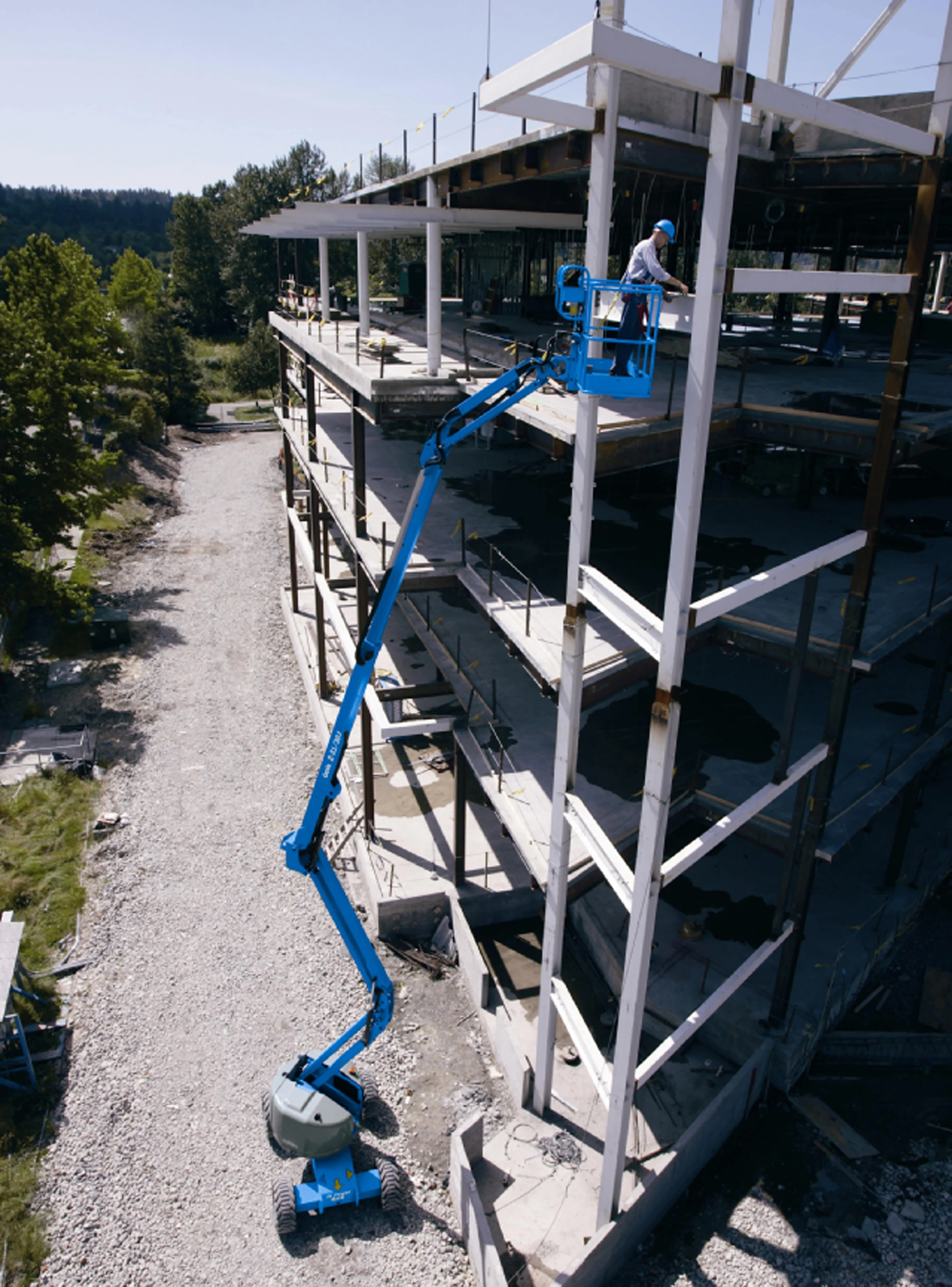

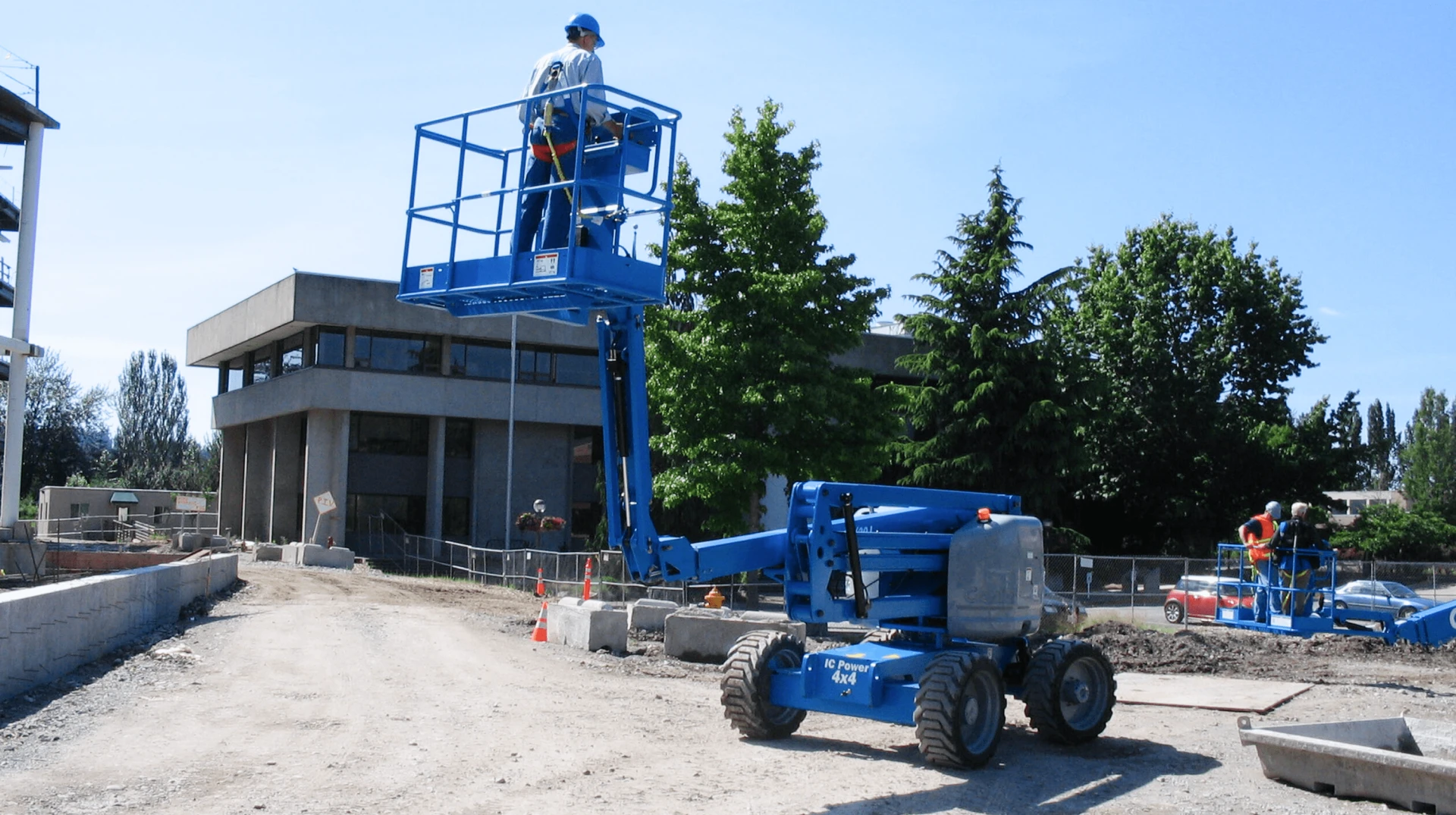

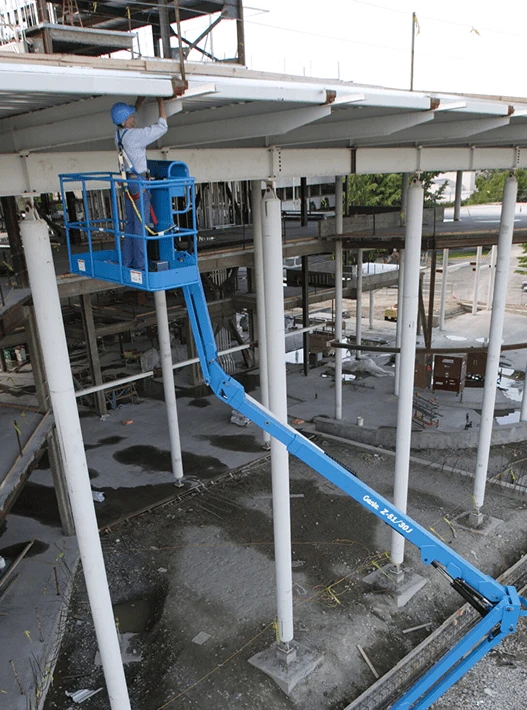

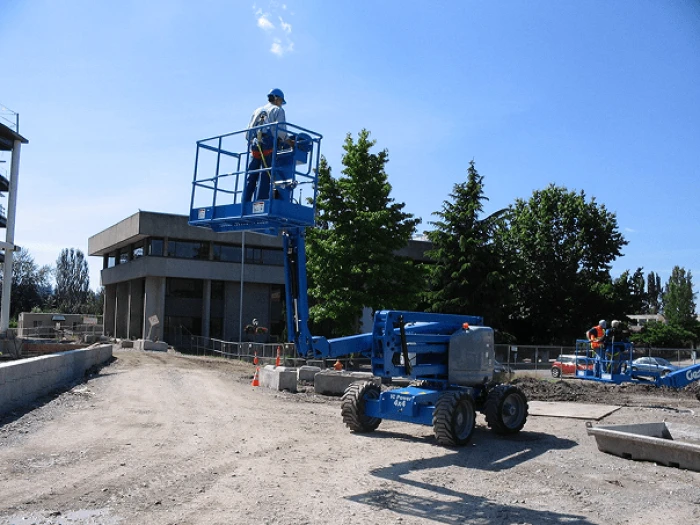

Construction projects
Inspection tasks
Installation projects
Distribution
Maintenance tasks

Features

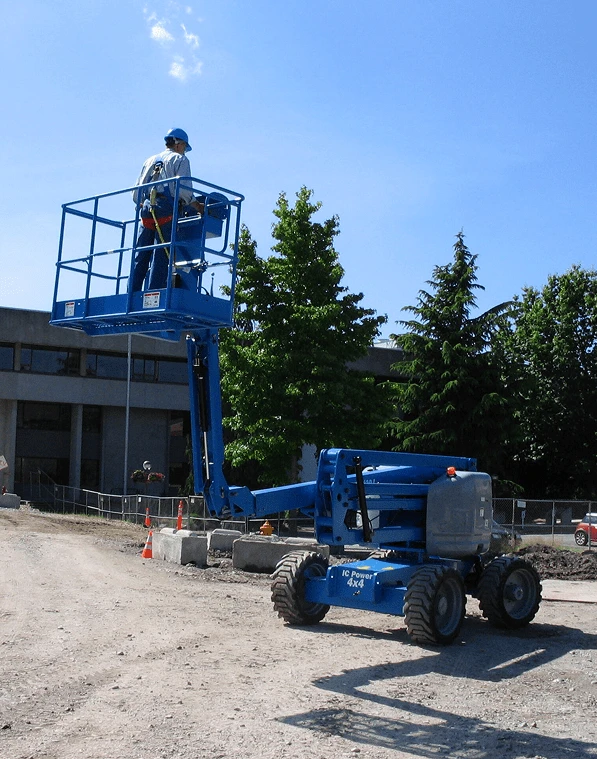

Equipped with a full-time oscillating axle, the Z51/30J RT adjusts to uneven terrain, enabling it to maintain consistent contact with all wheels for better traction and stability on rough terrain.

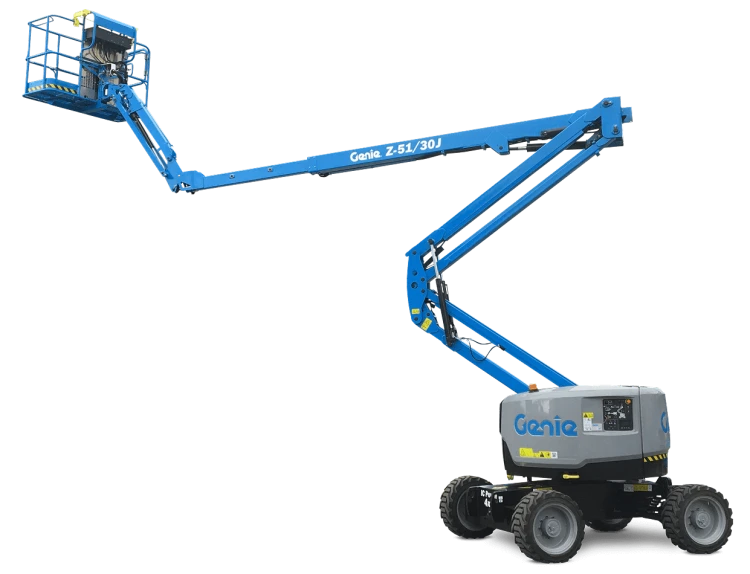

Equipped with an articulating jib gives operators more flexibility when it comes to accurately positioning around obstacles.

The dual parallelogram lift design allows operators to ascend and descend along a vertical plane without having to retract or extend either boom section.

Allows precise handling of both lift and drive functions, giving the operator better control and accuracy during operation.

Provides exceptional drive performance and superior terrainability.

Designed to handle rough terrain surfaces while still protecting indoor surfaces, making them perfect for a wide range of applications.

Allows for safe and accurate positioning in confined areas.

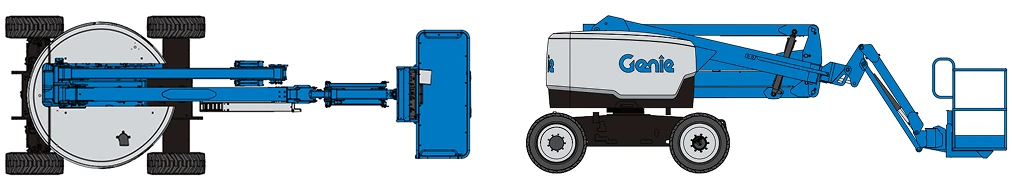

Specification

The Genie Z-51/30J RT articulating boom delivers exceptional up-and-over reach, power, and control for demanding outdoor worksites.

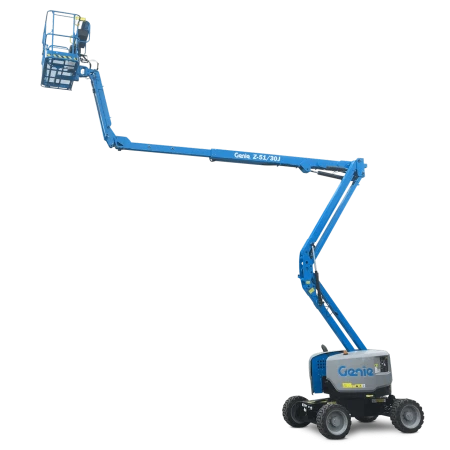

Working height 17.59m
Platform height 15.59m
Horizontal reach 9.37m
Up and over clearance 7.39m
Lift capacity 227kg
Machine width 2.29m
Stowed length 7.58m
Machine weight 7394kg
Free, no obligation site survey.

Making sure that you achieve the most from your budget.

Servicing & Repairs

Our in-house, Genie factory-trained team of mobile engineers cover the entire country, ensuring expert support is never far away.

Genie OEM Parts

Keep your Genie in operation with genuine Genie OEM parts. With thousands of parts stocked and ready for delivery nationwide.

FAQs

The Z-51/30J RT has a working height of 17.59m.

The Z-51/30J RT has a lifting capacity of 227kg.

Absolutely, as the UK's authorised Genie dealer, we sell all the Genie access equipment.

We’ve got you covered. As the UK’s authorised Genie dealer, we provide expert advice, competitive pricing, and nationwide delivery. Contact our sales team for price and availability for the Genie Z51/30J RT articulated boom lift.

We are here to support you

Our only priority is to supply you with the best and safest products and support you to the highest level.

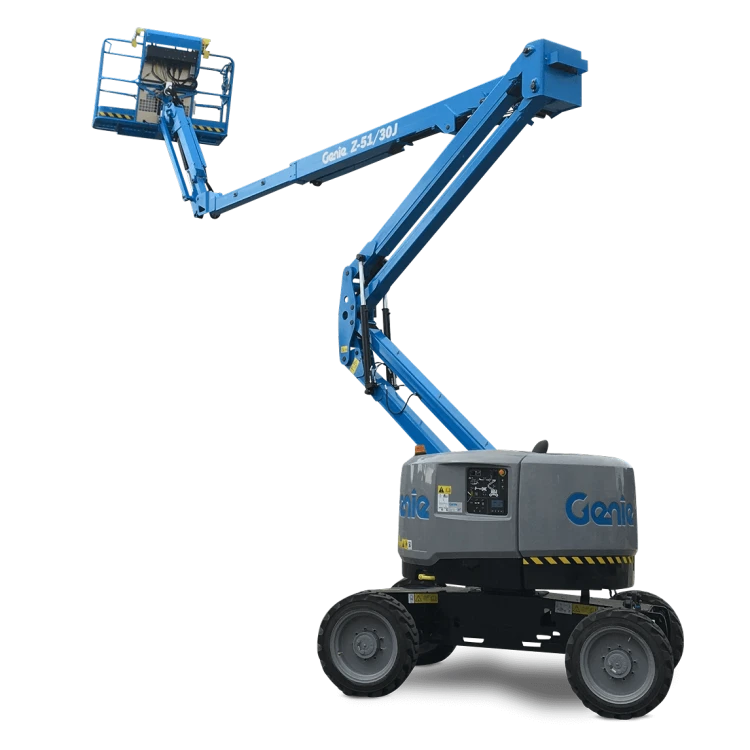

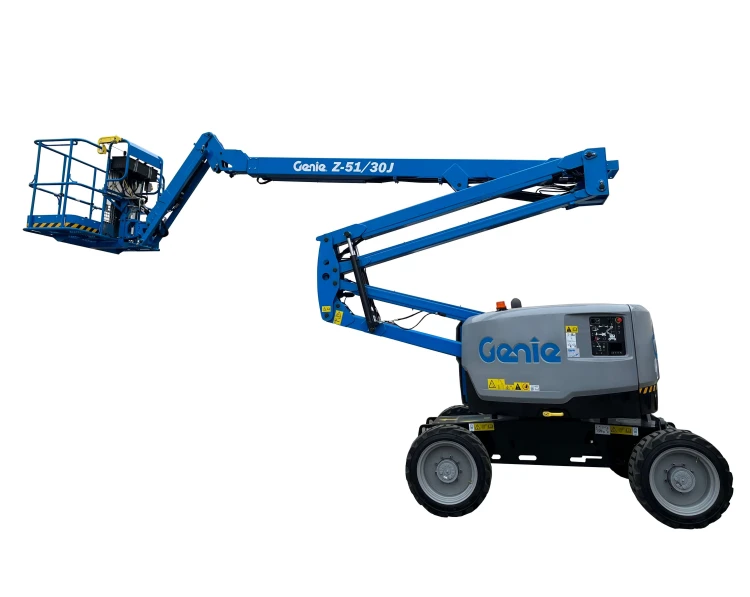

Genie Z51/30J RT Articulating Boom Lift

The Genie Z-51/30J RT articulating boom lift is designed to offer excellent up-and-over reach, performance, and manoeuvrability for heavy-duty outdoor applications. With a working height of 17.59m and a powerful horizontal outreach of 9.37m, this articulating boom lift is a perfect solution for accessing high-reach areas with precision and ease.

Whether working in tight industrial settings or open, rough terrain, the Z-51/30J RT pairs smart design with reliable performance. With its narrow 2.29m wide chassis, tight turn radius, and zero tailswing, it manoeuvres easily in all environments. Attached with a 1.52m articulating jib, giving 135 degrees of vertical rotation for added flexibility when working around buildings, machines, or other obstacles.

The Z-51/30J RT features a full-time active oscillating axle for optimal traction on uneven terrain, and 4WD and 45% gradeability to easily tackle sloped or challenging terrain. Built for productivity, proportional lift and drive controls deliver smooth movement, making it easier than ever to position the boom exactly where it's needed.

The 160° hydraulic platform rotation and self-levelling platform also enhance safety and control, providing operators with greater efficiency at height.

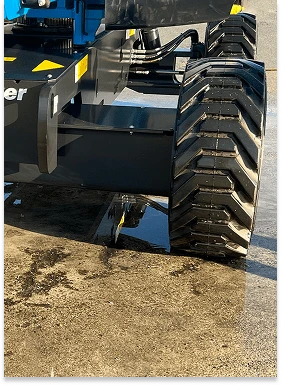

Like all Genie lift products, the Z51/30J RT is built for performance and reliability. This diesel-powered boom lift is ideal for outdoor construction, rough terrain, or any task requiring both reach and heavy-duty driveability. Foam-filled rough terrain tyres with puncture resistance and consistent traction without surface marking are standard.

Buy the Genie Z51/30J RT Articulating Boom Lift

Contact us today for information on pricing and availability.
