Genie Z30/20N RJ

Genie Articulated Boom Lifts

Zero tail swing and zero front arm swing

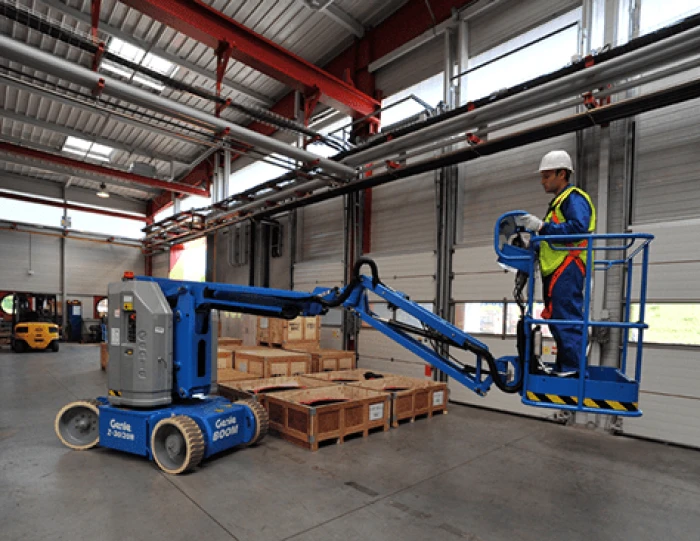

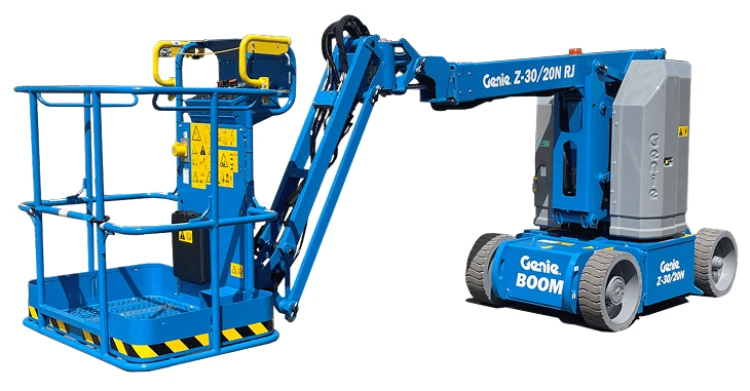

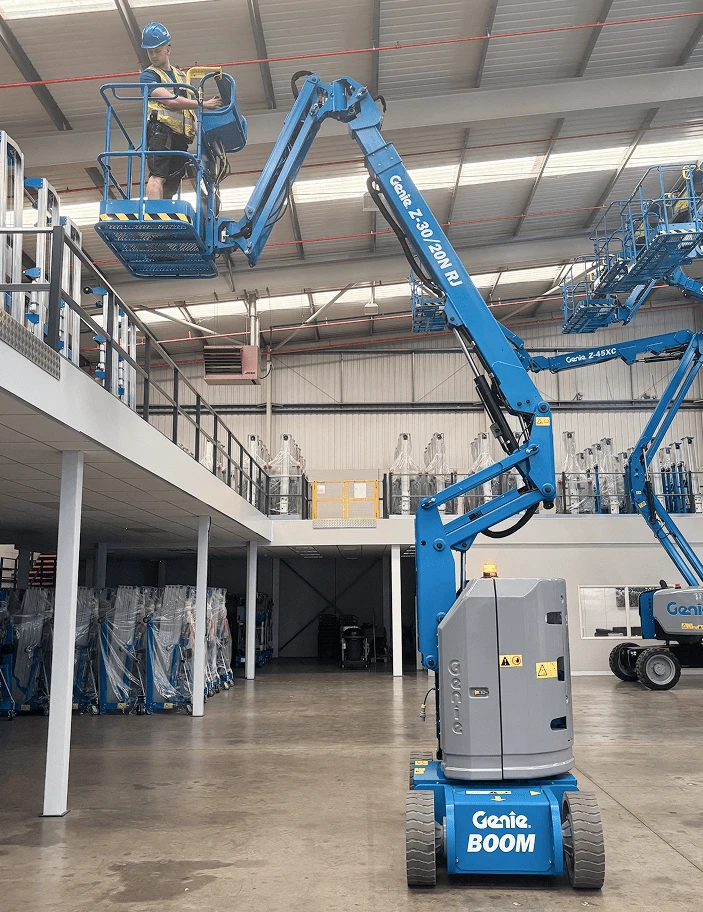

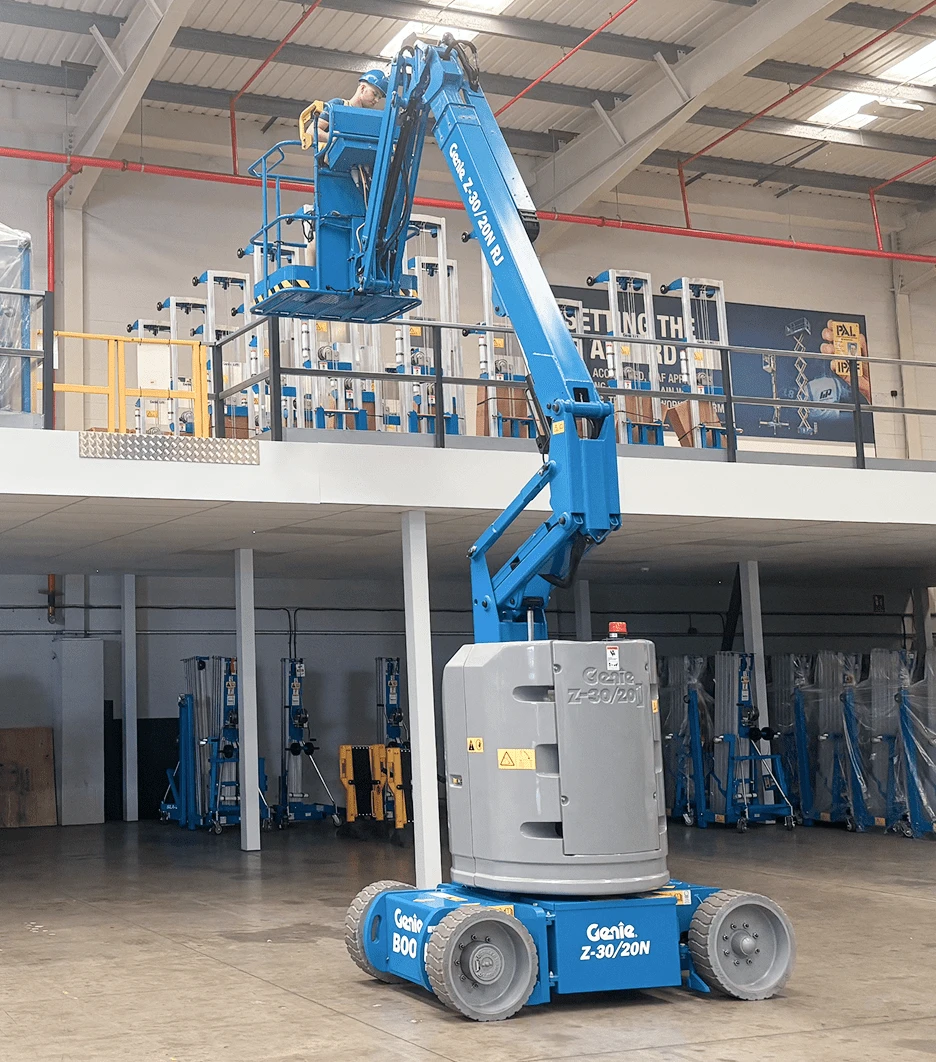

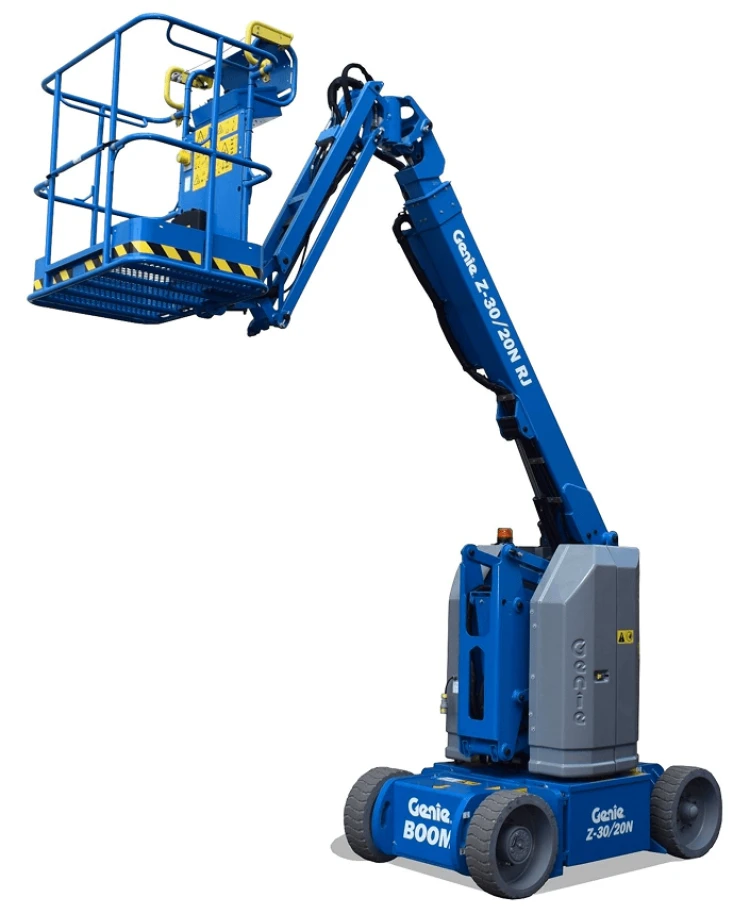

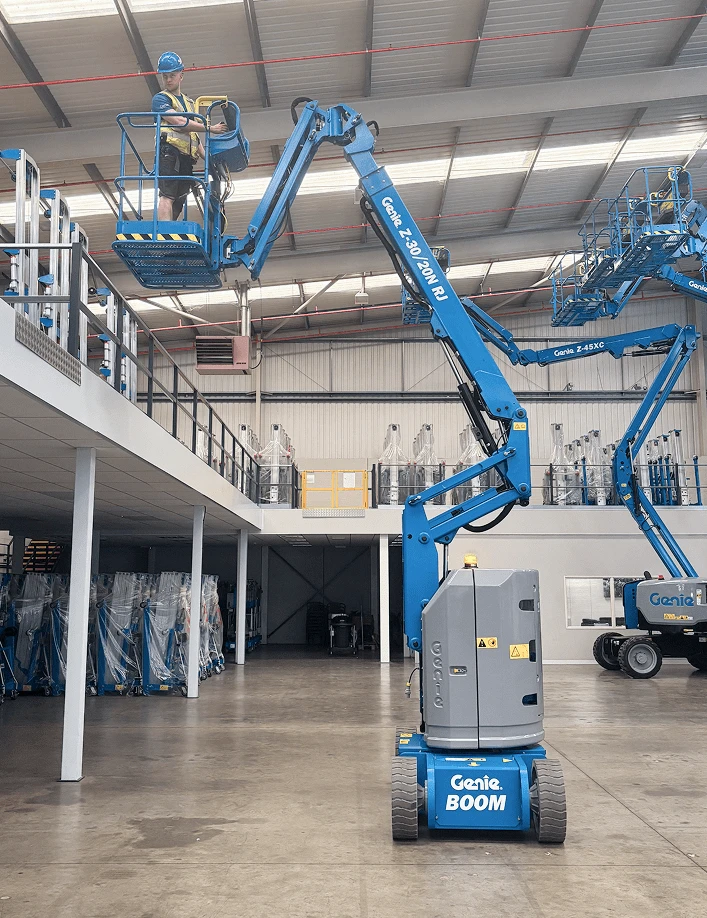

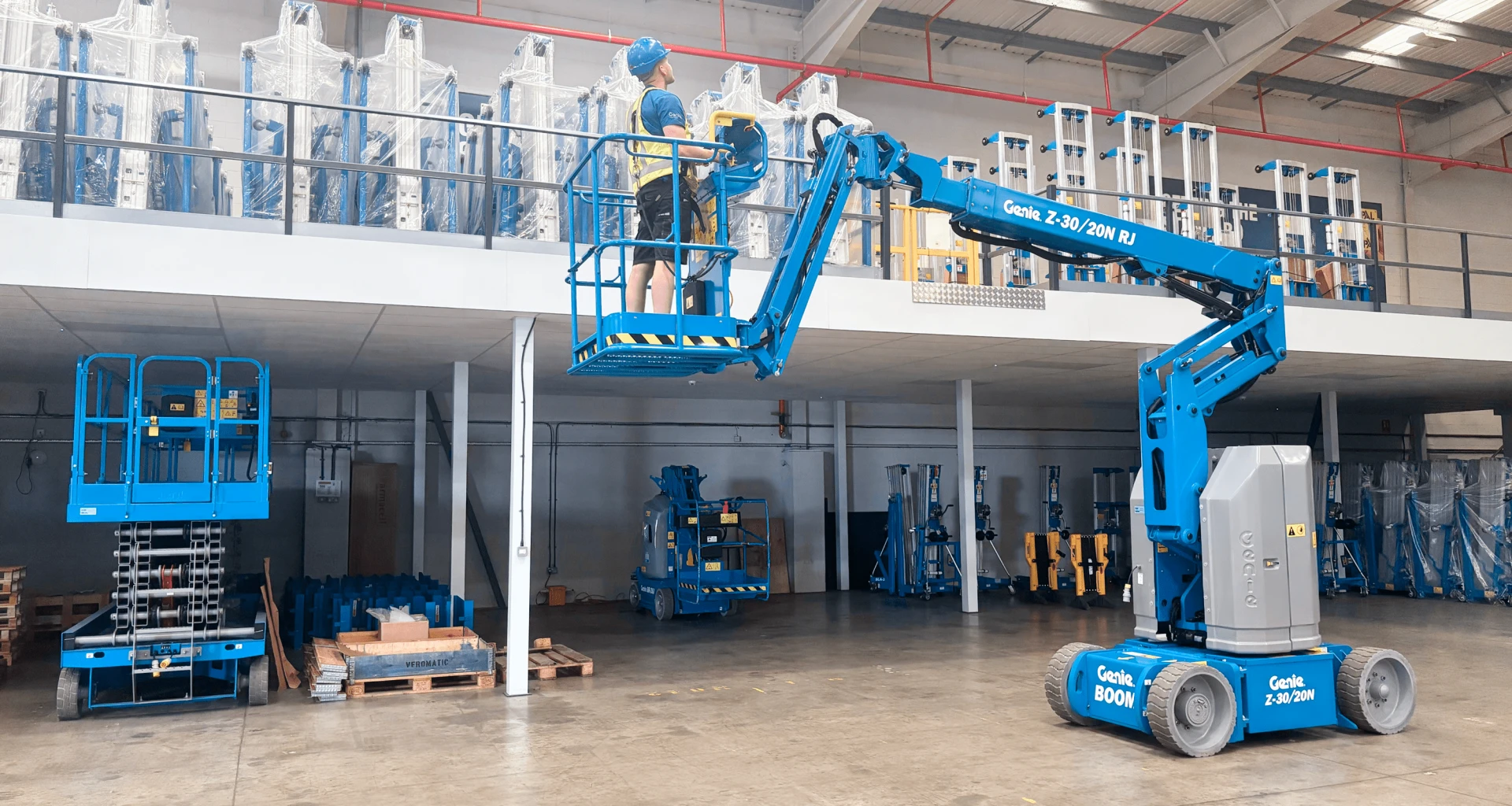

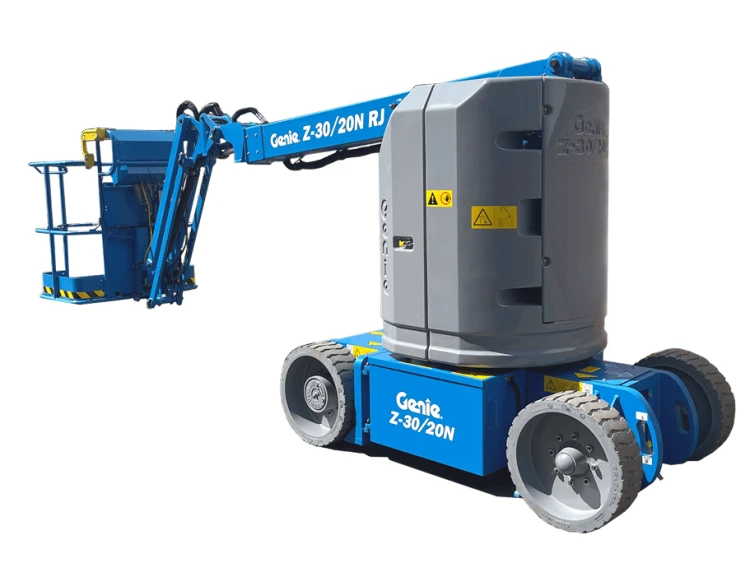

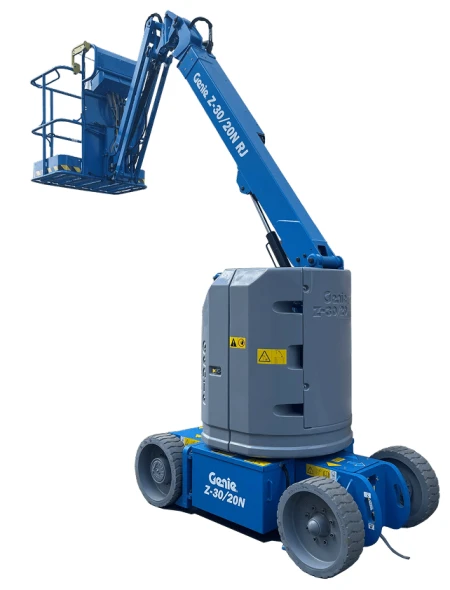

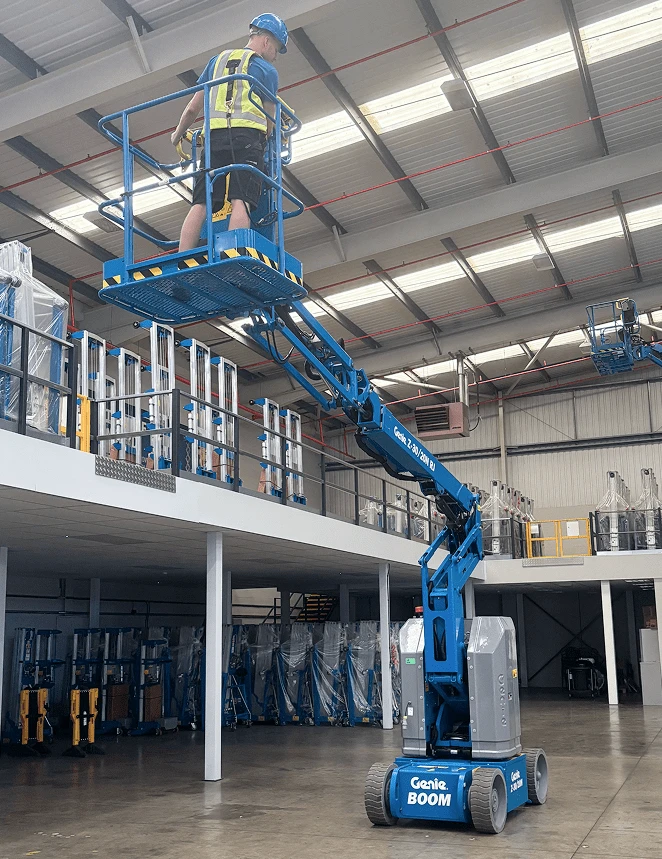

The Genie Z-30/20 N RJ electric articulating boom lift has a working height of 10.89m and is perfect for indoor operation. Genie's industry-leading AC power system ensures quiet, emission-free operation. Equipped with a rotating jib which provides 139° vertical rotation and 180° of horizontal rotation. Being compact and narrow allows the Z30/20N RJ to fit through standard double doorways and navigate around obstacles easily.

*IN STOCK

Applications

Confined spaces
Construction projects
Inspection tasks
Installation projects
Maintenance tasks
Distribution

Features

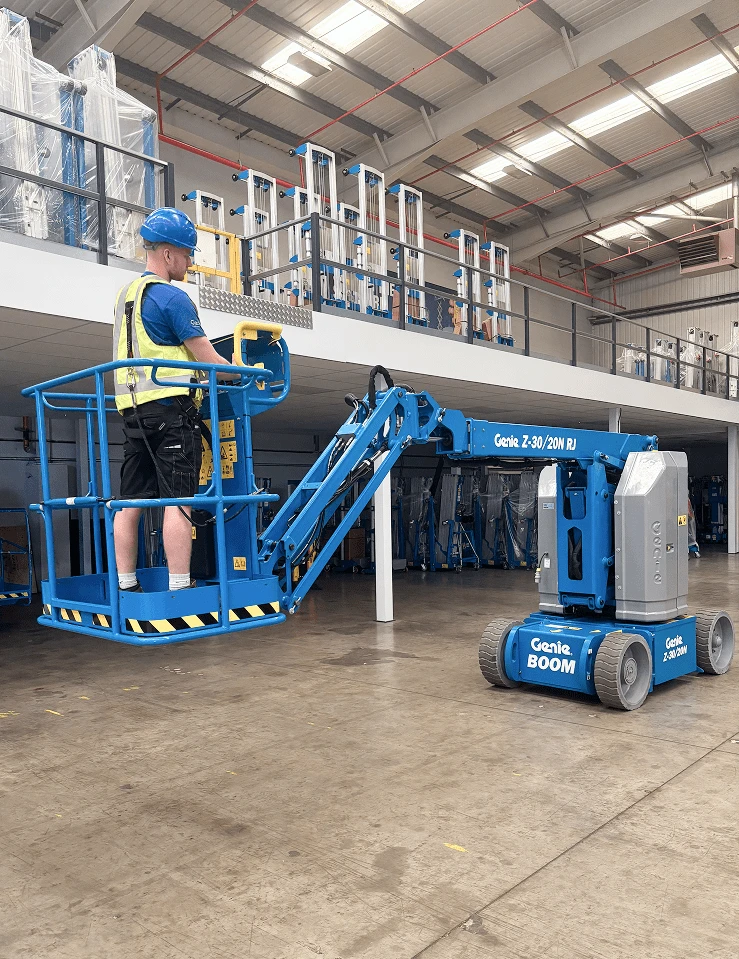

The Genie Z-30/20N RJ has zero tail and zero front arm swing, reducing the risk of collisions, allowing for safe, precise and controlled operation.

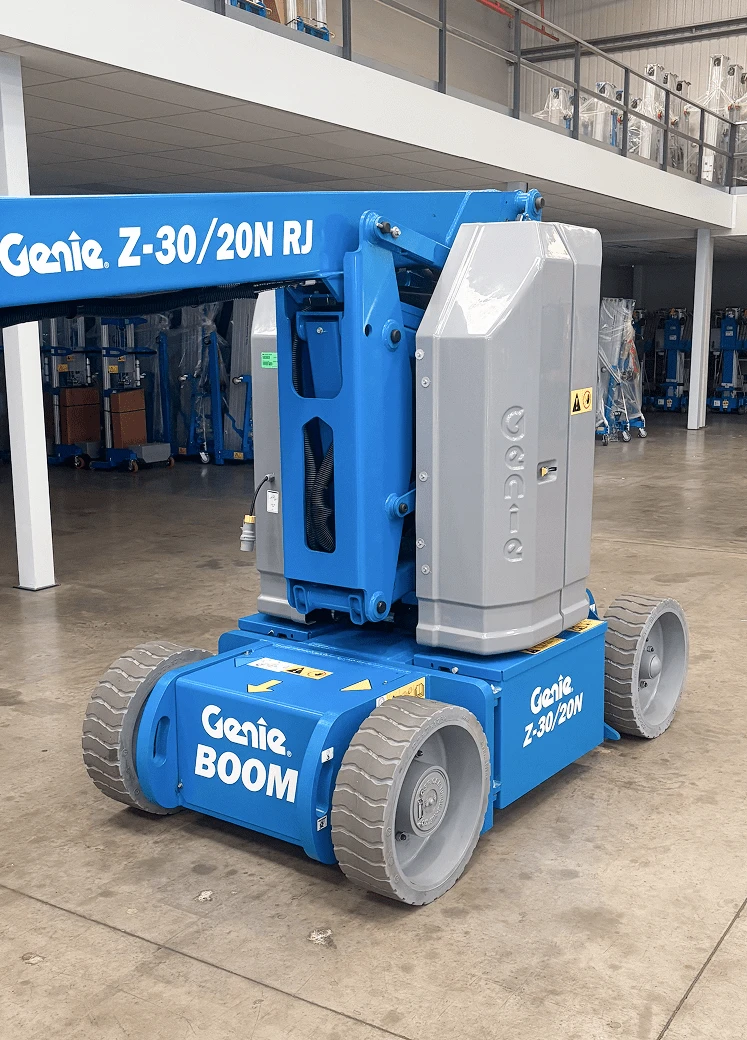

The narrow and compact chassis allows it to fit through standard double doorways and to be operated precisely in confined areas.

The Genie Z30/20N RJ delivers strong performance on inclines while having a good drive speed, which makes for efficient repositioning around the job site.

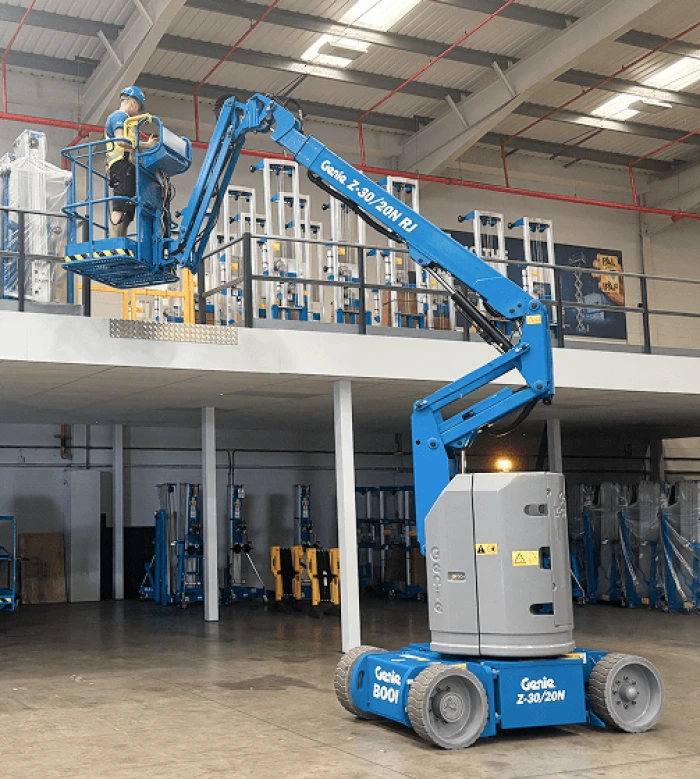

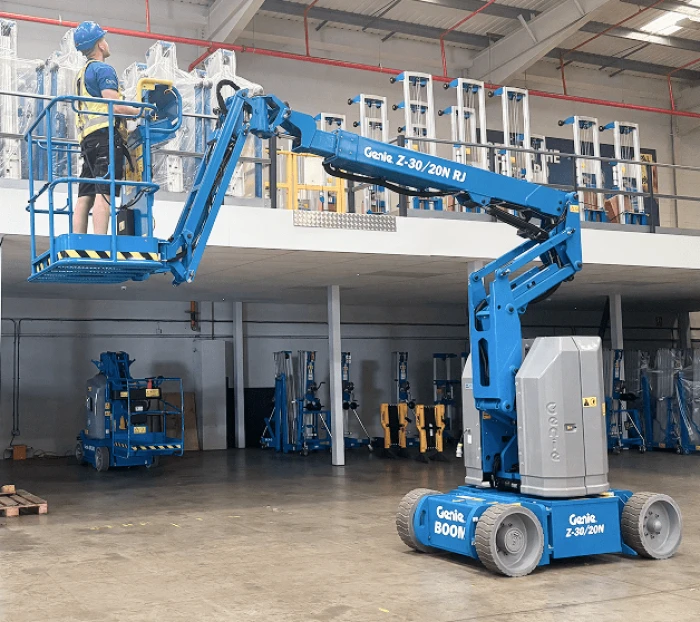

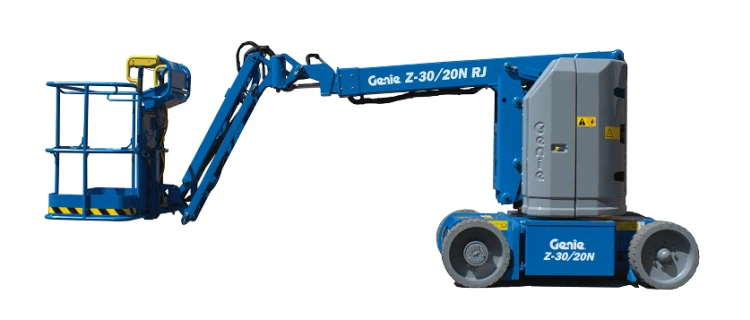

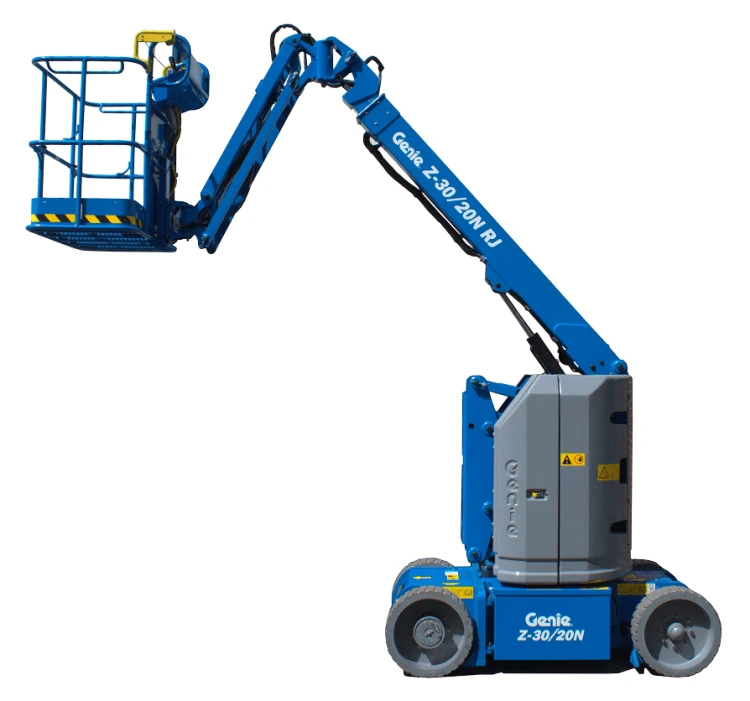

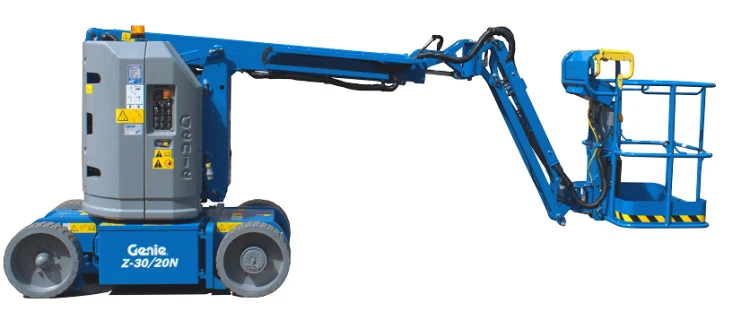

Equipped with a rotating articulating jib gives operators more flexibility when it comes to positioning around obstacles.

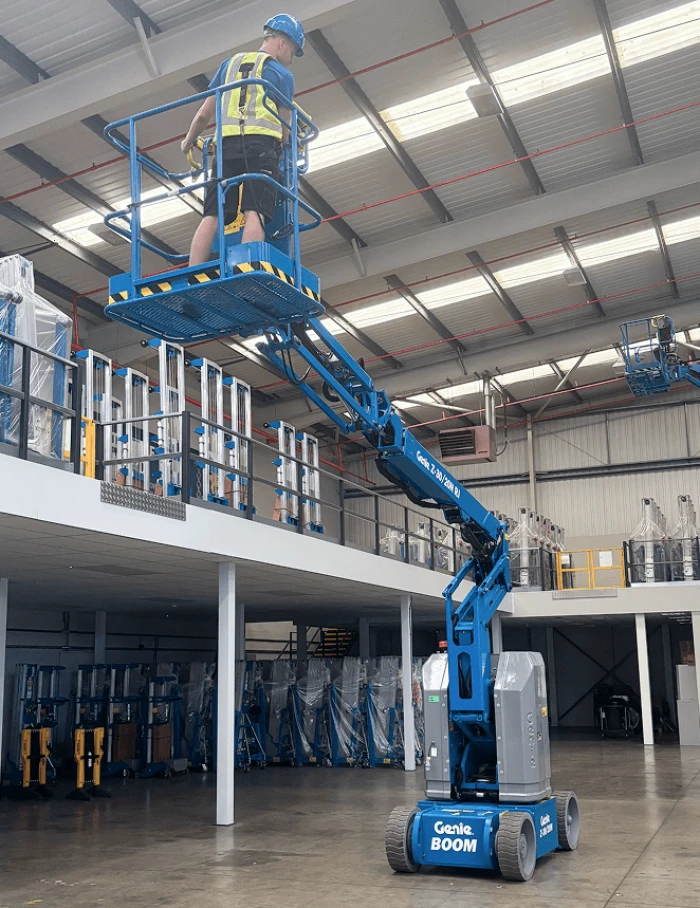

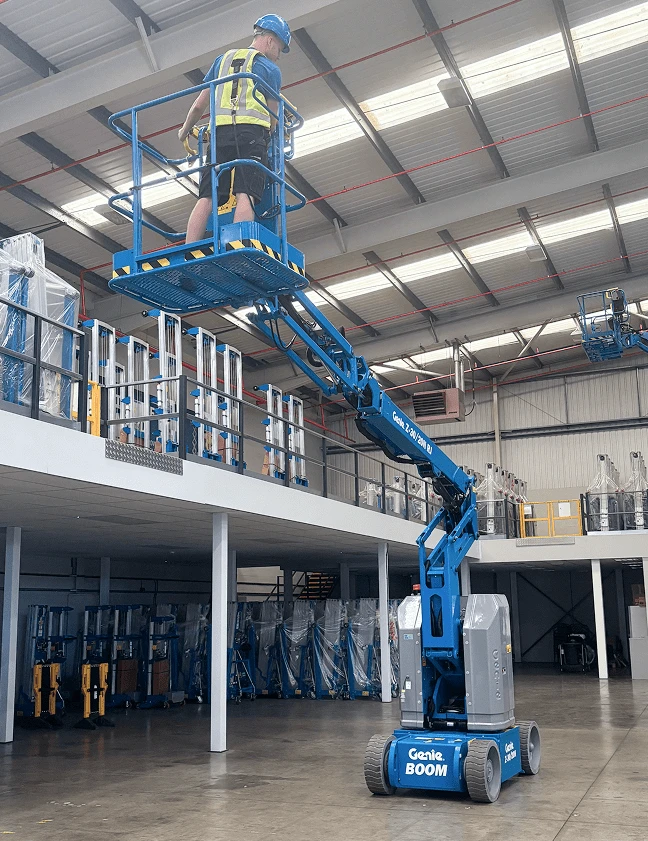

180° hydraulic platform rotation & self-levelling platform provides operators with smooth and stable positioning.

Equipped with non-marking tyres, which leave no marks or scuffs on the floor, helping you to protect your working environment.

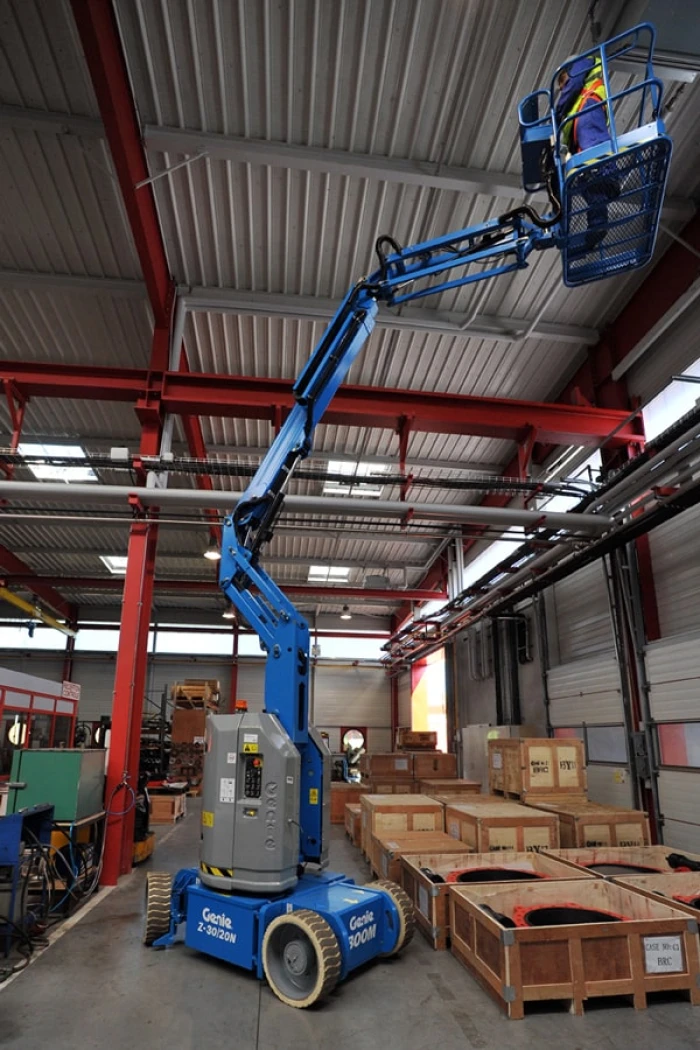

The Genie Z-30/20N RJ articulating boom is fully electric, offering zero emissions and quiet operation, perfect for indoor noise-sensitive applications.

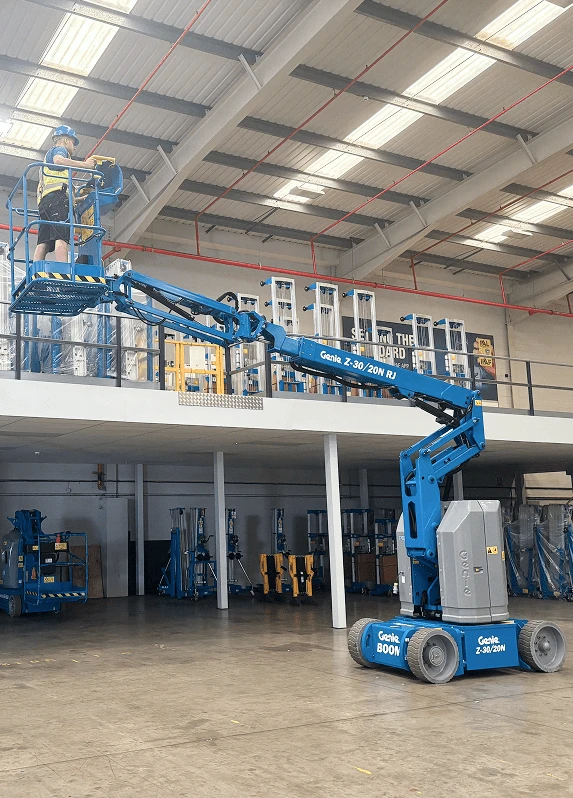

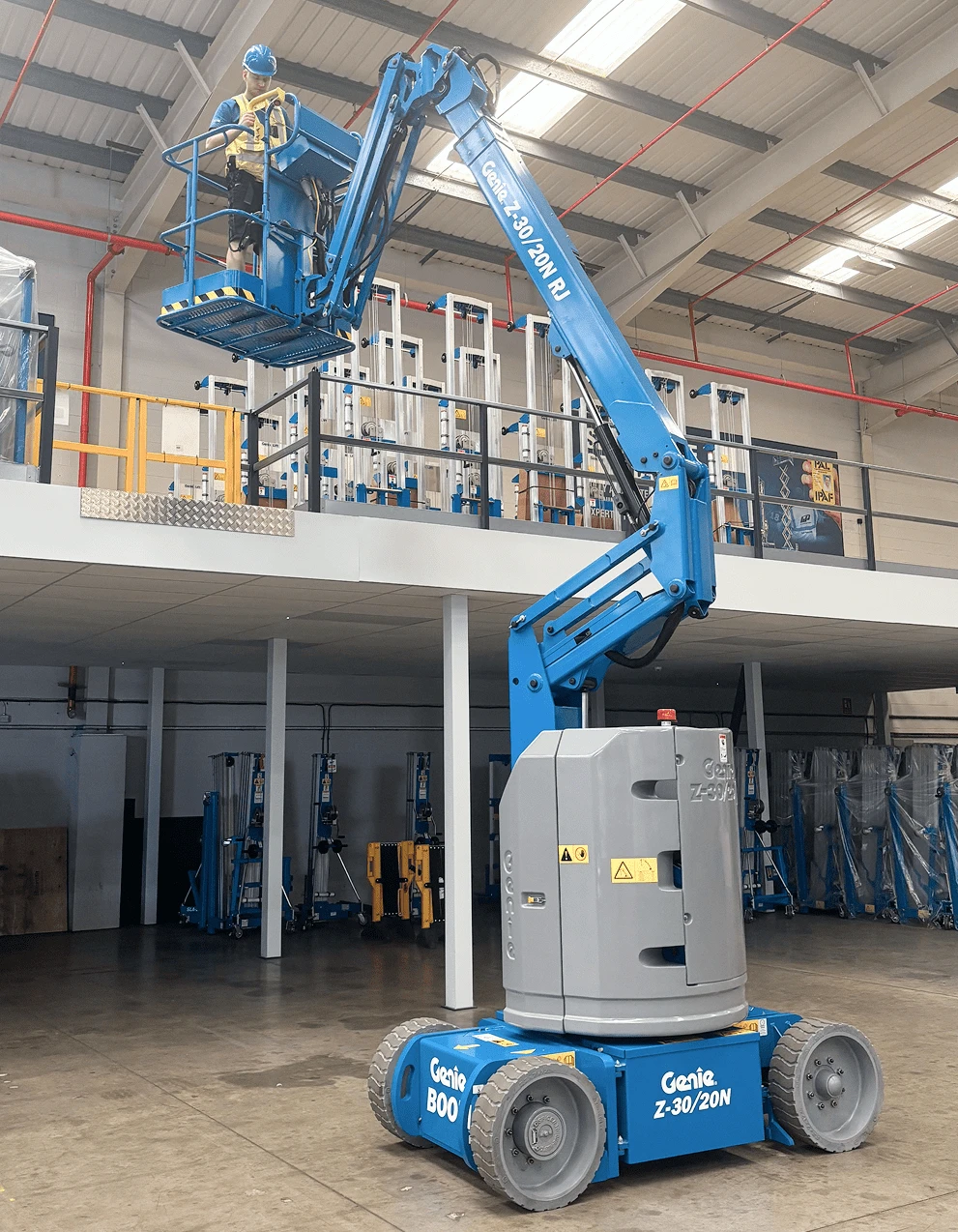

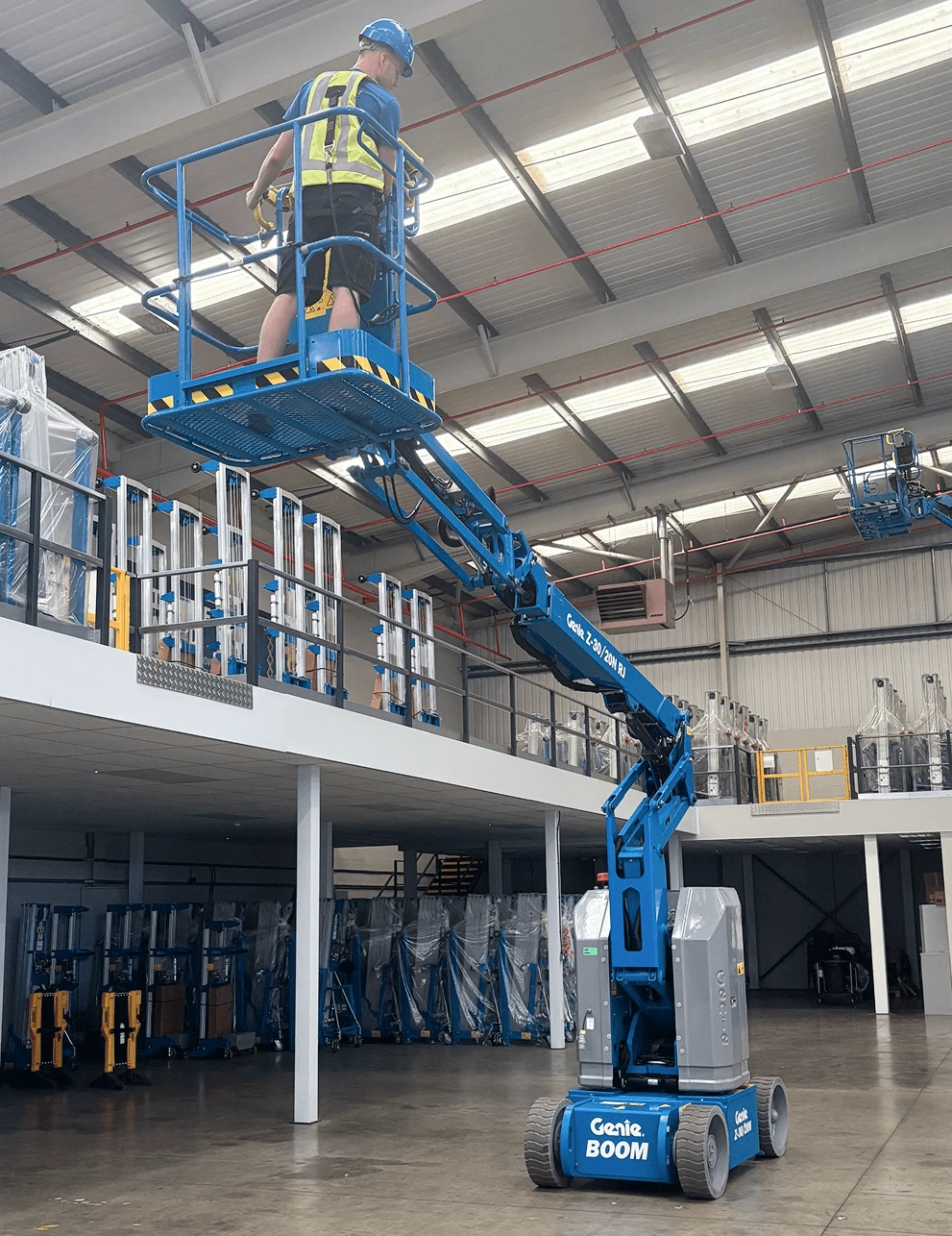

Provides smooth vertical movement along walls or structures without needing to reposition the boom, enhancing operator efficiency and control.

Allows precise handling of both lift and drive functions, giving the operator better control and accuracy during operation.

Specification

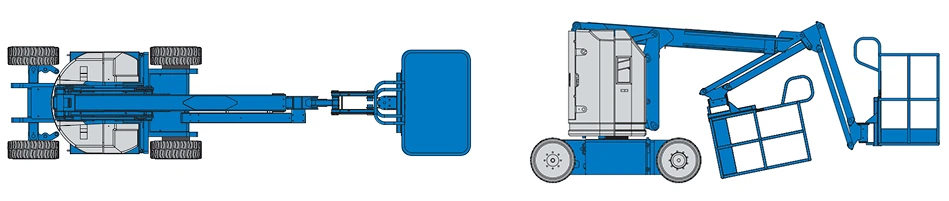

Compact and narrow, the Genie Z-30/20N RJ fits through standard double doorways and navigates around obstacles with ease.

Working height 10.89m
Platform height 8.89m

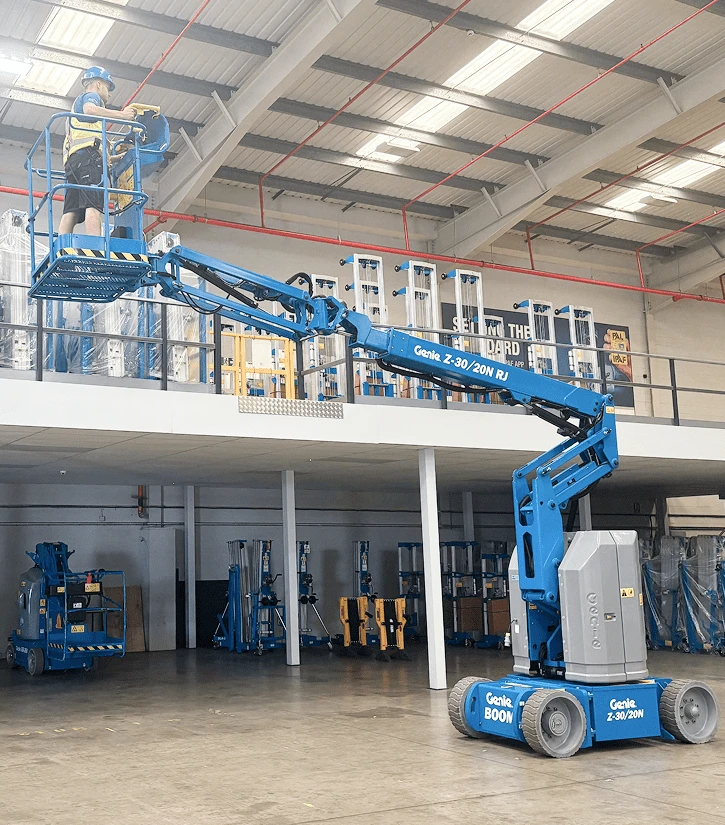

Horizontal reach 6.25m
Up and over clearance 3.86m
Lift capacity 227kg
Machine width 1.19m
Stowed length 5.31m
Machine weight 6605kg
Free, no obligation site survey.

Making sure that you achieve the most from your budget.

Servicing & Repairs

Our in-house, Genie factory-trained team of mobile engineers cover the entire country, ensuring expert support is never far away.

Genie OEM Parts

Keep your Genie in operation with genuine Genie OEM parts. With thousands of parts stocked and ready for delivery nationwide.

FAQs

The Genie Z-30/20N RJ offers a working height of 10.89m.

The Z-30/20N RJ is only 1.19m in width, making it a perfect solution for confined areas.

The rotating jib enhances versatility as it offers 139° of vertical rotation and 180° of horizontal rotation for precise positioning around obstacles.

Yes, as the UK's authorised Genie dealer, we sell all the Genie articulating boom lifts.

We’ve got you covered. As the UK’s authorised Genie dealer, we provide expert advice, competitive pricing, and nationwide delivery. Contact our sales team for price and availability for the Genie Z30/20N RJ articulated boom lift.

We are here to support you

Our only priority is to supply you with the best and safest products and support you to the highest level.

Genie Z-30/20N RJ Articulating Boom Lift

If you need something compact, quiet, and manoeuvrable, the Genie Z-30/20 N RJ electric articulating boom lift is a great choice. The articulating boom lift offers a working height of up to 10.89m and will handle loads of up to 227 kg. It's perfect for light-duty tasks like maintenance, fitting work, inspections, or even lighter construction work.

The Genie articulating boom is only 1.17m wide, allowing it to fit through standard double doors with no problem. It works well in tight areas, going down narrow aisles and around corners where larger machines would have to stop and reposition. Operators can get near where they want to be without constantly having to readjust the machine's position.

One feature that really stands out on this model is the rotating jib. With 180 degrees of horizontal movement and 139 degrees of vertical movement, it provides operators with more flexibility when needed to reach around fixed objects or into tight corners. The twin parallelogram lift system also helps, enabling the boom to move straight up and down a wall, without the need to extend or retract.

Fitted with Genie’s industry-leading AC electric drive system, it is fully emission-free and runs quietly, which makes it a great option for indoor use or any project where noise and fumes are best avoided. Despite its being electric, it doesn’t hold back on performance, with 35% gradeability and a drive speed of up to 3.3mph, which allows you to cross uneven floors or slopes.

Another benefit is its zero tailswing and zero front arm swing, which is a great benefit when working in confined areas, as it allows the machine to be operated precisely.

The Genie Z-30/20 N RJ offers a nice balance of reach, versatility, and power efficiency. It's a decent machine that allows operators to get the job done efficiently and safely.
