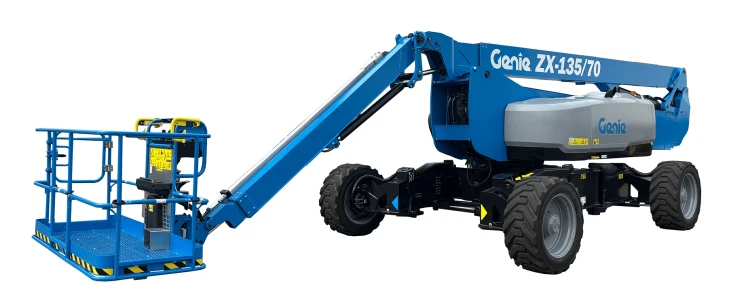

Genie ZX135/70

Genie Articulated Boom Lifts

Features Specifications Gallery FAQs Support

Consistently praised by the operators

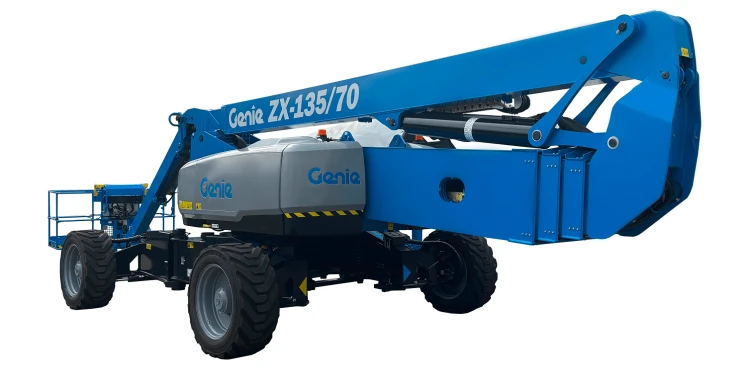

The Genie ZX-135/70 is Genie's largest articulating boom lift is built to tackle the higher outdoor construction and industrial jobs. With a huge working height of 43.15m and a horizontal outreach of 21.26m. Thanks to its 4 x wheel drive and 4 x wheel steering, plus the unique X-Chassis expanding axle, it provides industry-leading performance.

Applications

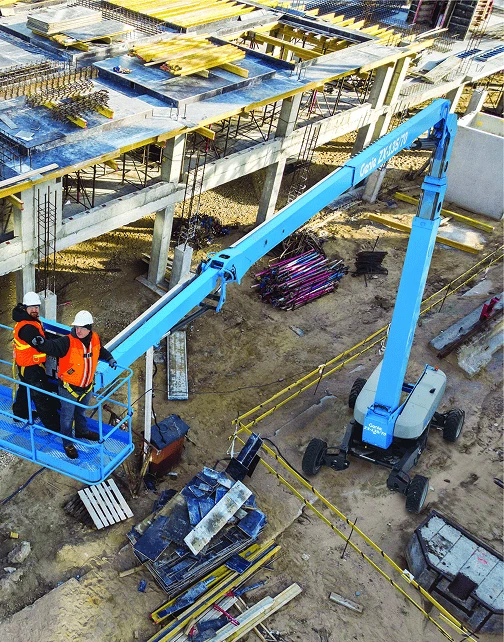

Construction projects
Distribution
Inspection tasks
Installation projects
Maintenance tasks
Theme parks

Features

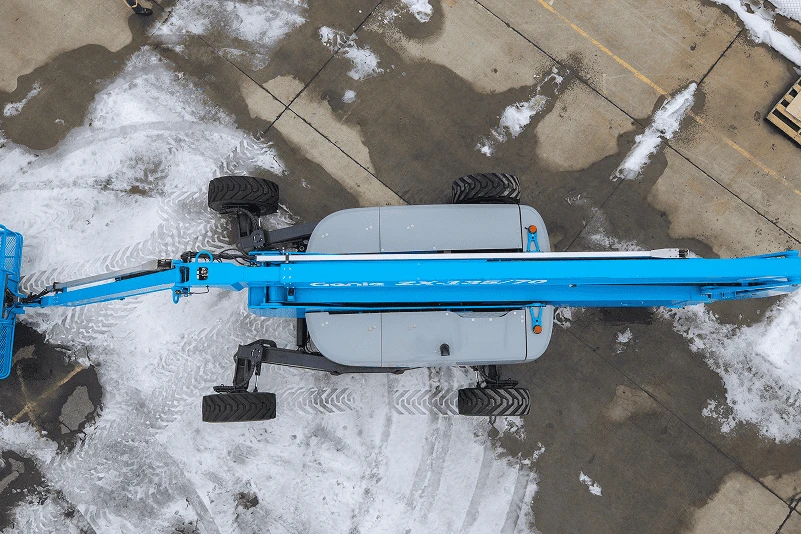

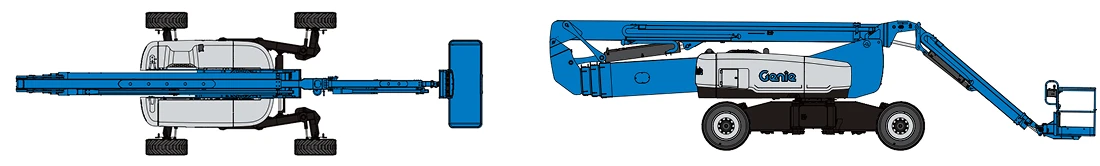

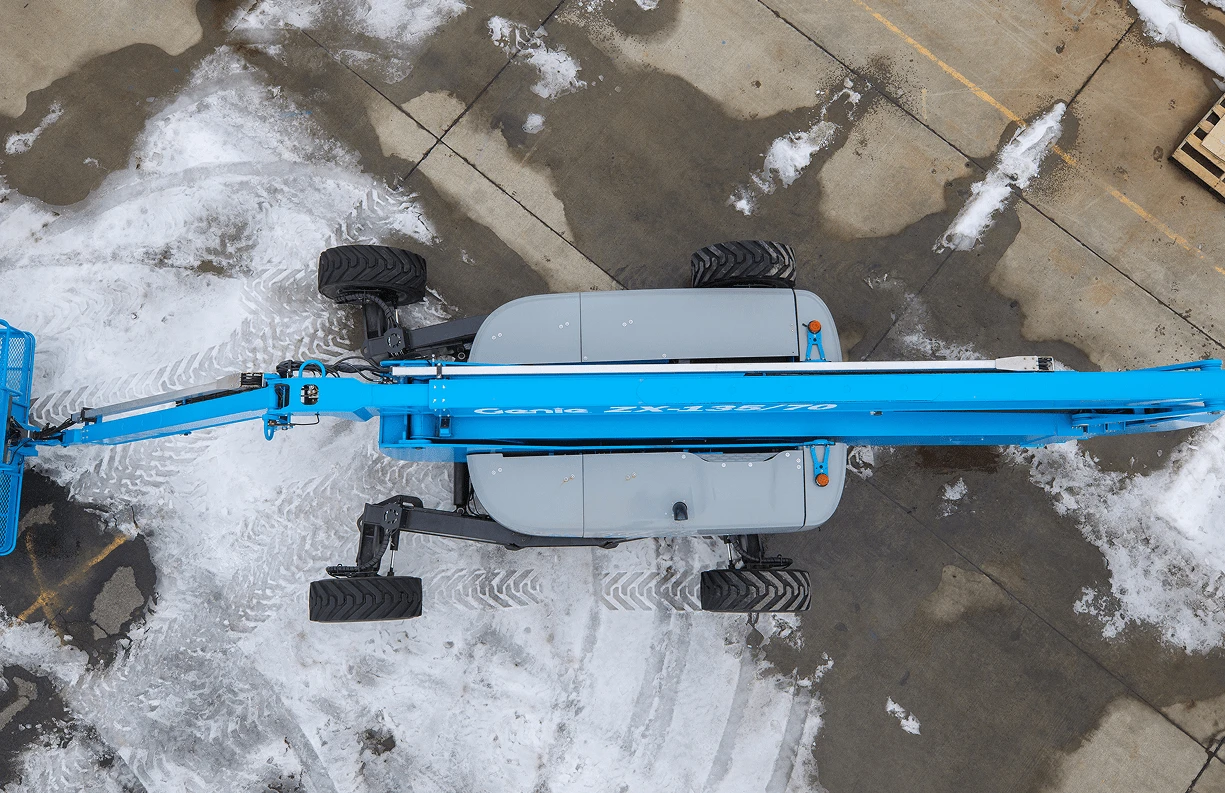

The ZX-135/70 is equipped with Genie's X-chassis system, which allows the axles to extend to provide stability and retract for a narrow profile.

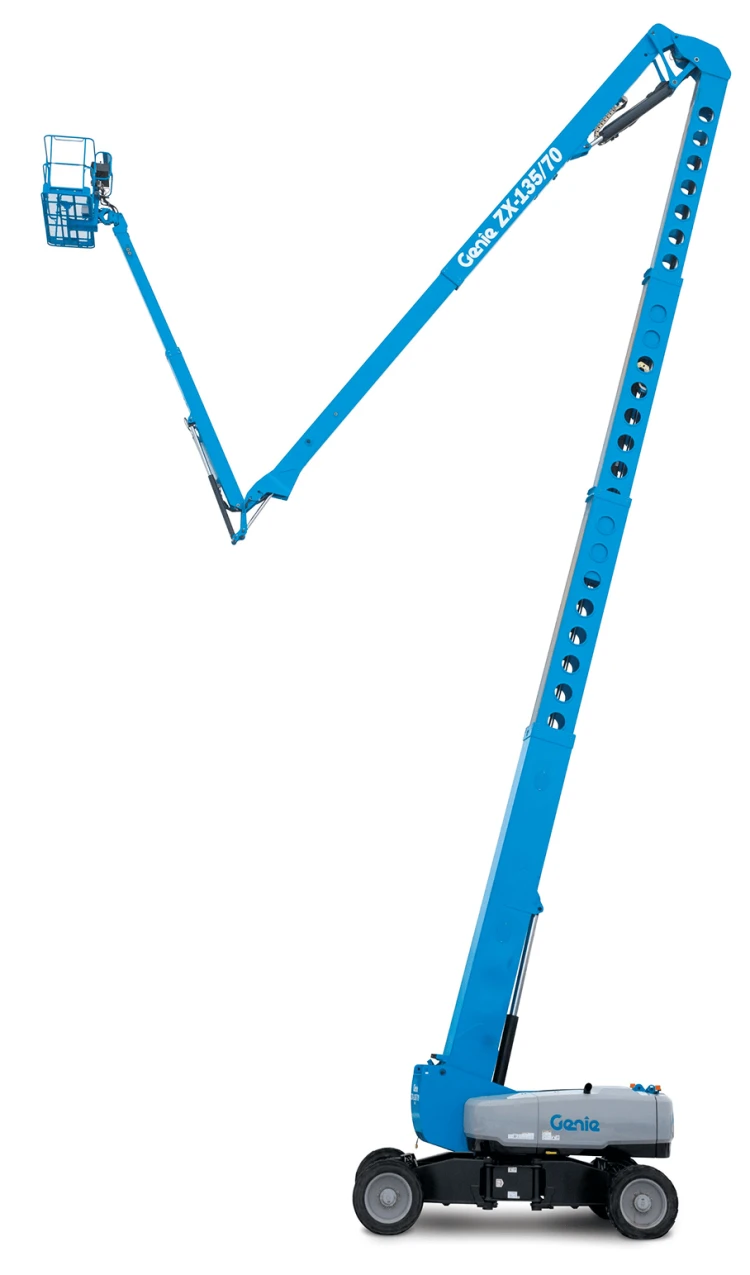

The telescoping jib provides an exceptional range of motion, giving operators the reach and flexibility needed to reach all areas.

Provides smooth operation, allowing for accurate positioning when working in confined areas.

Allows for an unmatched working envelope without the need to reposition the machine.

Advanced drive features to maximise manoeuvrability over rough terrain.

Specification

The Genie ZX-135/70 boom lift delivers industry-leading reach, stability, and control.

Working Height 43.15m
Platform height 41.15m
Horizontal reach 21.26m
Up and over clearance 23.01m
Lifting capacity 272kg
Machine width (axles retracted) 2.49m
Below ground reach 5.87m
Machine weight 21,092kg
Genie Z80/60
Free, no obligation site survey.

Making sure that you achieve the most from your budget.

Servicing & Repairs

Our in-house, Genie factory-trained team of mobile engineers cover the entire country, ensuring expert support is never far away.

Genie OEM Parts

Keep your Genie in operation with genuine Genie OEM parts. With thousands of parts stocked and ready for delivery nationwide.

FAQs

The Genie ZX-135/70 provides an exceptional working height of up to 43.15m.

The Genie ZX-135/70 articulating boom has a maximum horizontal reach of 21.26m.

It has a maximum load capacity of 272kg.

Certainly, we are the UK's authorised Genie dealer. Contact us today.

We’ve got you covered. As the UK’s authorised Genie dealer, we provide expert advice, competitive pricing, and nationwide delivery. Contact our sales team for price and availability for the Genie Z135/70 articulated boom lift.

We are here to support you

Our only priority is to supply you with the best and safest products and support you to the highest level.

Servicing & Repairs

Genie OEM Parts

Service Contracts

Finance Options

Accessories

Part Exchange

Operator Training

Genie ZX-135/70 Articulating Boom Lift

The Genie ZX-135/70 is Genie’s largest articulating boom. It is built for serious reach and height, used for outdoor construction, installation, inspection, and maintenance jobs. Designed for jobsites where flexibility and accuracy at heights are a top concern, this model boasts an excellent working height of 43.15m, a horizontal outreach of 21.26m, and an up-and-over clearance of 23.01m, which is perfect for reaching over complicated obstructions or structures.

What sets the Genie ZX-135/70 apart from the rest, other than the exceptional working envelope, is its Mini X-Chassis® design that extends and retracts to provide enhanced stability with a narrow transport profile. The Jib-Extend® telescoping jib reaches from 3.66 m to 6.10 m and provides a 110° vertical range of movement, ensuring maximum flexibility when working at height. For added efficiency, it is equipped with a 360° continuous turntable rotation and 160° platform rotation, ensuring precise positioning without frequent repositioning of the machine.

With four-wheel drive and steer, and selectable front, rear, crab, and coordinated steer modes to provide mobility on tough ground. This unmatched Genie articulating boom features proportional lift and drive controls, a parallelogram lift design, and a 272 kg platform capacity, which combine to make a machine that provides stable, safe operation at maximum reach.

The Genie ZX-135/70 boom lift offers the highest reach, stability, and control. It's the best choice for users who require large working heights to work on even the most challenging tasks.

Buy the Genie ZX-135/70 Articulating Boom Lift

Contact us today for information on pricing and availability.
