Genie GS3232

Genie Scissor Lifts

Exceptional working height

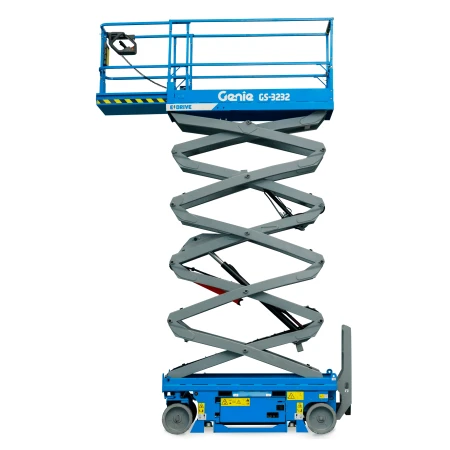

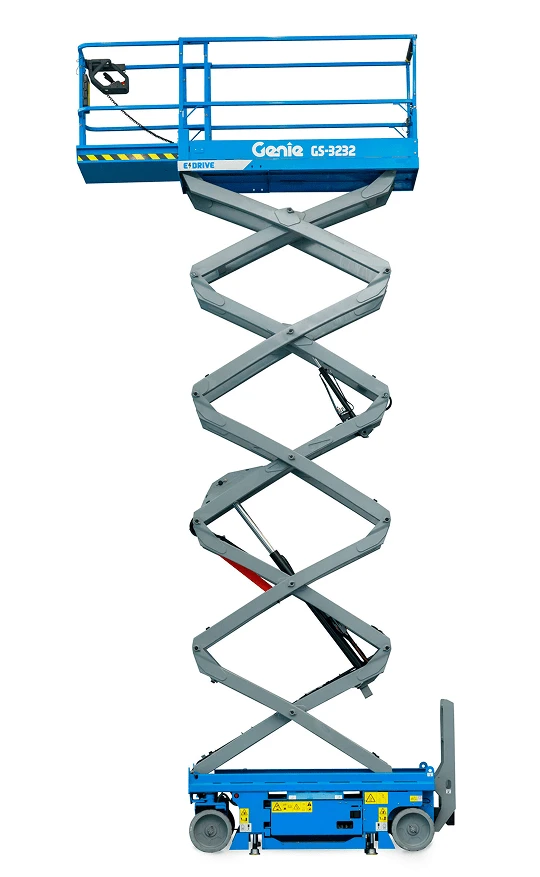

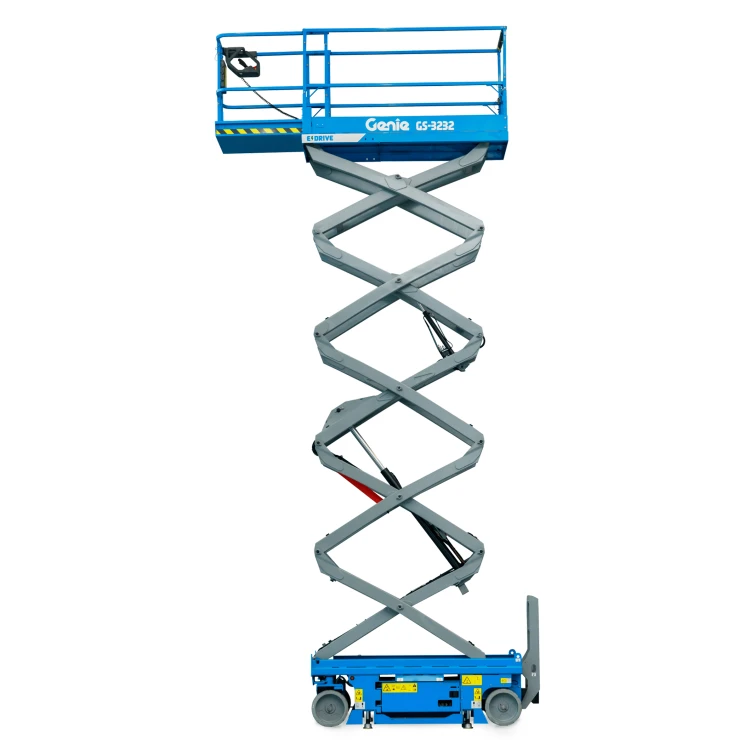

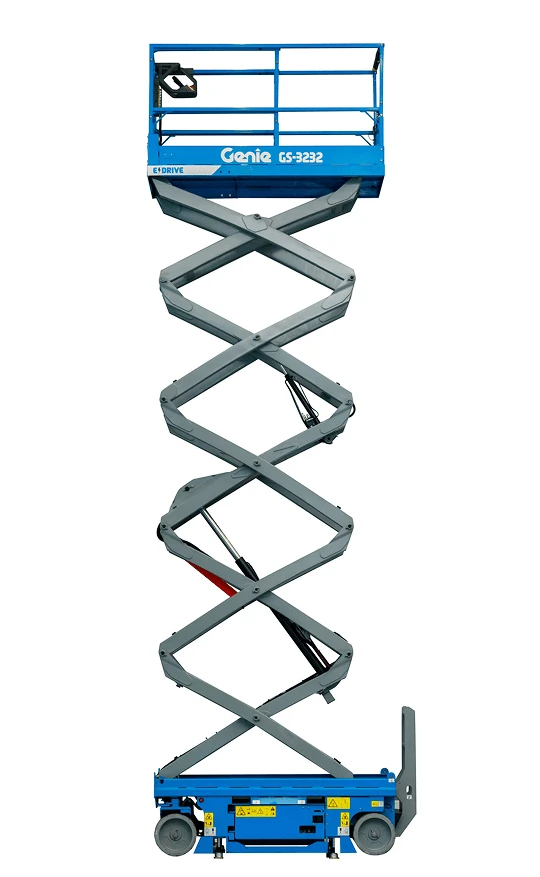

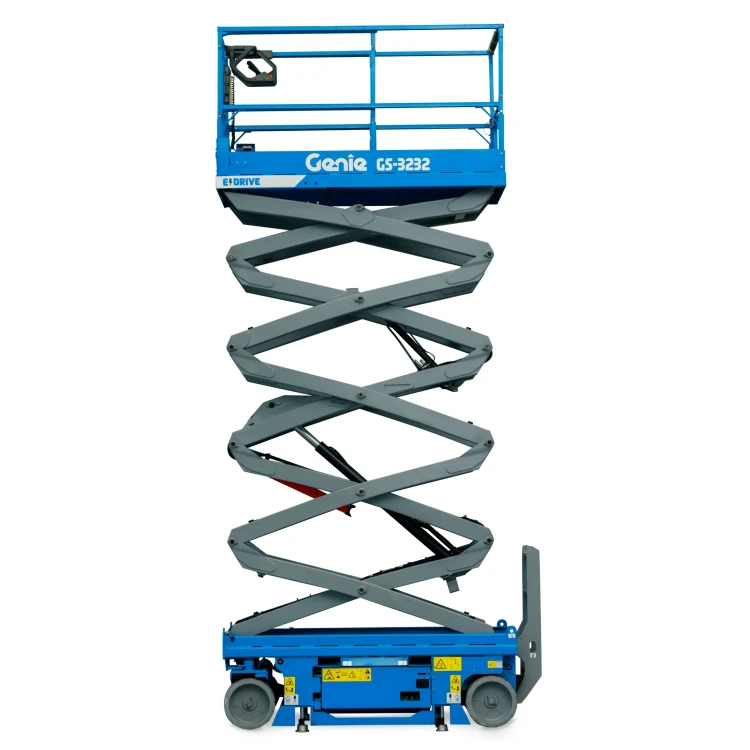

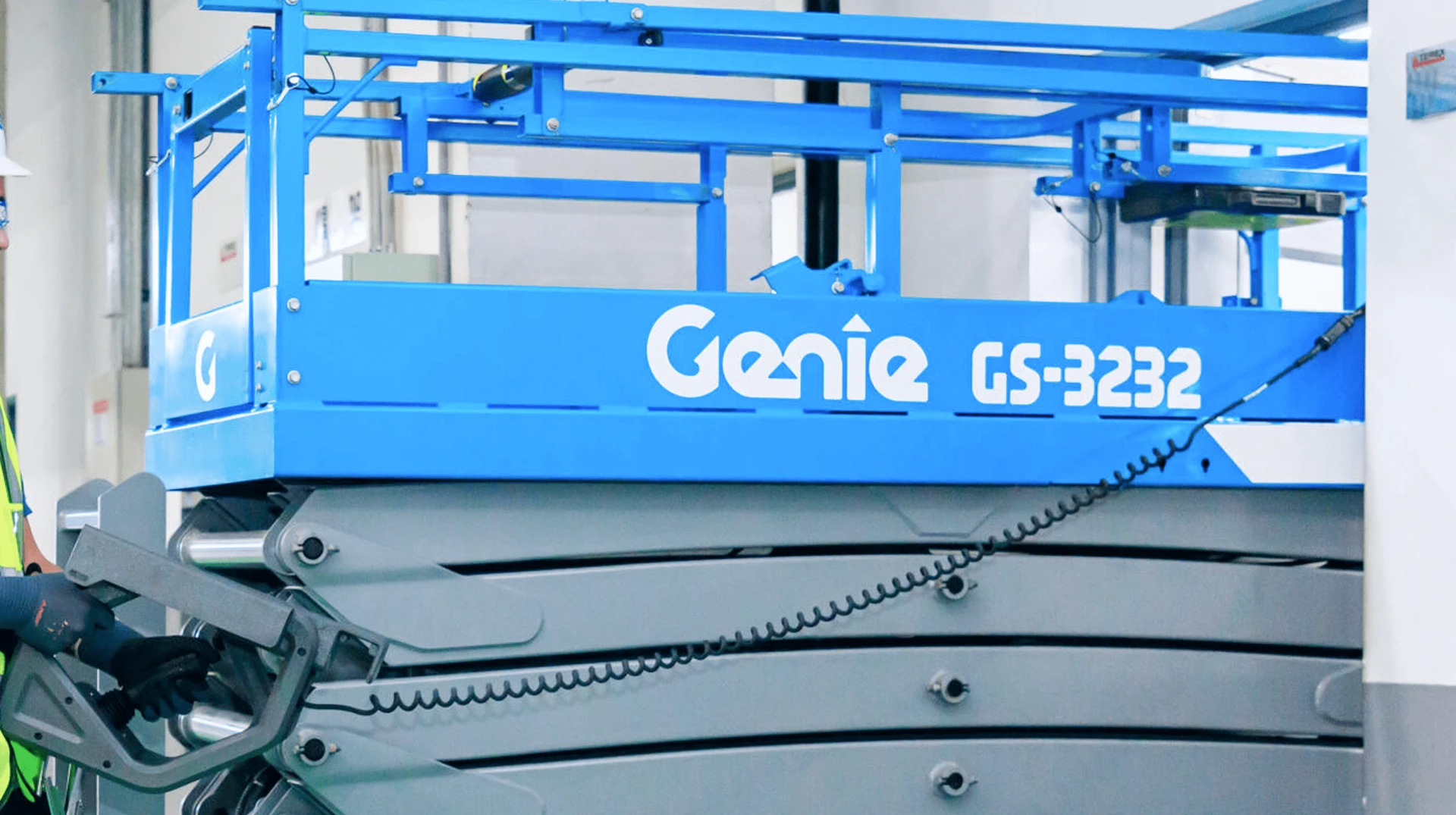

The Genie GS-3232 slab scissor lift offers an exceptional 11.60m working height while being only 0.81m in width. Genie's AC electric E-Drive system offers industry-leading performance and runtime on installation, maintenance tasks, and construction jobs. Equipped with automatic leveling hydraulic outriggers, which level the scissor lifts on slopes up to 5˚.

*IN STOCK

Applications

Construction projects

Inspection tasks

Installation projects

Logistics & retail work

Maintenance tasks

Stage set up

Warehouse work

Schools, colleges and Universities

Features

The Genie GS3232 electric scissor lift delivers unmatched driving performance and industry-leading runtime per battery charge.

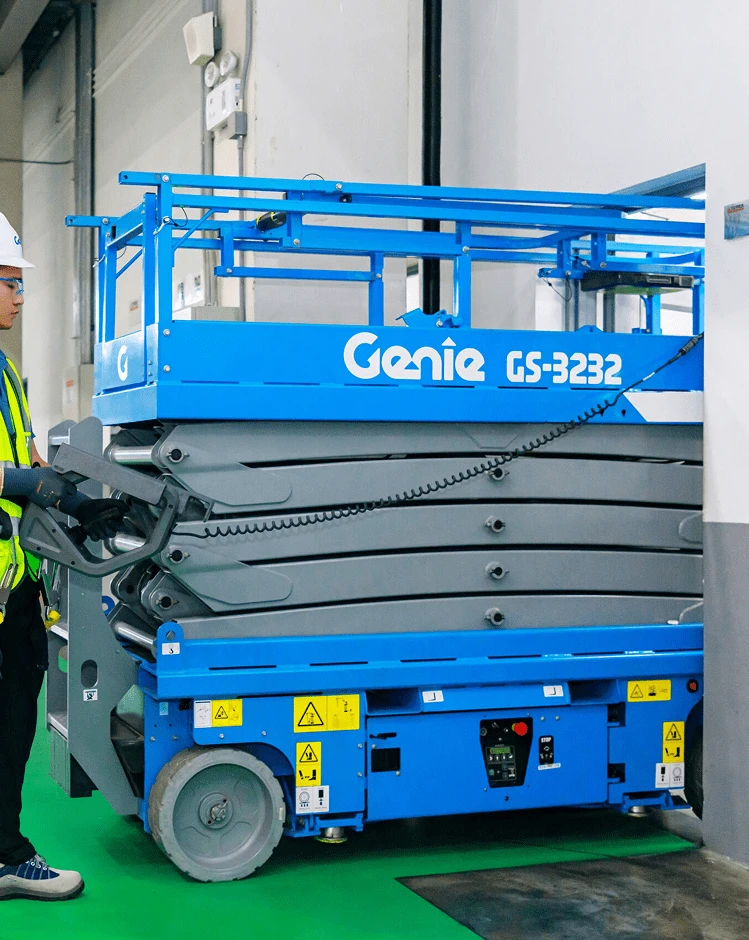

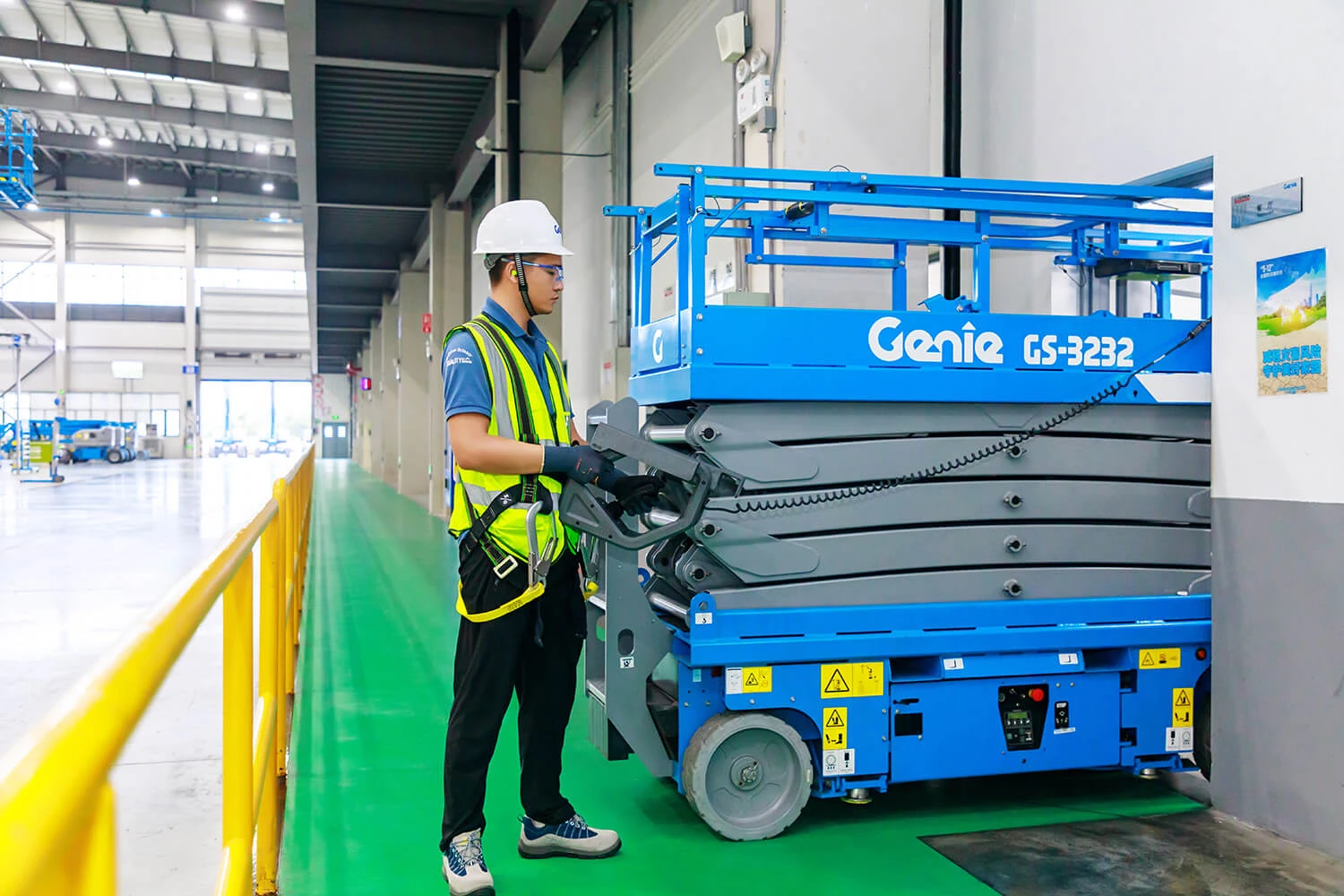

The scissor lift's electric drive system enables quiet and clean operation, producing no emissions, making the GS-3232 suitable for indoor use in sensitive areas such as hospitals, schools, and office buildings. With its narrow width and tight turning radius, the GS-3232 is designed to fit through standard doorways with the rails folded.

With self-leveling hydraulic outriggers, the GS3232 scissor lift can automatically stabilise itself on uneven surfaces or slopes up to 5°, ensuring operator safety and reducing setup time.

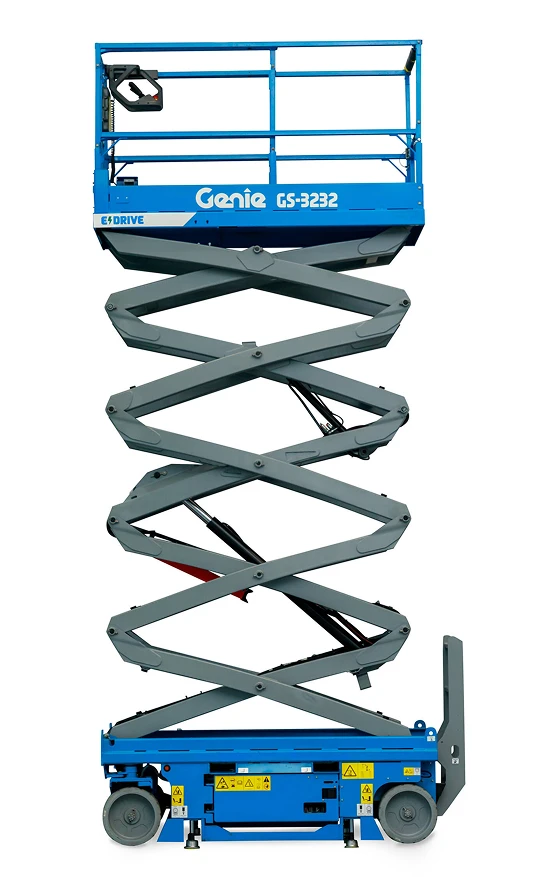

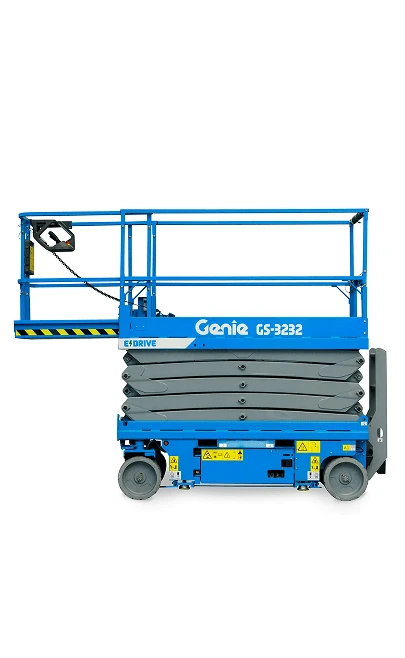

A large platform workspace allows operators with loads of room to work comfortably at height. The 0.91m roll-out platform provides workers with some extra horizontal reach, helping to access hard-to-reach areas.

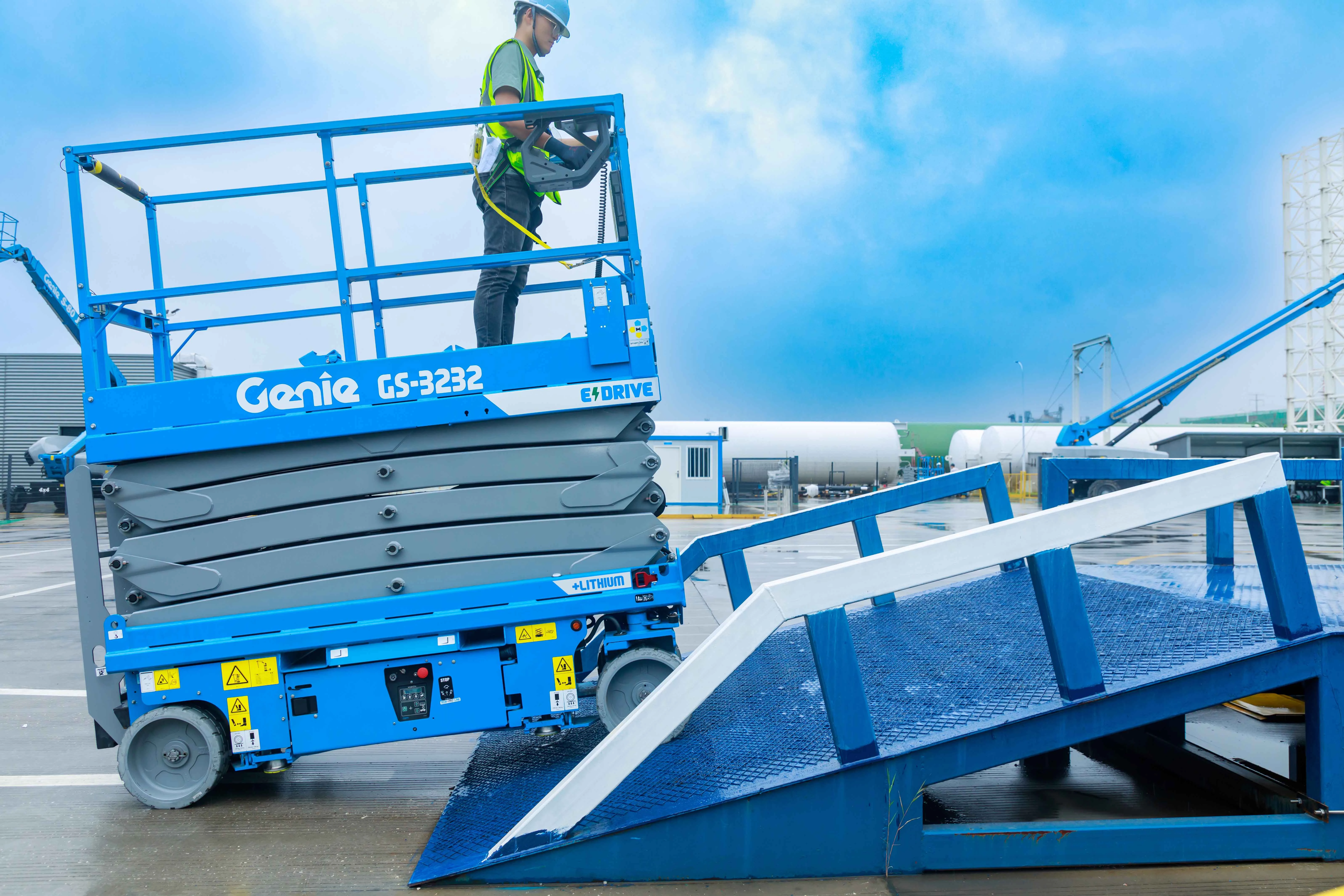

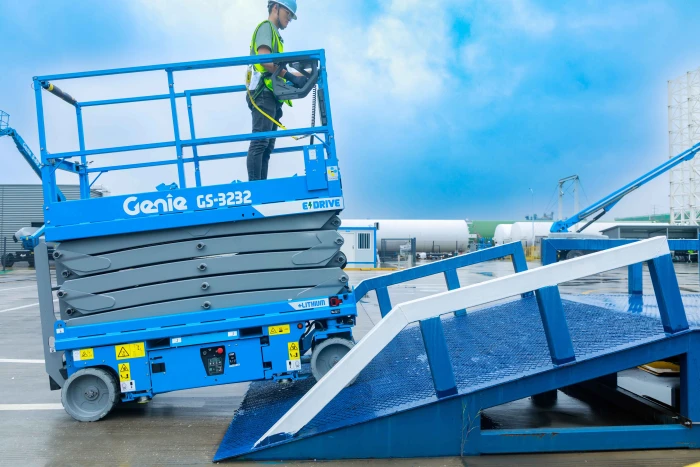

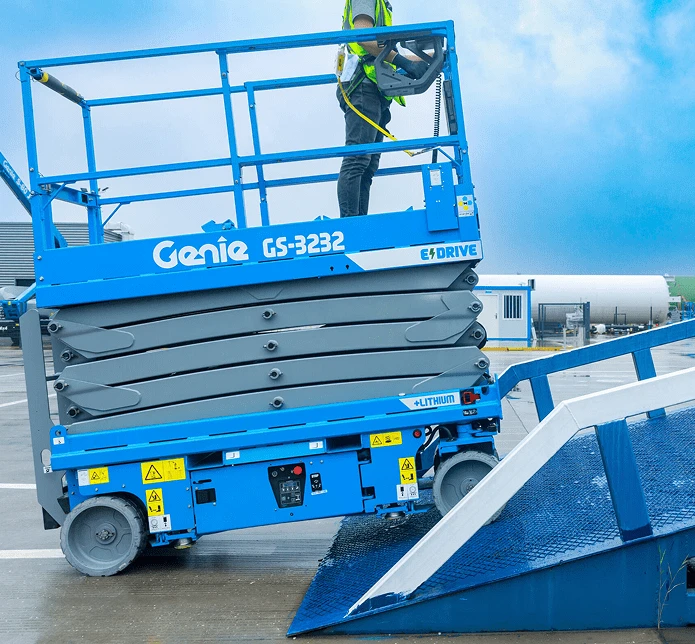

The GS-3232 is designed to handle slopes and loading ramps, thanks to its 25% gradeability and 14° breakover angle.

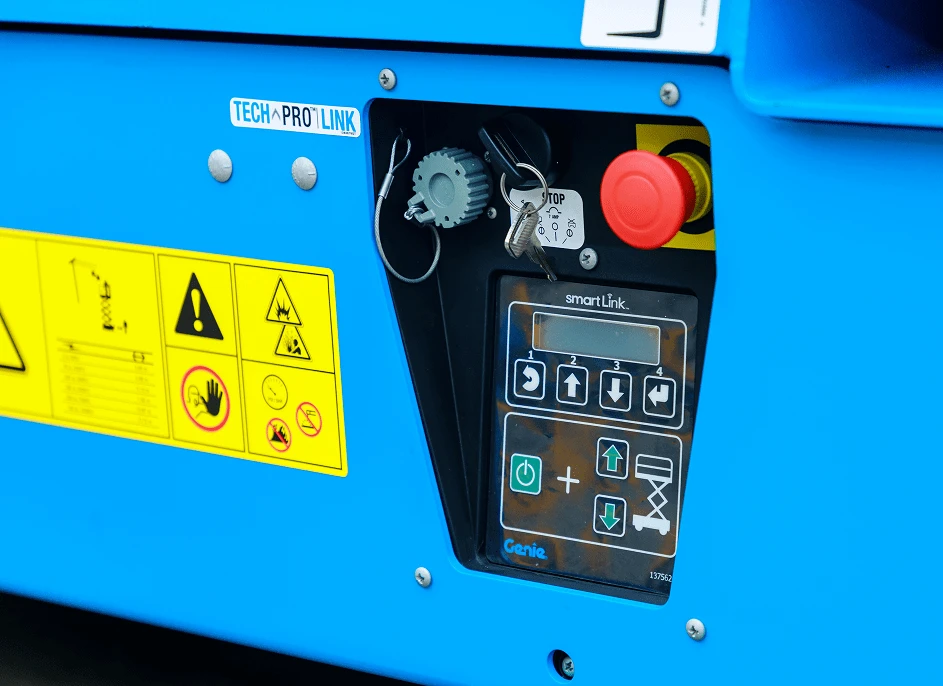

Equipped with swing-out component trays, it gives you easy access to the scissor lift's main parts, allowing for easier and quicker inspections and servicing.

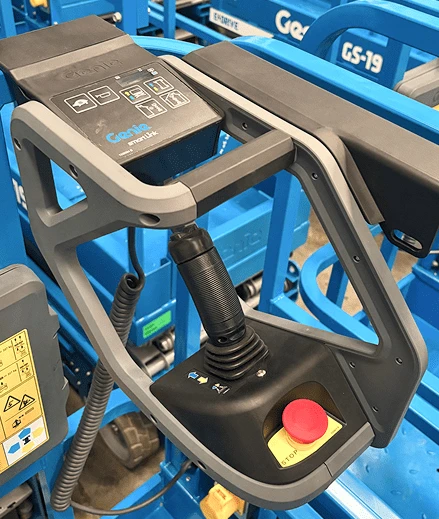

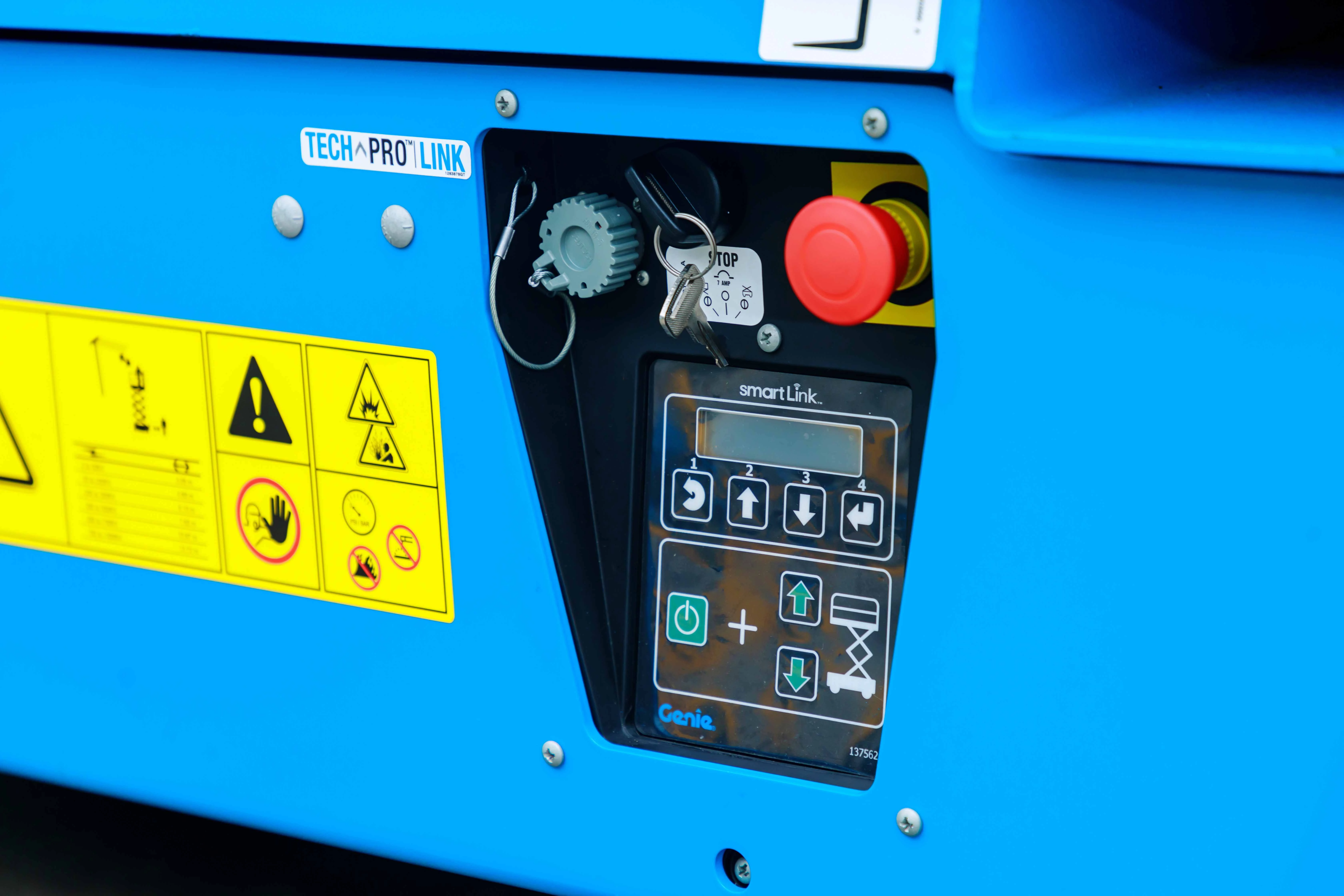

The new redesigned control box is lighter, more robust, and easier to hold, improving the user experience.

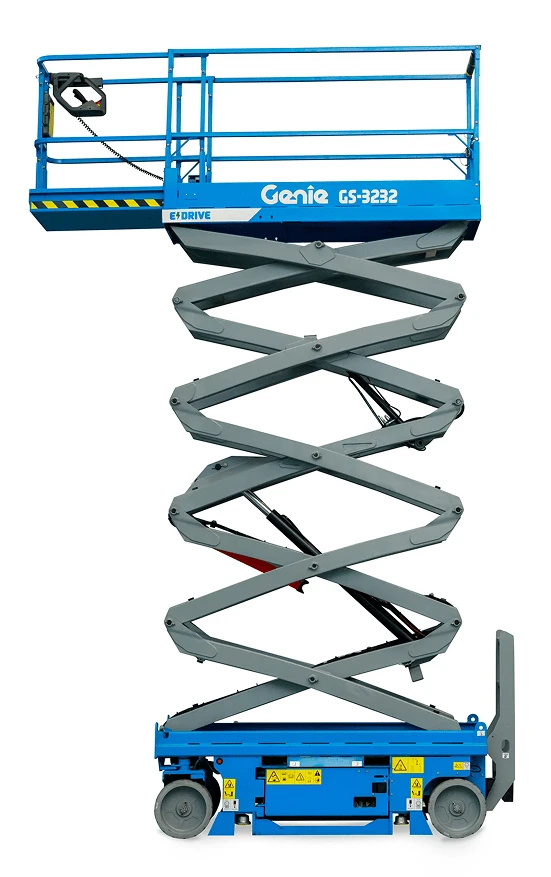

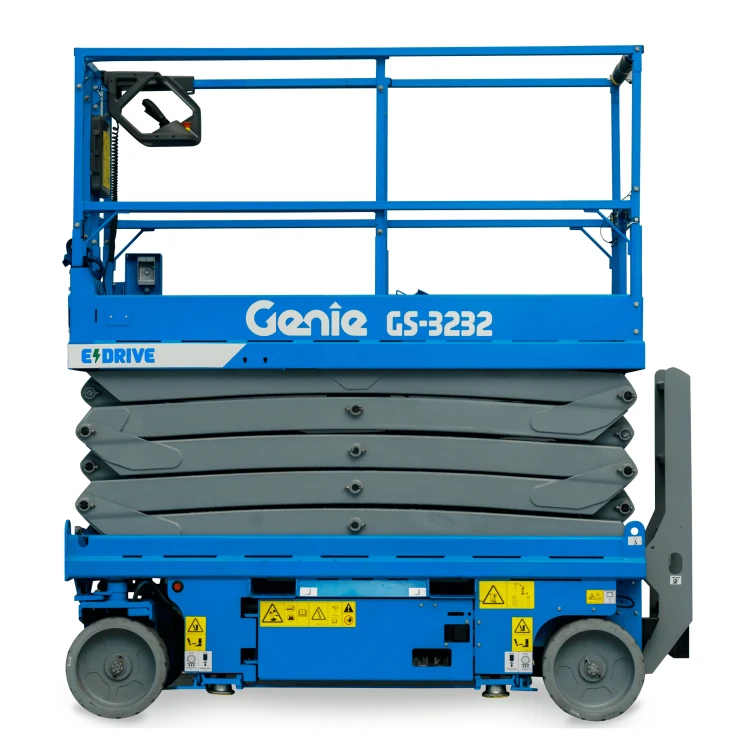

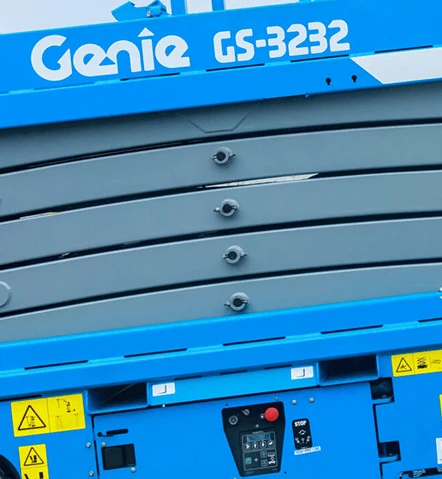

Curved scissor pack provides strength and rigidity and allows the links to fold closer together. Its rigidity reduces platform bounce and offers smooth raising and lowering. The design allows water to drain easily, helping to prevent pooling and reduce the risk of rust or corrosion over time.

Equipped with AGM maintenance-free batteries eliminates the need for watering, saving on maintenance costs.

Decals and safety labels are placed in recessed areas on the chassis, safeguarding them from damage caused by contact with obstacles or job-site wear and tear.

Built-in fork lift pockets allow the Genie scissor lift to be easily loaded, unloaded, and transported.

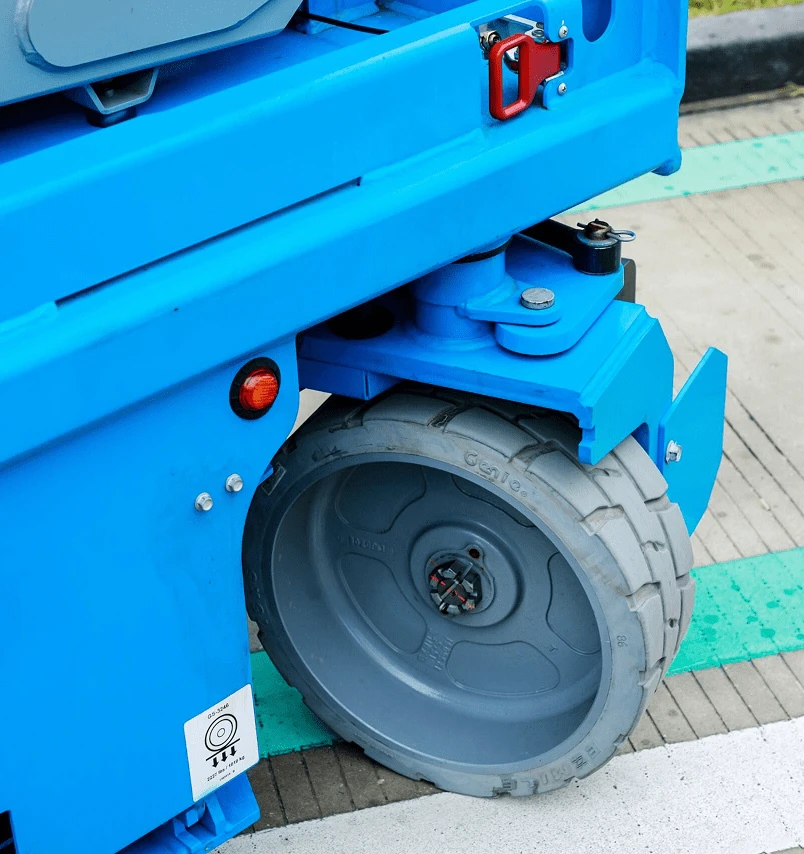

Non marking tyres protect the floor from any marks or scuffs.

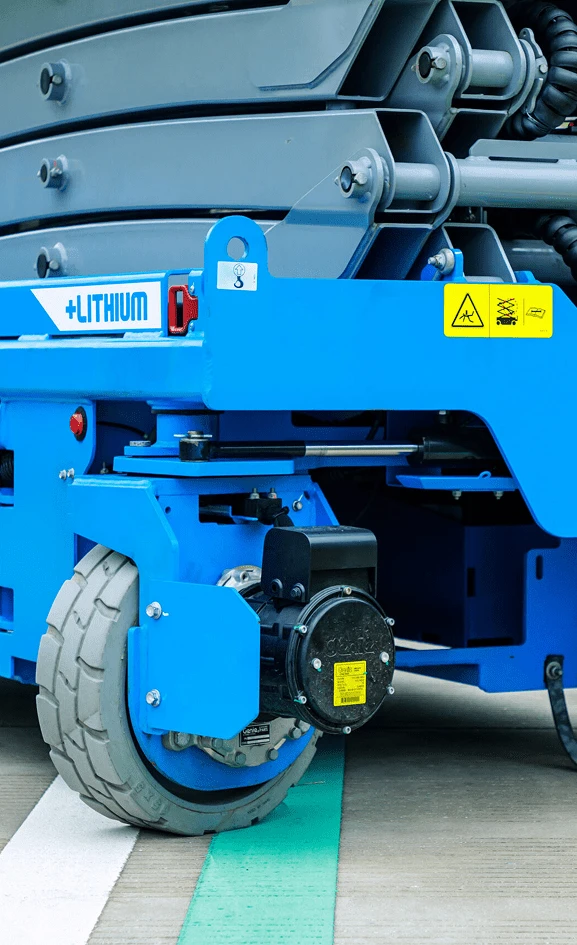

The maintenance-free lithium-ion battery outperforms the AGM in every condition, can be used in extreme low and high temperatures, has faster charging times, and has a longer battery life.

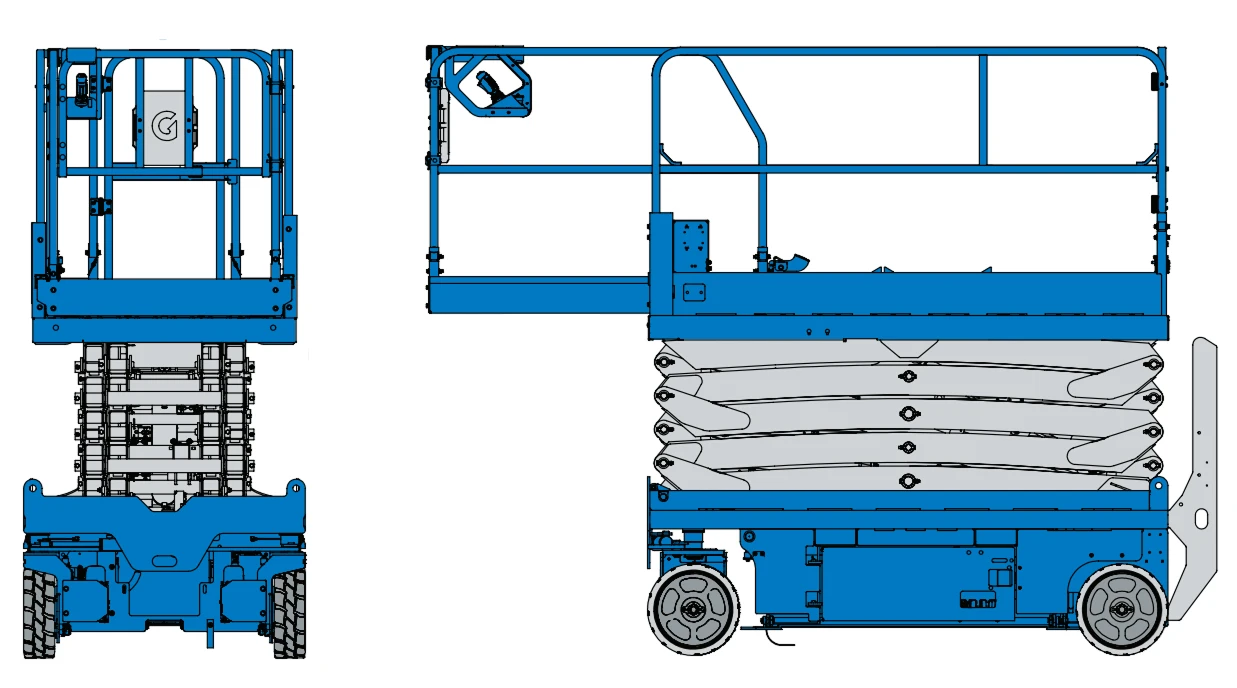

Specification

Genie's AC E-Drive system delivers industry leading efficiency and extended runtime.

Indoor working height 11.60m

Outdoor working height 7.49m

Indoor platform height 7.85m

Lift capacity 227kg

Stowed height 2.52m

Machine width 0.81m

Machine length 2.36m

Machine weight 2451kg

Free, no obligation site survey.

Making sure that you achieve the most from your budget.

Servicing & Repairs

Our in-house, Genie factory-trained team of mobile engineers cover the entire country, ensuring expert support is never far away.

Genie OEM Parts

Keep your Genie in operation with genuine Genie OEM parts. With thousands of parts stocked and ready for delivery nationwide.

FAQs

The GS3232 has an indoor working height of 11.60m and an outdoor working height of 7.49m.

No, when raised at full height, the automatic hydraulic outriggers are deployed, preventing the machine from being driven or moved.

The GS3232 scissor lift has a lifting capacity of 227kg.

Absolutely, as the UK's authorised Genie dealer, you can purchase the GS-3232 scissor lift or any other Genie lift machines from Workplatform Ltd.

We’ve got you covered. As the UK’s authorised Genie dealer, we provide expert advice, competitive pricing, and nationwide delivery. Contact our sales team to get a quote for a Genie GS3232 scissor lift.

We are here to support you

Our only priority is to supply you with the best and safest products and support you to the highest level.

Servicing & Repairs

Genie OEM Parts

Service Contracts

Finance Options

Accessories

Part Exchange

Operator Training

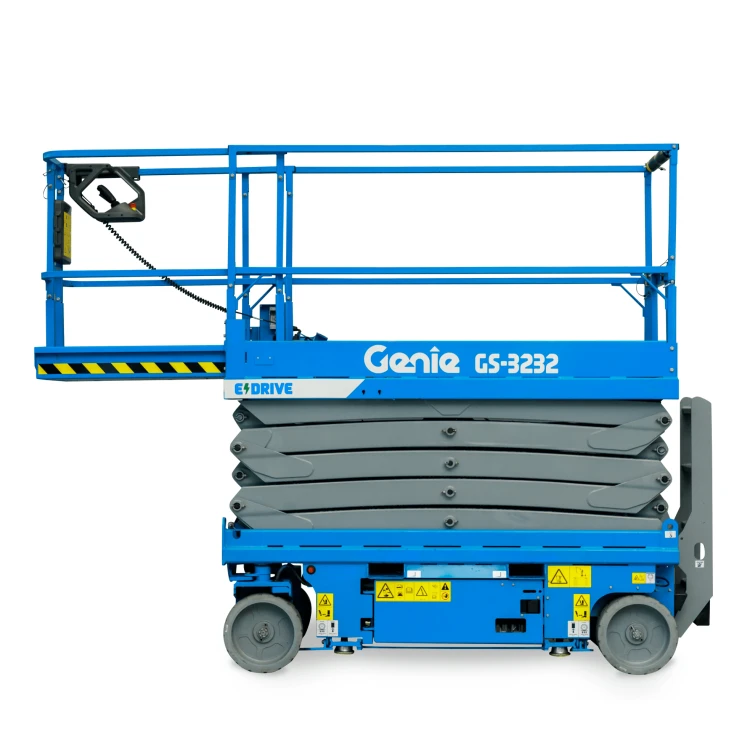

Genie GS-3232 electric scissor lift is a narrow, compact, high-reach electric scissor lift ideal for indoor and outdoor applications, where a high working height and narrow scissor lift is needed. Its 0.81m narrow width is ideal for confined working spaces like maintenance tasks, warehouses, and between shelving systems, and its 11.60m indoor and 7.49m outdoor working height enables operators to carry out a range of jobs at height with ease.

Powered by Genie's AC E-Drive technology, featuring maintenance-free electric motors for increased runtime and greater performance, providing quiet, emission-free operation, which makes the GS-3232 a great choice for operation in noise-sensitive or environmentally controlled environments.

Having 25% gradeability and a 14° breakover angle allows the machine to easily drive up and down slopes and loading ramps, while providing stable mobility around the jobsite. To maximize safety, the GS-3232 is also equipped with automatic leveling hydraulic outriggers, allowing it to level on slopes 5˚ or less.

The large platform space, along with its 0.91m roll-out extension deck, gives operators sufficient space to work effectively and comfortably even when dealing with equipment.

The Genie GS-3232 electric scissor lift is a suitable option for customers requiring dependable, electric-only operation when needing a high working height in a narrow area.
