Genie Z60 DC

Genie Articulated Boom Lifts

Eco-friendly performance

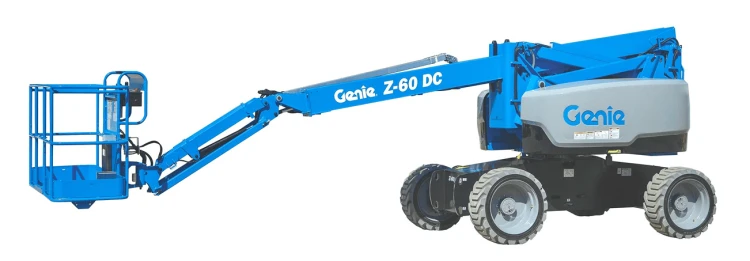

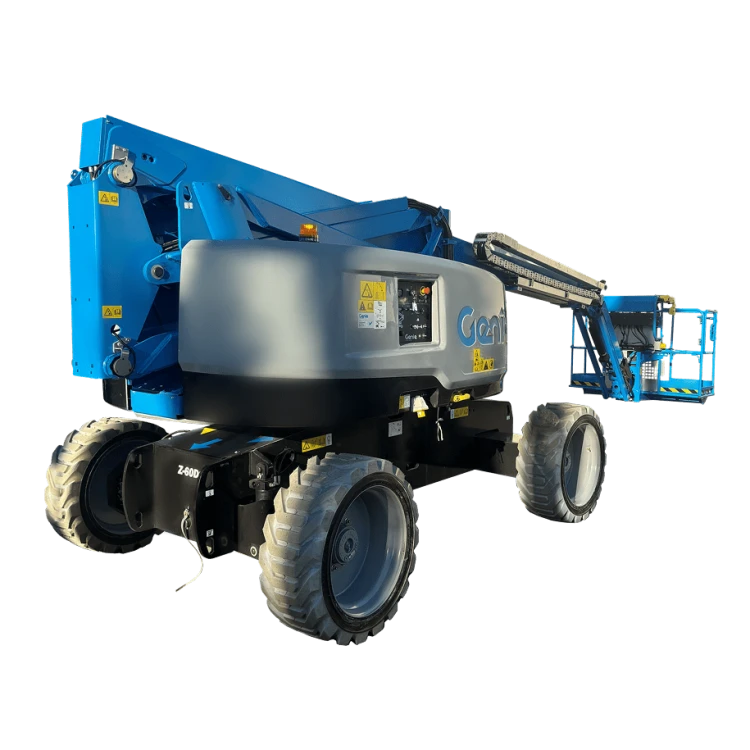

The all-electric Genie Z-60 DC articulating boom combines the benefits of quiet, environment-friendly operation with the four-wheel drive performance of a traditional diesel-powered machine. Providing 20.16m working height, 11.15 horizontal outreach and 7.39m of up and over clearance and with a narrow footprint, makes it ideal for confined working environments.

*IN STOCK

Applications

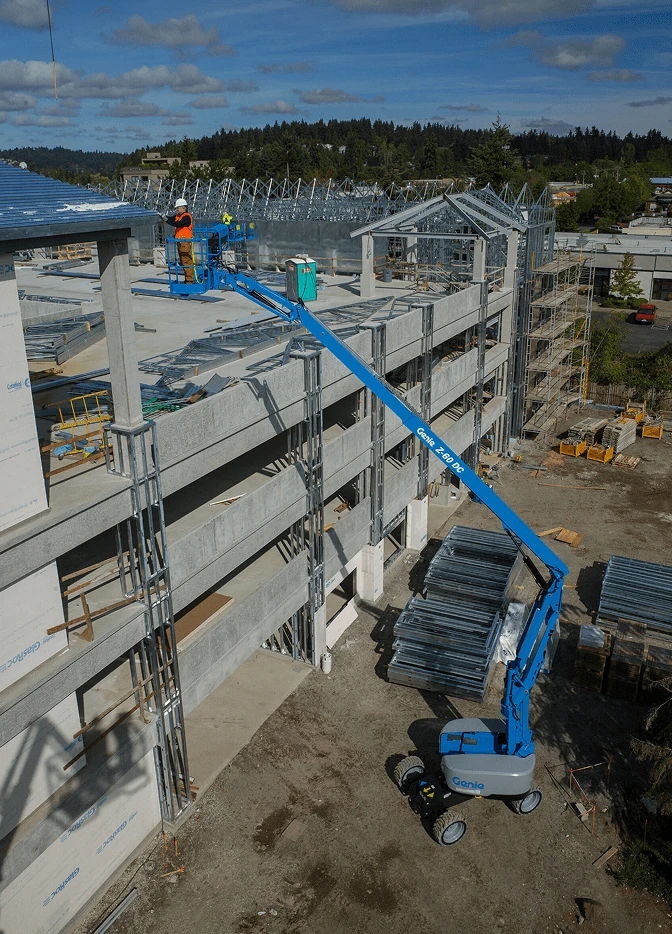

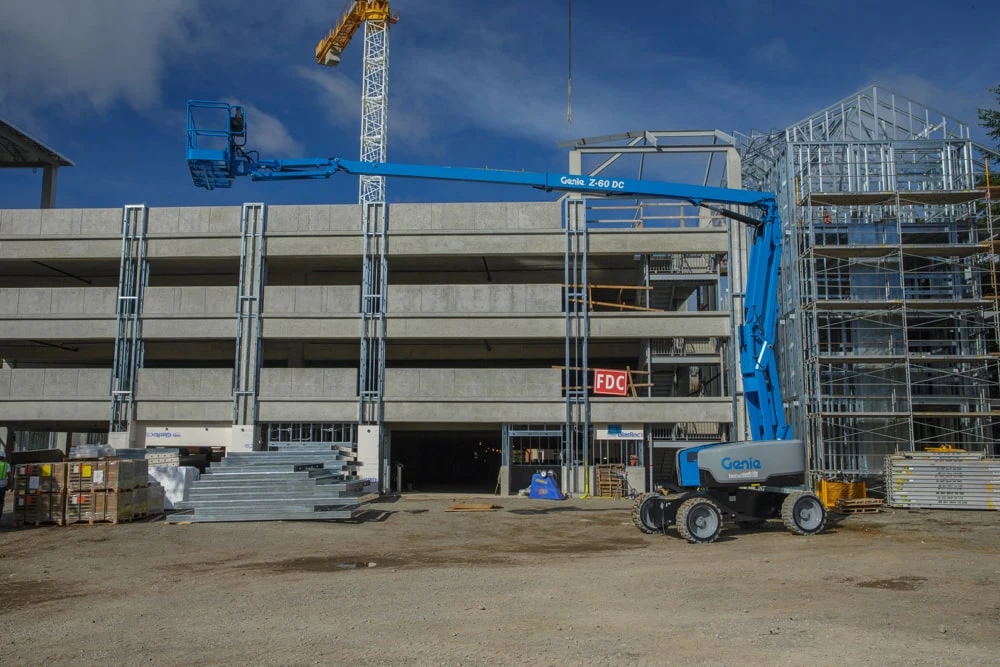

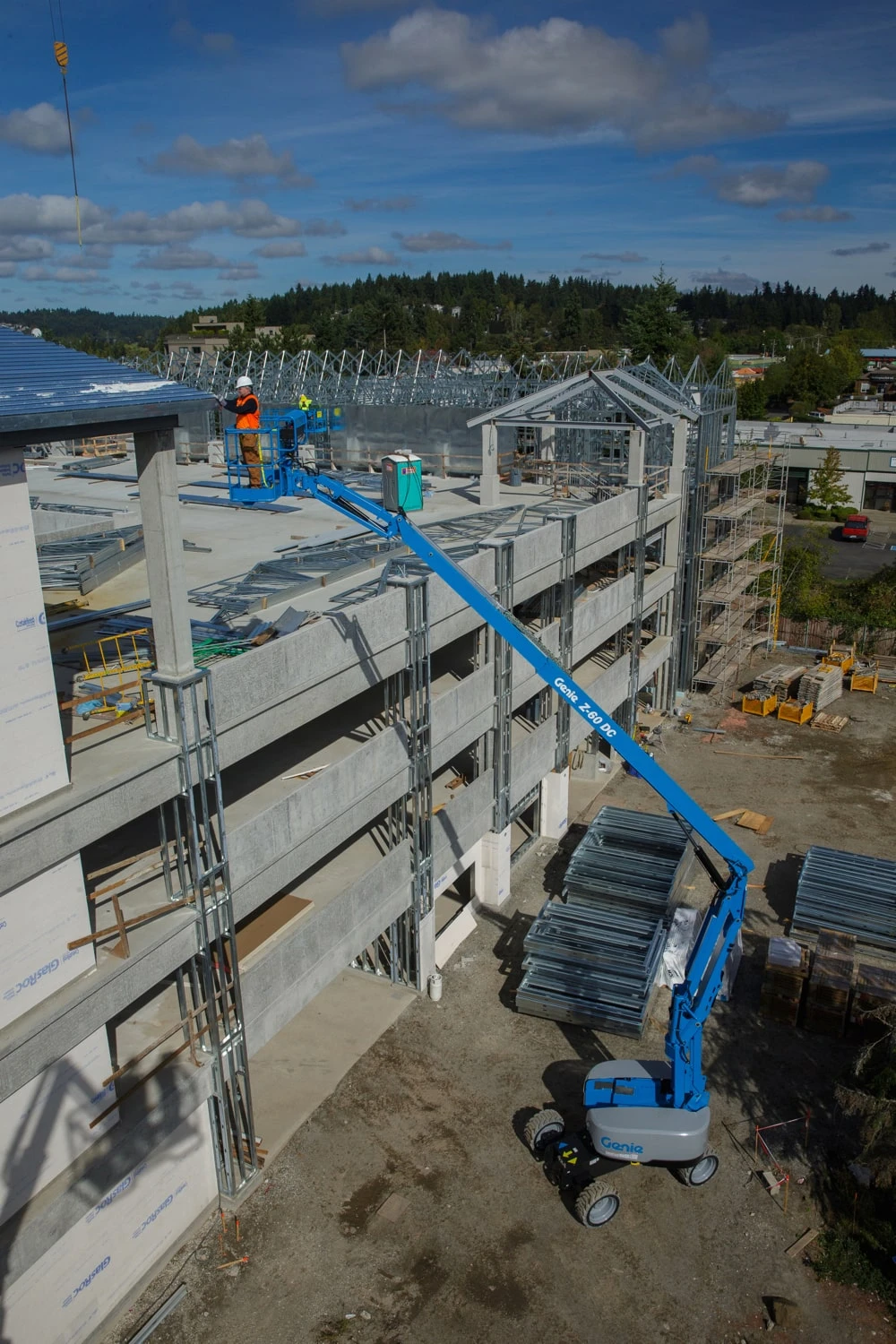

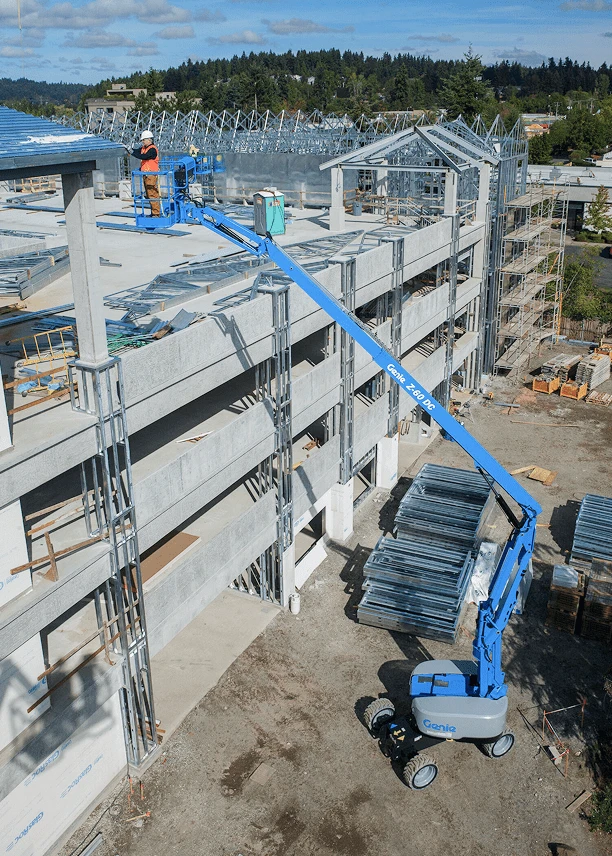

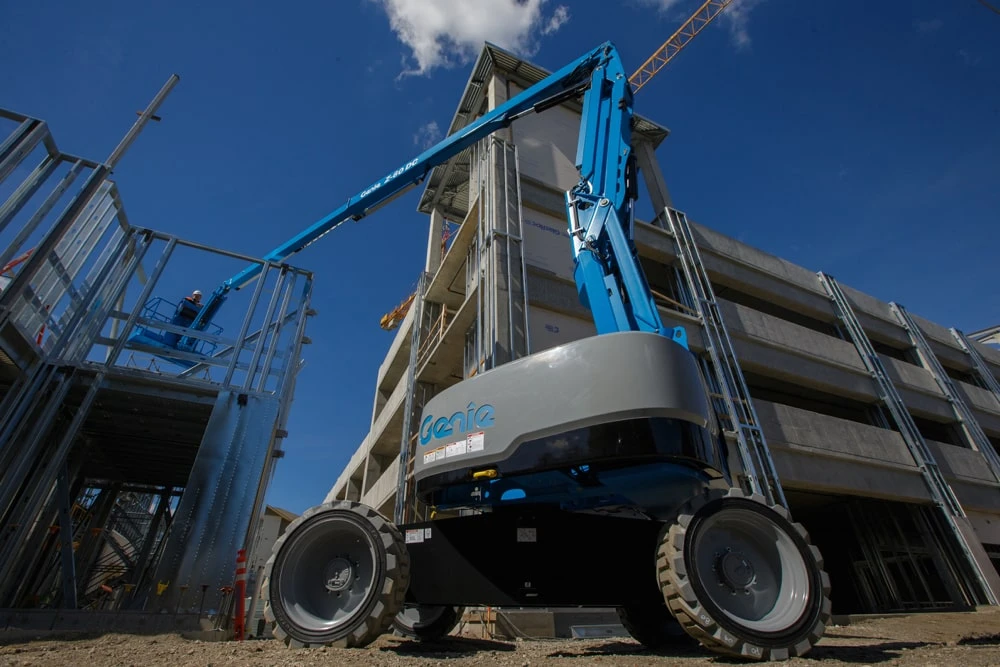

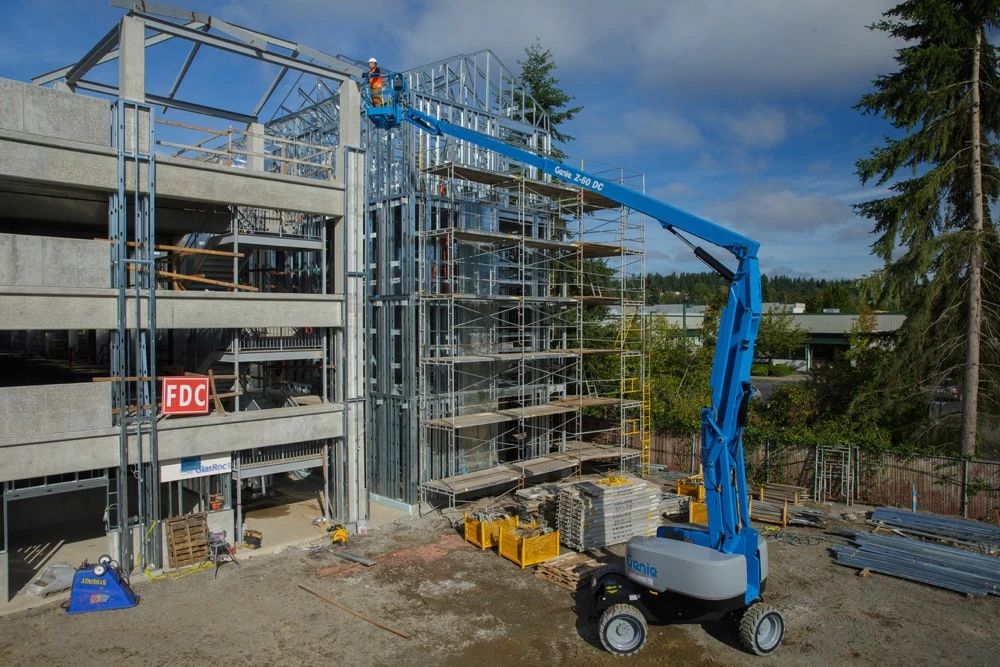

Construction projects
Distribution
Inspection tasks
Installation projects
Maintenance tasks

Features

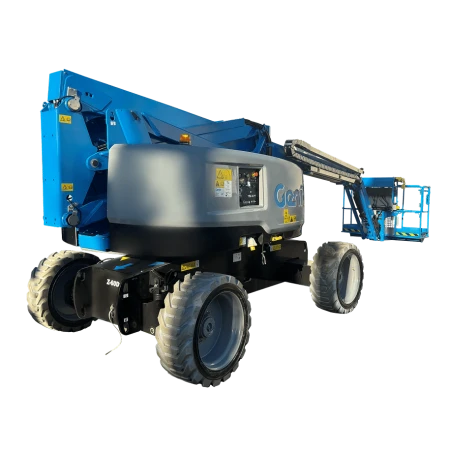

Equipped with a full-time oscillating axle, the Z60 DC adjusts to uneven terrain, enabling it to maintain consistent contact with all wheels for better traction and stability on rough terrain.

Equipped with an articulating jib gives operators more flexibility when it comes to accurately positioning around obstacles.

The Genie Z-60 DC articulating boom is fully electric, offering zero emission and quiet operation while still providing powerful performance.

The dual parallelogram lift design allows operators to ascend and descend along a vertical plane without having to retract or extend either boom section.

Allows precise handling of both lift and drive functions, giving the operator better control and accuracy during operation.

Provides exceptional drive performance on rough terrain.

Allows operators to descend quickly, which is useful when having to pick up tools or materials.

Provides a great working envelope that allows operators to work efficiently.

Specification

The Genie Z-60 DC is an economical and clean solution to working at height with no compromise in performance.

Working height 20.16m
Platform height 18.16m
Horizontal reach 11.15m
Up and over clearance 7.39m
Lift capacity 227kg
Machine width 2.49m
Below ground reach 2.46m
Machine weight 7530kg
Free, no obligation site survey.

Making sure that you achieve the most from your budget.

Servicing & Repairs

Our in-house, Genie factory-trained team of mobile engineers cover the entire country, ensuring expert support is never far away.

Genie OEM Parts

Keep your Genie in operation with genuine Genie OEM parts. With thousands of parts stocked and ready for delivery nationwide.

FAQs

The Genie Z60 DC offers a working height of 20.16m.

The Genie Z60 DC can be used for a wide range of applications, both indoors and outdoors, thanks to zero-emission operations and powerful performance.

Yes, as the UK's authorised Genie dealer, we sell all the Genie articulating boom lifts.

We’ve got you covered. As the UK’s authorised Genie dealer, we provide expert advice, competitive pricing, and nationwide delivery. Contact our sales team for price and availability for the Genie Z60 DC articulated boom lift.

We are here to support you

Our only priority is to supply you with the best and safest products and support you to the highest level.

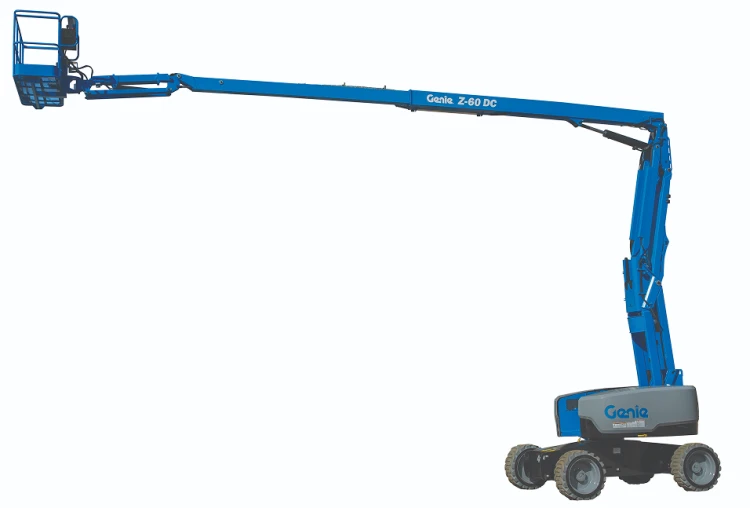

Genie Z-60 DC Articulating Boom Lift

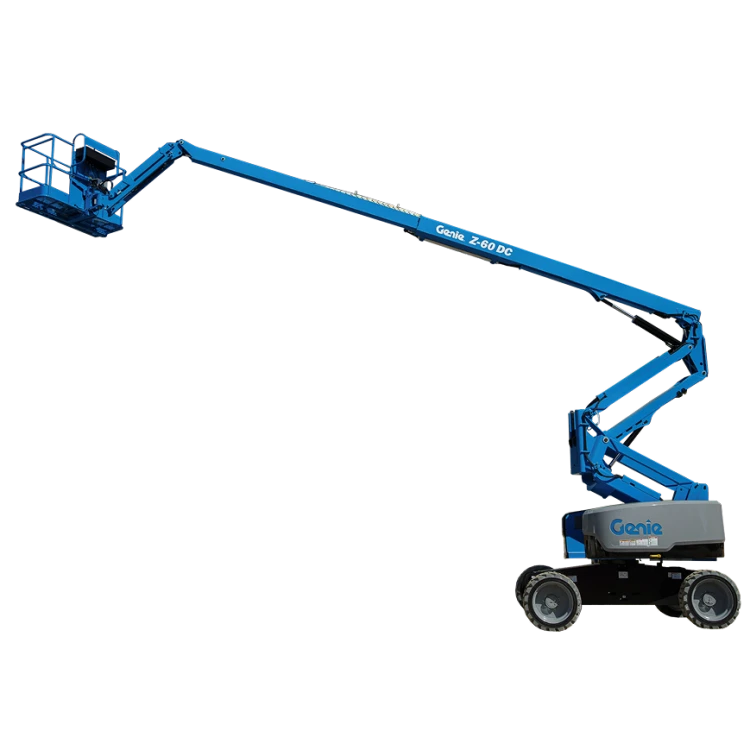

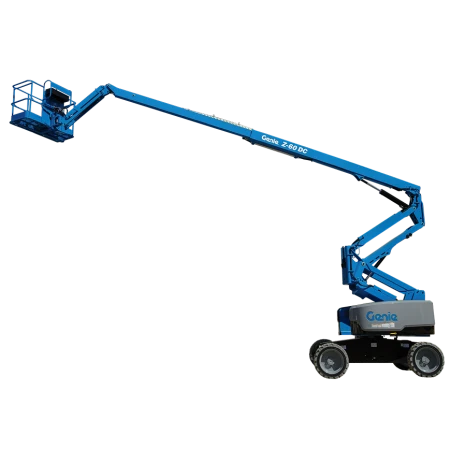

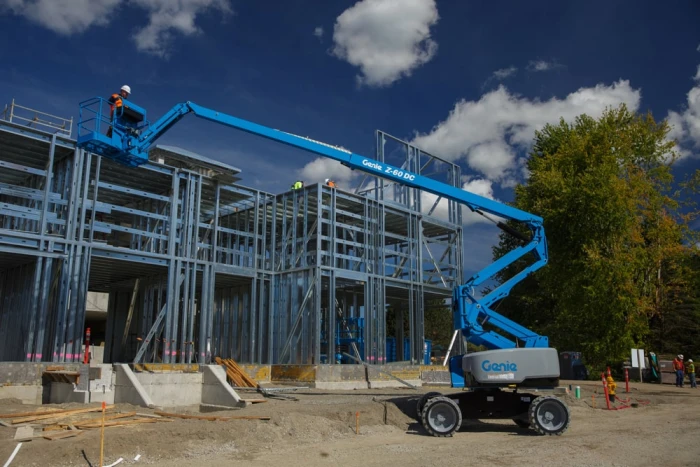

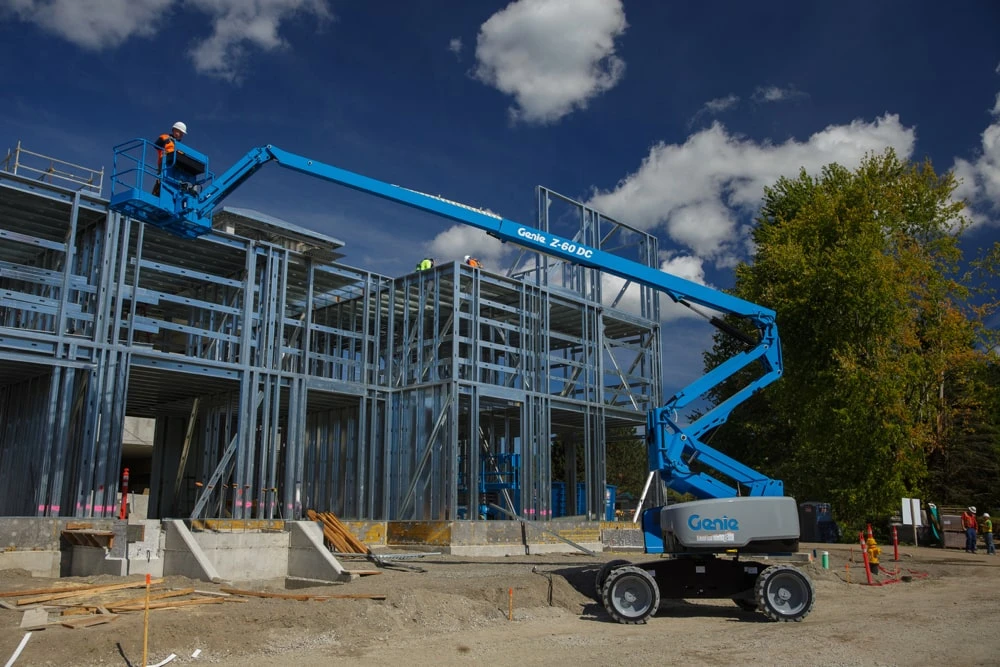

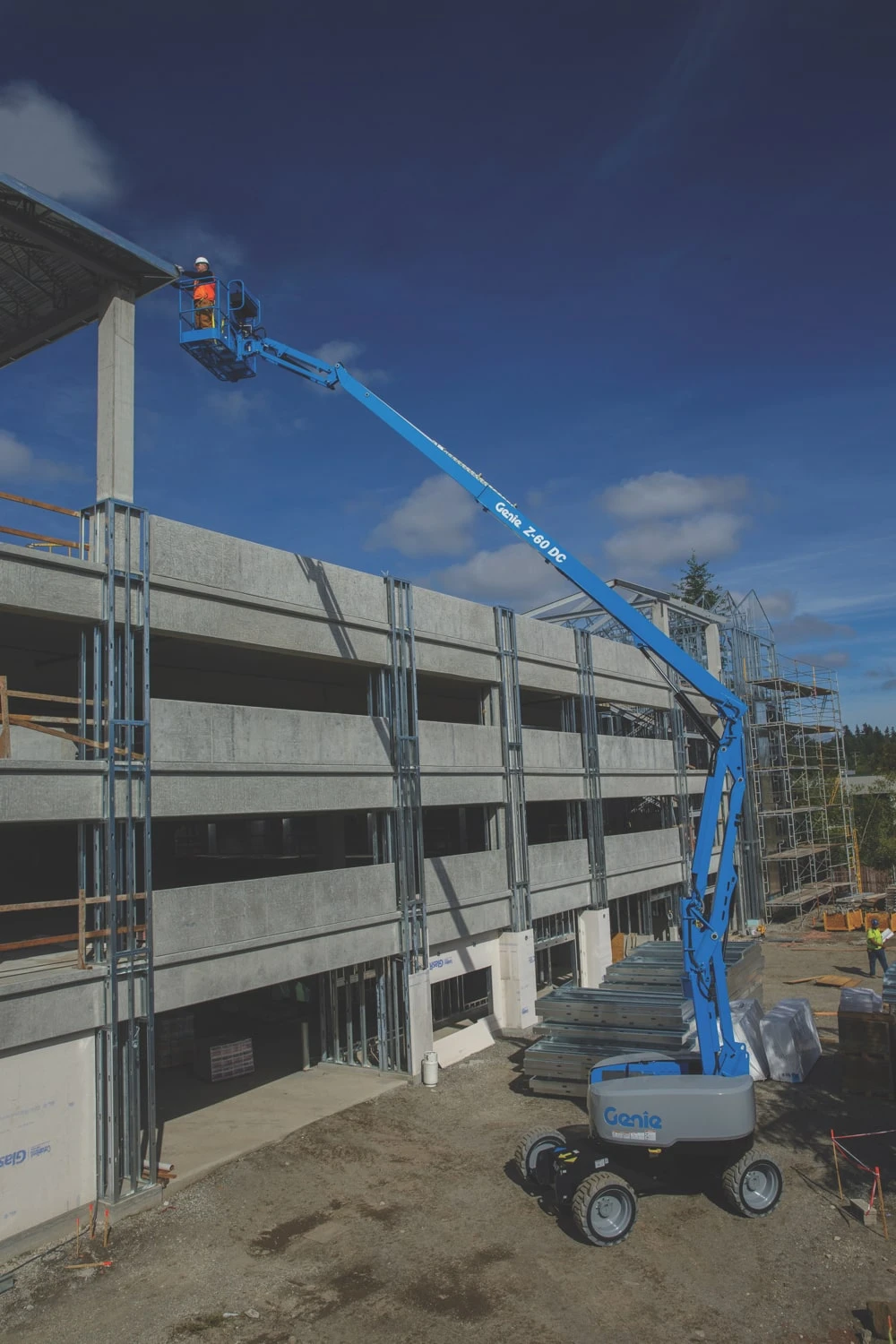

The Genie Z-60 DC articulating boom lift pairs powerful four-wheel drive capability with the noise-free, clean operation of an all-electric unit for superior versatility on both indoor and outdoor job sites. With a working height of 20.16m, 11.15m horizontal reach, and 7.39m up-and-over clearance, it boasts a very productive working envelope with a very compact footprint.

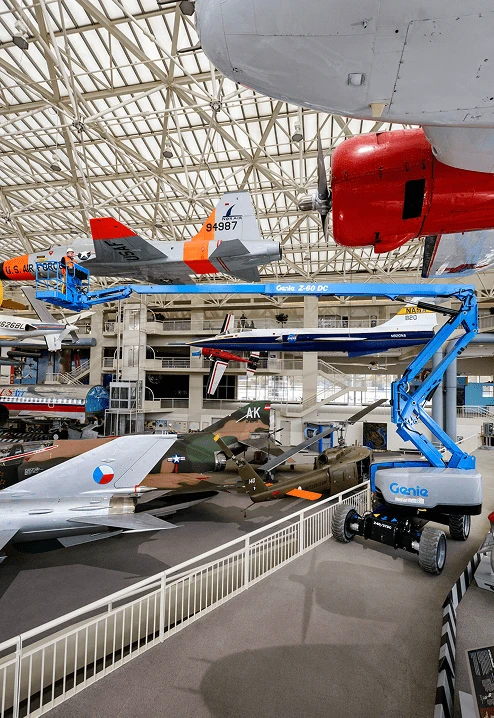

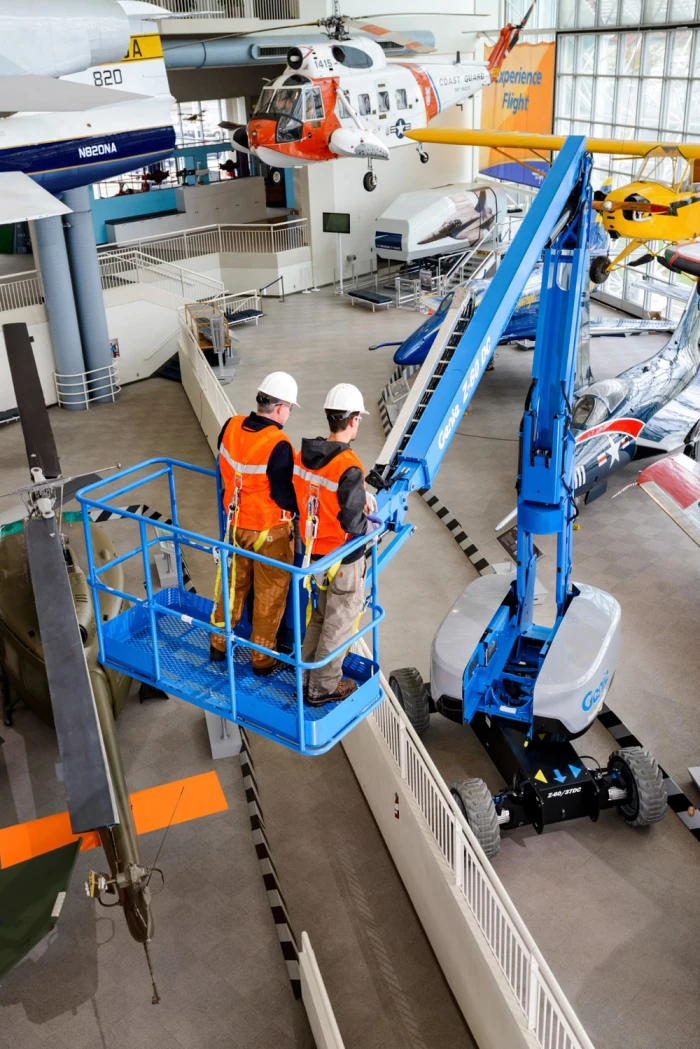

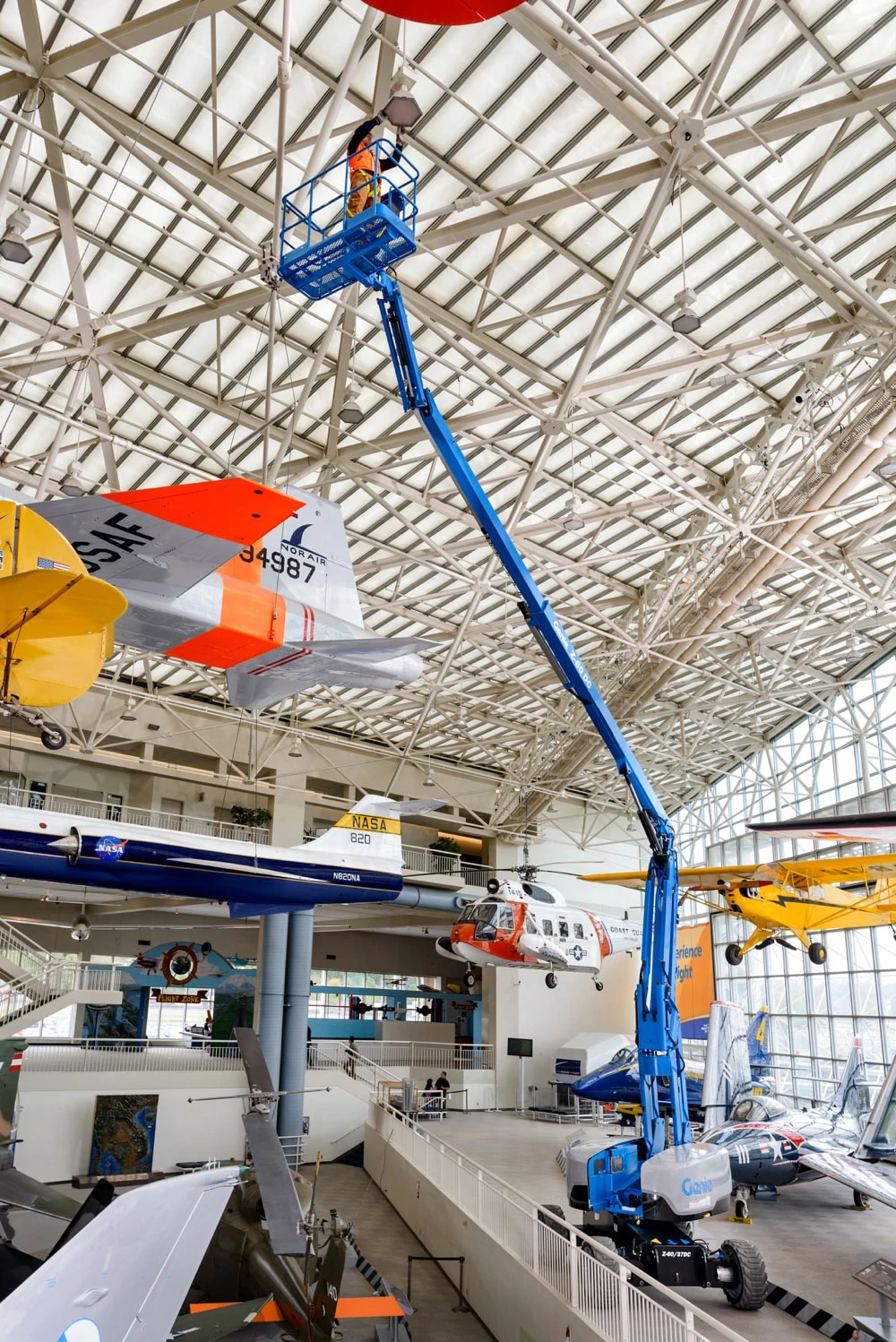

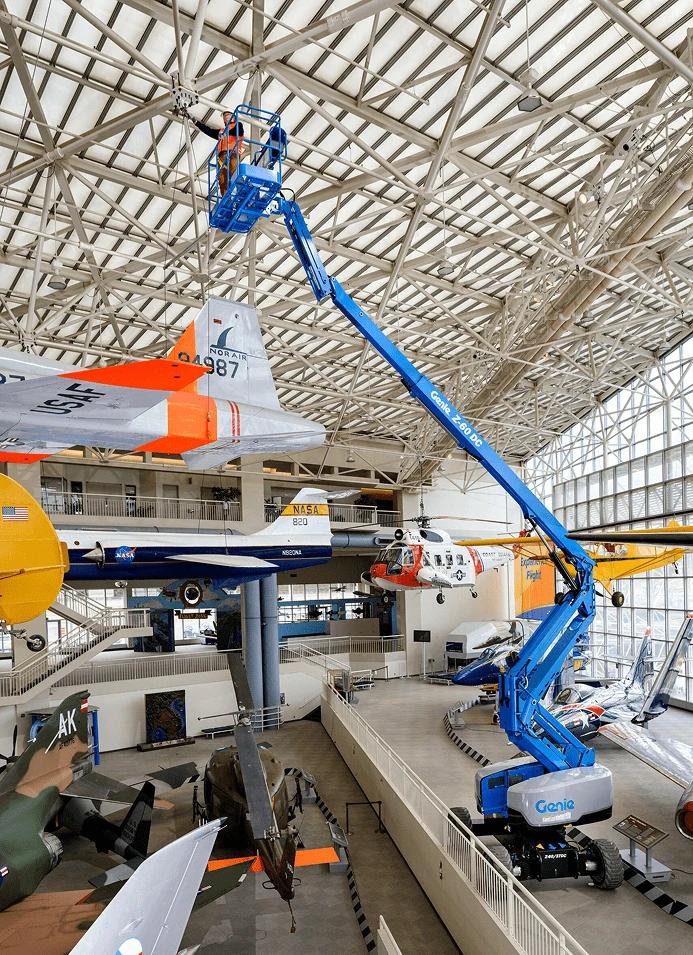

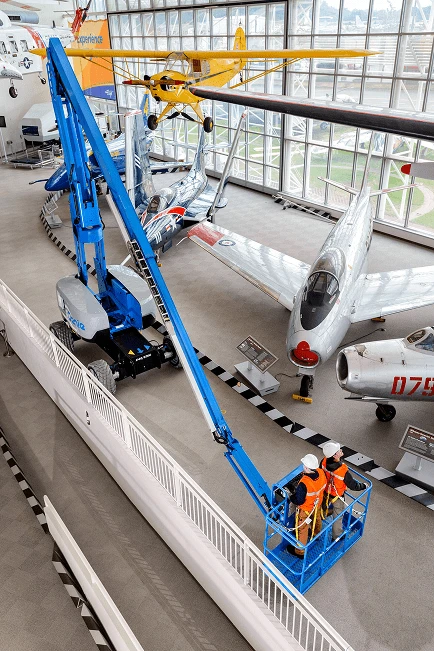

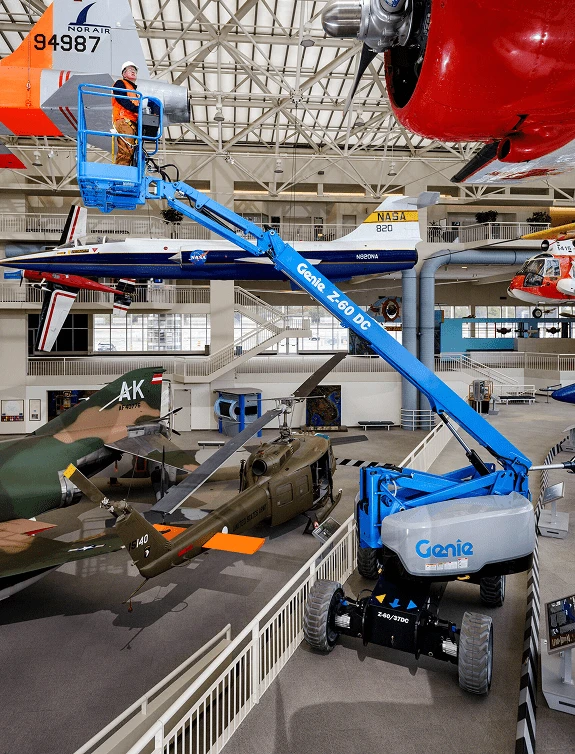

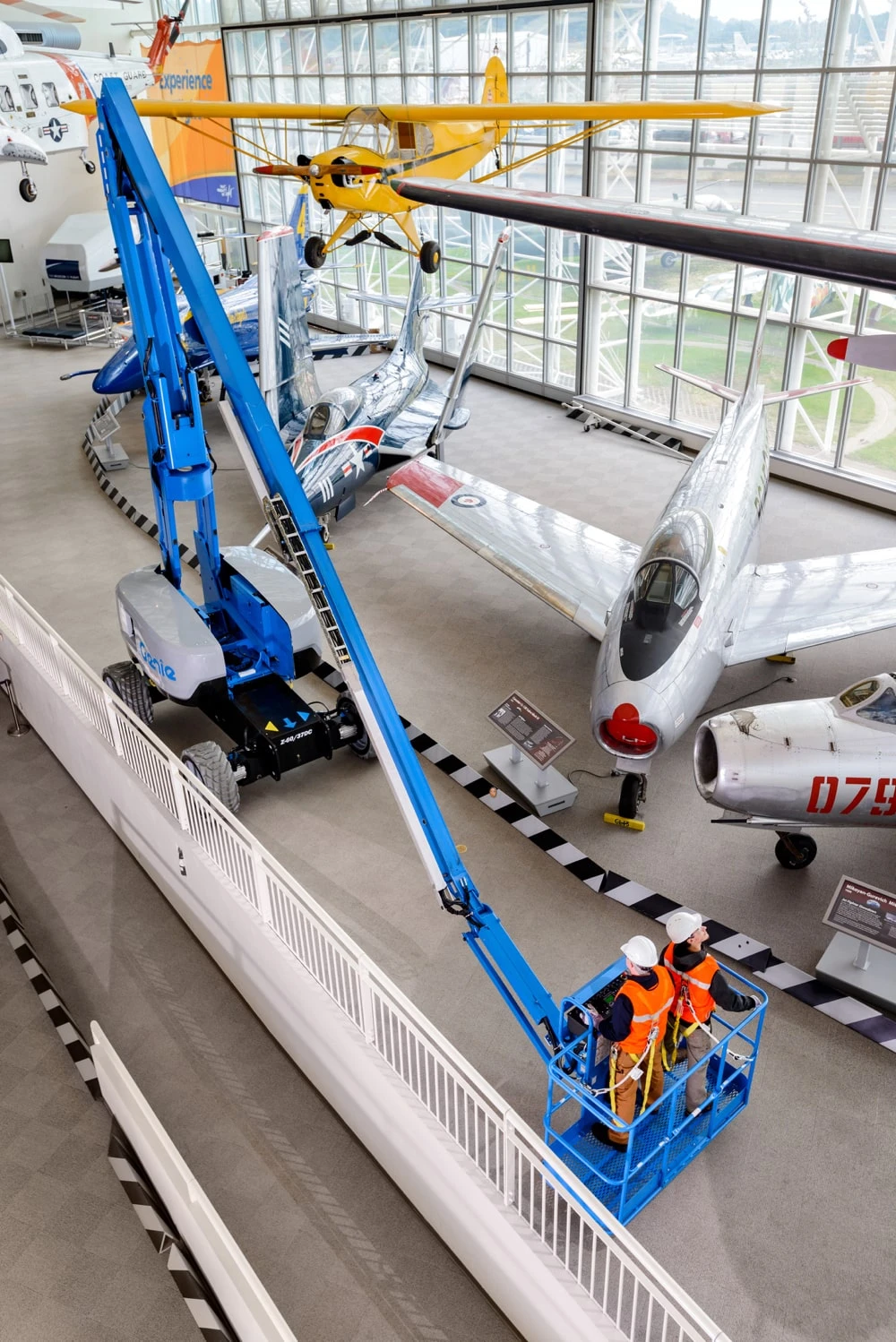

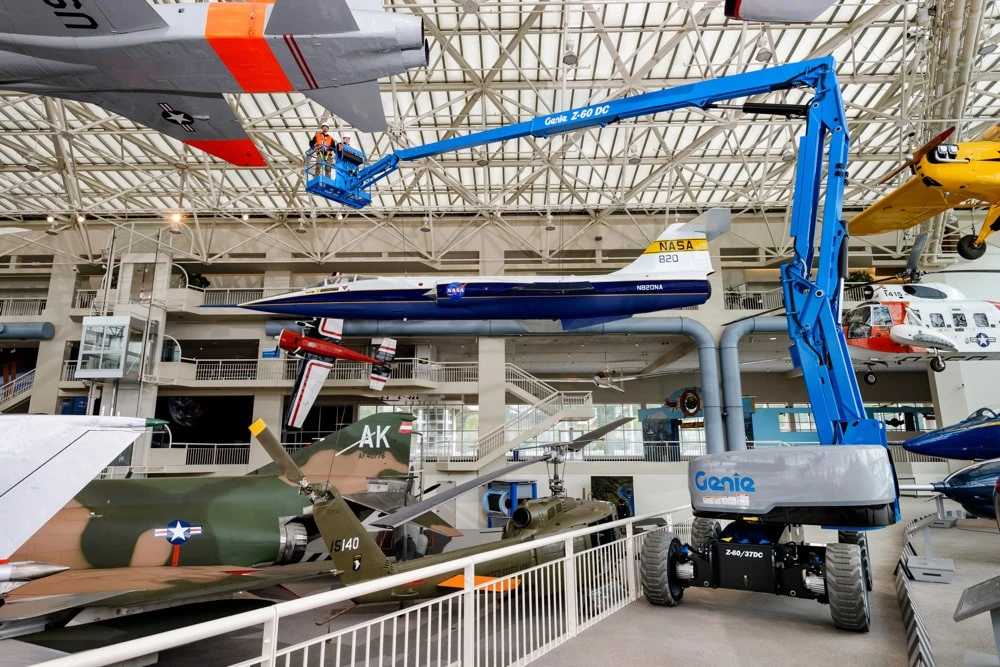

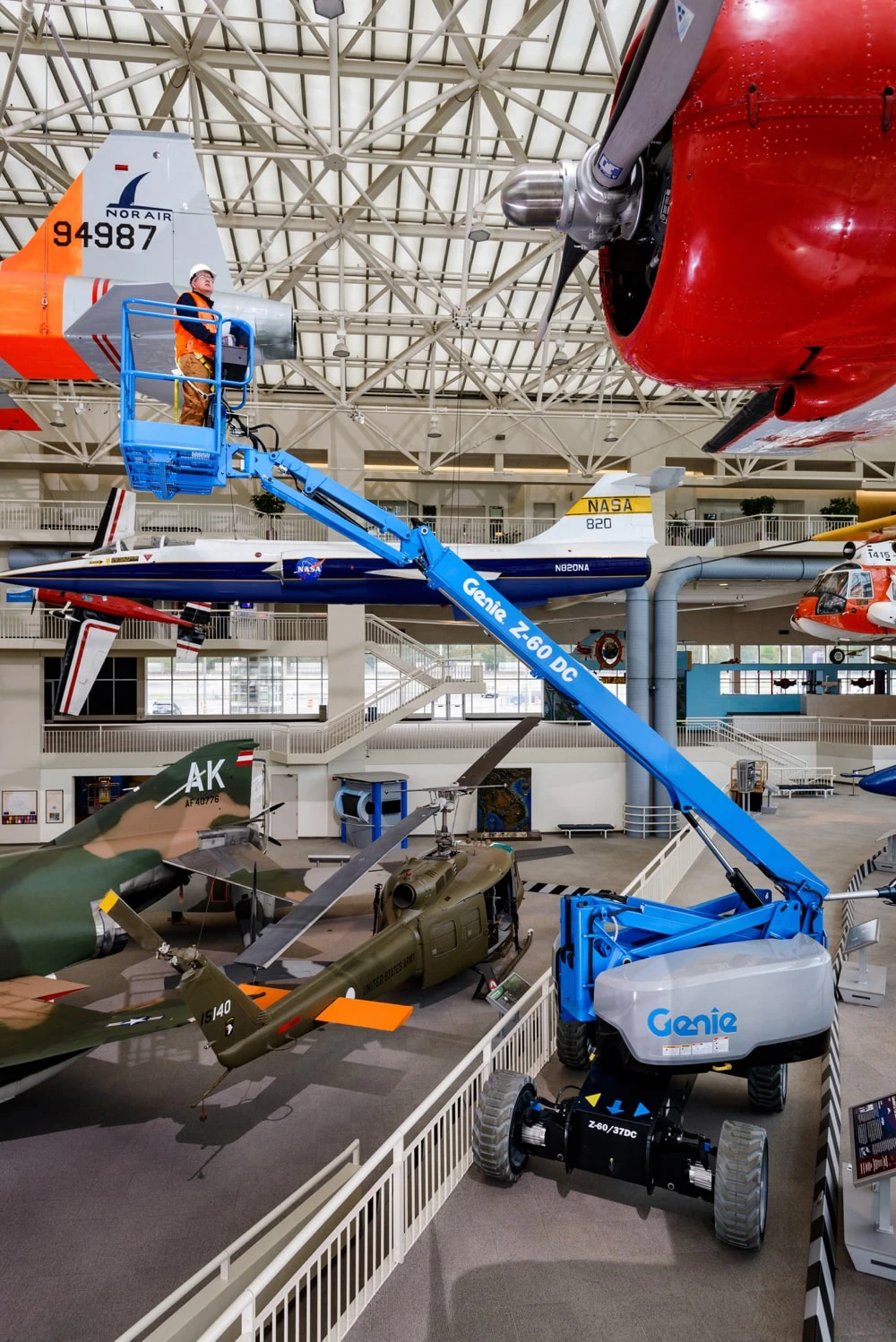

The Z60 DC boom lift is perfect for jobs in high-density locations such as convention centres, shopping malls, factories, sports arenas, and inner-city job sites. Fully electric, the Z-60 DC gets a full day's work out of one charge, with no emissions or excessive noise, making it ideally suited to sensitive or enclosed working areas. Its AC drive system allows the machine to be low maintenance with improved drive performance, and the active oscillating axle runs full-time to keep the machine stable on uneven terrain. Genie Fast Mast™ boom system allows operators to lower, recover tools or materials, and establish to full height in less time, saving time on the jobsite and enhancing jobsite productivity.

The 4WD system, along with 45% gradeability, gives this electric boom the terrain handling capability of a traditional diesel machine, but without the environmental costs. With smooth drive operation and a dual parallelogram boom design delivers vertical positioning that is easy and accurate. A 1.52m articulating boom comes with 135 degrees of vertical swing, providing extra manoeuvrability working over and around obstacles, and the platform has 355-degree non-continuous turntable rotation to give optimum positioning at height.

From maintenance and inspection to installations and construction, the Genie Z-60 DC is an economical and clean solution to working at height with no compromise in performance.

Buy the Genie Z60 DC Articulating Boom Lift

Contact us today for information on pricing and availability.
